KIA Spectra 2008 2.G Owner's Manual

Specifications
2 8
1
2
3
4
5
6
7
8
9
Item 4 Door 5 Door
Overall length 4,500 (177.2)/4,510 (177,5)*
14,350 (171.3)
Overall width 1,735 (68.3) 1,735 (68.3)
Overall height 1,470 (57.9) 1,470 (57.9)
Front tread 1,495 (58.9) 1,495 (58.9)
Rear tread 1,485 (58.5) 1,485 (58.5)
Wheelbase 2,610 (102.8) 2,610 (102.8)
SPECIFICATIONS
The specifications given here are for general information only. Although this information was accurate at the time of
printing, Kia reserves the right to change its vehicles or their specifications without notice. Please check with an
authorized Kia dealer for more precise and more up-to-date information.
mm (in)
Item Inflation PressureWheel lug nut torque
Tire Wheel kPa (psi) kg·m (lb·ft, N·m)
P195/60R15 6.0J x 15 210 (30)9~11
(65~79, 88~107)
P205/50R16 6.0J x 16 210 (30)9~11
(65~79, 88~107)
Compact spare tire
T125/70D15 420 (60)9~11
(65~79, 88~107)
Tires
Dimensions
*1: Sporty pack only

83
1
2
3
4
5
6
7
8
9
Specifications

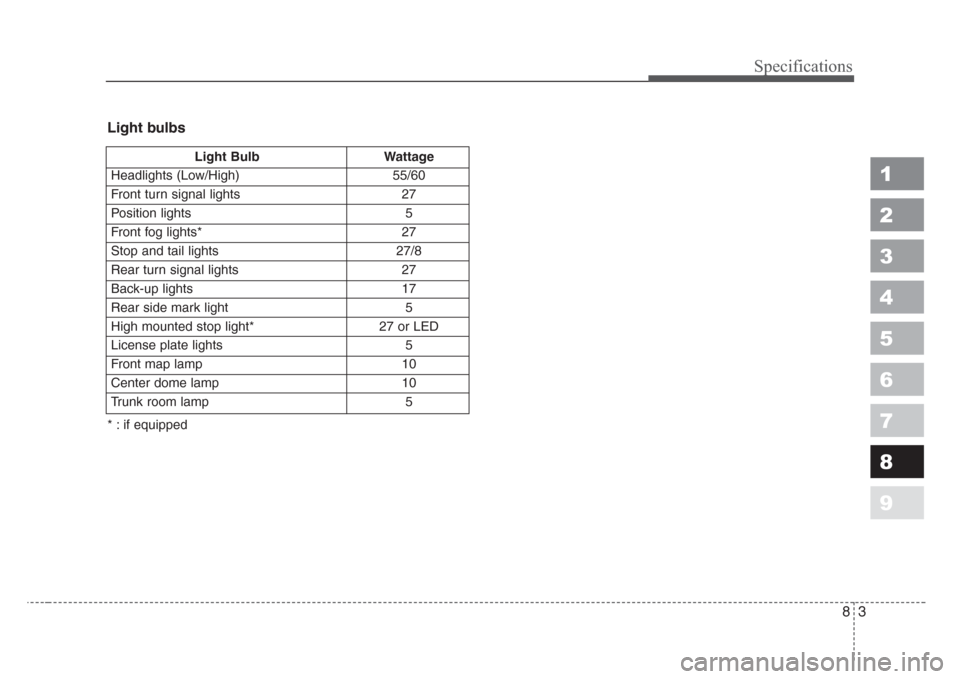

Light Bulb Wattage
Headlights (Low/High) 55/60
Front turn signal lights 27
Position lights 5
Front fog lights* 27
Stop and tail lights 27/8
Rear turn signal lights 27
Back-up lights 17
Rear side mark light 5
High mounted stop light* 27 or LED
License plate lights 5
Front map lamp 10
Center dome lamp 10
Trunk room lamp 5
Light bulbs
* : if equipped

Specifications
4 8
1
2
3
4
5
6
7
8
9

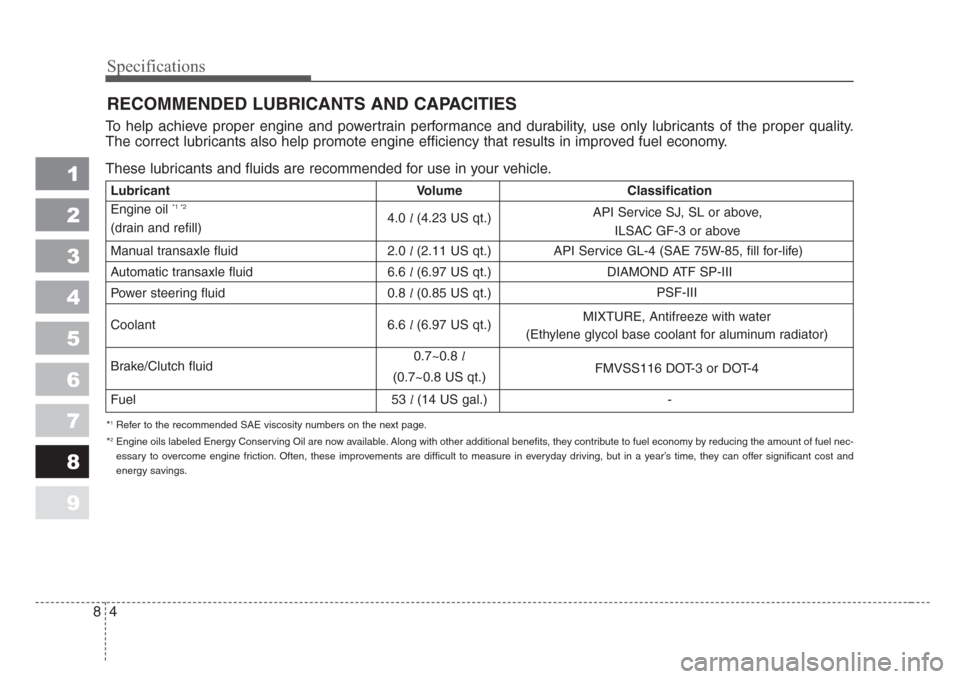

RECOMMENDED LUBRICANTS AND CAPACITIES
To help achieve proper engine and powertrain performance and durability, use only lubricants of the proper quality.
The correct lubricants also help promote engine efficiency that results in improved fuel economy.
These lubricants and fluids are recommended for use in your vehicle.
*1Refer to the recommended SAE viscosity numbers on the next page.
*
2Engine oils labeled Energy Conserving Oil are now available. Along with other additional benefits, they contribute to fuel economy by reducing the amount of fuel nec-
essary to overcome engine friction. Often, these improvements are difficult to measure in everyday driving, but in a year’s time, they can offer significant cost and
energy savings.
Lubricant Volume Classification
Engine oil
*1 *2
4.0l(4.23 US qt.)
(drain and refill)
Manual transaxle fluid 2.0 l(2.11 US qt.)
Automatic transaxle fluid 6.6 l(6.97 US qt.) DIAMOND ATF SP-III
Power steering fluid 0.8 l(0.85 US qt.)
Coolant 6.6 l(6.97 US qt.)
Brake/Clutch fluid0.7~0.8l
(0.7~0.8 US qt.)
Fuel 53 l(14 US gal.) -API Service SJ, SL or above,
ILSAC GF-3 or above
API Service GL-4 (SAE 75W-85, fill for-life)
PSF-III
FMVSS116 DOT-3 or DOT-4 MIXTURE, Antifreeze with water
(Ethylene glycol base coolant for aluminum radiator)

85
1
2
3
4
5
6
7
8
9
Specifications
Recommended SAE viscosity
number
✽
NOTICE
Always be sure to clean the area
around any filler plug, drain plug,
or dipstick before checking or drain-
ing any lubricant. This is especially
important in dusty or sandy areas
and when the vehicle is used on
unpaved roads. Cleaning the plug
and dipstick areas will prevent dirt
and grit from entering the engine
and other mechanisms that could be
damaged.
Temperature Range for SAE Viscosity Numbers
Temperature
Engine Oil *
1
°C
(°F)-30 -20 -10 0 10 20 30 40 50
-10 0 20 40 60 80 100 120
1. For better fuel economy, it is recommended to use the engine oil of a viscosity grade SAE 5W-
20,5W-30 (API SJ, SL / ILSAC GF-3). However, if the engine oil is not available in your coun-
try, select the proper engine oil using the engine oil viscosity chart.
10W-30
5W-20, 5W-30
Engine oil viscosity (thickness) has an effect on fuel economy and cold
weather operating (starting and oil flow). Lower viscosity engine oils can pro-
vide better fuel economy and cold weather performance, however, higher vis-
cosity engine oils are required for satisfactory lubrication in hot weather.
Using oils of any viscosity other than those recommended could result in
engine damage.
When choosing an oil, consider the range of temperature your vehicle will be
operated in before the next oil change. Proceed to select the recommended
oil viscosity from the chart.

1
2
3
4
5
6
7
8
9
Index

Index
2 9
1
2
3
4
5
6
7
8
9
Air bag - Advanced supplemental restraint system ..3-50
Air cleaner....................................................................7-21
Antenna ........................................................................3-98
Audio system ................................................................3-99
Automatic transaxle.............................................4-6, 7-18
Battery ..........................................................................7-25
Before driving ................................................................5-5
Brake system ................................................................4-11
Brakes and clutch ........................................................7-15
Climate control air filter.............................................7-22
Cruise control ..............................................................4-21
Defroster .......................................................................4-45
Door locks ......................................................................3-8
Electrical circuit protection........................................6-12
Emergency starting .......................................................6-9
Emission control system ...............................................5-3
Engine compartment ...........................................2-4, 7-10Engine cooling system .................................................7-12
Engine oil and oil filter ...............................................7-11
Exterior care ................................................................7-40
Fuel filler lid ................................................................3-80
Fuel requirements .........................................................5-2
Gauges ..........................................................................4-29
Hazard warning flasher ..............................................4-46
Hood..............................................................................3-78
How to use this manual ................................................1-2
If you have a flat tire...................................................6-24
Ignition switch ...............................................................4-2
Immobilizer system .......................................................3-6
Instrument cluster .......................................................4-28
Instrument panel overview...........................................2-3
Interior care .................................................................7-44
Interior features...........................................................3-90
Interior lights ...............................................................3-87
Interior overview ...........................................................2-2
A
B
C
D
E
G
F
H
I

93
1
2
3
4
5
6
7
8
9
Index
Keys ................................................................................3-2
Label information........................................................5-25
Lighting ........................................................................4-39
Lubricants and fluids ..................................................7-20
Luggage net ..................................................................3-97
Maintenance schedule ...................................................7-3
Maintenance services ....................................................7-2
Manual climate control system ..................................4-47
Manual transaxle .................................................4-5, 7-18
Mirrors .........................................................................3-83
Overheating....................................................................6-8
Owner maintenance ......................................................7-7
Parking brake ..............................................................7-16
Power steering .............................................................7-17Remote keyless entry ....................................................3-3
Road warning ................................................................6-2
Safety belts ...................................................................3-27
Seat................................................................................3-16
Special driving conditions ............................................5-7
Specifications .................................................................8-2
Starting the engine ........................................................4-4
Steering wheel ..............................................................4-18
Storage compartment ..................................................3-88
Suggestions for economical operation .........................5-6
Sunroof .........................................................................3-94
Tires and wheels ..........................................................7-28
Tires pressure monitoring system (TPMS) .................6-3
Towing ..........................................................................6-19
Traction control system ..............................................4-25
Trailer towing ..............................................................5-17
Trunk ............................................................................3-76
Vehicle break-in process ...............................................1-3
Vehicle load limit .........................................................5-11
K
L
M
O
P
R
S
T
V

Index
4 9
1
2
3
4
5
6
7
8
9

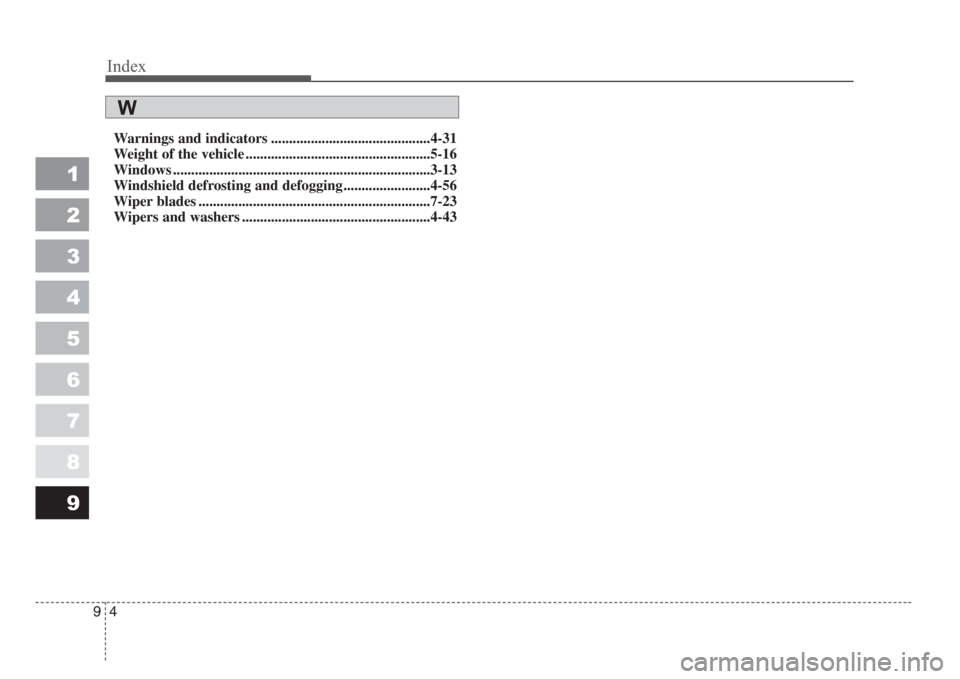

Warnings and indicators ............................................4-31
Weight of the vehicle ...................................................5-16
Windows .......................................................................3-13
Windshield defrosting and defogging........................4-56
Wiper blades ................................................................7-23
Wipers and washers ....................................................4-43
W
