KIA Spectra 2009 2.G Owner's Manual

3 101
Knowing your vehicle
1
2
3
4
5
6
7
8
9
2. TRACK UP/DOWN Button The desired track on the disc cur-rently being played can be select-
ed using the track number.
Press button once to skip for- ward to the beginning of the next
track.
Press within a second after
playback begins to quickly move
backward through a CD.
If you press after more than a
second, it will take you to the
beginning of the track you are now
listening to.3. FF/REW Button If you want to fast forward or reverse
through the compact disc track, push
and hold the FF or REW button.
When you release the button, the
compact disc player will resume
playing.
4. REPEAT (RPT) Button To repeat the track you are current-ly listening to, press the RPT but-
ton. To cancel, press it again.
If you do not release RPT opera- tion when the track ends, it will
automatically be replayed.
This process will be continued until
you push the button again or turn
the Power OFF then ON.
5. CD SCAN Button
To playback the first 10 seconds of each track, press the CD SCAN
button.
Press the CD SCAN button again within 10 sec. when you have
reached the desired track.
6. CD EJECT ButtonWhen the button is pressed with a
CD loaded, the CD will eject.
Forcing to eject : To force to eject a
CD, press this button for more than 3
seconds.
(Do this only when a CD is jammed
and you can not eject it in the normal
way - e.g.) in case that you have
inserted 2 CDs by mistake)7. RANDOM (RDM) ButtonWith random, you can listen to the
tracks in random, rather than
sequential order.
To use random, do the following:
Press the RDM button to listen to
recorded tracks in random
sequence. Press RDM again to can-
cel or turn the power OFF then ON.
The unit defaults to playing tracks in
sequential order.

Knowing your vehicle102
3
1
2
3
4
5
6
7
8
9
✽ ✽

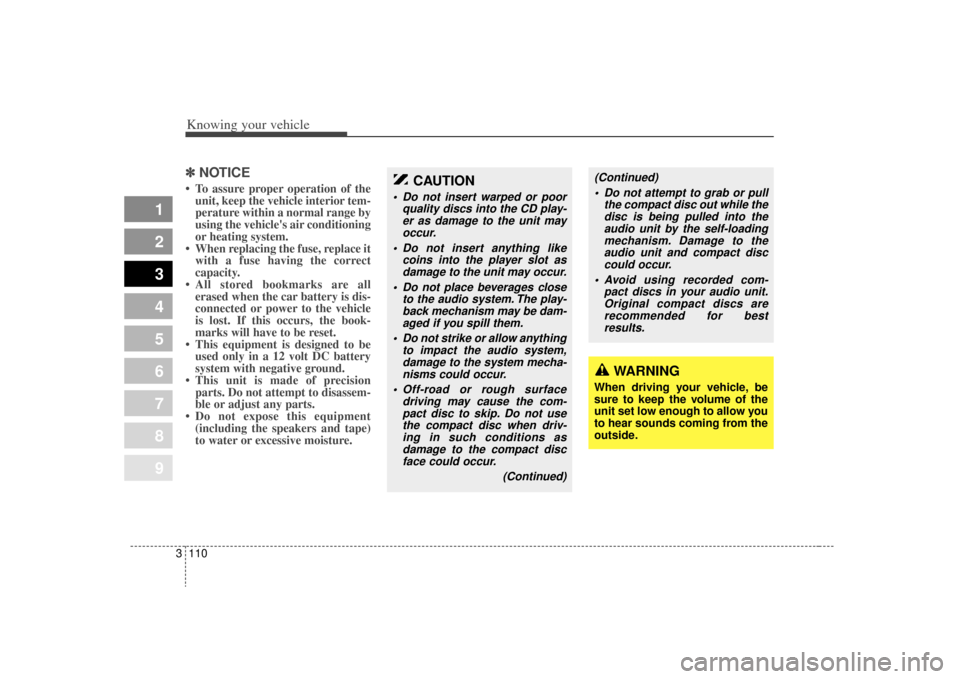

NOTICE• To assure proper operation of the
unit, keep the vehicle interior tem-
perature within a normal range by
using the vehicle's air conditioning
or heating system.
• When replacing the fuse, replace it with a fuse having the correct
capacity.
• All stored bookmarks are all erased when the car battery is dis-
connected or power to the vehicle
is lost. If this occurs, the book-
marks will have to be reset.
• This equipment is designed to be used only in a 12 volt DC battery
system with negative ground.
• This unit is made of precision parts. Do not attempt to disassem-
ble or adjust any parts.
• Do not expose this equipment (including the speakers and CD)
to water or excessive moisture.
CAUTION
Do not insert warped or poor
quality discs into the CD play-er as damage to the unit mayoccur.
Do not insert anything like coins into the player slot asdamage to the unit may occur.
Do not place beverages close to the audio system. The play-back mechanism may be dam-aged if you spill them.
Do not strike or allow anything to impact the audio system,damage to the system mecha-nisms could occur.
Off-road or rough surface driving may cause the com-pact disc to skip. Do not usethe compact disc when driv-ing in such conditions asdamage to the compact discface could occur.
(Continued)
(Continued) Do not attempt to grab or pull the compact disc out while thedisc is being pulled into theaudio unit by the self-loadingmechanism. Damage to theaudio unit and compact disccould occur.
Avoid using recorded com- pact discs in your audio unit.Original compact discs arerecommended for bestresults.
WARNING
When driving your vehicle, be
sure to keep the volume of the
unit set low enough to allow you
to hear sounds coming from the
outside.

3 103
Knowing your vehicle
1
2
3
4
5
6
7
8
9
1. POWER ON-OFF, VOLUME Control Knob
2. AUDIO Select Button
3. BAND Select Button
4. SCAN Button
5. EQ Button
6. AUTO SEEK Select Button
7. TUNE Select/AUDIO Control knob
8. PRESET STATION Select Buttons
LD 455MP3 NA
STEREO RADIO OPERATION (M445MP3) (IF EQUIPPED)

Knowing your vehicle104
3
1
2
3
4
5
6
7
8
9
1. POWER ON-OFF Control
Knob The radio unit may be operated
when the ignition key is in the "ACC"
or "ON" position. Press the button to
switch the power on. The LCD
shows the radio frequency in the
radio mode or CD/MP3 track in the
CD/MP3 mode. To switch the power
off, press the button again.
Push the FM/AM, TAPE or CD/MP3 to turn on that function without push-
ing the Power ON-OFF control knob.
VOLUME Control
Rotate the knob clockwise to increase
the volume and turn the knob coun-
terclockwise to reduce the volume.2. AUDIO Select ButtonPressing the AUDIO button changes
the BASS, MID-RANGE, TREBLE,
FADER and BALANCE mode.
The mode selected is shown on the
display. After selecting each mode, rotate the
Audio control knob clockwise or
counterclockwise.
BASS Control
To increase the BASS, rotate the
knob clockwise, while to decrease
the BASS, rotate the knob counter-
clockwise.
MID-RANGE Control
To increase the MID-RANGE, rotate
the knob clockwise, while to decrease
the MID-RANGE, rotate the knob
counterclockwise.
TREBLE Control
To increase the TREBLE, rotate the
knob clockwise, while to decrease
the TREBLE, rotate the knob coun-
terclockwise.
FADER Control
Turn the control knob clockwise to
emphasize rear speaker sound (front
speaker sound will be attenuated).
When the control knob is turned
counterclockwise, front speaker
sound will be emphasized (rear
speaker sound will be attenuated). BALANCE Control
Rotate the knob clockwise to empha-
size right speaker sound (left speak-
er sound will be attenuated).
When the control knob is turned
counterclockwise, left speaker sound
will be emphasized (right speaker
sound will be attenuated).
3. BAND Select ButtonPressing the FM/AM button changes
the AM, FM1 and FM2 bands. The
mode selected is shown on the dis-
play.4. SCAN ButtonWhen you press the button, frequen-
cy is changed and the next channel
is received automatically.
To stay on a station, press the SCAN
button again.5. EQ ButtonPress the EQ button to select the
CLASSIC, POPS, ROCK, JAZZ and
OFF MODE for the desired tone
quality. Each press of the button
changes the display as follows;

3 105
Knowing your vehicle
1
2
3
4
5
6
7
8
9
6. AUTO SEEK Select Button(Automatic Channel Selection)Press the AUTO SEEK select button.
When the side is pressed, the
unit will automatically tune to the
next higher frequency and when the
side is pressed, it will automati-
cally tune to the next lower frequen-
cy.7. TUNE Select/Audio Control KnobRotate the knob clockwise to
increase the frequency and turn the
knob counterclockwise to reduce the
frequency.8. PRESET STATION Select ButtonsSix stations for AM, FM1 and FM2
respectively can be preset in the
electronic memory circuit.
HOW TO PRESET STATIONSSix AM and twelve FM stations may
be programmed into the memory of
the radio. Then, by simply pressing
the AM/FM band select button and/or
one of the six station select buttons,
you may recall any of these stations
instantly. To program the stations, fol-
low these steps:
Press AM/FM selector to set the
band for AM, FM1 and FM2.
Select the desired station to be stored by seek or manual tuning.
Determine the preset station select button you wish to use to access
that station.
Press and hold the station select button for more than 0.8 seconds. A
select button indicator will show in
the display indicating which select
button you have depressed. The fre-
quency display will flash after it has
been stored in to the memory. You
should then release the button, and
proceed to program the next
desired station. A total of 18 stations
can be programmed by selecting
one AM and two FM stations per
button. When completed, any preset sta-
tion may be recalled by selecting
AM, FM1 or FM2 band and the
appropriate station button.
CAUTION
Do not place beverages close
to the audio system. The play-back mechanism may be dam-aged if you spill them.
Do not strike or allow anything to impact the audio system,damage to the system mecha-nisms could occur.
CLASSIC➟ POPS➟ROCK➟ JAZZ➟OFF

Knowing your vehicle106
3
1
2
3
4
5
6
7
8
9
1. AUDIO/MP3 CD or AUX Select Button
2. TRACK UP/DOWN Button
3. FF/REW Button
4. REPEAT (RPT) Button
5. RANDOM (RDM) Button
6. BOOKMARK (MARK) Button
7. SCROLL Button
8. EQ Button
9. CD EJECT Button
10. CD SCAN Button
11. FILE SEARCH Knob
(TUNE Select Knob)
12. DIRECTORY SEARCH (DIR) Button
LD 455MP3 NA
COMPACT DISC PLAYER (M455MP3) (IF EQUIPPED) - COMPATIBLE WITH MP3/WMA/AAC/WAVE

3 107
Knowing your vehicle
1
2
3
4
5
6
7
8
9
1. AUDIO/MP3 CD or AUXSelect ButtonAUDIO/MP3 CD Select
Insert the CD with the label facing
upward.
Insert the CD to start CD playback, during radio operation.
If you press the CD/AUX button while a disc is in the CD deck, the
CD player will begin playing even if
the radio or cassette player is
being used.
The CD/AUX player can be used when the ignition switch is in either
the “ON” or “ACC” position.
Push the CD/AUX button to turn on that function without pushing the
Power ON-OFF control knob.✽ ✽ NOTICE• Do not stick paper or tape etc., on the
label side or the recording side of any
discs, as it may cause a malfunction.
• The unit can play a multi-session CD-R (recordable CD) and CD-
RW (rewritable CD) that consists
of more than two sessions. (Continued)(Continued)
Please refer to the manual of CD-
R/CD-RW recoder or CD-R/CD-
RW software for more informa-
tion on finalization process.
• Depending on the recording sta- tus, some CD-Rs/CD-RWs may
not be played on this unit.
✽ ✽ NOTICEPlayback of MP3, AAC and WMA
file formats are supported. Load to
play time for these formats may be
longer due to the compressed nature
of these discs.AUX-IN Select
When the AUX device (such as
portable MP3 players) is connect-
ed to vehicle's AUX-IN terminal,
you can switch to AUX-IN mode by
pressing CD/AUX button.
With a CD loaded and AUX device connected at the same time, this
button switches between AUX-IN
mode and CD mode.
✽ ✽ NOTICE• If the AUX device is not connected,
you cannot switch to AUX-IN
mode.
• When the AUX device is discon- nected while in AUX-IN mode, the
unit automatically switches its
mode to last selected mode (CD
mode or RADIO mode).
• The quality of sound may be defect- ed or distorted when the unit's EQ
(BASS/MID/TREBLE) control and
AUX device's EQ control are both
enabled (not flat). When you want
to use the unit's EQ control feature,
disable the AUX device's EQ con-
trol feature, and vice versa.
• When using a portable audio device connected to the power outlet, noise
may occur during playback. If this
happens, use the power source of
the portable audio device.AUX 3.5mm STEREO MINI PLUG

Knowing your vehicle108
3
1
2
3
4
5
6
7
8
9
2. TRACK UP/DOWN Button The desired track on the disc cur-
rently being played can be select-
ed using the track number.
Press button once to skip for- ward to the beginning of the next
track.
Press within a second after
playback begins to quickly move
backward through a CD.
If you press after more than a
second, it will take you to the
beginning of the file you are now
listening to.3. FF/REW Button If you want to fast forward or reverse
through the compact disc track, push
and hold the FF or REW button.
When you release the button, the com-
pact disc player will resume playing.4. REPEAT (RPT) Button To repeat the track you are current-ly listening to, press the RPT but-
ton. To cancel, press it again. To repeat the music within selected
folder, press the RPT button for
more than 0.8 seconds. To cancel,
press it again. (MP3 CD only)
If you do not release RPT opera- tion when the track ends, it will
automatically be replayed.
This process will be continued until
you push the button again or turn
the power OFF then ON.
5. RANDOM (RDM) ButtonWith random, you can listen to the
tracks in random, rather than
sequential order.
To use random, do the following:
Press the RDM button to listen to
recorded tracks in random
sequence. Press RDM again to
cancel or turn the power OFF then
ON. The unit defaults to playing
tracks in sequential order.
To listen to the music within the selected folder in random order,
press the RDM button within a sec-
ond. To cancel, press it again or
turn the power OFF then ON. (MP3
CD only)
6. BOOKMARK (MARK) ButtonWhen the CD player unit is operat-
ing, the desired track on the disc can
be bookmarked by using the MARK
button. (MP3 CD only)
Press the MARK button for morethan 0.8 seconds to bookmark the
desired track.
“M” will be displayed on the LCD
and “MEMORY(1~50)” will display
for approximately five seconds with
beep sound.
To play a bookmarked track, press
the MARK button within 0.8 sec-
onds and select the bookmarked
track to play.
To erase a bookmarked track, press the MARK button for more
than 0.8 seconds. The unit will
beep once when the bookmark is
erased.✽ ✽ NOTICETracks stored on Mark Memory will
be automatically erased after you
eject CDs that contain those tracks.

3 109
Knowing your vehicle
1
2
3
4
5
6
7
8
9
7. SCROLL ButtonPress the button, and you can check
the file names with more than 16
characters on MP3 CD (max 34
characters.).
The button doesn’t work on file
names less than 16 characters.8. EQ ButtonPress the EQ button to select the
CLASSIC, POPS, ROCK, JAZZ and
OFF MODE for the desired tone
quality. Each press of the button
changes the display as follows;9. CD EJECT ButtonWhen the button is pressed with a
CD loaded, the CD will eject.
Forcing to eject : To force to eject a
CD, press this button for more than 3
seconds.
(Do this only when a CD is jammed
and you can not eject it in the normal
way - e.g.) in case that you have
inserted 2 CDs by mistake)
10. CD SCAN Button To playback the first 10 seconds ofeach track, press the CD SCAN
button more than 0.8 seconds.
To playback the first 10 seconds of each track in the selected folder,
press the CD SCAN button within
0.8 seconds. (MP3 CD only)
Press the CD SCAN button again within 10 sec. when you have
reached the desired track.11. FILE SEARCH Knob (TUNE Select Knob) You can skip the track (file) by turn-
ing the FILE SEARCH knob clock-
wise or counterclockwise.
After selecting the desired track
(file), press the FILE SEARCH
knob to playback the track (file).
If you do not press the FILE
SEARCH knob within five seconds,
the search will stop.
12. DIRECTORY SEARCH (DIR) Button You can move through the folder by
pushing the DIR button to up ( )
and down( ).
After moving the desired folder, press the FILE SEARCH knob to
play back in the selected folder. If
you do not press the FILE
SEARCH knob within 5 seconds,
the folder searching function will be
released. It can not be operated in
a single folder.
CLASSIC➟ POPS➟ROCK➟ JAZZ➟OFF

Knowing your vehicle110
3
1
2
3
4
5
6
7
8
9
✽ ✽
NOTICE• To assure proper operation of the
unit, keep the vehicle interior tem-
perature within a normal range by
using the vehicle's air conditioning
or heating system.
• When replacing the fuse, replace it with a fuse having the correct
capacity.
• All stored bookmarks are all erased when the car battery is dis-
connected or power to the vehicle
is lost. If this occurs, the book-
marks will have to be reset.
• This equipment is designed to be used only in a 12 volt DC battery
system with negative ground.
• This unit is made of precision parts. Do not attempt to disassem-
ble or adjust any parts.
• Do not expose this equipment (including the speakers and tape)
to water or excessive moisture.
CAUTION
Do not insert warped or poor
quality discs into the CD play-er as damage to the unit mayoccur.
Do not insert anything like coins into the player slot asdamage to the unit may occur.
Do not place beverages close to the audio system. The play-back mechanism may be dam-aged if you spill them.
Do not strike or allow anything to impact the audio system,damage to the system mecha-nisms could occur.
Off-road or rough surface driving may cause the com-pact disc to skip. Do not usethe compact disc when driv-ing in such conditions asdamage to the compact discface could occur.
(Continued)
(Continued) Do not attempt to grab or pull the compact disc out while thedisc is being pulled into theaudio unit by the self-loadingmechanism. Damage to theaudio unit and compact disccould occur.
Avoid using recorded com- pact discs in your audio unit.Original compact discs arerecommended for bestresults.
WARNING
When driving your vehicle, be
sure to keep the volume of the
unit set low enough to allow you
to hear sounds coming from the
outside.
