key KIA SPECTRA5 2006 User Guide

Knowing your vehicle10
3
1
2
3
4
5
6
7
8
9
✽ ✽

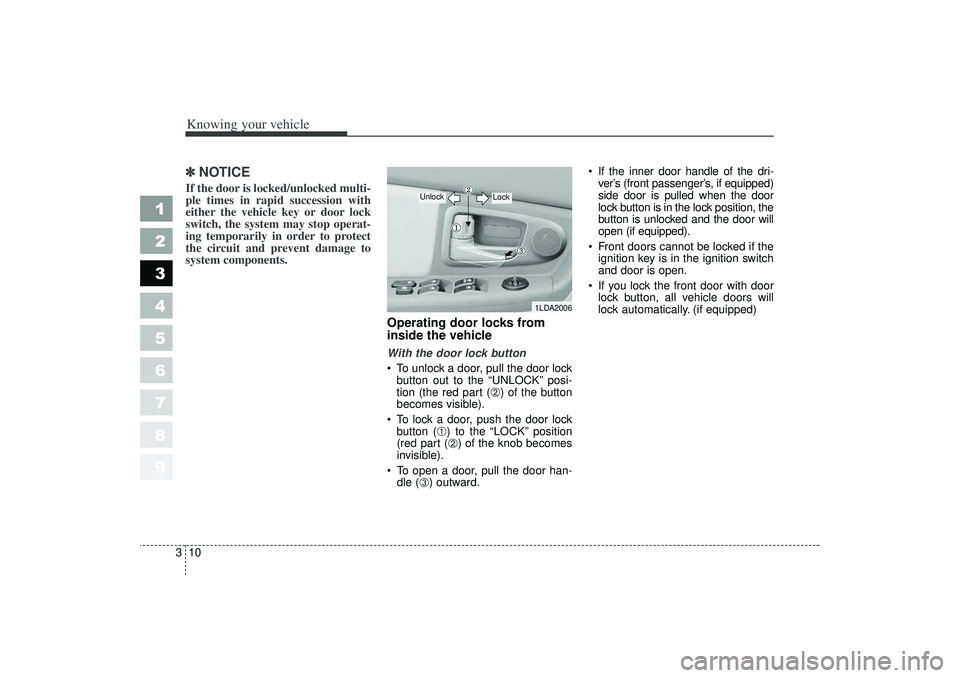

NOTICEIf the door is locked/unlocked multi-
ple times in rapid succession with
either the vehicle key or door lock
switch, the system may stop operat-
ing temporarily in order to protect
the circuit and prevent damage to
system components.
Operating door locks from
inside the vehicleWith the door lock button
 To unlock a door, pull the door lock
button out to the “UNLOCK” posi-
tion (the red part (
➁) of the button
becomes visible).
 To lock a door, push the door lock button (
➀) to the “LOCK” position
(red part (➁) of the knob becomes
invisible).
 To open a door, pull the door han- dle (
➂) outward.  If the inner door handle of the dri-
ver’s (front passenger’s, if equipped)
side door is pulled when the door
lock button is in the lock position, the
button is unlocked and the door will
open (if equipped).
 Front doors cannot be locked if the ignition key is in the ignition switch
and door is open.
 If you lock the front door with door lock button, all vehicle doors will
lock automatically. (if equipped)
1LDA2006
Lock
Unlock
LD CAN (ENG) new 3-1~.qxd 7/29/05 10:28 AM Page 10

311
1
2
3
4
5
6
7
8
9
Knowing your vehicle

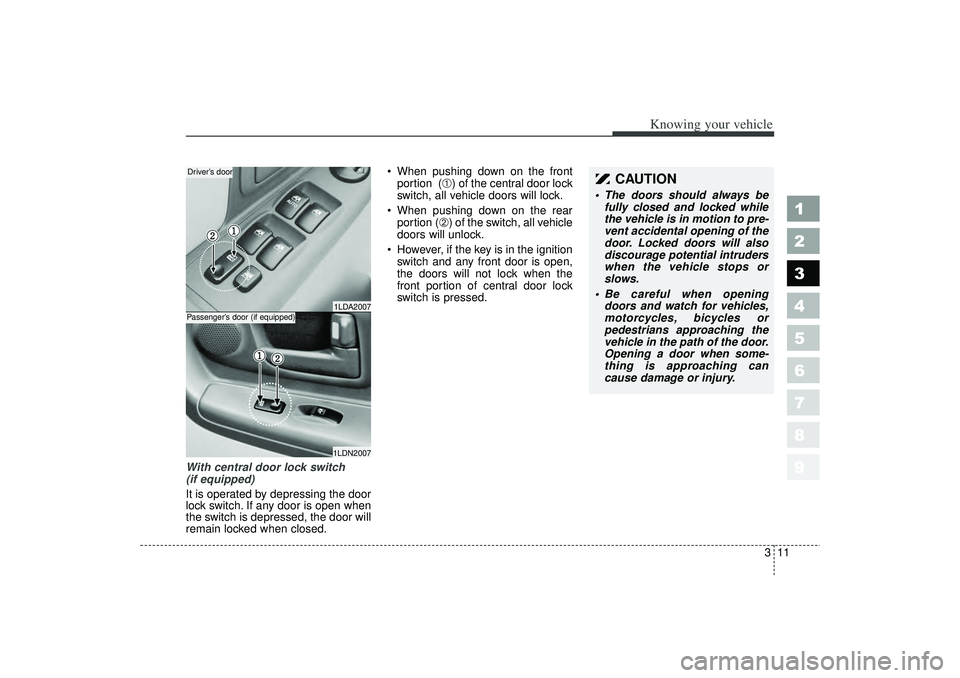

With central door lock switch
(if equipped)
It is operated by depressing the door
lock switch. If any door is open when
the switch is depressed, the door will
remain locked when closed. When pushing down on the front
portion (
➀) of the central door lock
switch, all vehicle doors will lock.
 When pushing down on the rear portion (
➁) of the switch, all vehicle
doors will unlock.
 However, if the key is in the ignition switch and any front door is open,
the doors will not lock when the
front portion of central door lock
switch is pressed.
CAUTION
 The doors should always befully closed and locked while
the vehicle is in motion to pre-
vent accidental opening of the
door. Locked doors will also
discourage potential intruders
when the vehicle stops or
slows.
 Be careful when opening doors and watch for vehicles,
motorcycles, bicycles or
pedestrians approaching the
vehicle in the path of the door.
Opening a door when some-
thing is approaching can
cause damage or injury.
1LDA20071LDN2007
Driver’s doorPassenger’s door (if equipped)
LD CAN (ENG) new 3-1~.qxd 7/29/05 10:28 AM Page 11

Knowing your vehicle12
3
1
2
3
4
5
6
7
8
9

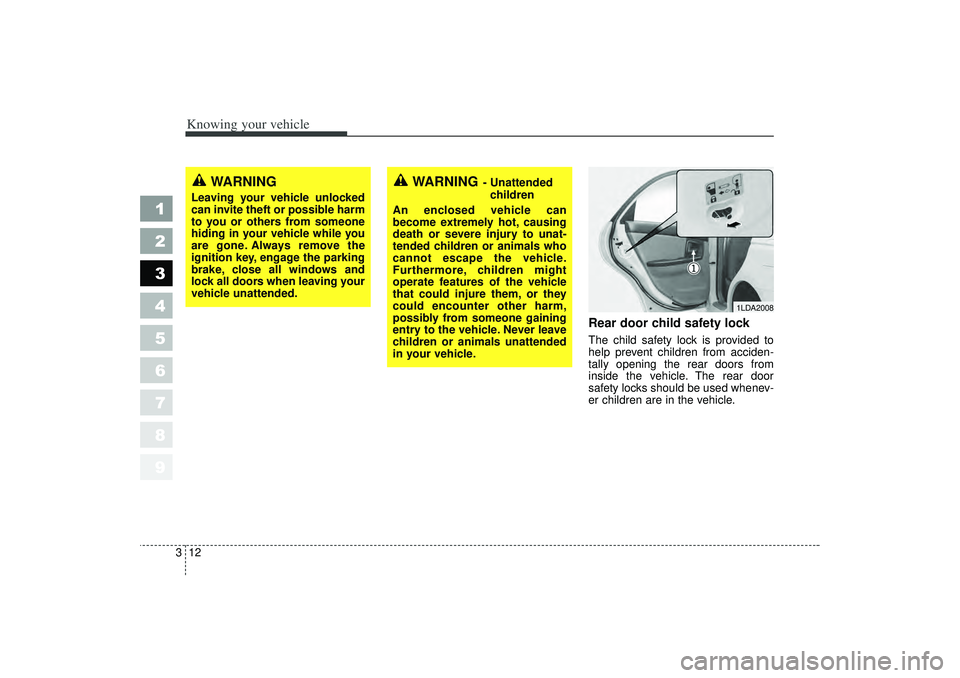

Rear door child safety lockThe child safety lock is provided to
help prevent children from acciden-
tally opening the rear doors from
inside the vehicle. The rear door
safety locks should be used whenev-
er children are in the vehicle.
1LDA2008
WARNING
Leaving your vehicle unlocked
can invite theft or possible harm
to you or others from someone
hiding in your vehicle while you
are gone. Always remove the
ignition key, engage the parking
brake, close all windows and
lock all doors when leaving your
vehicle unattended.
WARNING
- Unattended
children
An enclosed vehicle can
become extremely hot, causing
death or severe injury to unat-
tended children or animals who
cannot escape the vehicle.
Furthermore, children might
operate features of the vehicle
that could injure them, or they
could encounter other harm,
possibly from someone gaining
entry to the vehicle. Never leave
children or animals unattended
in your vehicle.
LD CAN (ENG) new 3-1~.qxd 7/29/05 10:28 AM Page 12

313
1
2
3
4
5
6
7
8
9
Knowing your vehicle

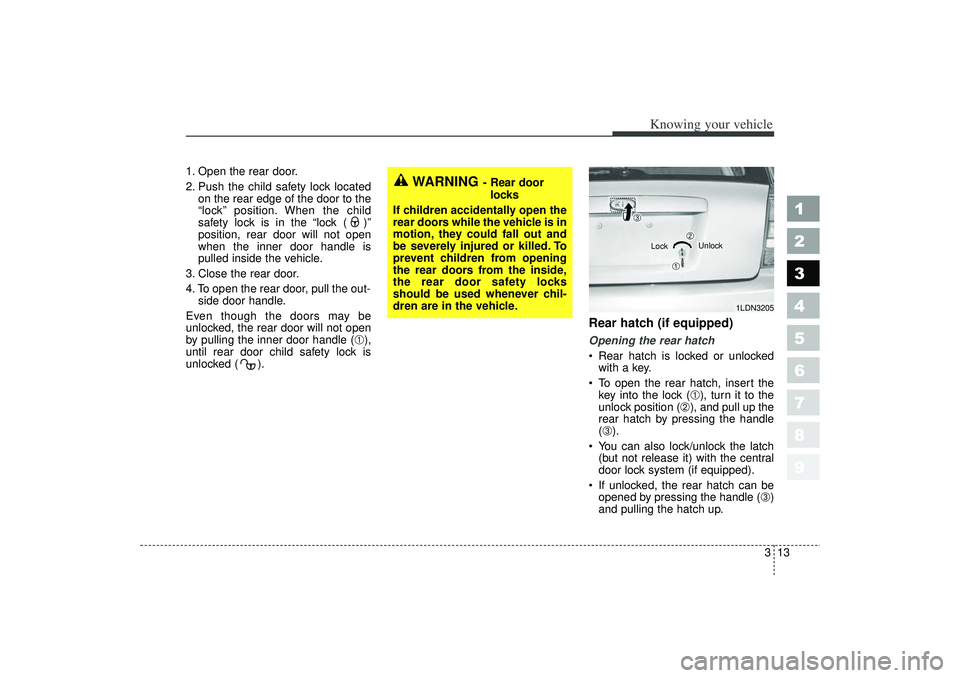

1. Open the rear door.
2. Push the child safety lock locatedon the rear edge of the door to the
“lock” position. When the child
safety lock is in the “lock ( )”
position, rear door will not open
when the inner door handle is
pulled inside the vehicle.
3. Close the rear door.
4. To open the rear door, pull the out- side door handle.
Even though the doors may be
unlocked, the rear door will not open
by pulling the inner door handle (
➀),
until rear door child safety lock is
unlocked ( ).
Rear hatch (if equipped)Opening the rear hatch
 Rear hatch is locked or unlocked with a key.
 To open the rear hatch, insert the key into the lock (
➀), turn it to the
unlock position (
➁), and pull up the
rear hatch by pressing the handle
(
➂).
 You can also lock/unlock the latch (but not release it) with the central
door lock system (if equipped).
 If unlocked, the rear hatch can be opened by pressing the handle (
➂)
and pulling the hatch up.
WARNING
- Rear door
locks
If children accidentally open the
rear doors while the vehicle is in
motion, they could fall out and
be severely injured or killed. To
prevent children from opening
the rear doors from the inside,
the rear door safety locks
should be used whenever chil-
dren are in the vehicle.
1LDN3205
Lock
Unlock
LD CAN (ENG) new 3-1~.qxd 7/29/05 10:28 AM Page 13

Knowing your vehicle14
3
1
2
3
4
5
6
7
8
9

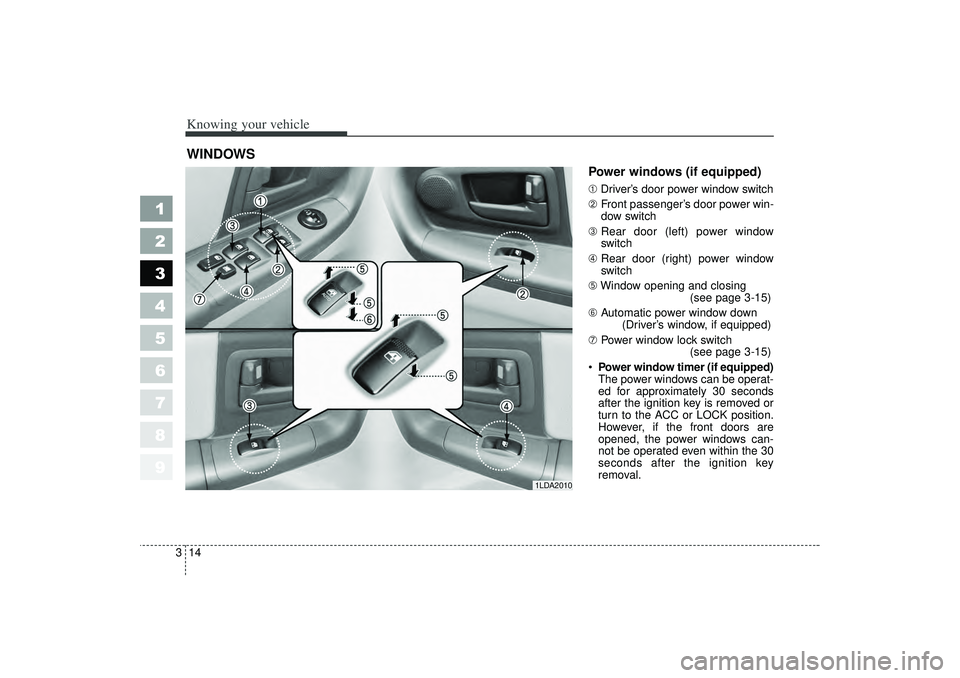

Power windows (if equipped)➀ Driver’s door power window switch
➁ Front passenger’s door power win-
dow switch
➂ Rear door (left) power window
switch
➃ Rear door (right) power window
switch
➄ Window opening and closing
(see page 3-15)
\b Automatic power window down
(Driver’s window, if equipped)
➆ Power window lock switch
(see page 3-15)
 Power window timer (if equipped)
The power windows can be operat-
ed for approximately 30 seconds
after the ignition key is removed or
turn to the ACC or LOCK position.
However, if the front doors are
opened, the power windows can-
not be operated even within the 30
seconds after the ignition key
removal.
WINDOWS
1LDA2010
LD CAN (ENG) new 3-1~.qxd 7/29/05 10:28 AM Page 14

315
1
2
3
4
5
6
7
8
9
Knowing your vehicle
Window opening and closing
The driver’s door has a master power
window switch that controls all the
windows in the vehicle. To open or
close a window, press down (
➄) or
pull up (
➄) the front portion of the
corresponding switch. Automatic power window down
(driver’s window, if equipped)
Depressing the power window switch
momentarily to the second detent
position (
\b) completely lowers the
driver’s window even when the
switch is released. To stop the win-
dow at the desired position while the
window is in operation, pull up the
switch momentarily to the opposite
direction of the window movement.
If the battery has been discharged
or disconnected, the automatic
power window system must be reset
as follows:
1. Turn the ignition key to ON posi- tion.
2. Close each window and continue pulling up on each power window
switch for at least 0.5 second after
the window is completely closed. Power window lock switch
 The driver can disable the power
window switches on a passenger
door by depressing the power win-
dow lock switch located on the dri-
ver’s door to LOCK (pressed).
 When the power window lock switch is ON, the driver’s master
control cannot operate the passen-
ger door power windows either.
1LDA20121LDA2011
1LDA2013
LD CAN (ENG) new 3-1~.qxd 7/29/05 10:28 AM Page 15

Knowing your vehicle30
3
1
2
3
4
5
6
7
8
9
WARNING
To obtain maximum benefit from
a pre-tensioner seat belt:
 The seat belt must be worn
correctly.
 The seat belt must be adjusted to the correct position.
CAUTION
When the pre-tensioner seat
belts are activated, a loud noise
may be heard and fine dust,
which may appear to be smoke,
may be visible in the passenger
compartment and are not toxic.
Although, it is harmless, the fine
dust may cause skin irritation
and should not be breathed for
prolonged periods. Wash your
hands and face thoroughly after
an accident in which the airbags
and/or pre-tensioner seat belts
were activated.
CAUTION
 Because the sensor that acti-vates the SRS airbag is con-
nected with pre-tensioner seat
belt, the SRS airbag warning
light on the instrument panel
will blink or illuminate for
approximately 6 seconds after
the ignition key has been
turned to the “ON” position,
then the light should go off.
 If the pre-tensioner seat belt is not working properly, this
warning light will illuminate
even if there is no malfunction
of SRS airbag system. If the
SRS airbag warning light does
not illuminate when the igni-
tion key is turned to “ON” , or
if it remains illuminated after
blinking or illuminating for
approximately 6 seconds, or if
it illuminates while the vehicle
is being driven, please have
an authorized Kia dealer
inspect the pre-tensioner seat
belt or SRS airbag system as
soon as possible.
LD CAN (ENG) new 3-1~.qxd 7/29/05 10:28 AM Page 30

335
1
2
3
4
5
6
7
8
9
Knowing your vehicle
Safety belt warning light and
chimeType A
If the driver's lap/shoulder belt is not
fastened when the key is turned ON
or if it is unfastened after the key is
turned ON, safety belt warning light
blinks until the belt is fastened.
If the driver's lap/shoulder belt is not
fastened when the key is turned ON
or if it is unfastened after the key is
turned ON, safety belt warning chime
sounds for approximately 6 seconds.Type B
As a reminder to the driver and pas-
senger, safety belt warning light will
blink for approximately 6 seconds each
time you turn the ignition switch ON.
If the driver's lap/shoulder belt is not
fastened when the key is turned ON
or if it is disconnected after the key is
turn ON, the safety belt warning light
will blink for approximately 6 sec-
onds.
If the driver's lap/shoulder belt is not
fastened when the key is turned ON
or if it is disconnected after the key is
turned ON, the safety belt warning
chime will sound for approximately 6
seconds. (if equipped)
If the driver’s lap/shoulder belt is not
fastened within 30 seconds after the
engine is started, the safety belt
warning light and chime will activate
for six seconds. This cycle will
repeat 11 times with an interval of 24
seconds between cycles.
1GQA2083
CAUTION
Never close the
doors on any
part of the lap or shoulder belt.
It can damage the safety belt or
buckle which could increase the
risk of injury in case of an acci-
dent.
LD CAN (ENG) new 3-1~.qxd 7/29/05 10:28 AM Page 35

Knowing your vehicle42
3
1
2
3
4
5
6
7
8
9

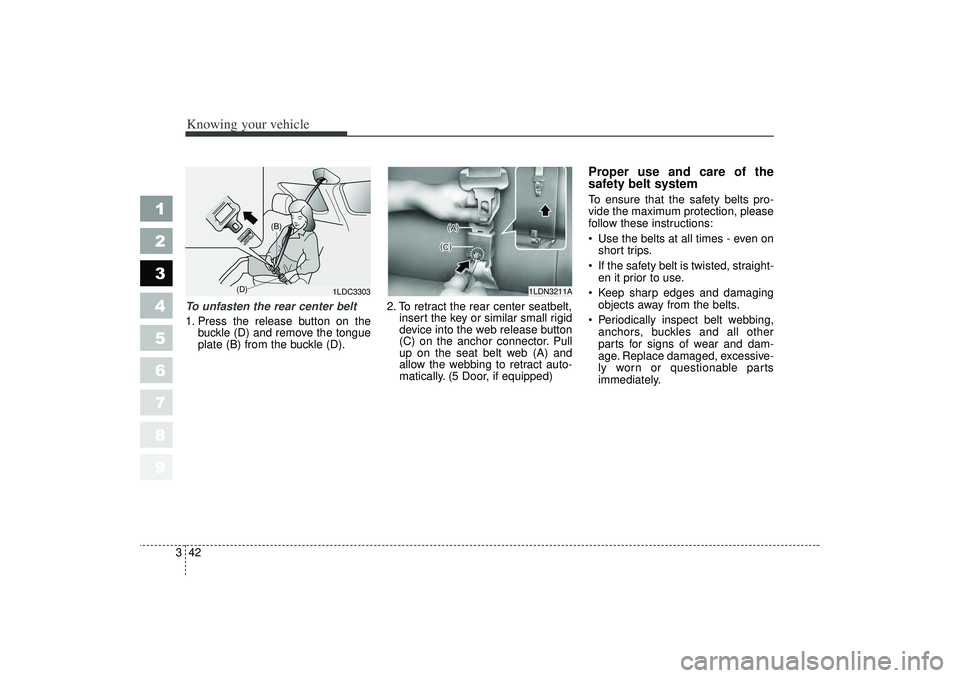

To unfasten the rear center belt
1. Press the release button on the
buckle (D) and remove the tongue
plate (B) from the buckle (D). 2. To retract the rear center seatbelt,
insert the key or similar small rigid
device into the web release button
(C) on the anchor connector. Pull
up on the seat belt web (A) and
allow the webbing to retract auto-
matically. (5 Door, if equipped)
Proper use and care of the
safety belt system To ensure that the safety belts pro-
vide the maximum protection, please
follow these instructions:
Use the belts at all times - even on
short trips.
 If the safety belt is twisted, straight-
en it prior to use.
 Keep sharp edges and damaging
objects away from the belts.
 Periodically inspect belt webbing,
anchors, buckles and all other
parts for signs of wear and dam-
age. Replace damaged, excessive-
ly worn or questionable parts
immediately.
(D) (B)P
R ESS
1LDC3303
1LDN3211A
LD CAN (ENG) new 3-1~.qxd 7/29/05 10:28 AM Page 42

Knowing your vehicle58
3
1
2
3
4
5
6
7
8
9
Airbag system components The main components of your SRS
are:
 To indicate that your vehicle is
equipped with airbags, the corre-
sponding airbag covers are
marked with “SRS AIRBAG”.
- Driver’ s airbag (see page 3- 60)
- Passenger’ s airbag(see page 3- 61)
- Side airbag (if equipped, see page 3- 67)
- Curtain airbag (if equipped, see page 3- 68)
 A diagnostic system that continual-
ly monitors the system operation.
 An indicator light to warn you of a
possible problem with the system.
 Emergency power backup in case
your car’ s electrical system is dis-
connected in a crash.
WARNING
- Airbags &
safety belts
 Even in vehicles with air bags, you and your passengers
must always wear the safety
belts provided in order to min-
imize the risk and severity of
injury in the event of a colli-
sion or rollover.
 Always wear your safety belt. It can help keep you away
from the air bags during heavy
braking just before a collision.
 If occupants are not fastened or correctly seated, they can-
not be protected, and thus
face serious injury or death.
 Driver’s and front passenger’s airbag are designed to inflate
only in certain frontal colli-
sions, and side and curtain
airbags (if equipped) are
designed to inflate in certain
side impacts.
(Continued)
(Continued)They will generally not provide
protection in side impacts
(vehicles not equipped with
side and curtain airbags) or
rear impacts, rollovers, less
severe frontal collisions. They
will not provide protection
from later impacts in a multi-
impact collision.
 If your vehicle has been sub- jected to flood conditions (e.g.
soaked carpeting/standing
water on the floor of the vehi-
cle, etc.) or if your vehicle has
become flood damaged in any
way, do not attempt to start
the vehicle or put the key in
the ignition before discon-
necting the battery. This may
cause airbag deployment,
which could result in serious
personal injury or death. If
flooded conditions are sub-
jected to your vehicle, before
starting the vehicle, have the
vehicle towed to an authorized
Kia dealer for inspection and
necessary repairs.
LD CAN (ENG) new 3-1~.qxd 7/29/05 10:28 AM Page 58
