Knowing your vehicle
The SRS uses a collection of sen-
sors to gather information about the
driver’s and front passenger’ s seat
position, the driver’ s and front pas-
senger’ s safety belt usage and
impact severity.
The driver’ s and front passenger’ s
seat position sensors, which are
installed on the seat track, determine
if the seats are fore or aft of a refer-
ence position. Similarly, the safety
belt usage sensors determine if the
driver and front passenger’ s safety
belts are fastened. These sensors
provide the ability to control the SRS
deployment based on how close the
driver’ s seat is to the steering wheel,
how close the passenger’ s seat is to
the instrument panel, whether or not
the safety belts are fastened, and
how severe is the impact. The advanced SRS offers the ability
to control the airbag inflation with two
levels. A first stage level is provided
for moderate-severity impacts. A sec-
ond stage level is provided for more
severe impacts.
The SRSCM (SRS Control Module)
controls the airbag inflation in accor-
dance with impact severity, seating
position and safety belt usage.
Additionally, your SRS is equipped
with an occupant classification sys-
tem in the front passenger’
s seat.
The occupant classification system
detects the presence of a passenger
in the front passenger’ s seat and will
turn off the front passenger ’s airbag
under certain conditions. For more
detail, see “Occupant Classification
System” later in this section.
CAUTION
If the seat position sensor is not
working properly, the SRS
airbag warning light ( ) on the
instrument panel will illuminate
even if there is no malfunction
of the SRS airbag system,
because the SRS airbag warn-
ing light is connected with the
seat position sensor. If the SRS
airbag warning light does not
illuminate when the ignition key
is turned to the "ON" position, if
it remains illuminated after
blinking for approximately 6
seconds, or if it illuminates
while the vehicle is being driv-
en, have an authorized Kia deal-
er inspect the seat position sen-
sor and the advanced SRS
airbag system as soon as possi-
ble.
LD CAN (ENG) new 3-1~.qxd 7/29/05 10:28 AM Page 59

Knowing your vehicle60
3
1
2
3
4
5
6
7
8
9
Driver’s airbagThe driver’ s airbag is stored in the
center of the steering wheel.
WARNING
 Modification to the seat struc- ture can adversely affect the
seat position sensor and
cause the airbag to deploy at a
different level than should be
provided.
 Do not place any objects underneath the front seats
that could damage the seat
position sensor or interfere
with the occupant classifica-
tion system.
 Do not place any objects that may cause magnetic fields
near the front seat. These may
cause a malfunction of the
seat position sensor.
(Continued)
(Continued)
 Ignoring the SRS indictor light(airbag indicator and passen-
ger airbag off indicator) can
result in serious or fatal injury
if the airbags occupant classi-
fication system or pretension-
ers do not work properly. Have
your car checked by a dealer
as soon as possible if the SRS
warning light alerts you to a
potential problem.
 Sitting improperly or out of position can result in serious
or fatal injury in a crash. All
occupants should sit upright
in their seats with their feet on
the floor until the vehicle is
parked and the ignition key is
removed.
HLZ206
1LDN2048A
LD CAN (ENG) new 3-1~.qxd 7/29/05 10:28 AM Page 60

363
1
2
3
4
5
6
7
8
9
Knowing your vehicle
The "PASSENGER AIRBAG OFF"
indicator illuminates after the igni-
tion key is turned to the "ON" posi-
tion or after the engine is started. If
the front passenger seat is unoc-
cupied or is occupied by very small
person, or is occupied by someone
who is improperly seated, the
"PASSENGER AIRBAG OFF" indi-
cator will remain illuminated. If the
front passenger seat is occupied
by someone of adult size and body
shape, the "PASSENGER AIRBAG
OFF" indicator will turn off after 6
seconds.
 If the "PASSENGER AIRBAG
OFF" indicator illuminates, neither
the front passenger front airbag
nor front passenger side airbag will
deploy in either a side or frontal
collision.
 If the "PASSENGER AIRBAG
OFF" indicator is not illuminated,
the front passenger front airbag
and front passenger side airbag
may deploy in either a side or
frontal collision.
Condition and operation in the front passenger occupant
classification systemCondition detected by
the occupant classifi- cation system
1. Adult *
1
2. Child*
2or child
restraint system
3. Unoccupied Off
On
On Off
Off
OffActivated
Deactivated
Deactivated
"PASSENGER AIRBAG OFF" indicator light
SRS warning light Front passenger front
airbag and front
passenger side airbag
Indicator/Warning light
Devices
*1The system detects a person who is generally adult size as an adult, thus allowing the pas-
senger airbag to deploy. When a smaller adult sits in the front passenger seat, the system may
detect their body shape as that of a child, thus preventing airbag deployment.
*2When a larger child who has outgrown a child restraint system sits in the front passenger seat, the system may recognize him/her as an adult depending on his/her body shape or seating
position, thus permitting airbag deployment.
CAUTION
If the "PASSENGER AIRBAG OFF" indicator illuminates or blinks con-
tinuously when a person of adult size sits in the front passenger's
seat , it could be because that person isn't sitting properly in the
seat.If this happens, turn the vehicle off, make sure the seat back is
not reclined, have the passenger center on the seat cushion, with legs
comfortably extended, and the safety belt properly positioned. Restart
the vehicle and have the person remain in this position long enough
to allow the system to detect the person and activate the passenger
airbag.
LD CAN (ENG) new 3-1~.qxd 7/29/05 10:28 AM Page 63

Knowing your vehicle64
3
1
2
3
4
5
6
7
8
9
(Continued)
 If the "PASSENGER AIRBAG
OFF" indicator is illuminated
when the front passenger's
seat is occupied by a person
of adult size who is seated
properly, or if the "PASSEN-
GER AIRBAG OFF" indicator"
is not illuminated when the
front passenger's seat is
unoccupied or occupied by a
very small person, the occu-
pant classification system is
not working properly. Have
your vehicle immediately
inspected by your Kia dealer if
the occupant classification
system is not working proper-
ly.
(Continued)

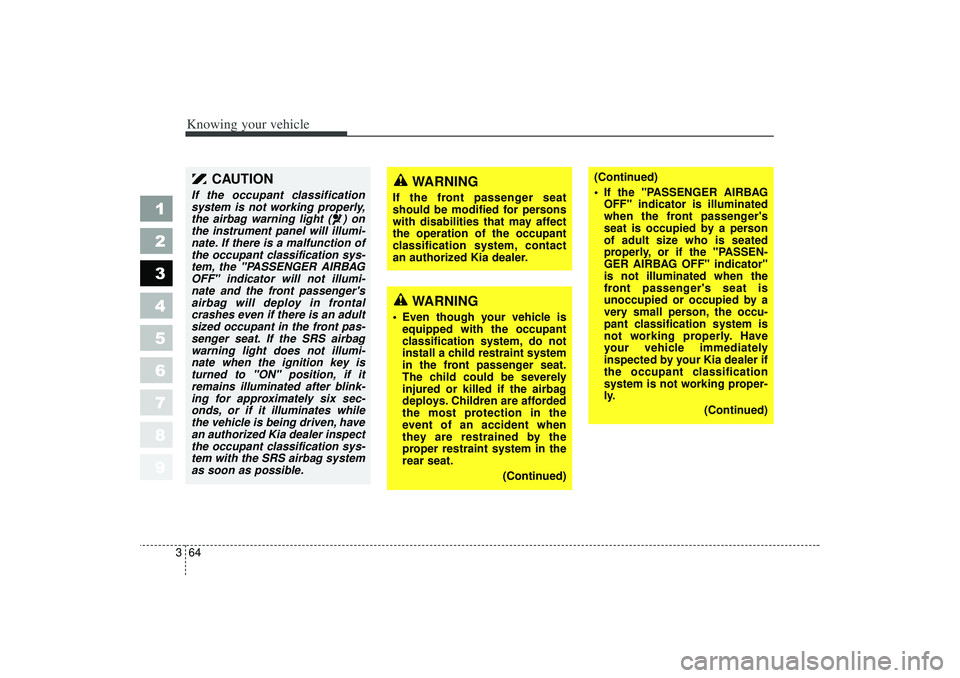

CAUTION
If the occupant classification
system is not working properly,
the airbag warning light ( ) on
the instrument panel will illumi-
nate. If there is a malfunction of
the occupant classification sys-
tem, the "PASSENGER AIRBAG
OFF" indicator will not illumi-
nate and the front passenger's
airbag will deploy in frontal
crashes even if there is an adult
sized occupant in the front pas-
senger seat. If the SRS airbag
warning light does not illumi-
nate when the ignition key is
turned to "ON" position, if it
remains illuminated after blink-
ing for approximately six sec-
onds, or if it illuminates while
the vehicle is being driven, have
an authorized Kia dealer inspect
the occupant classification sys-
tem with the SRS airbag system
as soon as possible.
WARNING
If the front passenger seat
should be modified for persons
with disabilities that may affect
the operation of the occupant
classification system, contact
an authorized Kia dealer.
WARNING
 Even though your vehicle isequipped with the occupant
classification system, do not
install a child restraint system
in the front passenger seat.
The child could be severely
injured or killed if the airbag
deploys. Children are afforded
the most protection in the
event of an accident when
they are restrained by the
proper restraint system in the
rear seat.
(Continued)
LD CAN (ENG) new 3-1~.qxd 7/29/05 10:28 AM Page 64

Knowing your vehicle80
3
1
2
3
4
5
6
7
8
9
Outside the vehicle To open the trunk, insert the key
into the lock and turn it clockwise
(
➀).
 To close the trunk, use both hands
to push the trunk lid down. Check
to see if the trunk is completely
shut.
 Trunk can be opened with transmit-
ter (if equipped). Trunk room lamp
Trunk room lamp turns on when the
trunk is opened. It remains on until
the trunk is securely closed.
✽ ✽
NOTICEMake sure to close the trunk secure-
ly. If it remains open while engine is
not running, it may cause battery
discharge because trunk room lamp
remains on.
TRUNK (IF EQUIPPED)
1LDN2014
PROPOSITION 65
WARNING
Engine exhaust and a wide vari-
ety of automobile components
and parts, including compo-
nents found in the interior fur-
nishings in a vehicle, contain or
emit chemicals known to the
State of California to cause can-
cer and birth defects and repro-
ductive harm. In addition, cer-
tain fluids contained in vehicles
and certain products of compo-
nent wear contain or emit chem-
icals known to the State of
California to cause cancer and
birth defects or other reproduc-
tive harm.
1LDA2015
LD CAN (ENG) new 3-1~.qxd 7/29/05 10:29 AM Page 80

Knowing your vehicle82
3
1
2
3
4
5
6
7
8
9

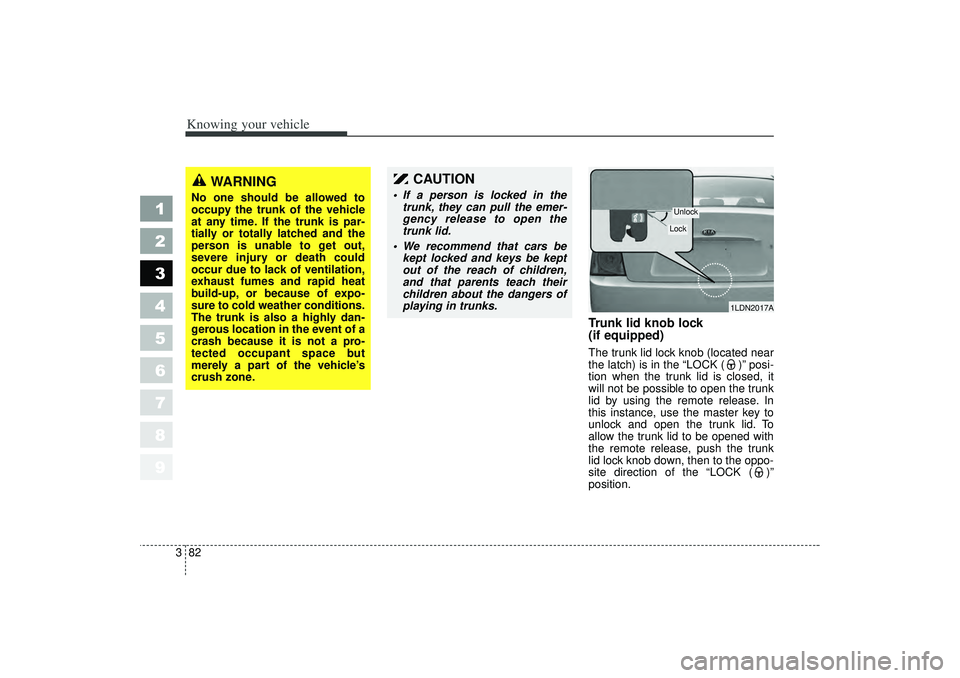

Trunk lid knob lock
(if equipped)The trunk lid lock knob (located near
the latch) is in the “LOCK ( )”posi-
tion when the trunk lid is closed, it
will not be possible to open the trunk
lid by using the remote release. In
this instance, use the master key to
unlock and open the trunk lid. To
allow the trunk lid to be opened with
the remote release, push the trunk
lid lock knob down, then to the oppo-
site direction of the “LOCK ( )”
position.
WARNING
No one should be allowed to
occupy the trunk of the vehicle
at any time. If the trunk is par-
tially or totally latched and the
person is unable to get out,
severe injury or death could
occur due to lack of ventilation,
exhaust fumes and rapid heat
build-up, or because of expo-
sure to cold weather conditions.
The trunk is also a highly dan-
gerous location in the event of a
crash because it is not a pro-
tected occupant space but
merely a part of the vehicle’s
crush zone.
CAUTION
 If a person is locked in the trunk, they can pull the emer-
gency release to open the
trunk lid.
 We recommend that cars be kept locked and keys be kept
out of the reach of children,
and that parents teach their
children about the dangers of
playing in trunks.
1LDN2017A
UnlockLock
LD CAN (ENG) new 3-1~.qxd 7/29/05 10:29 AM Page 82

Knowing your vehicle94
3
1
2
3
4
5
6
7
8
9

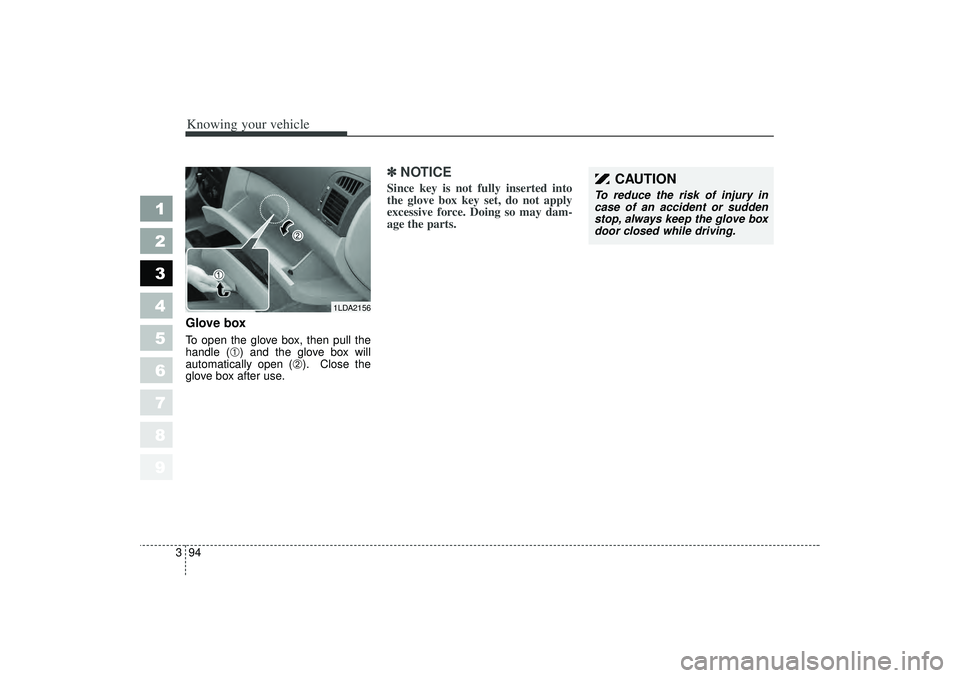

Glove boxTo open the glove box, then pull the
handle (
➀) and the glove box will
automatically open (
➁). Close the
glove box after use.
✽ ✽ NOTICESince key is not fully inserted into
the glove box key set, do not apply
excessive force. Doing so may dam-
age the parts.
1LDA2156
CAUTION
To reduce the risk of injury in
case of an accident or sudden
stop, always keep the glove box
door closed while driving.
LD CAN (ENG) 3-84~.qxd 7/29/05 10:15 AM Page 94

3 103
1
2
3
4
5
6
7
8
9
Knowing your vehicle
In case of an emergency If the sunroof does not open electri-
cally:
1. Open the sunglass holder.
2. Remove the two (2) screws, andthen remove the overhead con-
sole.
3. Insert the emergency handle (pro- vided with the vehicle) and turn
the handle clockwise to open or
counterclockwise to close.
Resetting the sunroofWhenever the vehicle battery is dis-
connected or discharged, or you use
the emergency handle to operate the
sunroof, you have to reset your sun-
roof system as follows:
1. Turn the ignition key to the ON position.
2. According to the position of the sunroof, do as follows.
1) in case that the sunroof hasclosed completely or been tilt-
ed
: Press the TILT UP ( ) but- ton for 1 second.
2) in case that the sunroof has slide-opened
: Press and hold the CLOSE ( ) button for more than 5
seconds until the sunroof has
closed completely. And then
press the TILT UP ( ) but-
ton for 1 second 3. Then, release it.
4. Press and hold the TILT UP ( )
button once again until the sun-
roof has returned to the original
position of TILT UP ( ) after it is
raised a little higher than the max-
imum TILT UP ( ) position.
When this is complete, the sunroof
system is reset.
1LDN3201
LD CAN (ENG) 3-84~.qxd 7/29/05 10:15 AM Page 103

Knowing your vehicle106
3
1
2
3
4
5
6
7
8
9
Glass antenna (if equipped)When the radio power switch is
turned on while the ignition key is in
either the “ON” or “ACC” position,
your car will receive both AM and FM
broadcast signals through the anten-
na in the rear window glass.
✽ ✽
NOTICE Do not clean the inside of the rear
window glass with a cleaner or use
a scraper to remove the foreign
deposits as this may cause damage
to the antenna elements.
 Avoid adding metallic coating such as Ni, Cd, and so on. These
can disturb receiving AM and FM
broadcast signals.
MMSA3076
LD CAN (ENG) 3-84~.qxd 7/29/05 10:15 AM Page 106

Driving your vehicle24
1
2
3
4
5
6
7
8
9
Illuminated ignition switchWhenever a door is opened, the igni-
tion switch will be illuminated for your
convenience, provided the ignition
switch is not in the ON position. The
light will go off approximately 10 sec-
onds after closing the door or when
the ignition switch is turned on.
Ignition switch and anti-theft
steering column lock Ignition switch position
LOCK
The steering wheel locks to protect
against theft. The ignition key can be
removed only in the LOCK position.
When turning the ignition switch to
the LOCK position, push the key
inward at the ACC position and turn
the key toward the LOCK position.
ACC (Accessory)
The steering wheel is unlocked and
electrical accessories are operative.ON
The warning lights can be checked
before the engine is started. This is
the normal running position after the
engine is started.
Do not leave the ignition switch ON if
the engine is not running to prevent
battery discharge.
START
Turn the ignition key to the START
position to start the engine. The
engine will crank until you release
the key; then it returns to the ON
position. The brake warning lamp
can be checked in this position.
If difficulty is experienced in turning
the ignition key to the START posi-
tion, turn the steering wheel right
and left to release the tension and
then turn the key.
IGNITION SWITCH
1LDA3012
1GHA3201A
LD CAN (ENG) 4.qxd 7/29/05 10:16 AM Page 2
