KIA SPECTRA5 2007 User Guide

Your vehicle at a glance42
1
2
3
4
5
6
7
8
910
ENGINE COMPARTMENT
OLD056002
1. Power steering fluid reservoir
2. Engine oil filler cap
3. Brake fluid reservoir
4. Air cleaner
5. Fuse box
6. Negative battery terminal
7. Positive battery terminal
8. Auto transaxle oil dipstick*
9. Radiator cap
10. Engine oil dipstick
11. Engine coolant reservoir
12. Windshield washer fluid reservoir
* : if equipped

101
2
3
4
5
6
7
8
9
Keys / 3-2
Remote keyless entry / 3-3
Door locks / 3-6
Windows / 3-11
Seat / 3-14
Safety belts / 3-25
Air bag - Advanced supplemental restraint system / 3-49
Trunk / 3-74
Hood / 3-77
Fuel filler lid / 3-78
Mirrors / 3-81
Interior lights / 3-85
Storage compartment / 3-86
Interior features / 3-88
Sunroof / 3-92
Luggage net / 3-95
Antenna / 3-96
Audio system / 3-97
Knowing your vehicle
10

Knowing your vehicle23
1
2
3
4
5
6
7
8
910
The key code number is stamped on
the plate attached to the key set.
Should you lose your keys, this num-
ber will enable an authorized Kia
Dealer to duplicate the keys easily.
Remove the plate and store it in a
safe place. Also, record the code
number and keep it in a safe and
handy place, but not in the vehicle.
Key operationsMaster keyUsed to start the engine, lock and
unlock the doors, and open the trunk
(if equipped).
KEYS
OUN046100L
OUN026060
WARNING
- Ignition key
Leaving children unattended in
a vehicle with the ignition key is
dangerous even if the key is not
in the ignition. Children copy
adults and they could place the
key in the ignition. The ignition
key would enable children to
operate power windows or other
controls, or even make the vehi-
cle move, which could result in
serious bodily injury or even
death. Never leave the keys in
your vehicle with unsupervised
children.
WARNING
Use only Kia original parts for
the ignition key in your vehicle.
If an aftermarket key is used, the
ignition switch may not return
to ON after START. If this hap-
pens, the starter will continue to
operate causing damage to the
starter motor and possible fire
due to excessive current in the
wiring.

33
1
2
3
4
5
6
7
8
910
Knowing your vehicle
(1) Lock button
(2) Unlock button
(3) Panic button
(4) Trunk lid open button
Lock (1)All doors are locked and the hazard
lamp flash once if the lock button is
pressed.Unlock (2) Driver’s door is unlocked and the
hazard lamp will flash twice if the
unlock button is pressed once. All
doors are unlocked if the unlock but-
ton is pressed twice within 4 sec-
onds.
After depressing this button, the
doors will be locked automatically
unless you open them within 30 sec-
onds.
Panic (3) (if equipped)The horn sounds and hazard lamp
will flash for about 27 seconds if this
button is pressed for more than 0.5
seconds.
To stop the panic operation, press
any button except panic on the trans-
mitter.Trunk lid open (4) (if equipped)The trunk lid opens if this button is
pressed for more than 0.5 seconds.
REMOTE KEYLESS ENTRY (IF EQUIPPED)
OLD026001OLD026002
Type A
Type B

Knowing your vehicle43
1
2
3
4
5
6
7
8
910
✽ ✽NOTICEThe transmitter will not work if any
of following occur:
- The ignition key is in ignition
switch.
- You exceed the operating distance limit (about 100 feet [30 m]).
- The battery in the transmitter is weak.
- Other vehicles or objects may be blocking the signal.
- The weather is extremely cold.
- The transmitter is close to a radio transmitter such as a radio station
or an airport which can interfere
with normal operation of the
transmitter.
When the transmitter does not work
correctly, open and close the door
with the ignition key. If you have a
problem with the transmitter, con-
tact an authorized Kia Dealer.
Operational distance may vary
depending upon the area the trans-
mitter is used in. For example, if the
vehicle is parked near police sta-
tions, government and public offices,
broadcasting stations, military instal-
lations, airports, or transmitting tow-
ers, etc. This device complies with Part 15
of the FCC rules.
Operation is sub-
ject to the following two conditions:
1. This device may not cause harm- ful interference, and
2. This device must accept any inter- ference received, including inter-
ference that may cause undesired
operation.
WARNING
Changes or modifications not
expressly approved by the party
responsible for compliance
could void the user's authority
to operate the equipment.
CAUTION
Keep the transmitter away fromwater or any liquid. If the key-less entry system is inoperativedue to exposure to water or liq-uids, it will not be covered byyour manufacturer vehicle war-ranty.

35
1
2
3
4
5
6
7
8
910
Knowing your vehicle
Battery replacementTransmitter uses a 3 volt lithium bat-
tery which will normally last for sever-
al years. When replacement is nec-
essary, use the following procedure.
1. Insert a slim tool into the slot andgently pry open the transmitter
center cover. 2. Replace the battery with new one.
When replacing the battery, make
sure the battery positive “+” sym-
bol faces up as indicated in the
illustration.
3. Install the battery in the reverse order of removal. For replacement transmitters, see an
Authorized Kia Dealer for reprogram-
ming.
CAUTION
• Using the wrong battery can
cause the transmitter to mal-function. Be sure to use thecorrect battery.
 To avoid damaging the trans- mitter, don't drop it, get it wet,or expose it to heat or sun-light.
OMG035137
HNF2005
CAUTION
The keyless entry system trans-mitter is designed to give youyears of troublefree use, howev-er it can malfunction if exposedto moisture or static electricity.If you are unsure how to useyour transmitter or replace thebattery, contact an authorizedKia dealer.

Knowing your vehicle63
1
2
3
4
5
6
7
8
910
Operating door locks from
outside the vehicle  Turn the key toward rear of vehicleto unlock and toward front of vehi-
cle to lock.
 Turn the key to the right once to unlock the driver’s door and to the
right twice within 4 seconds to
unlock all doors. (if equipped)
 Turn the key to the left once to unlock the passenger’s door and to
the left twice within 4 seconds to
unlock all doors. (if equipped)
 Doors can also be locked and unlocked with the transmitter key.  Once the doors are unlocked, they
may be opened by pulling the door
handle.
 When closing the door, push the door by the hand. Make sure that
doors are closed securely.
To lock a door without the key, push
the inside door lock button (1) or
door lock switch (2, if equipped) to
the “LOCK” position and close the
door (3).DOOR LOCKS
1LDA2004
Lock
Unlock
OLD036900N
WARNING
Always remove the ignition key,
engage the parking brake, close
all windows and lock all doors
when leaving your vehicle unat-
tended.

37
1
2
3
4
5
6
7
8
910
Knowing your vehicle
✽ ✽NOTICEIf the door is locked/unlocked multi-
ple times in rapid succession with
either the vehicle key or door lock
switch, the system may stop operat-
ing temporarily in order to protect
the circuit and prevent damage to
system components.
Operating door locks from
inside the vehicleWith the door lock button To unlock a door, push the door
lock button (1) to the “Unlock” posi-
tion. The red mark (2) on button will
be visible.
 To lock a door, push the door lock button (1) to the “Lock” position. If
the door is locked properly, the red
mark (2) on the door lock button
will not be visible.
 To open a door, pull the door han- dle (3) outward.  If the inner door handle of driver’s
(front passenger’s, if equipped)
door is pulled when the door lock
button is in lock position, the button
is unlocked and door opens.
 Front doors cannot be locked if the ignition key is in the ignition switch
and door is open.
 If you lock the front door with door lock button, all vehicle doors will
lock automatically. (if equipped)
1LDA2006
Lock
Unlock

Knowing your vehicle83
1
2
3
4
5
6
7
8
910
With central door lock switch (if equipped)It is operated by depressing the door
lock switch. If any door is open when
the switch is depressed, the door will
remain locked when closed.  When pushing down on the front
portion (1) of the central door lock
switch, all vehicle doors will lock.
 When pushing down on the rear portion (2) of the switch, all vehicle
doors will unlock.
 However, if the key is in the ignition switch and any front door is open,
the doors will not lock when the
front portion of central door lock
switch is pressed.
1LDA20071LDN2007
Driver’s sidePassenger’s side (if equipped)
WARNING
 The doors should always befully closed and locked while
the vehicle is in motion to pre-
vent accidental opening of the
door. Locked doors will also
discourage potential intruders
when the vehicle stops or
slows.
 Be careful when opening doors and watch for vehicles,
motorcycles, bicycles or
pedestrians approaching the
vehicle in the path of the door.
Opening a door when some-
thing is approaching can
cause damage or injury.

39
1
2
3
4
5
6
7
8
910
Knowing your vehicle

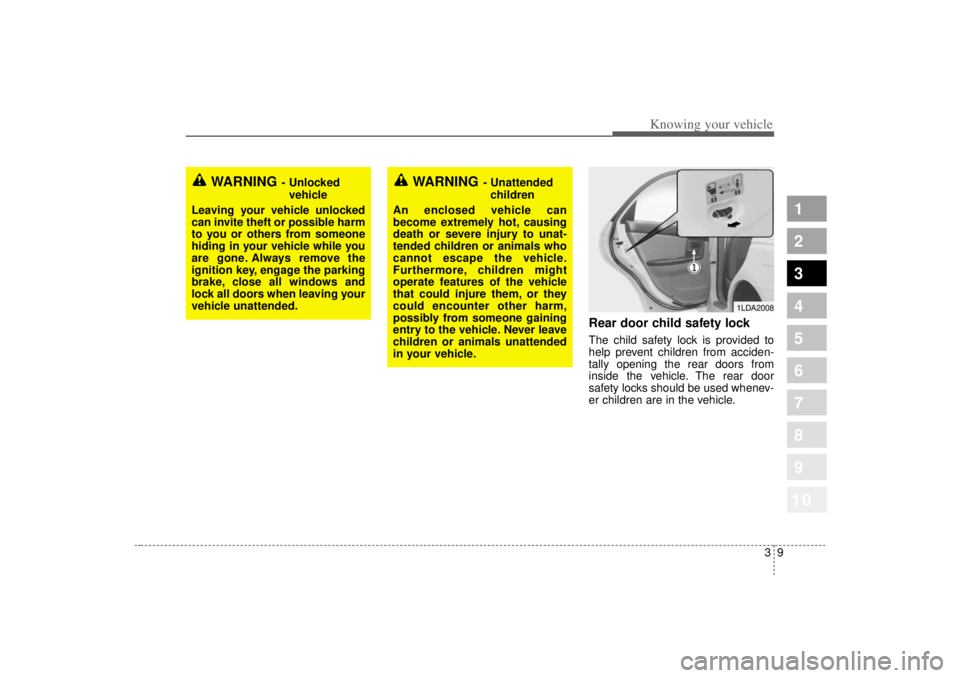

Rear door child safety lockThe child safety lock is provided to
help prevent children from acciden-
tally opening the rear doors from
inside the vehicle. The rear door
safety locks should be used whenev-
er children are in the vehicle.
1LDA2008
WARNING
- Unlockedvehicle
Leaving your vehicle unlocked
can invite theft or possible harm
to you or others from someone
hiding in your vehicle while you
are gone. Always remove the
ignition key, engage the parking
brake, close all windows and
lock all doors when leaving your
vehicle unattended.
WARNING
- Unattended children
An enclosed vehicle can
become extremely hot, causing
death or severe injury to unat-
tended children or animals who
cannot escape the vehicle.
Furthermore, children might
operate features of the vehicle
that could injure them, or they
could encounter other harm,
possibly from someone gaining
entry to the vehicle. Never leave
children or animals unattended
in your vehicle.
