NORMAL MAINTENANCE SCHEDULEThe following maintenance services must be performed to ensure good emission control and performance. Keep
receipts for all vehicle emission services to protect your warranty. Where both mileage and time are shown, the fre-
quency of service is determined by whichever occurs first.
R : Replace I : Inspect and, after Inspection, clean, adjust, repair or replace if neces\
sary.
DESCRIPTION
7.5 15 22.5 30 37.5 45 52.5 60 67.5 75 82.5 90 97.5 105 112.5 120 127.5 135 142.5 15012 24 36 48 60 72 84 96 108 120 132 144 156 168 180 192 204 216 228 240 6 121824303642485460667278849096102108114120
Replace every 7,500 miles or 12 monthsRR
IIIII
IIIIIIIIIIIIIIIIII II IIIII
IIIII
I I IRI I IRI I IRI I IRII IR RR
Replace every 100,000 miles II
IRIRIRIRIR
EMISSION CONTROL ITEMS
ENGINE OIL AND FILTER
FUEL FILTER
FUEL LINES, FUEL HOSES AND CONNECTIONS
VACUUM HOSE
CRANKCASE VENTILATION HOSE
VAPOR HOSE AND FUEL FILLER CAP
AIR CLEANER FILTER
SPARK PLUGS
PLATINUM COATED
IRIDIUM COATED
VALVE CLEARANCE *
1
FUEL TANK AIR FILTER
No.1
2
3
4
5
6
7
8
9
10 MILES X 1000
KILOMETERS X 1000
MONTHS*1: Inspect for excessive tappet noise and/or engine vibration and adjust if necessary.

Maintenance67
1
2
3
4
5
6
7
8
910
NORMAL MAINTENANCE SCHEDULE (CONT.)R : ReplaceI : Inspect and, after inspection, clean, adjust, repair or replace if neces\
sary
DESCRIPTION
7.5 15 22.5 30 37.5 45 52.5 60 67.5 75 82.5 90 97.5 105 112.5 120 127.5 135 142.5 150
12 24 36 48 60 72 84 96 108 120 132 144 156 168 180 192 204 216 228 240 6 121824303642485460667278849096102108114120
IIIIIIIIII
IIIIIIIIII
IIIIIIIIII
IIIIIIIIII
IIIIIIIIII
IIIIIIIIII
Replace every 12 months or 10,000 miles (15,000 km)
GENERAL ITEMS
EXHAUST PIPE AND MUFFLER
SUSPENSION MOUNTING BOLTS
STEERING GEAR BOX, LINKAGE & BOOTS
/LOWER ARM BALL JOINT, UPPER ARM BALL
JOINT
POWER STEERING PUMP, BELT AND HOSES
DRIVE SHAFTS AND BOOTS
AIR CONDITIONING REFRIGERANT
CLIMATE CONTROL AIR FILTER
(FOR EVAPORATOR AND BLOWER UNIT) MILES X 1000
KILOMETERS X 1000
MONTHS
No.11
12
13
14
15
16
17

77
Maintenance
1
2
3
4
5
6
7
8
910
MAINTENANCE UNDER SEVERE USAGE CONDITIONSSEVERE DRIVING CONDITIONS
A - Repeatedly driving short distance of less than 5miles (8km) in nor-mal temperature or less than 10miles (16km) in freezing temperature
B - Extensive engine idling or low speed driving for long distances
C - Driving on rough, dusty, muddy, unpaved, graveled or salt- spread roads
D - Driving in areas using salt or other corrosive materials or in very cold weather E - Driving in sandy areas
F - Driving in heavy traffic area over 90°F (32°C)
G - Driving on uphill, downhill, or mountain road
H - Towing a Trailer, or using a camper, or roof rack
I - Driving as a patrol car, taxi, other commercial use or vehicle towing
J - Driving over 100 MPH (170 Km/h)
K - Frequently driving in stop-and-go conditionsENGINE OIL AND FILTER
AIR CLEANER FILTER
SPARK PLUGS
BRAKE PADS, CALIPERS AND ROTORS
REAR BRAKE DRUMS/LININGS, PARKING BRAKE
STEERING GEAR BOX, LINKAGE & BOOTS/
LOWER ARM BALL JOINT, UPPER ARM BALL JOINT
DRIVE SHAFTS AND BOOTS
TIMING BELT/IDLER/TENSIONER
MANUAL TRANSAXLE OIL
AUTOMATIC TRANSAXLE FLUID
CLIMATE CONTROL AIR FILTER
(FOR EVAPORATOR AND BLOWER UNIT)R
R
R
I
I
I
I
R
R
R
R EVERY 3,000 MILES (5,000 KM) OR 3 MONTHS
MORE FREQUENTLY
MORE FREQUENTLY
MORE FREQUENTLY
MORE FREQUENTLY
MORE FREQUENTLY
EVERY 7,500 MILES (12,000 KM) OR 6 MONTHS
EVERY 60,000 MILES (96,000 KM) OR 48 MONTHS
EVERY 60,000 MILES (96,000 KM)
EVERY 30,000 MILES (48,000 KM)
MORE FREQUENTLY
A, B, C, D, E, F, G, H, I, KC, E
B, H
C, D, G, H
C, D, G, H
C, D, E, F, G, H, I
C, D, E, F, G, H
B, C, D, E, F, G
A, C, D, E, F, G, H, I, J
A, C, E, F, G, H, I
C, E
MAINTENANCE ITEM
MAINTENANCE
OPERATION MAINTENANCE
INTERVALS DRIVING
CONDITION
The following items must be serviced more frequently on cars normally used under severe driving conditions. Refer
to the chart below for the appropriate maintenance intervals.
R : Replace I : Inspect and, after inspection, clean, adjust, repair or replace if neces\
sary

Maintenance22
7
1
2
3
4
5
6
7
8
910
AIR CLEANER Filter replacement It must be replaced when necessary,
and should not be cleaned and
reused. 1. Loosen the air cleaner cover
attaching clips and open the
cover. 2. Replace the air cleaner filter.
3. Lock the cover with the cover
attaching clips.
1LDA5010
1LDA5011
1LDA5012

723
Maintenance
1
2
3
4
5
6
7
8
910
Replace the filter according to the
Maintenance Schedule.If the vehicle is operated in extreme-ly dusty or sandy areas, replace theelement more often than the usualrecommended intervals. (Refer to“Maintenance under severe usageconditions” in this section.)
CAUTION
 Do not drive with the air clean- er removed; this will result inexcessive engine wear.
 When removing the air cleaner filter, be careful that dust ordirt does not enter the airintake, or damage may result.
 Use a KIA genuine part. Use of non-genuine part could dam-age the air flow sensor.

Maintenance24
7
1
2
3
4
5
6
7
8
910
CLIMATE CONTROL AIR FILTER (IF EQUIPPED)The climate control air filter installed
behind the glove box filters the dust
or other pollutants coming into the
vehicle through the heating and air
conditioning system from the outside
of vehicle. If dust or other pollutants
accumulate in the filter over a period
of time, the air flow from the air vents
may be decrease and the moisture
inside of the windshield easily occurs
than before when the air intake is
outside (fresh) position, then have
the climate control air filter replace
by an Authorized Kia Dealer. The climate control air filter should
be regularly replaced every 10,000
miles, especially in the event that the
vehicle is operated in the severely
air-polluted cities or on dusty rough
roads for a long period, inspect the
air filter more frequently and replace
it earlier. When you try to replace the
climate control air filter by owner
maintenance, replace it performing
the following procedure, and in this
case, be careful to avoid damaging
other components.
Filter replacement1. Open the glove box part way,
reach inside and pull out the elas-
tic line and push the retaining clip
through the hole on the side of the
glove box. Allow the glove box to
open.
1LDA5014
1LDA5047

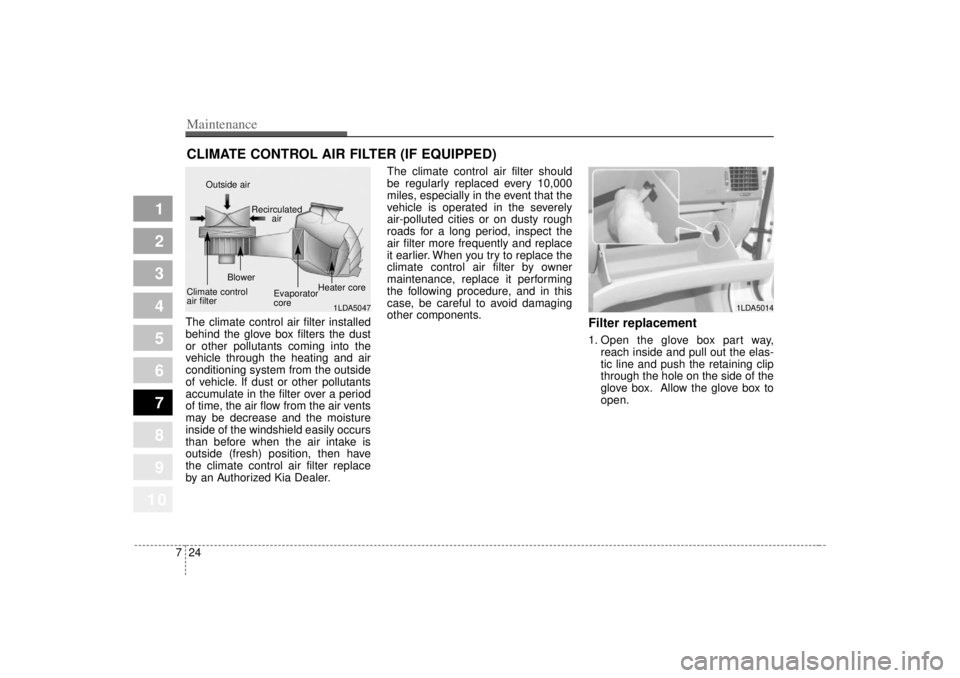

Outside air
Recirculatedair
Climate control
air filter Blower
Evaporator
coreHeater core

725
Maintenance
1
2
3
4
5
6
7
8
910

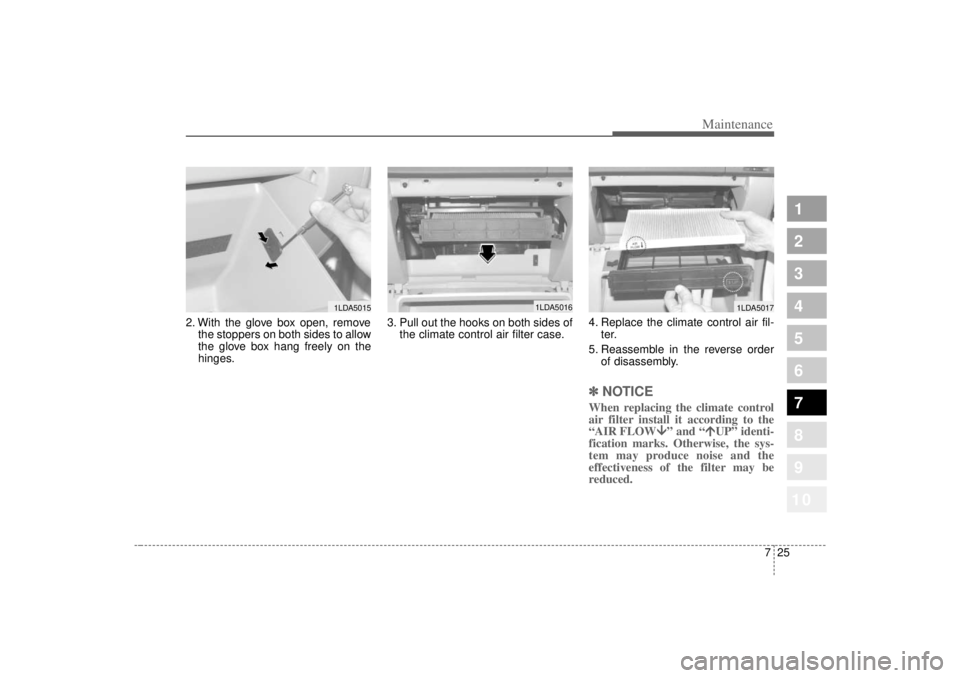

2. With the glove box open, removethe stoppers on both sides to allow
the glove box hang freely on the
hinges. 3. Pull out the hooks on both sides of
the climate control air filter case. 4. Replace the climate control air fil-
ter.
5. Reassemble in the reverse order of disassembly.
✽ ✽NOTICEWhen replacing the climate control
air filter install it according to the
“AIR FLOW !
” and “ "
UP” identi-
fication marks. Otherwise, the sys-
tem may produce noise and the
effectiveness of the filter may be
reduced.
1LDA5016
1LDA5017
1LDA5015
