charging KIA SPECTRA5 2007 Owners Manual

Driving your vehicle32
4
1
2
3
4
5
6
7
8
910
Engine oil pressure
warning This warning light indicates the
engine oil pressure is low.
If the warning light illuminates while
driving:
1. Drive safely to the side of the road
and stop.
2. With the engine off, check the engine oil level. If the level is low,
add oil as required.
If the warning light remains on after
adding oil or if oil is not available, call
an Authorized Kia Dealer.
Charging system
warning This warning light indicates a mal-
function of either the generator or
electrical charging system.
If the warning light comes on while
the vehicle is in motion:
1. Drive to the nearest safe location.
2. With the engine off, check the gen- erator drive belt for looseness or
breakage.
3. If the belt is adjusted properly, a problem exists somewhere in the
electrical charging system. Have
an Authorized Kia Dealer correct
the problem as soon as possible.
Safety belt warning If the driver's lap/shoulder belt is not
fastened when the ignition switch is
turned ON, the safety belt warning
light and chime will activate for about
6 seconds. And if the lap/shoulder
belt is fastened when the ignition
switch is turned ON, the safety belt
warning light will blink for about 6
seconds.
If the lap/shoulder belt is unfastened
while the lap/shoulder belt is fas-
tened with the ignition switch ON, the
safety belt warning light will blink for
about 6 seconds and if the vehicle
speed exceeds 10km/h the safety
belt warning light and chime will acti-
vate until it is fastened.
CAUTION
If the engine is not stoppedimmediately, severe damagecould result.

Maintenance28
7
1
2
3
4
5
6
7
8
910

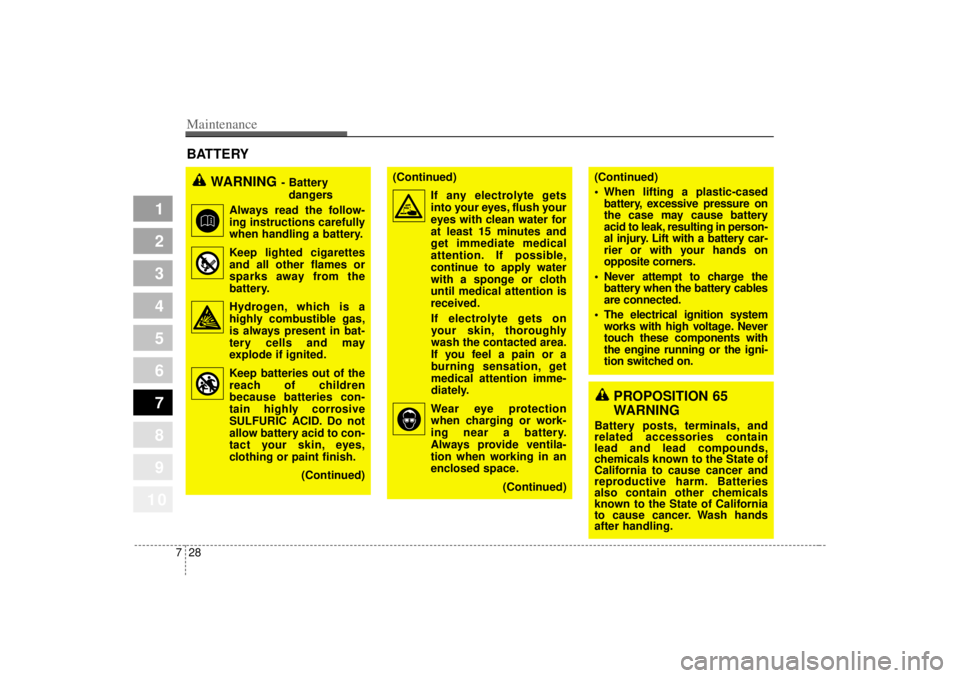

BATTERY
WARNING
- Battery
dangers
Always read the follow-
ing instructions carefully
when handling a battery.
Keep lighted cigarettes and all other flames or
sparks away from the
battery.
Hydrogen, which is a highly combustible gas,
is always present in bat-
tery cells and may
explode if ignited.
Keep batteries out of the reach of children
because batteries con-
tain highly corrosive
SULFURIC ACID. Do not
allow battery acid to con-
tact your skin, eyes,
clothing or paint finish.
(Continued)
(Continued)If any electrolyte getsinto your eyes, flush your
eyes with clean water for
at least 15 minutes and
get immediate medical
attention. If possible,
continue to apply water
with a sponge or cloth
until medical attention is
received.
If electrolyte gets on
your skin, thoroughly
wash the contacted area.
If you feel a pain or a
burning sensation, get
medical attention imme-
diately.
Wear eye protection when charging or work-
ing near a battery.
Always provide ventila-
tion when working in an
enclosed space.
(Continued)
(Continued)
 When lifting a plastic-casedbattery, excessive pressure on
the case may cause battery
acid to leak, resulting in person-
al injury. Lift with a battery car-
rier or with your hands on
opposite corners.
 Never attempt to charge the battery when the battery cables
are connected.
 The electrical ignition system works with high voltage. Never
touch these components with
the engine running or the igni-
tion switched on.
PROPOSITION 65
WARNING
Battery posts, terminals, and
related accessories contain
lead and lead compounds,
chemicals known to the State of
California to cause cancer and
reproductive harm. Batteries
also contain other chemicals
known to the State of California
to cause cancer. Wash hands
after handling.

729
Maintenance
1
2
3
4
5
6
7
8
910
For best battery service : Keep the battery securely mount-ed.
 Keep the battery top clean and dry.
 Keep the terminals and connec- tions clean, tight, and coated with
petroleum jelly or terminal grease.
 Rinse any spilled electrolyte from the battery immediately with a
solution of water and baking soda.
 If the vehicle is not going to be used for an extended time, discon-
nect the battery cables.
Battery recharging Your vehicle has a maintenance-free,
calcium-based battery.
 If the battery becomes dischargedin a short time (because, for exam-
ple, the headlights or interior lights
were left on while the vehicle was
not in use), recharge it by slow
charging (trickle) for 10 hours.
 If the battery gradually discharges because of high electric load while
the vehicle is being used, recharge
it at 20-30A for two hours.
Items to be reset after the batteryhas been discharged or the bat-tery has been disconnected. Clock (See section 3)
 Climate control system (See section 4)
 Audio (See section 3)
 Sunroof (See section 3)
1LDE5028

Maintenance30
7
1
2
3
4
5
6
7
8
910
WARNING
- Recharging
battery
When recharging the battery,
observe the following precau-
tions:
 The battery must be removed from the vehicle and placed in
an area with good ventilation.
 Do not allow cigarettes, sparks, or flame near the bat-
tery.
 Watch the battery during charging, and stop or reduce
the charging rate if the battery
cells begin gassing (boiling)
violently or if the temperature
of the electrolyte of any cell
exceeds 120°F (49°C).
 Wear eye protection when checking the battery during
charging.
(Continued)
(Continued)
 Disconnect the battery charg-er in the following order.
1. Turn off the battery charger main switch.
2. Unhook the negative clamp from the negative battery ter-
minal.
3. Unhook the positive clamp from the positive battery ter-
minal.
CAUTION
 Before performing mainte-nance or recharging the bat-tery, turn off all accessoriesand stop the engine.
 The negative battery cable must be removed first andinstalled last when the batteryis disconnected.

Consumer assistance4 9ELECTRICAL EQUIPMENT (U.S. ONLY)The electrical system of your vehicle is designed to per-
form under all reasonably expected operating conditions.
However, before any additional electrical equipment is
installed in your vehicle, consult an Authorized Kia
Dealer, in order to ensure that you do not void your war-
ranty.
Certain electrical equipment, or the way in which it is
installed, may adversely affect the operation of your vehi-
cle, including such systems as the engine control system,
the audio system and the electrical charging system and
thus potentially void all or part of your warranty.
We assume no responsibility for any expense you may
incur or for any malfunction of your vehicle or any of its
components or systems that may result from the installa-
tion of additional electrical equipment that is not supplied,
or recommended for installation by Kia.
Installation of a Mobile Two-Way Radio SystemIf a mobile two-way radio system is installed improperly,
or if an excessively powerful type of system is used, other
electronic systems may be adversely affected. To avoid
damage to your vehicle, consult an Authorized Kia Dealer
concerning the proper equipment and installation.
1
2
3
4
5
6
7
8
910
