KIA Sportage 2009 JE_ / 2.G Owner's Manual

Knowing your vehicle92
3
1
2
3
4
5
6
7
8
9
Cigarette lighterTo use the cigarette lighter, pull the
assembly cover out.
To operate the cigarette lighter, press
it in and release it. When it is heated,
it automatically pops out ready for
use.
If the engine is not running, the igni-
tion switch must be in the ACC posi-
tion for the lighter to operate.
✽ ✽
NOTICE• Do not hold the lighter in after it is
already heated because it will
overheat.
• Only a genuine Kia lighter should be used in the cigarette lighter
socket. The use of plug-in acces-
sories (shavers, hand-held vacu-
ums, and coffee pots, for example)
may damage the socket or cause
electrical failure.
• If the lighter does not pop out within 30 seconds, remove it to
prevent overheating.
Ashtrays To use the ashtray, pull the assembly
cover out.
To remove the ashtray to empty or
clean it, lift it upward and pull it out.
INTERIOR FEATURES
WARNING
- Ashtray use
Do not use the vehicle’s ash- trays as waste receptacles.
Putting lit cigarettes or match- es in an ashtray with other
combustible materials may
cause a fire.
7KMS2159
7KMS2160

393
1
2
3
4
5
6
7
8
9
Knowing your vehicle
Cup holder
FrontCups or small beverage cans may be
placed in the cup holders.
Rear (if equipped)To use the cup holders in rear seat,
pull down the rear seat armrest.✽ ✽NOTICEDo not place heavy cups or cans in
cup holders. Cup holders could be
damaged.
WARNING
- Hot liquids
Do not place uncovered cups of hot liquid in the cup holder
while the vehicle is in motion.
If the hot liquid spills, you
could be burned. Such a burn
to the driver could cause a
loss of control of the vehicle.
To reduce the risk of personal injury in the event of sudden
stop or collision, do not place
uncovered or insecure bot-
tles, glasses, cans, etc., in the
cup holder while the vehicle is
in motion.
1KMB2170
8KMA2171

Knowing your vehicle94
3
1
2
3
4
5
6
7
8
9
SunvisorUse the sunvisor to shield direct light
through the front or side windows.
To use a sunvisor, pull it downward.
To use a sunvisor for a side window,
pull it downward, unsnap it from the
bracket (
➀) and swing it to the side.
Adjust the sunvisor forward or back-
ward.
To use the vanity mirror (if equipped),
pull down the visor and pull up the
mirror cover (
➁, if equipped).
✽ ✽ NOTICE
- Vanity mirror
(if equipped)
Close the vanity mirror cover (if
equipped) securely and return the
sunvisor to its original position after
use.
Power socket (if equipped)The power outlets are designed to
provide power for mobile telephones
or other devices designed to operate
with vehicle electrical systems. The
devices should draw less than 10
amps with the engine running.
8KMB2158
➀
➁
1KMA21631KMB2162
Front (if equipped)Rear (if equipped)

395
1
2
3
4
5
6
7
8
9
Knowing your vehicle
✽ ✽NOTICE• Use when the engine is running,
and remove a plug from the power
outlet after using the electric
appliance. Using when the engine
stops or remaining the electric
appliance with plugged in for
many hours may cause the battery
to be discharged.
• Only use 12V electric appliances which are less than 10A in electric
capacity.
• Adjust the air-conditioner or heater to the lowest operating level
when you have to use the power
socket.
• Close the cover when not in use.
• Some electronic devices can cause electronic interference when
plugged into a vehicle’s power out-
let. These devices may cause exces-
sive audio static and malfunctions
in other electronic systems or
devices used in your vehicle.
Digital clockWhenever the battery terminals,
ROOM LP fuse, or Power Connect
are disconnected, you must reset the
time.
When the ignition switch is in the
ACC or ON position, the clock but-
tons operates as follows:
HOUR:
Pressing the “H” button with your
finger, a pencil or similar object will
advance the time displayed by one
hour.
MINUTE: Pressing the “M” button with your
finger, a pencil or similar object will
advance the time displayed by one
minute.
OKM039157

Knowing your vehicle96
3
1
2
3
4
5
6
7
8
9
Aux, USB and iPod port
(if equipped)If your vehicle has an aux and/or
USB(universal serial bus) port or
iPod port, you can use an aux port to
connect audio devices and an USB
port to plug in an USB and also an
iPod port to plug in an iPod.✽ ✽
NOTICEWhen using a portable audio device
connected to the power outlet, noise
may occur during playback. If this
happens, use the power source of the
portable audio device.
Shopping bag holderFront (if equipped)To use the holder, push the lower
portion.
Rear (if equipped)To use the holder, pull out the top
edge. (Type A)✽ ✽NOTICE• Do not hang a bag beyond 3 kg (7
lbs.). It may cause damage to the
shopping bag holder.
• Return it to the original position after using the shopping bag holder.
(Type B)
8KMA2190
OKM049173
8KMA2174OKM049174
Type A (if equipped)Type B (if equipped)

397
1
2
3
4
5
6
7
8
9
Knowing your vehicle
If your vehicle is equipped with this
feature, you can slide or tilt your sun-
roof with the sunroof control buttons
located on the overhead console.
The sunroof can only be opened,
closed, or tilted when the ignition
switch is in the ON position.➀
SLIDE OPEN (slide) button
➁
TILT UP (tilt) button
➂
CLOSE (close) button
✽ ✽NOTICEDo not continue to press the sunroof
control button(s) after the sunroof is
in the fully open, closed, or tilt posi-
tion(s). Damage to the motor or sys-
tem components could occur.
Sliding the sunroof
SUNROOF (IF EQUIPPED)
1KMA2024
➀➁➂
1KMA20261KMA2025

Knowing your vehicle98
3
1
2
3
4
5
6
7
8
9
OpenAutoslide
To use the autoslide feature,
momentarily (less than 0.5 second)
press the SLIDE OPEN button on the
overhead console.
The sunroof will slide all the way
open. To stop the sunroof sliding at
any point, press any sunroof control
button.
Manual slide
Press the SLIDE OPEN button on
the overhead console and hold it
until the sunroof is opened to the
desired position.CloseTo close the sunroof, press the
CLOSE button on the overhead con-
sole and hold it until the sunroof is
closed.
Tilting the sunroof
OpenAutotilt
To use the autotilt feature, momen-
tarily (less than 0.5 second) press
the TILT UP button on the overhead
console. The sunroof will tilt all the
way open. To stop the sunroof tilting
at any point, press any sunroof con-
trol button.
Manual tilt
Press the TILT UP button on the
overhead console and hold it until
the sunroof is opened to the desired
position.CloseTo close the sunroof, press the
CLOSE button on the overhead con-
sole and hold it until the sunroof is
closed.
1KMA20281KMA2027

399
1
2
3
4
5
6
7
8
9
Knowing your vehicle
Sunshade The sunshade will be opened with
the glass panel automatically when
the glass panel is slid. You will have
to close it manually if you want it
closed.
✽ ✽NOTICE• Do not press any sunroof control
button longer than necessary.
Damage to the motor or system
components could occur.
• Periodically remove any dirt that may accumulate on the guide rail.
• If you try to open the sunroof when the temperature is below
freezing or when the sunroof is
covered with snow or ice, the glass
or the motor could be damaged.
• The sunroof is made to slide together with sunshade. Do not
leave the sunshade closed while
the sunroof is open.
1KMA2033
WARNING -
Sunroof
Do not extend face or arms outside through the sunroof
opening while driving.
Make sure hand and face are safely out of the way before
closing a sunroof.

Knowing your vehicle100
3
1
2
3
4
5
6
7
8
9

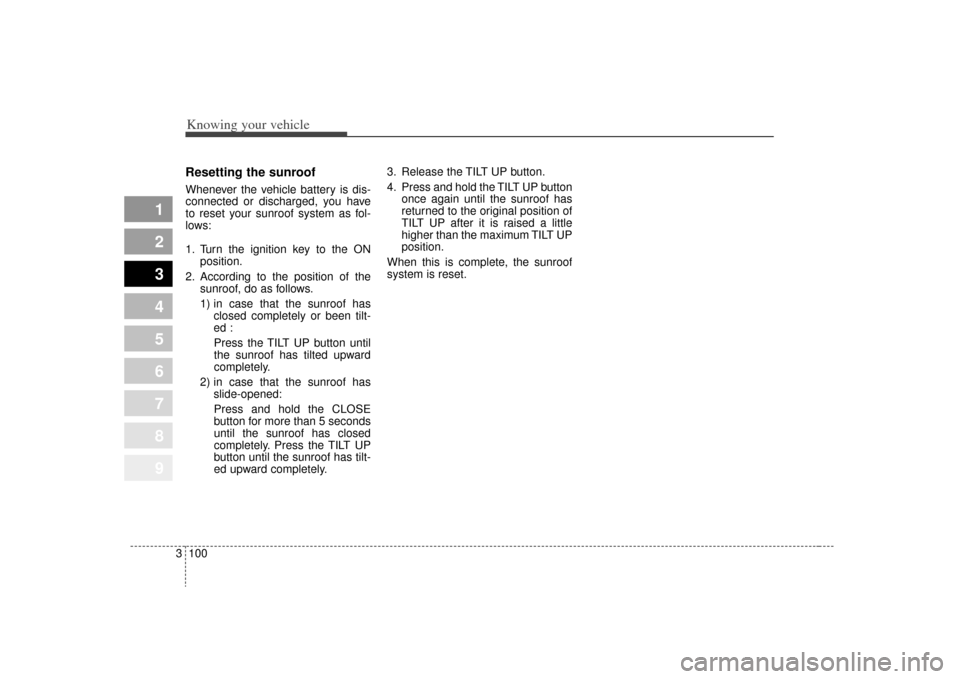

Resetting the sunroofWhenever the vehicle battery is dis-
connected or discharged, you have
to reset your sunroof system as fol-
lows:
1. Turn the ignition key to the ON
position.
2. According to the position of the sunroof, do as follows.
1) in case that the sunroof hasclosed completely or been tilt-
ed :
Press the TILT UP button until
the sunroof has tilted upward
completely.
2) in case that the sunroof has slide-opened:
Press and hold the CLOSE
button for more than 5 seconds
until the sunroof has closed
completely. Press the TILT UP
button until the sunroof has tilt-
ed upward completely. 3. Release the TILT UP button.
4. Press and hold the TILT UP button
once again until the sunroof has
returned to the original position of
TILT UP after it is raised a little
higher than the maximum TILT UP
position.
When this is complete, the sunroof
system is reset.

3 101
1
2
3
4
5
6
7
8
9
Knowing your vehicle
To keep items from shifting in the
cargo area, you can use the four
rings located in the cargo area to
attach the luggage net.
✽ ✽NOTICEDo not put fragile, bulky or an
excessive quantity of items into lug-
gage net. They could be damaged.
LUGGAGE NET (IF EQUIPPED)
1KMA2176
CAUTION
To avoid eye injury, DO NOT
overstretch the netting, allowingit to possibly snap back intoyour face.
DO NOT use the luggage netwhen the strap has visible signsof wear or damage.
