Page 321 of 385

KIA Sportage 2011 SL / 3.G Owners Manual Maintenance
12
7
G051700AUN

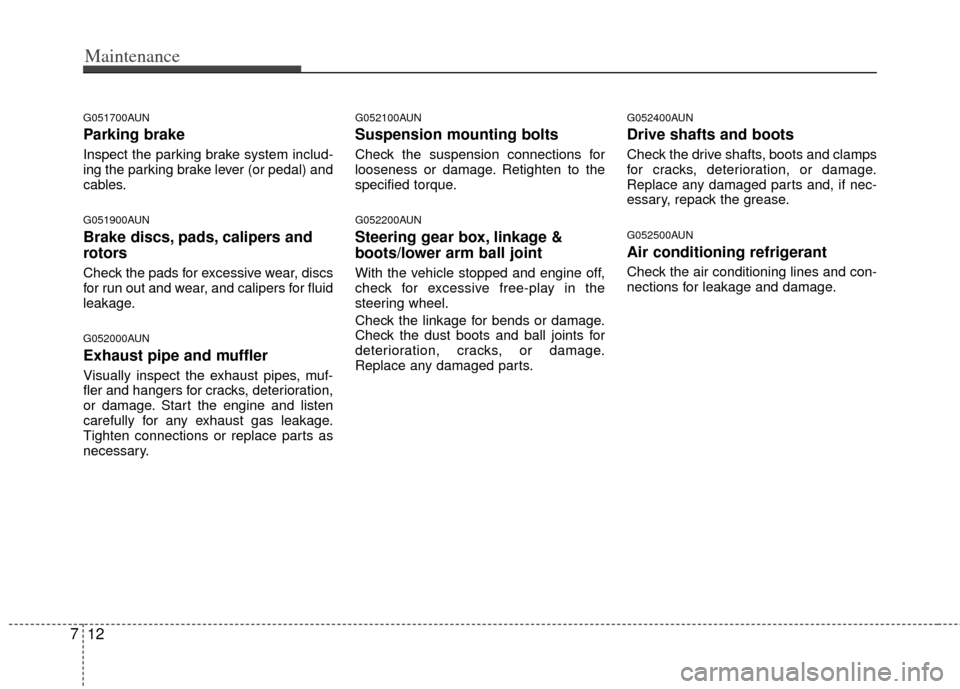

Parking brake
Inspect the parking brake system includ-
ing the parking brake lever (or pedal) and
cables.
G051900AUN
Brake discs, pads, calipers and
rotors
Check the pads f

Page 322 of 385

KIA Sportage 2011 SL / 3.G Owners Manual 713
Maintenance
ENGINE OIL
G060100AHM-EU
Checking the engine oil level
1. Be sure the vehicle is on level ground.
2. Start the engine and allow it to reachnormal operating temperature. 3. Turn the e

Page 323 of 385

KIA Sportage 2011 SL / 3.G Owners Manual Maintenance
14
7
G060200BHM-EU
Changing the engine oil and filter
Have engine oil and filter changed by an
authorized KIA dealer according to the
Maintenance Schedule at the beginning
of this section.

Page 324 of 385

KIA Sportage 2011 SL / 3.G Owners Manual 715
Maintenance

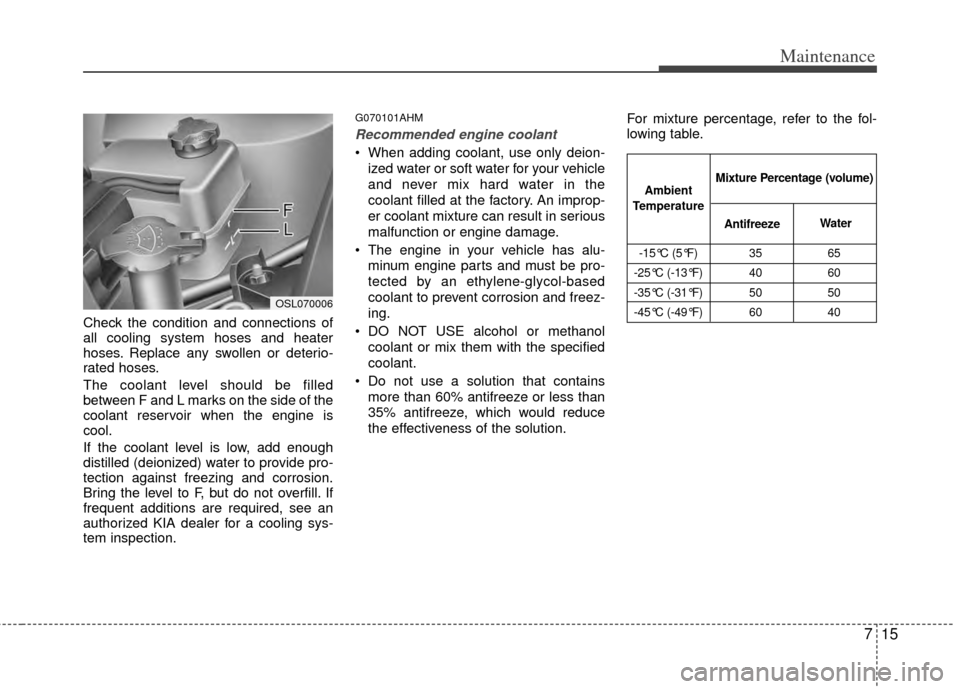

Check the condition and connections of
all cooling system hoses and heater
hoses. Replace any swollen or deterio-
rated hoses.
The coolant level should be filled
between F and L marks

Page 325 of 385

KIA Sportage 2011 SL / 3.G Owners Manual Maintenance
16
7
G070200AHM
Changing the coolant
Have the coolant changed by an author-
ized KIA dealer according to the
Maintenance Schedule at the beginning
of this section.
WARNING - Radiator cap
D

Page 326 of 385

KIA Sportage 2011 SL / 3.G Owners Manual 717
Maintenance
BRAKE/CLUTCH (IF EQUIPPED) FLUID
G080100AAM
Checking the brake/clutch* fluid
level
Check the fluid level in the reservoir peri-
odically. The fluid level should be
between MAX and MI

Page 327 of 385

KIA Sportage 2011 SL / 3.G Owners Manual Maintenance
18
7

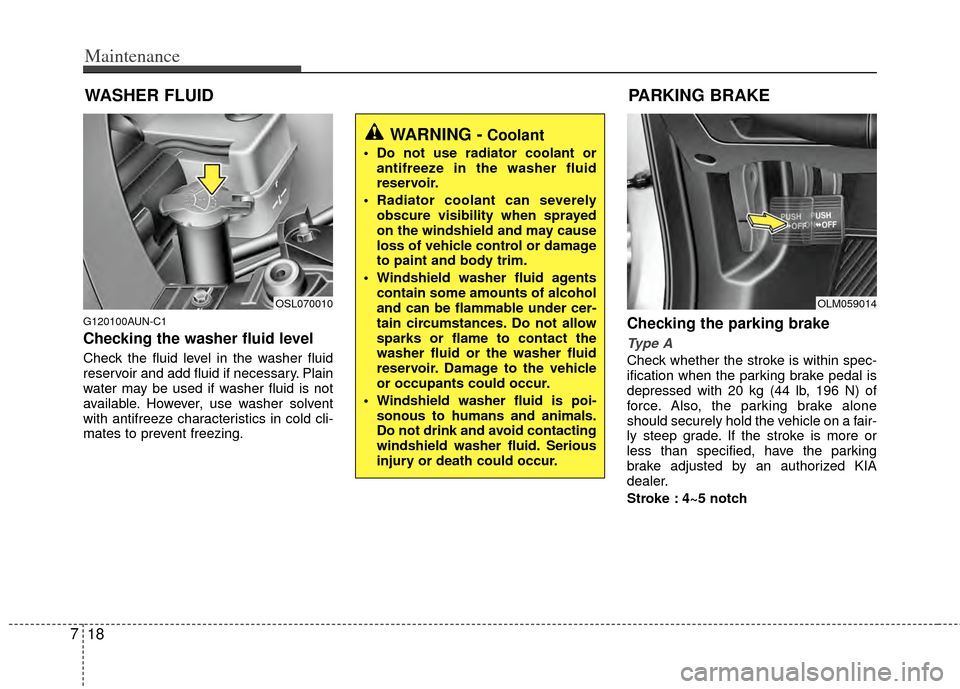

WASHER FLUID
G120100AUN-C1
Checking the washer fluid level
Check the fluid level in the washer fluid
reservoir and add fluid if necessary. Plain
water may be used if washer fluid is n

Page 328 of 385

KIA Sportage 2011 SL / 3.G Owners Manual 719
Maintenance
Type B
Check the stroke of the parking brake by
counting the number of “clicks’’ heard
while fully applying it from the released
position. Also, the parking brake alone
should se

Page 329 of 385

KIA Sportage 2011 SL / 3.G Owners Manual Maintenance
20
7

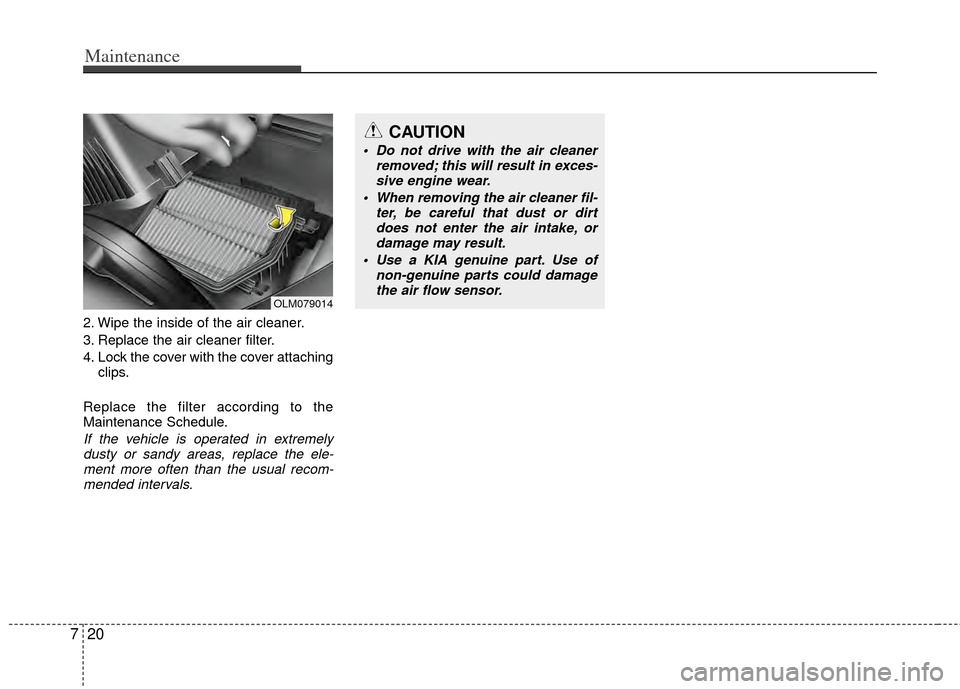

2. Wipe the inside of the air cleaner.
3. Replace the air cleaner filter.
4. Lock the cover with the cover attaching
clips.
Replace the filter according to the
Maintenance Schedule.
I

Page 330 of 385

KIA Sportage 2011 SL / 3.G Owners Manual 721
Maintenance

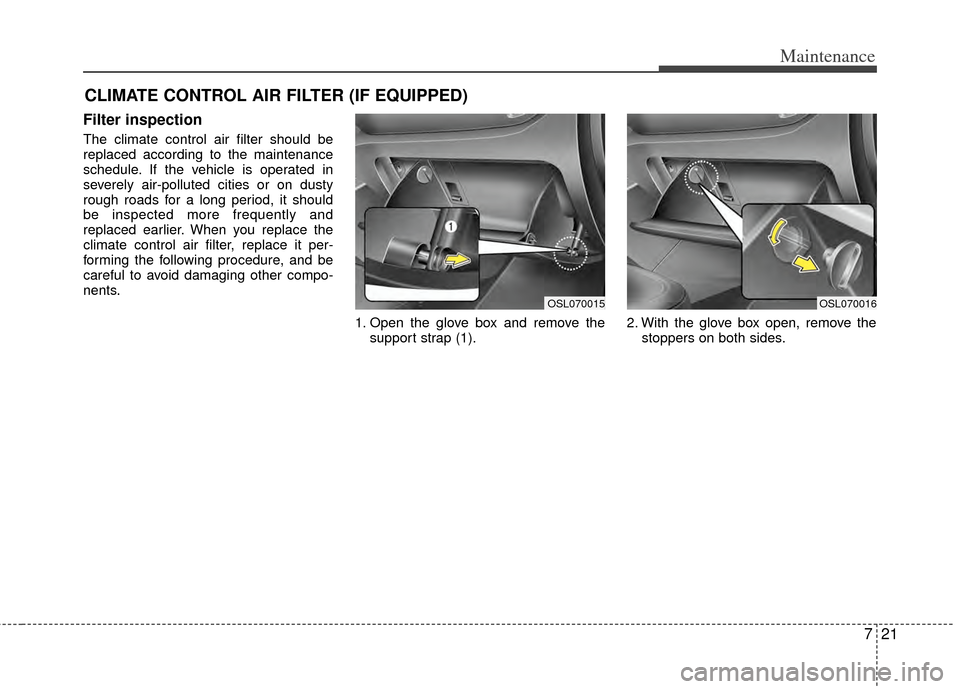

CLIMATE CONTROL AIR FILTER (IF EQUIPPED)
Filter inspection
The climate control air filter should be
replaced according to the maintenance
schedule. If the vehicle is operated in
severe
