KIA SPORTAGE 2017 Navigation System Quick Reference Guide
Manufacturer: KIA, Model Year: 2017, Model line: SPORTAGE, Model: KIA SPORTAGE 2017Pages: 92, PDF Size: 3.01 MB
Page 41 of 92
38
CommandOperation
"J Call Displays downloaded Contacts, after this you can make a call
by saying the name.
"J Call
Contacts.
"J Call
on Mobile You can call a person directly
saved as "Mobile" in the downloaded Contacts.
e.g.) Call “John Smith” on Mobile
"J Call
in Office You can call a person directly
saved as "Office" in the downloaded Contacts.
e.g.) Call “John Smith” in Office
"J Call
at Home You can call a person directly
saved as “Home” in the downloaded Contacts.
e.g.) Call “John Smith” at Home
"J Call
on Other You can call a person directly
saved as other than “Mobile, Home, or Office” in the down-
loaded Contacts.
e.g.) Call “John Smith” on Other
"J Dial Number Displays a screen where you can say a phone number to dial.
"J Dial
e.g.) Dial 111 555 1234
"J Redial Directly calls at the number that you last dialed.
"J Call History Displays your Call History, where you can say the list number
to make a call.
0039
, @ 2 - @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E
< 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 42 of 92
39
Navigation Commands
* Check the following before you use navigation commands:
1. Search for and find addresses located in the state or province your car is currently in.
If you want to search in another state, say the name of state/province and then look it up.
Find Address is classified by states/provinces to provide you with faster service.
2. Some commands such as “Cancel Route” are available only when the des- tination is fixed.
Command Operation
"J Find Address in
!Ÿ
Finds the address in
e.g.) Find Address in California
!Ÿ
To find an address, you should say “House Number ª
Street ª
City” (in order, excluding the state).
e.g.) 300 (Three Zero Zero) Main Street, Almond
"J Find Address Finds the address and sets it as the destination.
"J Find the Nearest
POI Find the nearest points of interest from your current location.
After this command, you can find the name of a location
step-by-step.
"J Find the Nearest
tion.
For details of
list”. e.g.) Find the Nearest “Banks”
"J POIs Near
Destination Finds POIs near the destination.
After this command, you can find the name of a location
step-by-step.
"J
Near Destination Finds
For details of
list”. e.g.) “Banks” Near Destination
"J Map Moves to the current position on the navigation map
"J Previous Points Displays a list combining Previous Destinations, Previous
Searches, and Previous Starting Points all together.
You can then set a destination by saying the list number.
"J Previous
Destinations Displays a list of recent destinations that you can return to
by saying the number in the list.
"J Previous
Searches Displays a list of recent searches, where you can set a desti-
nation by saying the number in the list.
"J Previous
Starting Points Displays a list of recent starting points that you can return to by
saying the number in the list.
"J Traffic
Information Moves to the Traffic Information menu screen.
"J Go Home Set the destination to your home.
Your home must first be set in the Navigation system.
"J Go to Office Set the destination to your office/work.
Your office/work must first be set in the navigation system.
, @ 2 - @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E
< 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 43 of 92
40
CommandOperation
"J Turn Guidance On Turns on the voice guidance system.
"J Turn Guidance Off Turns off the voice guidance system.
"J Zoom All the Way Out Zooms out from the navigation map to the fullest.
"J Zoom All the Way In Zooms in on the navigation map to the fullest.
"J Cancel Route Cancels the route to the fixed destination and exits
guidance.
"J Destination
Information Tells you the remaining distance and time to your desti-
nation.
"J Route Options Restarts the route to your destination.You can then
select either “Faster Time” or “Shorter Distance”.
"J Find Faster Time
Route Starts a new route to your destination that will take the
least amount of time.
"J Find Shorter Distance
Route Starts a new route to your destination that will use the
shortest distance.
"J Emergency Services Displays a list of nearest Police Station, Hospital,
Dealership, or Road Assistance.
You can then set a destination by saying the list number.
"J Police Station Displays a list of the nearest police stations.
You can then set a destination by saying the list number.
"J Hospital Displays a list of the nearest hospitals.
You can then set a destination by saying the list number.
"J Dealership Displays a list of the nearest car dealerships.
You can then set a destination by saying the list number.
"J Road Assistance Displays a list of the nearest road assistance locations.
You can then set a destination by saying the list number.
"J Show Route Displays a map overview of the entire route to your
destination.
0039
, @ 2 - @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E
< 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 44 of 92
41
Radio Commands
CommandOperation
"J Radio
Plays the most recent radio channels from FM, AM, and SiriusXM™.
"JFM Plays FM radio.
"J FM
<87.5~107.9> Tunes to FM
e.g.) FM 87.5: FM eighty seven point five
"J SiriusXM Plays SiriusXM™ radio.
"J SiriusXM
Channel
<0~999> Tunes to SiriusXM™ Channel
to what you say.
e.g.) SiriusXM Channel 23: SiriusXM Channel twenty three
"J AM Plays AM radio.
"J AM <530~1710> Tunes to AM
e.g.) AM 530: AM five thirty
!¹ Preset <1~18> Tunes to your preset stations (1 to 18).
!¹ Channel
<0~999> In SiriusXM™ Radio mode, turns on the
that you say.
Media Commands
* Check the followings before you use media commands.
1. If no media is connected or if no playable files exist at the time when you use these
commands, a voice message will tell you that this is not available at present.
2. If you say the name of the media that is currently playing again, then that media will continue playing. e.g.) Saying “USB” while USB content is playing.
Command Operation
"J Music Continues the last media you played.
"J iPod
Plays the iPod currently connected. This will work the same when an iPhone is
connected. If a USB is connected, then it will be played instead of the iPod.
"JUSB Plays the music on the USB currently connected.
If an iPod is connected, then the iPod will be played instead of the USB.
"J Bluetooth
Audio Plays the music on the Bluetooth phone currently connected.
This may not be supported depending on the Bluetooth connection status.
"J
AUX Plays external devices that are currently connected.
"J My Music Plays My Music files stored in the system.
"J Pandora
Radio Plays Pandora Radio that is currently connected.Pandora Radio
operates according to the iPod
® that is currently connected.
, @ 2 - @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E
< 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 45 of 92
42
1. USB Music/iPod/My Music Command
CommandOperation
!¹ Play Plays a selected file.
Maintains the current settings during playback.
!¹ Pause Pauses a file that is playing.
Maintains current settings while paused during playback.
!¹ Shuffle Plays files randomly.
Maintains current settings during shuffled playback.
!¹ Shuffle Off Cancels Shuffle and plays files sequentially.
Maintains current settings during sequential playback.
!¹ Repeat Plays the current file repeatedly.
Maintains the current settings during repeat playback.
!¹ Repeat Off Cancels Repeat and plays multiple files.
Maintains current settings during multiple files.
2. Pandora Radio Command
Command
Operation
!¹ Skip Moves to the next track.
!¹ Thumbs up If you like the genre of the music currently playing, say
“Thumbs up” so that more similar music will play.
!¹ Thumbs down If you don’t like the music currently playing, say “Thumbs
down” to minimize the number of playbacks of similar
genre music.
3. Bluetooth Audio/AUX Command
!Ÿ
Bluetooth Audio supports different functions according to connected devices,
therefore some commands are unavailable, including Play, Stop, Previous
Song, and Next Song.
!Ÿ
For external devices (AUX) and some commands are unavailable, including
Play, Stop, Previous, and Next.
0039
, @ 2 - @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 46 of 92
43
UVO eServices Commands List
CommandOperation
"J Roadside Assist Connect with a Roadside Assist agent.
"J Vehicle
Diagnostics Informs you if diagnostic issues are found in your vehicle
"J My POIs Displays Points of Interest list which were downloaded
from Google Maps and MyUVO
"J eService Guide Provides guidance on how to use UVO eServices
Other Commands List (Commands used in List / Help)
Command Operation
"J Help Moves to the voice recognition help screen.
All available commands can then be identified and used.
!¹ Line 1~5
(One~Five) When you cannot select a certain name, such as in Call
History, you can select it using numbers.
Simple numbers can be recognized, such as “One” or
“Two.”
!¹ Yes / No When voice recognition is activated, this command is
used when an answer is requested for a confirmation
question.
!¹ Previous Page /
Next Page When five or more searched items are listed, you can
move to the previous or next page using a voice com-
mand.
!¹ Manual Input When Dial or POI Name search results are displayed,
this command is used to search manually, rather than to
search with a voice command.
Voice recognition stops after this command is used.
!¹ Go Back Moves to the previous screen.
"J Exit Ends the voice recognition.
, @ 2 - @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 47 of 92
44
0036004C0055004C00030028005C0048005600030029005500480048
How to start Siri
If you want to use Siri, you have to
connect your iOS device to multime-
dia system through Bluetooth.
(Please check whether your iOS
device supports Siri and turning Siri
On)
Then you can use Siri while pressing
and holding
key on the
steering wheel.
How to use Siri
When you access the Siri screen
while pressing and holding
key on the steering wheel, you can
press
0036005300480044004E button and then you
can speak what you want. Note that
the multimedia system only supports
“Phone” related functions. Other
functions will be performed in your
iOS device. If you press voice key
quickly, Siri would re-start. If you hold
down voice key, Siri would be termi-
nated and the screen would go back
to the previous screen. Eyes-Free
mode would be activated automati-
cally while you are driving. When
shifting gears into P or putting the
Parking brake on, Eyes-Free mode
would be deactivated automatically.
i Information
• Functions and feedbacks from voice
commands via Sir
i are executed in
the iOS device. If the iOS version is
changed, the functions and response
may be different according to the iOS
device and the latest version.
0039
, @ 2 - @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 48 of 92
45
Pandora Radio Mode
Press the “Pandora” icon after selecting All Menus.
Pandora Radio Mode Screen Controls
00330044005100470052005500440003003500440047004C0052
NameDescription
Mode Displays current operating mode.
Station Info Shows the station name currently playing.
Track Info Shows the artist/title information currently playing.
Play Time Displays the current play time.
Thumb
Down If you don’t like the music current playing, press this button to
move to the next song and to minimize the number of playbacks
of similar genre music.
You can move to next song up to specific times which pandora allows
Thumb up If you like the genre of the music currently playing, press this but-
ton to send a “Thumb Up” signal to Pandora so that more similar
music will play
Play/Pause Plays/pauses the current song
SKIP Moves to the next track
You can move to next song up to specific times which pandora
allows
Station Moves to the station list screen.
Menu
!Ÿ
Bookmark Track
Adds the music currently playing to the bookmarks list.
!Ÿ
Bookmark Artist
Adds the artist of the music current playing to the bookmarks list. You can view your bookmarked artists and songs from your
Pandora profile online. Go to pandora.com, then click on the
“Your Profile” button above the player. That will bring up a page
with your stations, bookmarked artists, and bookmarked songs.
, @ 2 - @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 49 of 92
46
SoundHound Main ScreenSoundHound is a music search
engine. It enables users to identify
music by playing or singing a song.
It is also possible to search by typing
the name of the artist, song, album
or lyrics.
The head unit should be connected
to the Internet in order to use
SoundHound. (ex. Wi-Fi)
Accessing SoundHound
1. From the Home screen, select All
Menus, My Menu then select
SoundHound
button.
2. Select SoundHound
button
on Radio modes (AM, FM and
SiriusXM) or Media modes
(Bluetooth Audio, iPod, USB, My
Music and AUX).
Name Description
Mode Displays the current
operating mode.
Back
button Goes back to previ-
ous mode.
What’s
that
Song? Starts the song
recognition process.
After this process is
complete, it goes to
Song screen.
Search
Goes to Search
screen.
HistoryGoes to History
screen.
Favorites Goes to Favorites
screen.
Charts Goes to Charts
screen.
00360052005800510047002B0052005800510047
, @ 2 - @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E
< 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 50 of 92
47

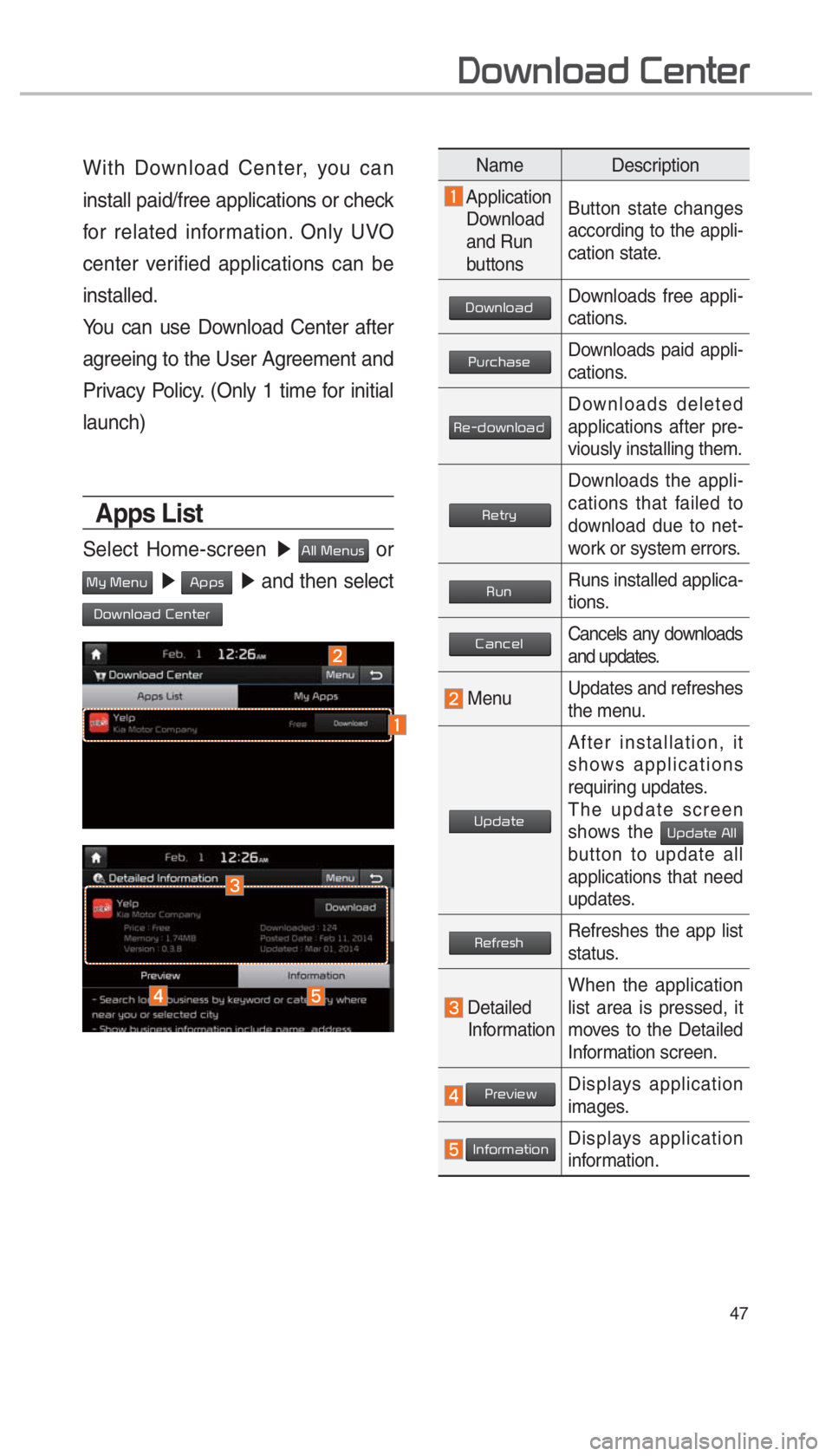

With Download Center, you can
install paid/free applications or check
for related information. Only UVO
center verified applications can be
installed.
You can use Download Center after
agreeing to the User Agreement and
Privacy Policy. (Only 1 time for initial
launch)
Apps List
Select Home-screen ▶
0024004F004F000300300048005100580056 or
0030005C00030030004800510058 ▶
0024005300530056 ▶
and then select
00270052005A0051004F0052004400470003002600480051005700480055
00270052005A0051004F0052004400470003002600480051005700480055
Name Description
Application
Download
and Run
buttons Button state changes
according to the appli-
cation state.
00270052005A0051004F005200440047Downloads free appli-
cations.
0033005800550046004B004400560048Downloads paid appli-
cations.
00350048001000470052005A0051004F005200440047Downloads deleted
applications after pre-
viously installing them.
0035004800570055005C
Downloads the appli-
cations that failed to
download due to net-
work or system errors.
003500580051Runs installed applica-
tions.
00260044005100460048004FCancels any downloads
and updates.
Menu
Updates and refreshes
the menu.
003800530047004400570048
After installation, it
shows applications
requiring updates.
The update screen
shows the
00380053004700440057004800030024004F004F
button to update all
applications that need
updates.
003500480049005500480056004BRefreshes the app list
status.
Detailed
Information When the application
list area is pressed, it
moves to the Detailed
Information screen.
0033005500480059004C0048005A
Displays application
images.
002C00510049005200550057004C00520051Displays application
information.
, @ 2 - @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E
< 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
