CAR MULTIMEDIA SYSTEM
QUICK REFERENCE GUIDE
D9EUF12
(미국/영어-English)
, @ 2 - @ 6 7 0 < 6 4 " @ & 6 > " 7 @ 2 3 ( $ 0 7 & 3 J O E E , @ 2 - @ 6 7 0 < 6 4 " @ & 6 > " 7 @ 2 3 ( $ 0 7 & 3 J O E E ß
y ß
y
Page 2 of 52

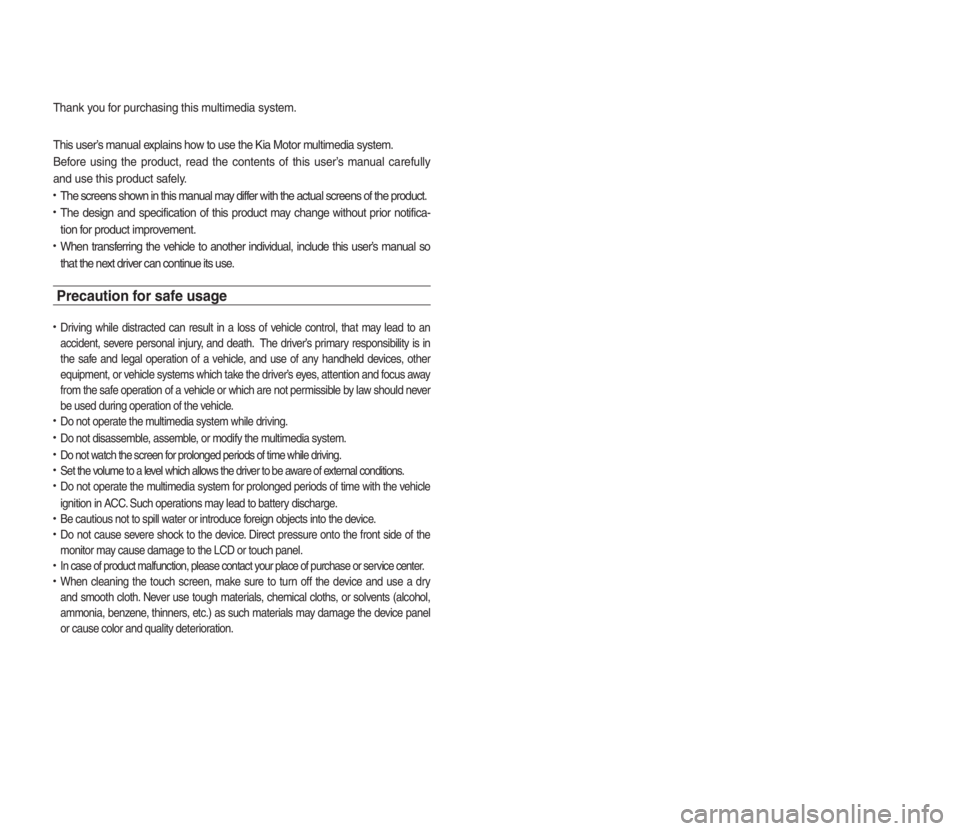

Thank you for purchasing this multimedia system.
This user’s manual explains how to use the Kia Motor multimedia system.
Before using the product, read the contents of this user’s manual carefully
and use this product safely.
The screens shown in this manual may differ with the actual screens of the product.
The design and specification of this product may change without prior notifica-
tion for product improvement.
When transferring the vehicle to another individual, include this user’s manual so
that the next driver can continue its use.
Precaution for safe usage
Driving while distracted can result in a loss of vehicle control, that may lead to an
accident, severe personal injury, and death. The driver’s primary responsibility is in
the safe and legal operation of a vehicle, and use of any handheld devices, other
equipment, or vehicle systems which take the driver’s eyes, attention and focus away
from the safe operation of a vehicle or which are not permissible by law should never
be used during operation of the vehicle.
Do not operate the multimedia system while driving.
Do not disassemble, assemble, or modify the multimedia system.
Do not watch the screen for prolonged periods of time while driving.
Set the volume to a level which allows the driver to be aware of external conditions.
Do not operate the multimedia system for prolonged periods of time with the vehicle
ignition in ACC. Such operations may lead to battery discharge.
Be cautious not to spill water or introduce foreign objects into the device.
Do not cause severe shock to the device. Direct pressure onto the front side of the
monitor may cause damage to the LCD or touch panel.
In case of product malfunction, please contact your place of purchase or service center.
When cleaning the touch screen, make sure to turn off the device and use a dry
and smooth cloth. Never use tough materials, chemical cloths, or solvents (alcohol,
ammonia, benzene, thinners, etc.) as such materials may damage the device panel
or cause color and quality deterioration.

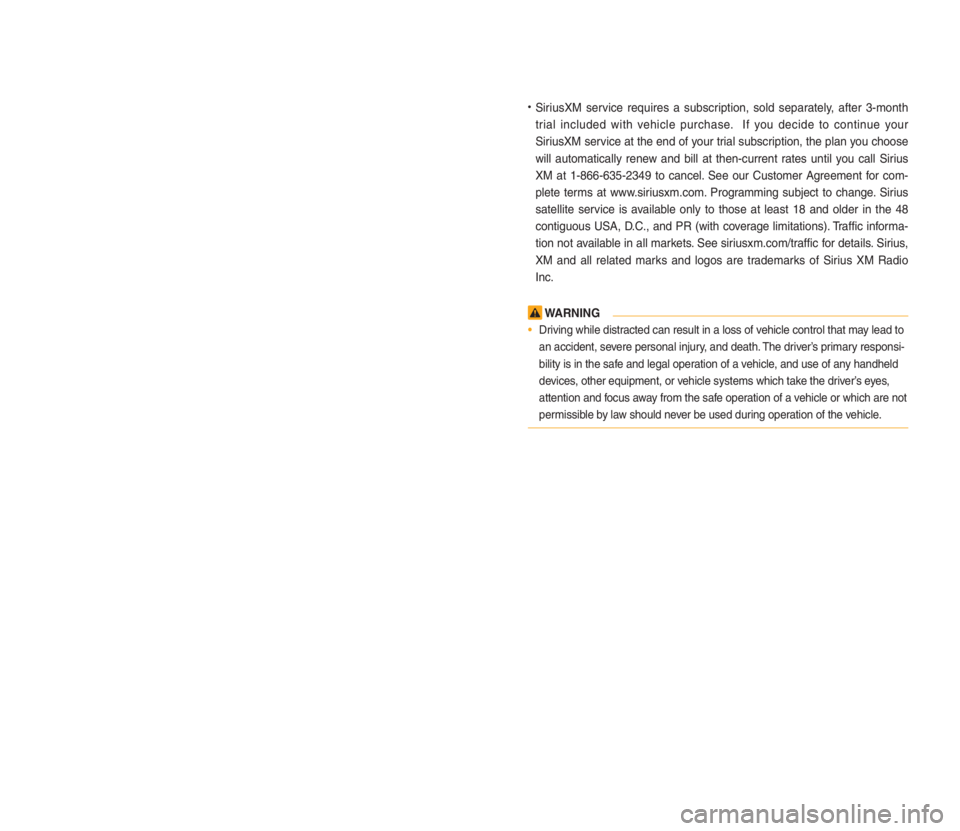

SiriusXM service requires a subscription, sold separately, after 3-month
trial included with vehicle purchase. If you decide to continue your
SiriusXM service at the end of your trial subscription, the plan you choose
will automatically renew and bill at then-current rates until you call Sirius
XM at 1-866-635-2349 to cancel. See our Customer Agreement for com-
plete terms at www.siriusxm.com. Programming subject to change. Sirius
satellite service is available only to those at least 18 and older in the 48
contiguous USA, D.C., and PR (with coverage limitations). Traffic informa-
tion not available in all markets. See siriusxm.com/traffic for details. Sirius,
XM and all related marks and logos are trademarks of Sirius XM Radio
Inc.
WARNING
Driving while distracted can result in a loss of vehicle control that may lead to
an accident, severe personal injury, and death. The driver’s primary responsi-
bility is in the safe and legal operation of a vehicle, and use of any handheld
devices, other equipment, or vehicle systems which take the driver’s eyes,
attention and focus away from the safe operation of a vehicle or which are not
permissible by law should never be used during operation of the vehicle.
, @ 2 - @ 6 7 0 < 6 4 " @ & 6 > " 7 @ 2 3 ( $ 0 7 & 3 J O E E , @ 2 - @ 6 7 0 < 6 4 " @ & 6 > " 7 @ 2 3 ( $ 0 7 & 3 J O E E ß
y ß
y
Page 3 of 52
Thank you for purchasing this multimedia system.
This user’s manual explains how to use the Kia Motor multimedia system.
Before using the product, read the contents of this user’s manual carefully
and use this product safely.
The screens shown in this manual may differ with the actual screens of the product.
The design and specification of this product may change without prior notifica-
tion for product improvement.
When transferring the vehicle to another individual, include this user’s manual so
that the next driver can continue its use.
Precaution for safe usage
Driving while distracted can result in a loss of vehicle control, that may lead to an
accident, severe personal injury, and death. The driver’s primary responsibility is in
the safe and legal operation of a vehicle, and use of any handheld devices, other
equipment, or vehicle systems which take the driver’s eyes, attention and focus away
from the safe operation of a vehicle or which are not permissible by law should never
be used during operation of the vehicle.
Do not operate the multimedia system while driving.
Do not disassemble, assemble, or modify the multimedia system.
Do not watch the screen for prolonged periods of time while driving.
Set the volume to a level which allows the driver to be aware of external conditions.
Do not operate the multimedia system for prolonged periods of time with the vehicle
ignition in ACC. Such operations may lead to battery discharge.
Be cautious not to spill water or introduce foreign objects into the device.
Do not cause severe shock to the device. Direct pressure onto the front side of the
monitor may cause damage to the LCD or touch panel.
In case of product malfunction, please contact your place of purchase or service center.
When cleaning the touch screen, make sure to turn off the device and use a dry
and smooth cloth. Never use tough materials, chemical cloths, or solvents (alcohol,
ammonia, benzene, thinners, etc.) as such materials may damage the device panel
or cause color and quality deterioration.
SiriusXM service requires a subscription, sold separately, after 3-month
trial included with vehicle purchase. If you decide to continue your
SiriusXM service at the end of your trial subscription, the plan you choose
will automatically renew and bill at then-current rates until you call Sirius
XM at 1-866-635-2349 to cancel. See our Customer Agreement for com-
plete terms at www.siriusxm.com. Programming subject to change. Sirius
satellite service is available only to those at least 18 and older in the 48
contiguous USA, D.C., and PR (with coverage limitations). Traffic informa-
tion not available in all markets. See siriusxm.com/traffic for details. Sirius,
XM and all related marks and logos are trademarks of Sirius XM Radio
Inc.
WARNING
Driving while distracted can result in a loss of vehicle control that may lead to
an accident, severe personal injury, and death. The driver’s primary responsi-
bility is in the safe and legal operation of a vehicle, and use of any handheld
devices, other equipment, or vehicle systems which take the driver’s eyes,
attention and focus away from the safe operation of a vehicle or which are not
permissible by law should never be used during operation of the vehicle.
, @ 2 - @ 6 7 0 < 6 4 " @ & 6 > " 7 @ 2 3 ( $ 0 7 & 3 J O E E , @ 2 - @ 6 7 0 < 6 4 " @ & 6 > " 7 @ 2 3 ( $ 0 7 & 3 J O E E ß
y ß
y
Page 4 of 52
1
0037

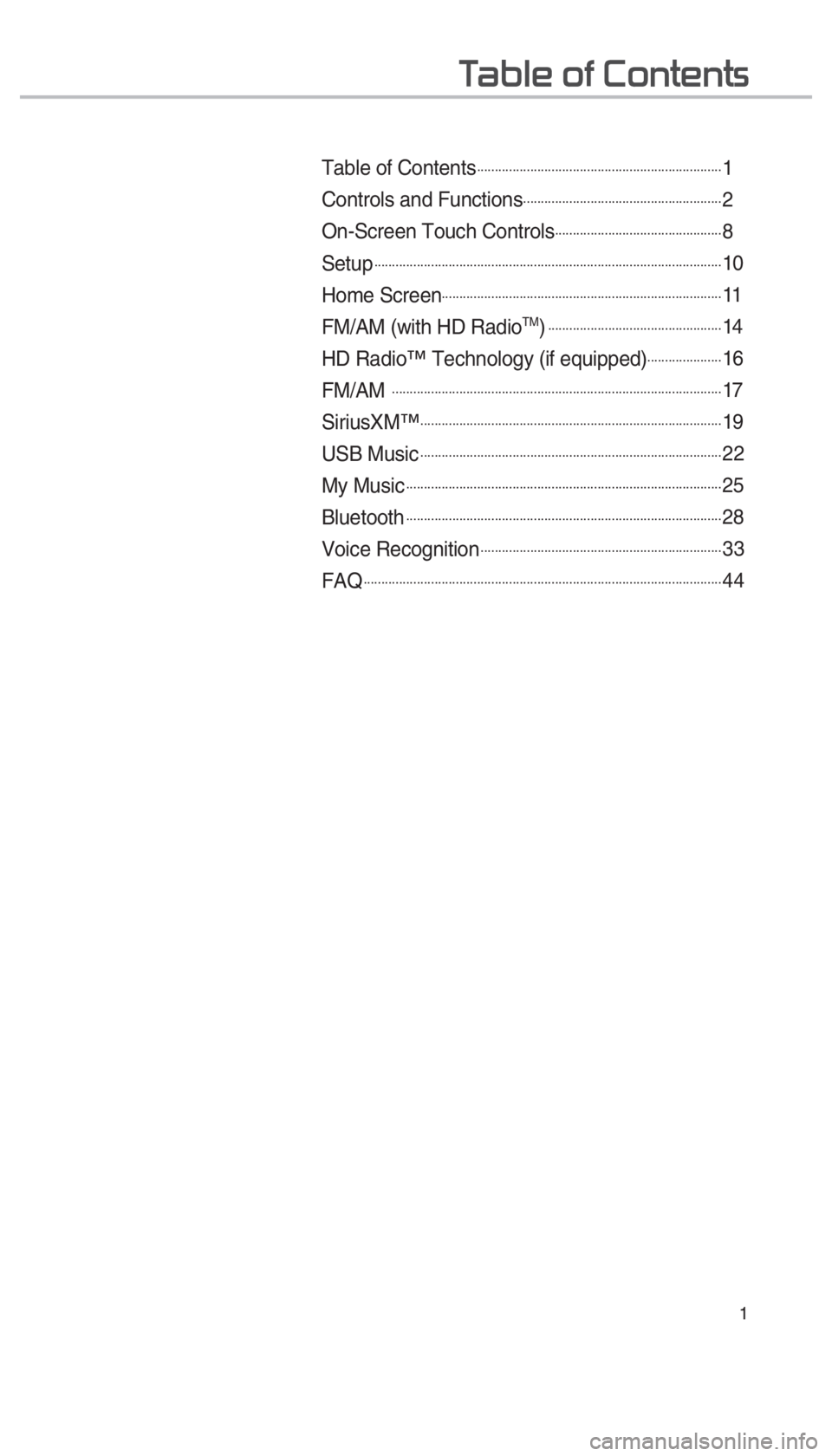

Table of Contents 1
Controls and Functions 2
On-Screen Touch Controls 8
Setup 10
Home Screen 11
FM/AM (with HD RadioTM) 14
HD Radio™ Technology (if equipped) 16
FM/AM 17
SiriusXM™ 19
USB Music 22
My Music 25
Bluetooth 28
Voice Recognition 33
FAQ 44
, @ 2 - @ 6 7 0 < 6 4 " @ & 6 > " 7 @ 2 3 ( J O E E 0 < 6 4 " @ & 6 > " 7 @ 2 3 ( J O E E ß
y
Page 5 of 52
2
002600520051005700550052004F00560003004400510047000300290058005100460057004C005200510056

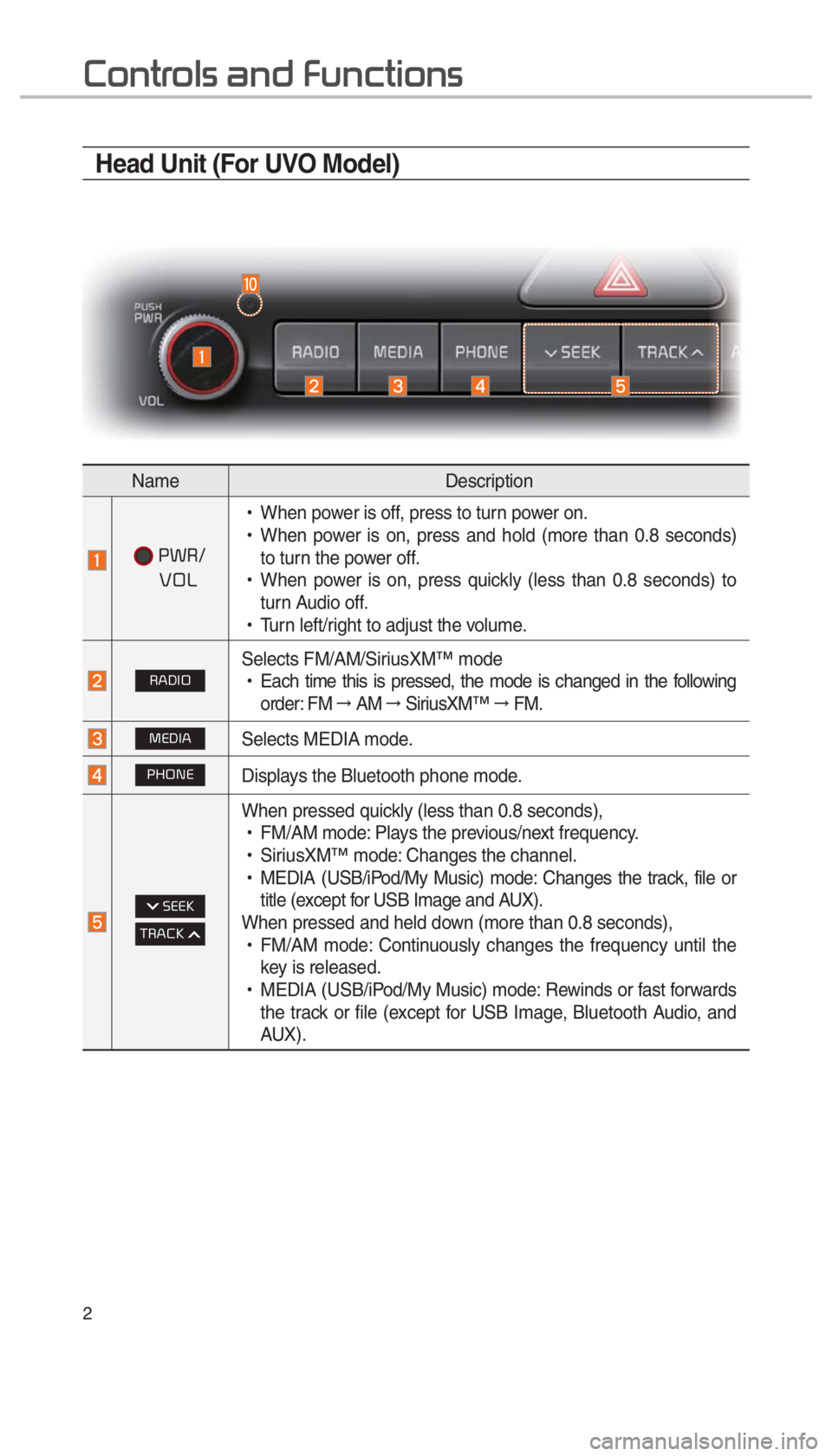

Head Unit (For UVO Model)
NameDescription
0033003A00350012
00030003000300390032002F
!Ÿ
When power is off, press to turn power on.
!Ÿ
When power is on, press and hold (more than 0.8 seconds)
to turn the power off.
!Ÿ
When power is on, press quickly (less than 0.8 seconds) to
turn Audio off.
!Ÿ
Turn left/right to adjust the volume.
003500240027002C0032Selects FM/AM/SiriusXM™ mode
!Ÿ
Each time this is pressed, the mode is changed in the following
order: FM →
AM →
SiriusXM™ →
FM.
003000280027002C0024Selects MEDIA mode.
0033002B003200310028Displays the Bluetooth phone mode.
0003003600280028002E
0037003500240026002E0003
When pressed quickly (less than 0.8 seconds),
!Ÿ
FM/AM mode: Plays the previous/next frequency.
!Ÿ
SiriusXM™ mode: Changes the channel.
!Ÿ
MEDIA (USB/iPod/My Music) mode: Changes the track, file or
title (except for USB Image and AUX).
When pressed and held down (more than 0.8 seconds),
!Ÿ
FM/AM mode: Continuously changes the frequency until the
key is released.
!Ÿ
MEDIA (USB/iPod/My Music) mode: Rewinds or fast forwards
the track or file (except for USB Image, Bluetooth Audio, and
AUX).
, @ 2 - @ 6 7 0 < 6 4 " @ & 6 > " 7 @ 2 3 ( J O E E 0 < 6 4 " @ & 6 > " 7 @ 2 3 ( J O E E ß
y
Page 6 of 52
3
NameDescription

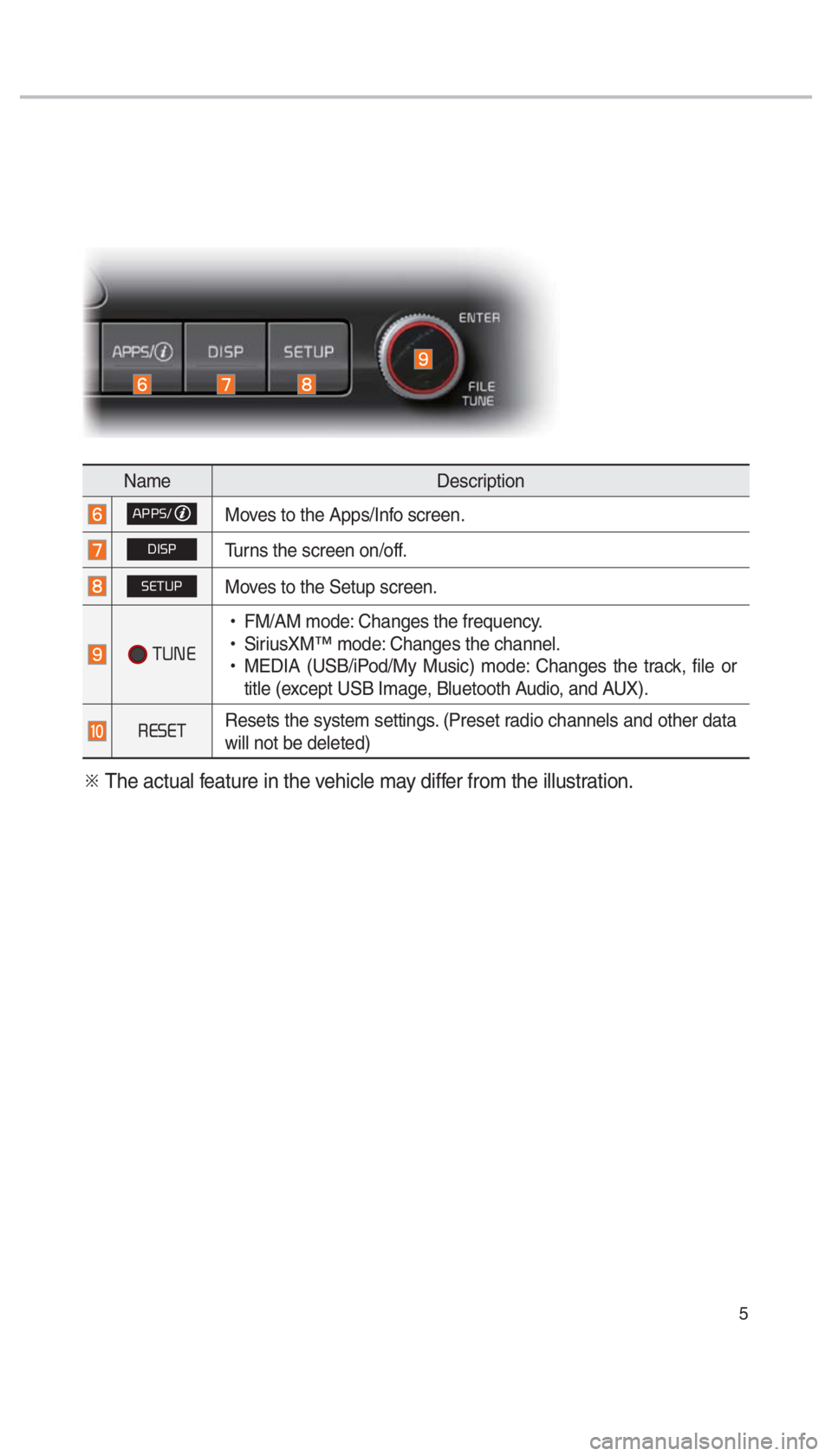

00240033003300360012Moves to the Apps/Info screen.
003800390032Displays the UVO mode
00360028003700380033Moves to the Setup screen.
0037003800310028
!Ÿ
FM/AM mode: Changes the frequency.
!Ÿ
SiriusXM™ mode: Changes the channel.
!Ÿ
MEDIA (USB/iPod/My Music) mode: Changes the track, file or
title (except USB Image, Bluetooth Audio, and AUX).
00350028003600280037Resets the system settings. (Preset radio channels
and other data will not be deleted).
œ The actual feature in the vehicle may differ from the illustration.
, @ 2 - @ 6 7 0 < 6 4 " @ & 6 > " 7 @ 2 3 ( J O E E 0 < 6 4 " @ & 6 > " 7 @ 2 3 ( J O E E ß
y
Page 7 of 52
4
002600520051005700550052004F00560003004400510047000300290058005100460057004C005200510056

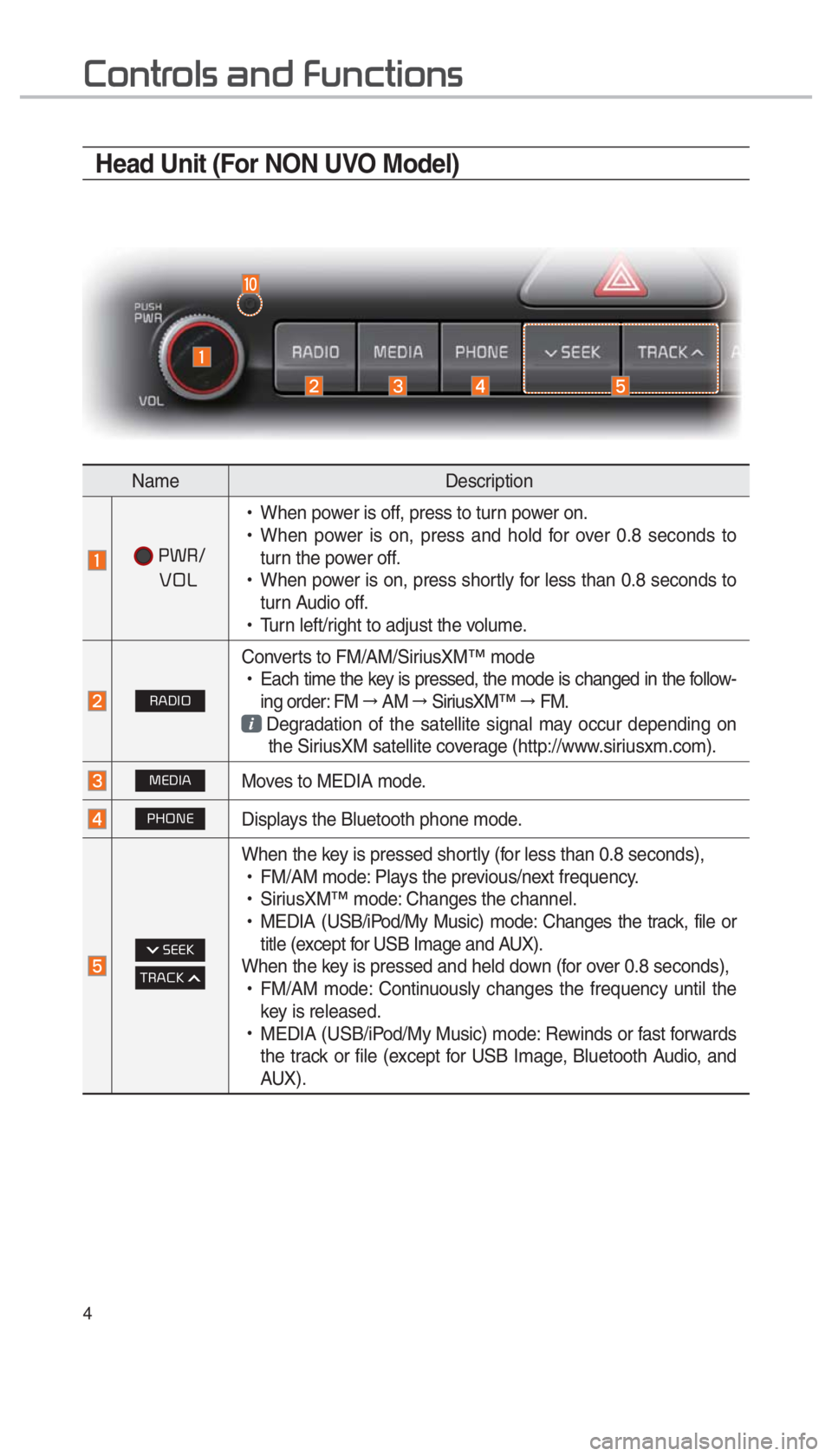

Head Unit (For NON UVO Model)
NameDescription
0033003A00350012
00030003000300390032002F
!Ÿ
When power is off, press to turn power on.
!Ÿ
When power is on, press and hold for over 0.8 seconds to
turn the power off.
!Ÿ
When power is on, press shortly for less than 0.8 seconds to
turn Audio off.
!Ÿ
Turn left/right to adjust the volume.
003500240027002C0032
Converts to FM/AM/SiriusXM™ mode
!Ÿ
Each time the key is pressed, the mode is changed in the follow-
ing order: FM →
AM →
SiriusXM™ →
FM.
Degradation of the satellite signal may occur depending on
the SiriusXM satellite coverage (http://www.siriusxm.com).
003000280027002C0024Moves to MEDIA mode.
0033002B003200310028Displays the Bluetooth phone mode.
0003003600280028002E
0037003500240026002E0003
When the key is pressed shortly (for less than 0.8 seconds),
!Ÿ
FM/AM mode: Plays the previous/next frequency.
!Ÿ
SiriusXM™ mode: Changes the channel.
!Ÿ
MEDIA (USB/iPod/My Music) mode: Changes the track, file or
title (except for USB Image and AUX).
When the key is pressed and held down (for over 0.8 seconds),
!Ÿ
FM/AM mode: Continuously changes the frequency until the
key is released.
!Ÿ
MEDIA (USB/iPod/My Music) mode: Rewinds or fast forwards
the track or file (except for USB Image, Bluetooth Audio, and
AUX).
, @ 2 - @ 6 7 0 < 6 4 " @ & 6 > " 7 @ 2 3 ( J O E E 0 < 6 4 " @ & 6 > " 7 @ 2 3 ( J O E E ß
y
Page 8 of 52
5
NameDescription
00240033003300360012Moves to the Apps/Info screen.
0027002C00360033Turns the screen on/off.
00360028003700380033Moves to the Setup screen.
0037003800310028
!Ÿ
FM/AM mode: Changes the frequency.
!Ÿ
SiriusXM™ mode: Changes the channel.
!Ÿ
MEDIA (USB/iPod/My Music) mode: Changes the track, file or
title (except USB Image, Bluetooth Audio, and AUX).
00350028003600280037Resets the system settings. (Preset radio channels and other data
will not be deleted)
œ The actual feature in the vehicle may differ from the illustration.
, @ 2 - @ 6 7 0 < 6 4 " @ & 6 > " 7 @ 2 3 ( J O E E 0 < 6 4 " @ & 6 > " 7 @ 2 3 ( J O E E ß
y
Page 9 of 52
6

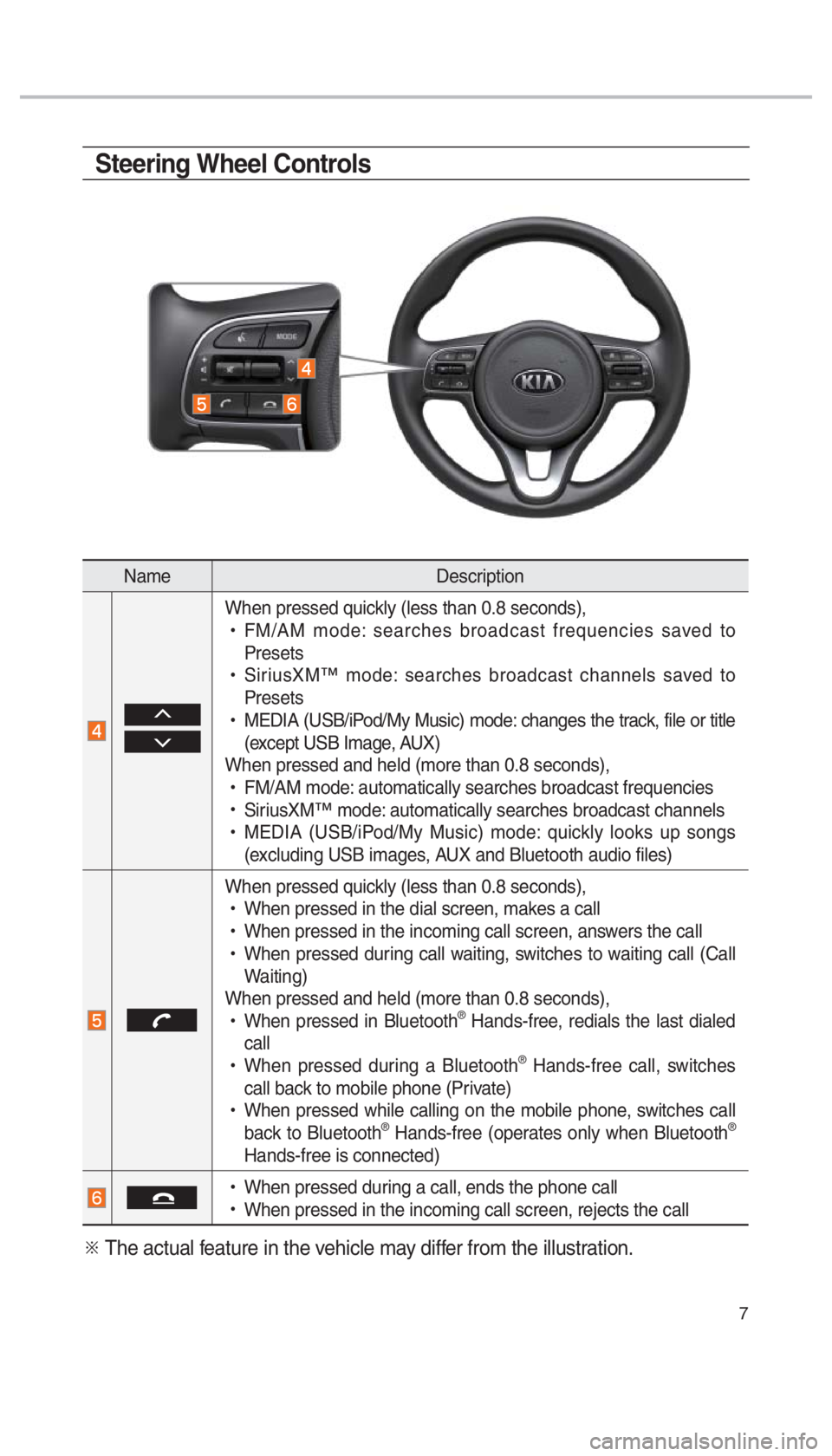

Steering Wheel Controls
NameDescription
When pressed quickly (less than 0.8 seconds),
!Ÿ
If Android Auto is not connected, activates the multimedia sys-
tem voice recognition
!Ÿ
If Android Auto is connected, activates or ends Google voice
recognition
When pressed and held (more than 0.8 seconds),
!Ÿ
If the multimedia system voice recognition is activated, ends the
multimedia system voice recognition
!Ÿ
If Android Auto is connected, activates or ends Google voice
recognition
!Ÿ
If iOS device is connected through Bluetooth, activates or ends
Siri Eyes Free
0030003200270028
!Ÿ
Each time this is pressed, the mode is changed in the follow-
ing order: FM →
AM →
SiriusXM →
USB or iPod →
AUX →
Bluetooth Audio →
My Music →
Android Auto →
Pandora →
FM
!Ÿ
If the media is not connected, the corresponding modes will be
disabled
!Ÿ
Press and hold (more than 0.8 seconds) to turn the Audio sys-
tem on/off
!Ÿ
When power is off, press button to turn power back on
000E, 0010Controls the volume
002600520051005700550052004F00560003004400510047000300290058005100460057004C005200510056
, @ 2 - @ 6 7 0 < 6 4 " @ & 6 > " 7 @ 2 3 ( J O E E 0 < 6 4 " @ & 6 > " 7 @ 2 3 ( J O E E ß
y
Page 10 of 52
7
NameDescription
0003
0003
When pressed quickly (less than 0.8 seconds),
!Ÿ
FM/AM mode: searches broadcast frequencies saved to
Presets
!Ÿ
SiriusXM™ mode: searches broadcast channels saved to
Presets
!Ÿ
MEDIA (USB/iPod/My Music) mode: changes the track, file or title
(except USB Image, AUX)
When pressed and held (more than 0.8 seconds),
!Ÿ
FM/AM mode: automatically searches broadcast frequencies
!Ÿ
SiriusXM™ mode: automatically searches broadcast channels
!Ÿ
MEDIA (USB/iPod/My Music) mode: quickly looks up songs
(excluding USB images, AUX and Bluetooth audio files)
When pressed quickly (less than 0.8 seconds),
!Ÿ
When pressed in the dial screen, makes a call
!Ÿ
When pressed in the incoming call screen, answers the call
!Ÿ
When pressed during call waiting, switches to waiting call (Call
Waiting)
When pressed and held (more than 0.8 seconds),
!Ÿ
When pressed in Bluetooth
® Hands-free, redials the last dialed
call
!Ÿ
When pressed during a Bluetooth
® Hands-free call, switches
call back to mobile phone (Private)
!Ÿ
When pressed while calling on the mobile phone, switches call
back to Bluetooth
® Hands-free (operates only when Bluetooth®
Hands-free is connected)
!Ÿ
When pressed during a call, ends the phone call
!Ÿ
When pressed in the incoming call screen, rejects the call
œ The actual feature in the vehicle may differ from the illustration.

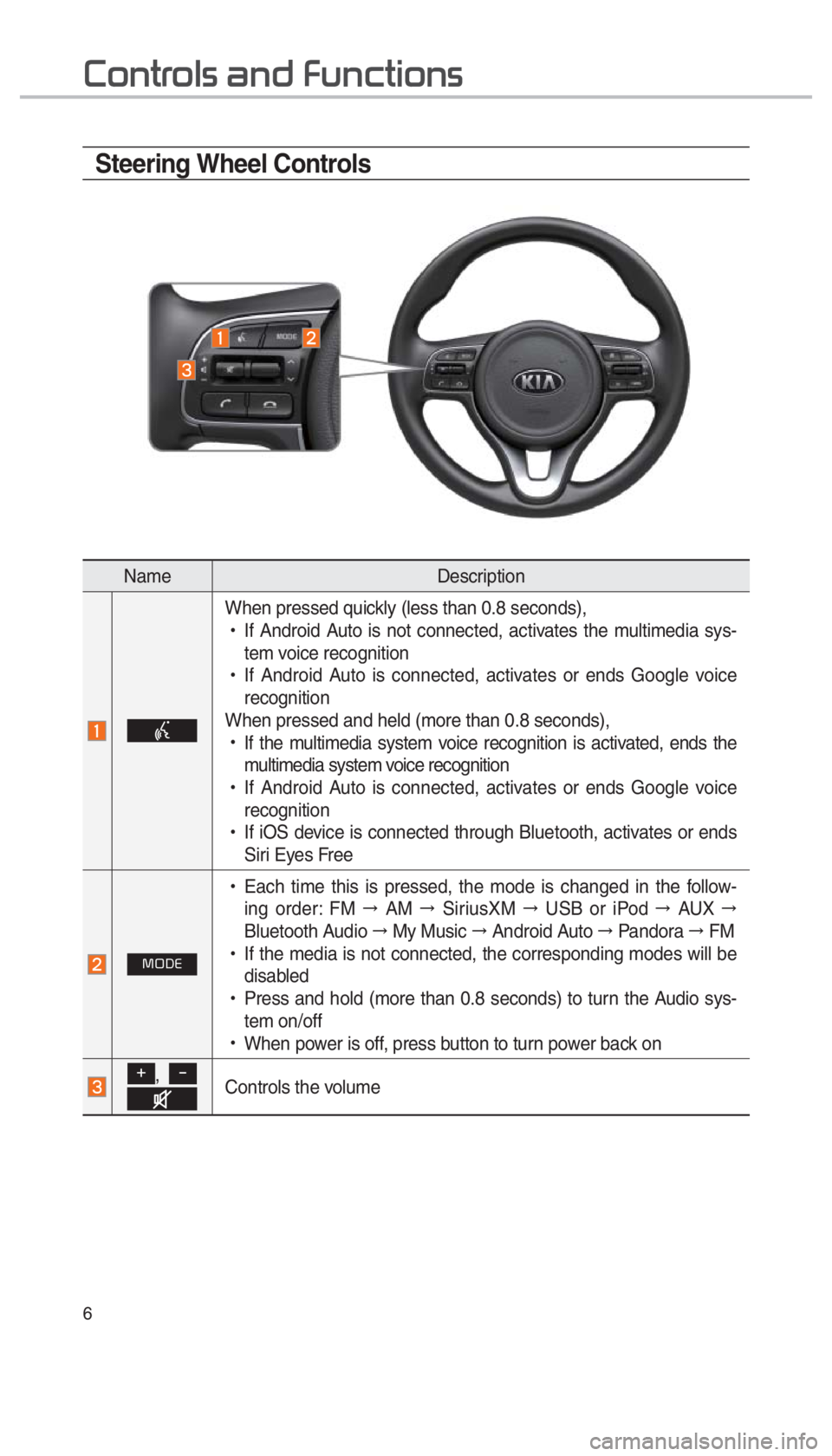

Steering Wheel Controls
, @ 2 - @ 6 7 0 < 6 4 " @ & 6 > " 7 @ 2 3 ( J O E E 0 < 6 4 " @ & 6 > " 7 @ 2 3 ( J O E E ß
y
