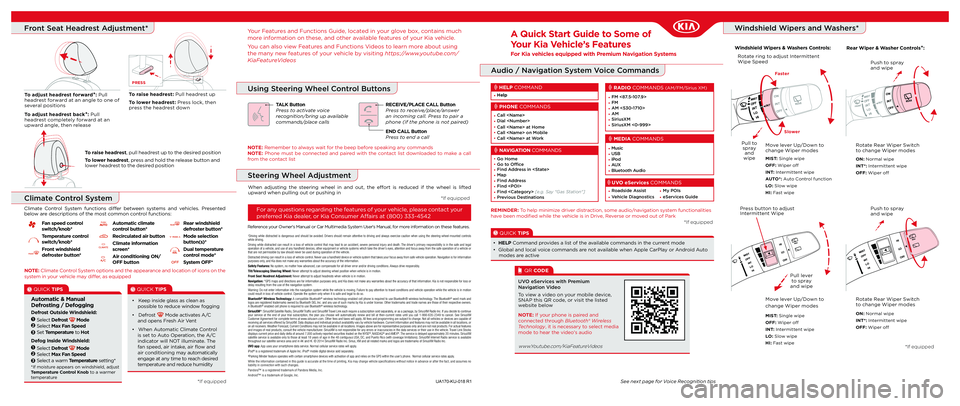

KIA SPORTAGE 2018 Quick Start Guide with UVO link

A Quick Start Guide to Some of
Your Kia Vehicle’s Features
For Kia vehicles equipped with Premium Navigation Systems
Audio / Navigation System Voice Commands
See next page for Voice Recognition tipsUA170-KU-018 R1
*If equipped
Reference your Owner's Manual or Car Multimedia System User's Manual, for more information on these features.
For any questions regarding the features of your vehicle, please contact your
preferred Kia dealer, or Kia Consumer Af airs at (800) 333-4542
Front Seat Headrest Adjustment*
• Go Home
• Go to Office
• Find Address in
• Map
• Find Address
• Find
• Find [e.g. Say "Gas Station"]
• Previous Destinations
NAVIGATION
COMMANDS
• Call
• Dial
• Call at Home
• Call on Mobile
• Call at Work
PHONE COMMANDS
• FM <87.5-107.9>
• FM
• AM <530-1710>
• AM
• SiriusXM
• SiriusXM <0-999>
RADIO COMMANDS (AM/FM/Sirius XM)
Windshield Wipers and Washers*
†Driving while distracted is dangerous and should be avoided. Drivers should remain attentive to driving and always exercise caution when using the steering-wheel-mounted controls
while driving.
Driving while distracted can result in a loss of vehicle control that ma\
y lead to an accident, severe personal injury and death. The driver’s primary responsibility is in the safe and legal
operation of a vehicle, and use of any handheld devices, other equipment or vehicle systems which take the driver’s eyes, attention and focus away from the safe operation of a vehicle or
that are not permissible by law should never be used during operation of\
the vehicle.
Distracted driving can result in a loss of vehicle control. Never use a handheld device or vehicle system that takes your focus awa\
y from safe vehicle operation. Navigation is for information
purposes only, and Kia does not make any warranties about the accuracy of the informat\
ion.
Safety Features: No system, no matter how advanced, can compensate for all driver error and/or driving conditions. Always drive responsibly.
Tilt/Telescoping Steering Wheel: Never attempt to adjust steering wheel position when vehicle is in moti\
on.
Front Seat Headrest Adjustment: Never attempt to adjust headrests when vehicle is in motion.
Navigation: °GPS maps and directions are for information purposes only, and Kia does not make any warranties about the accuracy of that informa\
tion. Kia is not responsible for loss or
delay resulting from the use of the navigation system.
Warning: Do not enter information into the navigation system while the vehicle i\
s moving. Failure to pay attention to travel conditions and vehicle operation whi\
le the vehicle is in motion
could result in loss of vehicle control. Operate the system only when it is safe and legal to do so.
Bluetooth
® Wireless Technology: A compatible Bluetooth® wireless technology-enabled cell phone is required to use Bluetooth®\
wireless technology. The Bluetooth® word mark and
logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Kia is under license. Other trademarks and trade names are those of their respective owners.
A Bluetooth
® enabled cell phone is required to use Bluetooth® wireless technology.
SiriusXM®: SiriusXM Satellite Radio, SiriusXM Traf c and SiriusXM Travel Link each require a subscription sold separately, or as a package, by SiriusXM Radio Inc. If you decide to continue
your service at the end of your trial subscription, the plan you choose will automatically renew and bill at then-current rates until you call 1-866-635-2349 to cancel. See SiriusXM
Customer Agreement for complete terms at www.siriusxm.com. Other fees and taxes will apply. All fees and programming are subject to change. Not all vehicles or devices are capable of
receiving all services offered by SiriusXM. Data displays and individual product availability vary by vehicle hardware. Current information and features may not be available in all locations,\
or
on all receivers. Weather Forecast, Current Conditions may not be available in all locations. Images above are for representative purposes only and are not real prod\
ucts. For actual features
and images of real products, consult the vehicle manufacturer. SiriusXM is not responsible for any errors or inaccuracies in the data \
services or their use in the vehicle. Travel Link Stocks
displays current price and daily delta of around 7,000 actively reported securities traded on the NYSE
®, NASDAQ® and AMEX®. The service is delayed approximately 20 minutes. SiriusXM
satellite service is available only to those at least 18 years of age in the 48 conti\
guous USA, DC, and Puerto Rico (with coverage limitations). SiriusXM Internet Radio service is available
throughout our satellite service area and in AK and HI. © 2014 SiriusXM Radio Inc. Sirius, XM and all related marks and logos are trademarks of SiriusXM Radio Inc\
.
UVO app: App uses your smartphone data service. Normal cellular service rates will apply.
iPod
® is a registered trademark of Apple Inc. iPod® mobile digital device sold separately.‡Parking Minder feature operates with certain smartphone devices with act\
ivation of app and relies on the GPS within the user’s phone. Normal cellular service rates apply.
While the information contained in this guide is accurate at the time of printing, Kia may change vehicle speci cations without notice in advance or after the fact, and assumes no
liability in connection with such changes.
Pandora™ is a registered trademark of Pandora Media, Inc.
Android™ is a trademark of Google, Inc.
Windshield Wipers & Washers Controls: Rear Wiper & Washer Controls*:
Move lever Up/Down to
change Wiper modes
M I S T: Single wipe
OFF: W i p e r o f
I N T: Intermittent wipe
AUTO*: Auto Control function
LO: Slow wipe
HI: Fast wipe
Pull to
spray and
wipe
Rotate ring to adjust Intermittent
Wipe Speed
Push to spray
and wipe
ON
: Normal wipe
INT *: Intermittent wipe
OFF : Wiper o f
Rotate Rear Wiper Switch
to change Wiper modes
Faster
Slower
• Roadside Assist
• Vehicle Diagnostics •
My POIs
• eServices Guide
UVO eServices COMMANDS
• Help
HELP COMMAND
*If equipped
To raise headrest: Pull headrest up
To lower headrest: Press lock, then
press the headrest down
PRESS
To raise headrest
, pull headrest up to the desired position
To lower headrest , press and hold the release button and
lower headrest to the desired position
To adjust headrest forward*: Pull
headrest forward at an angle to one of
several positions
To adjust headrest back
*: Pull
headrest completely forward at an
upward angle, then release
Move lever Up/Down to
change Wiper modes
M I S T: Single wipe
OFF: W i p e r o f
I N T: Intermittent wipe
LO: Slow wipe
HI: Fast wipe
Pull lever
to spray
and wipe Push to spray
and wipe
ON
: Normal wipe
INT *: Intermittent wipe
OFF : Wiper o f
Rotate Rear Wiper Switch
to change Wiper modes
Press button to adjust
Intermittent Wipe
*If equipped
Climate Control System
QUICK TIPS
Automatic & Manual
Defrosting / Defogging
Defrost Outside Windshield: Select Defrost Mode
Select Max Fan Speed
Set Temperature to Hot
1
2
3
Defog Inside Windshield:
Select Defrost Mode
Select Max Fan Speed
Select a warm Temperature setting*
1
2
3
*If moisture appears on windshield, adjust
Temperature Control Knob to a warmer
temperature
NOTE: Climate Control System options and the appearance and location of icons on the
system in your vehicle may dif er, as equipped Fan speed control
switch/knob*
Temperature control
switch/knob*
Front windshield
defroster button*
Automatic climate
control button*
Recirculated air button
Climate information
screen*
Air conditioning ON/
OFF buttonRear windshield
defroster button*
Mode selection
button(s)*
Dual temperature
control mode*
System OFF*B
G
C
A
F
E
D
HJ
ED
B
B G
C
A
F
E
D
HJ
ED
B
B G
C
A
F
E
D
HJ
ED
B
B G
C
A
F
E
D
HJ
ED
B
B G
C
A
F
E
D
HJ
ED
B
B G
C
A
F
E
D
HJ
ED
B
B G
C
A
F
E
D
HJ
ED
B
B G
C
A
F
E
D
HJ
ED
B
B G
C
A
F
E
D
HJ
ED
B
B G
C
A
F
E
D
HJ
ED
B
B G
C
A
F
E
D
HJ
ED
B
B G
C
A
F
E
D
HJ
ED
B
B G
C
A
F
E
D
HJ
ED
B
Climate Control System functions dif er between systems and vehicles. Presented
below are descriptions of the most common control functions:
QUICK TIPS
• Keep inside glass as clean as possible to reduce window fogging
• Defrost Mode activates A/C and opens Fresh Air Vent
• When Automatic Climate Control is set to Auto Operation, the A/C
indicator will NOT illuminate. The
fan speed, air intake, air ow and
air conditioning may automatically
engage at any time to reach desired
temperature and reduce humidity
Your Features and Functions Guide, located in your glove box, contains much
more information on these, and other available features of your Kia vehicle.
You can also view Features and Functions Videos to learn more about using
the many new features of your vehicle by visiting https://www.youtube.com/
KiaFeatureVideos
Steering Wheel Adjustment
When adjusting the steering wheel in and out, the ef ort is reduced if the wheel is lifted
upward when pulling out or pushing in *If equipped
TALK Button
Press to activate voice
recognition/bring up available
commands/place callsRECEIVE/PLACE CALL Button
Press to receive/place/answer
an incoming call. Press to pair a
phone (if the phone is not paired)
END CALL Button
Press to end a call
NOTE: Remember to always wait for the beep before speaking any commands
NOTE: Phone must be connected and paired with the contact list downloaded to make a call
from the contact list
Using Steering Wheel Control Buttons
REMINDER: To help minimize driver distraction, some audio/navigation system functionalities
have been modi ed while the vehicle is in Drive, Reverse or moved out of Park
• Music
• USB
• iPod
• AUX
• Bluetooth Audio
MEDIA COMMANDS
To view a video on your mobile device,
SNAP this QR code, or visit the listed
website below UVO eServices with Premium
Navigation Video
QR CODE
www.Youtube.com/KiaFeatureVideos
NOTE:
If your phone is paired and
connected through Bluetooth® Wireless
Technology, it is necessary to select media
mode to hear the video's audio
QUICK TIPS
• HELP Command provides a list of the available commands in the current mode
• Global and local voice commands are not available when Apple CarPlay or Android Auto modes are active

Apple CarPlay®*
Setting up and starting Apple CarPlay®Connect the Apple CarPlay® compatible iPhone with the vehicle’s USB port using the
manufacture’s cable provided with your iPhone
On the UVO eServices System audio control unit, press the
key
Press the Phone Projection or Connectivity
button, select Apple CarPlay® then select
ENABLE APPLE CARPLAY. Accept all terms, conditions and requests on the head unit
and phone in order to use Apple CarPlay®
From the vehicle’s home screen, select the Apple CarPlay® button, where you’ll see all the
Apple CarPlay® supported apps
How to Save a Preset
Press and hold the desired slot. This saves the current station in the selected slot

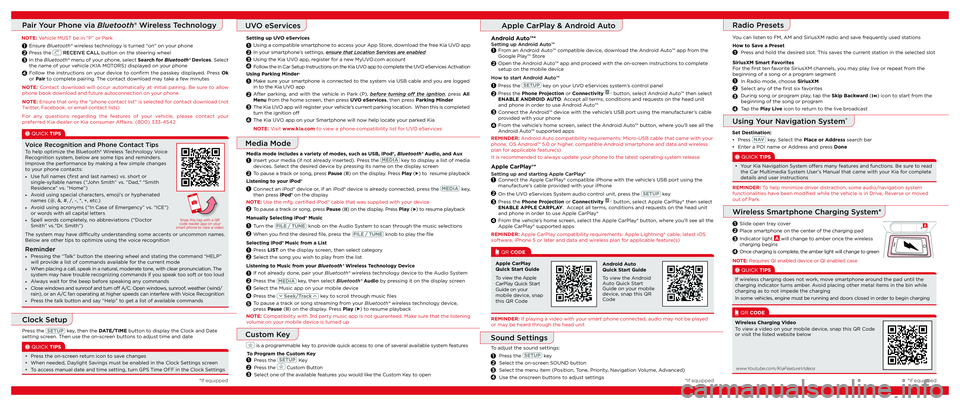

Pair Your Phone via Bluetooth® Wireless Technology
NOTE: Vehicle MUST be in “P” or Park
1
2
3
Ensure Bluetooth® wireless technology is turned "on" on your phone
Press the
RECEIVE CALL button on the steering wheel
In the Bluetooth® menu of your phone, select Search for Bluetooth® Devices. Select
the name of your vehicle (KIA MOTORS) displayed on your phone
Follow the instructions on your device to con rm the passkey displayed. Press Ok
or Pair to complete pairing. The contact download may take a few minutes
To adjust the sound settings: Press the
key
Select the on-screen SOUND button
Select the menu item (Position, Tone, Priority, Navigation Volume, Advanced)
Use the onscreen buttons to adjust settings
Radio Presets
To help optimize the Bluetooth® Wireless Technology Voice
Recognition system, below are some tips and reminders.
Improve the performance by making a few simple changes
to your phone contacts:
• Use full names ( rst and last names) vs. short or
single-syllable names (“John Smith” vs. “Dad," “Smith
Residence” vs. “Home”)
• Avoid using special characters, emoji’s or hyphenated
names (@, &, #, /, -, *, +, etc.)
• Avoid using acronyms (“In Case of Emergency” vs. “ICE”)
or words with all capital letters
• Spell words completely, no abbreviations (“Doctor
Smith” vs.“Dr. Smith”)
Voice Recognition and Phone Contact Tips
Snap this tag with a QR
code reader app on your
smart phone to view a video.
*If equipped*If equipped
4
UVO eServices
Setting up UVO eServices
Using a compatible smartphone to access your App Store, download the free Kia UVO app
In your smartphone’s settings, ensure that Location Services are enabled
Using the Kia UVO app, register for a new MyUVO.com account
Follow the In Car Setup Instructions on the Kia UVO app to complete the UVO eServices Activation
2
2
3
3
4
1
1
Using Parking Minder‡
Make sure your smartphone is connected to the system via USB cable and you are logged
in to the Kia UVO app
After parking, and with the vehicle in Park (P), before turning of the ignition, press All
Menu from the home screen, then press UVO eServices, then press Parking Minder
The Kia UVO app will register your vehicle’s current parking location. When this is completed
turn the ignition of
The Kia UVO app on your Smartphone will now help locate your parked Kia
NOTE: Visit www.kia.com to view a phone compatibility list for UVO eServices
4
Listening to your iPod®
Connect an iPod® device or, if an iPod® device is already connected, press the
key,
then press iPod® on the display
NOTE: Use the mfg. certi ed iPod® cable that was supplied with your device To pause a track or song, press Pause ( II) on the display. Press Play (
) to resume playback
Manually Selecting iPod® Music Turn the
knob on the Audio System to scan through the music selections
When you nd the desired le, press the
knob to play the le
Selecting iPod® Music from a List
Press LIST on the display screen, then select category
Select the song you wish to play from the list
Listening to Music from your Bluetooth® Wireless Technology Device If not already done, pair your Bluetooth® wireless technology device to the Audio System
Press the
key, then select Bluetooth® Audio by pressing it on the display screen
Select the Music app on your mobile device
Press the
key to scroll through music les
To pause a track or song streaming from your Bluetooth® wireless technology device,
press Pause (II) on the display. Press Play (
) to resume playback
NOTE: Compatibility with 3rd party music app is not guaranteed. Make sure that the listening
volume on your mobile device is turned up
2
2
1
1
2
1
2
3
4
1
Insert your media (if not already inserted). Press the key to display a list of media
devices. Select the desired device by pressing its name on the display screen
To pause a track or song, press Pause ( II) on the display. Press Play (
) to resume playback2
1
Media mode includes a variety of modes, such as USB, iPod®, Bluetooth® Audio, and Aux
NOTE:
Contact download will occur automatically at initial pairing. Be sure to allow
phone book download and future autoconnection on your phone
NOTE: Ensure that only the "phone contact list" is selected for contact download (not
Twitter, Facebook, or email contact lists)
For any questions regarding the features of your vehicle, please contact your
preferred Kia dealer or Kia consumer Af airs. (800) 333-4542
You can listen to FM, AM and SiriusXM radio and save frequently used stations
1
*If equipped
Media Mode
Sound Settings
Slide open tray cover
Place smartphone on the center of the charging pad
Indicator light
A
will change to amber once the wireless
charging begins
Once charging is complete, the amber light will change to green
2
3
1
4
A
If wireless charging does not work, move smartphone around the pad until the
charging indicator turns amber. Avoid placing other metal items in the bin while
charging as to not impede the charging
In some vehicles, engine must be running and doors closed in order to begin charging
To view a video on your mobile device, snap this QR Code
or visit the listed website below Wireless Charging Video
www.Youtube.com/KiaFeatureVideos
NOTE: Requires QI enabled device or QI enabled case
Wireless Smartphone Charging System*
Android Auto™*Setting up Android Auto™ From an Android Auto™ compatible device, download the Android Auto™ app from the
Google Play™ Store
Open the Android Auto™ app and proceed with the on-screen instructions to complete
setup on the mobile device
How to start Android Auto™ Press the
key on your UVO eServices system’s control panel
Press the Phone Projection or Connectivity
button, select Android Auto™ then select
ENABLE ANDROID AUTO. Accept all terms, conditions and requests on the head unit
and phone in order to use Android Auto™
Connect the Android™ device with the vehicle’s USB port using the manufacturer’s cable
provided with your phone
From the vehicle’s home screen, select the Android Auto™ button, where you’ll see all the
Android Auto™ supported apps
Apple CarPlay & Android Auto
5
• Your Kia Navigation System of ers many features and functions. Be sure to read the Car Multimedia System User's Manual that came with your Kia for complete
details and user instructions
Set Destination:
• Press
key. Select the Place or Address search bar
• Enter a POI name or Address and press Done
Using Your Navigation System°
2
3
4
1
Press the key, then the DATE/TIME button to display the Clock and Date
setting screen. Then use the on-screen buttons to adjust time and date
Clock Setup
• Press the on-screen return icon to save changes
• When needed, Daylight Savings must be enabled in the Clock Settings screen
• To access manual date and time setting, turn GPS Time OFF in the Clock Settings
SiriusXM Smart Favorites
For the rst ten favorite SiriusXM channels, you may play live or repeat from the
beginning of a song or a program segment
In Radio mode, choose SiriusXM
Select any of the rst six favorites
During song or program play, tap the Skip Backward ( I
) icon to start from the
beginning of the song or program
Tap the Play Live icon to return to the live broadcast
1
2
3
4
QR CODE
Apple CarPlay
Quick Start Guide
To view the Apple
CarPlay Quick Start
Guide on your
mobile device, snap
this QR Code
QR CODE
Android Auto
Quick Start Guide
To view the Android
Auto Quick Start
Guide on your mobile
device, snap this QR
Code
Custom Key
is a programmable key to provide quick access to one of several available system features
To Program the Custom Key Press the
Key
Press the
Custom Button
Select one of the available features you would like the Custom Key to open 2
3
1
• Pressing the “Talk” button the steering wheel and stating the command “HELP”
will provide a list of commands available for the current mode
• When placing a call, speak in a natural, moderate tone, with clear pronunciation. The
system may have trouble recognizing commands if you speak too soft or too loud
• Always wait for the beep before speaking any commands
• Close windows and sunroof and turn of A/C. Open windows, sunroof, weather (wind/
rain), or an A/C fan operating at higher speeds can interfere with Voice Recognition
• Press the talk button and say “Help” to get a list of available commands
Reminder
The system may have dif culty understanding some accents or uncommon names.
Below are other tips to optimize using the voice recognition
2
1
2
3
4
1
2
3
4
1
REMINDER: To help minimize driver distraction, some audio/navigation system
functionalities have been modi ed while the vehicle is in Drive, Reverse or moved
out of Park.
REMINDER: Apple CarPlay compatibility requirements: Apple Lightning® cable, latest iOS
software, iPhone 5 or later and data and wireless plan for applicable feature(s)
REMINDER: If playing a video with your smart phone connected, audio may not be played
or may be heard through the head unit REMINDER: Android Auto compatibility requirements: Micro-USB cable that came with your
phone, OS Android™ 5.0 or higher, compatible Android smartphone and data and wireless
plan for applicable feature(s)
It is recommended to always update your phone to the latest operating system release
