KIA SPORTAGE 2019 Owners Manual

Audio system
28
5 (8)
Shuffle
Turns the Shuffle f eature on/off.
Each time the button is pressed, the
feature changes in the order of
Shuffle F older
➟ShuffleAll ➟Off.
Shuffle Folder : Plays all files with- in the current folder in shuffle
order.
Shuffle All : Plays all files in shuffle order.
(9) Repeat
Turns the Repeat feature on/off.
Each time the button is pressed, the
feature changes in the order of
Repeat
➟Repeat Folder ➟Off.
Repeat : Repeats the current file.
Repeat Folder : Repeats all files within the current Folder. (10) Copy
Copies the current file into My Music.
Selecting another feature during
copying will display a pop-up asking
whether you wish to cancel copying.
To cancel, select “Yes”.
(11) List
Moves to the list screen.
Turn the TUNE
knob left/right to
search for files. Once the desired file
is displayed, press the knob to select
and play.
With the MP3 CD Mode
Playing/Pausing MP3 Files
Once an MP3 disc is inserted, the
mode will automatically start and
begin playing.
While playing, press the [II] button to
pause and press [] button to play.
If there are numerous files and fold-
ers within the disc, reading time
could take more than 10 seconds
and the list may not be displayed or
song searches may not operate.
Once loading is complete, try again.
Changing Files
Press the [SEEK TRACK] button to
move to the previous or next file.
Pressing the [ SEEK TRACK
∨ ∨]but-
ton after the file has been playing for
2 seconds will start the current file
from the beginning.
Pressing the [ SEEK TRACK
∨ ∨]but-
ton before the file has been playing
for 1 second will start the previous
file.

Audio system
529
Selecting from the List
Turn the TUNEknob left/right to
search for the desired file.
Once you find the desired file, press
the TUNE knob to start playing.
Rewinding / Fast-forwarding Files
While playing, press and hold the
[SEEK TRACK] button to rewind or
fast-forward the current file.
Scan
Press the [SCAN] button to play the
first 10 seconds of each file. Searching Folders
Press the [CAT/FOLDER]
button to
select and search folders.
Once the desired folder is displayed,
press the TUNE knob to select.
The first file within the selected fold-
er will begin playing.

Audio system
30
5

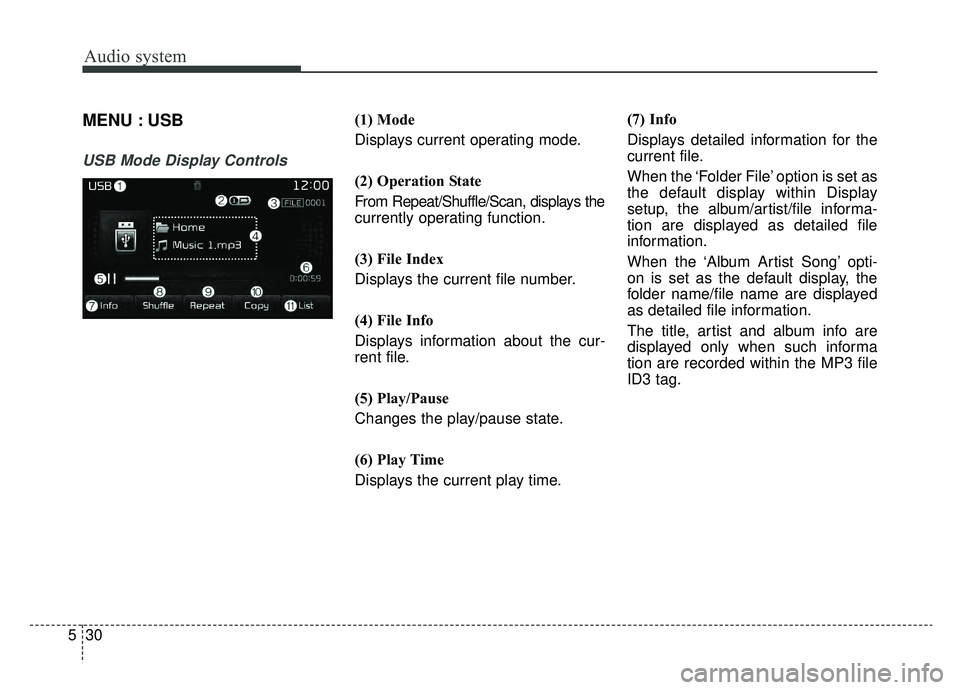

MENU : USB
USB Mode Display Controls
(1) Mode
Displays current operating mode.
(2) Operation State
From Repeat/Shuffle/Scan, displays the
currently operating function.
(3) File Index
Displays the current file number.
(4) File Info
Displays information about the cur-
rent file.
(5) Play/Pause
Changes the play/pause state.
(6) Play Time
Displays the current play time. (7) Info
Displays detailed information for the
current file.
When the ‘Folder File’ option is set as
the default display within Display
setup, the album/artist/file informa-
tion are displayed as detailed file
information.
When the ‘Album Artist Song’ opti-
on is set as the default display, the
folder name/file name are displayed
as detailed file information.
The title, artist and album info are
displayed only when such informa
tion are recorded within the MP3 file
ID3 tag.

Audio system
531

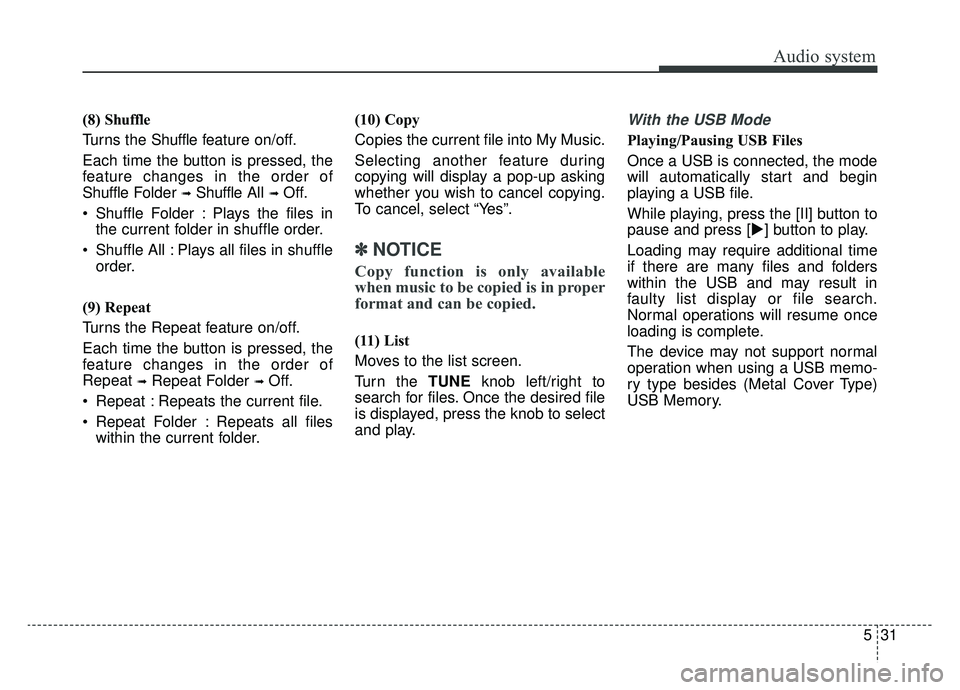

(8) Shuffle
Turns the Shuffle f eature on/off.
Each time the button is pressed, the
feature changes in the order of
Shuffle Folder
➟Shuffle All ➟Off.
Shuffle Folder : Plays the files in the current folder in shuffle order.
Shuffle All : Plays all files in shuffle order.
(9) Repeat
Turns the Repeat feature on/off.
Each time the button is pressed, the
feature changes in the order of
Repeat
➟Repeat Folder ➟Off.
Repeat : Repeats the current file.
Repeat Folder : Repeats all files within the current folder. (10) Copy
Copies the current file into My Music.
Selecting another feature during
copying will display a pop-up asking
whether you wish to cancel copying.
To cancel, select “Yes”.
✽ ✽
NOTICE
Copy function is only available
when music to be copied is in proper
format and can be copied.
(11) List
Moves to the list screen.
Turn the TUNE knob left/right to
search for files. Once the desired file
is displayed, press the knob to select
and play.
With the USB Mode
Playing/Pausing USB Files
Once a USB is connected, the mode
will automatically start and begin
playing a USB file.
While playing, press the [II] button to
pause and press [] button to play.
Loading may require additional time
if there are many files and folders
within the USB and may result in
faulty list display or file search.
Normal operations will resume once
loading is complete.
The device may not support normal
operation when using a USB memo-
ry type besides (Metal Cover Type)
USB Memory.

Audio system
32

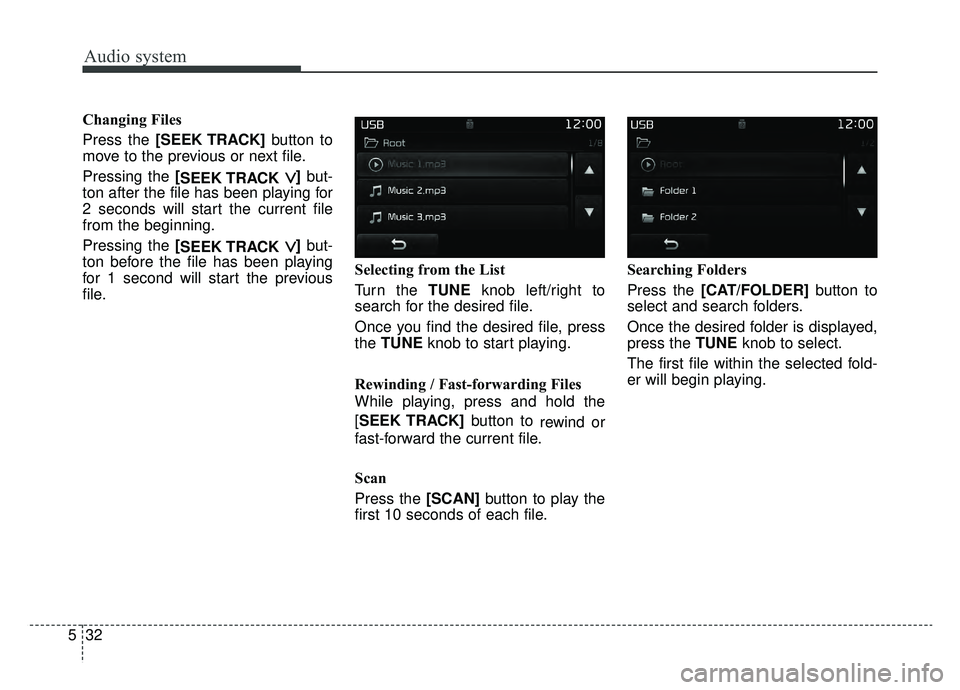

5 Changing Files
Press the [SEEK TRACK]
button to
move to the previous or next file.
Pressing the [ SEEK TRACK
∨ ∨]but-
ton after the file has been playing for
2 seconds will start the current file
from the beginning.
Pressing the [ SEEK TRACK
∨ ∨]but-
ton before the file has been playing
for 1 second will start the previous
file. Selecting from the List
Turn the TUNE
knob left/right to
search for the desired file.
Once you find the desired file, press
the TUNE knob to start playing.
Rewinding / Fast-forwarding Files
While playing, press and hold the
[SEEK TRACK] button to
rewind or
fast-forward the current file.
Scan
Press the [SCAN] button to play the
first 10 seconds of each file. Searching Folders
Press the [CAT/FOLDER]
button to
select and search folders.
Once the desired folder is displayed,
press the TUNE knob to select.
The first file within the selected fold-
er will begin playing.

Audio system
533

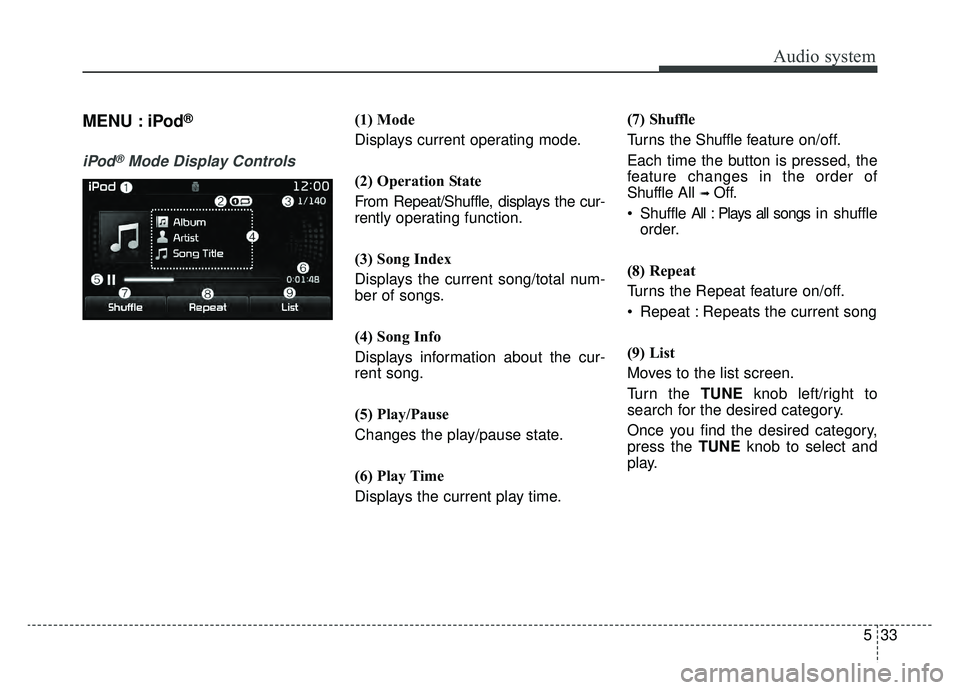

MENU : iPod®
iPod®Mode Display Controls
(1) Mode
Displays current operating mode.
(2) Operation State
From Repeat/Shuffle, displays the cur-
rently operating function.
(3) Song Index
Displays the current song/total num-
ber of songs.
(4) Song Info
Displays information about the cur-
rent song.
(5) Play/Pause
Changes the play/pause state.
(6) Play Time
Displays the current play time.(7)
Shuffle
Turns the Shuffle f eature on/off.
Each time the button is pressed, the
feature changes in the order of
Shuffle All
➟ Off.
Shuffle All : Plays all songs i n shuffle
order.
(8) Repeat
Turns the Repeat feature on/off.
Repeat : Repeats the current song
(9) List
Moves to the list screen.
Turn the TUNE knob left/right to
search for the desired category.
Once you find the desired category,
press the TUNE knob to select and
play.

Audio system
34
5

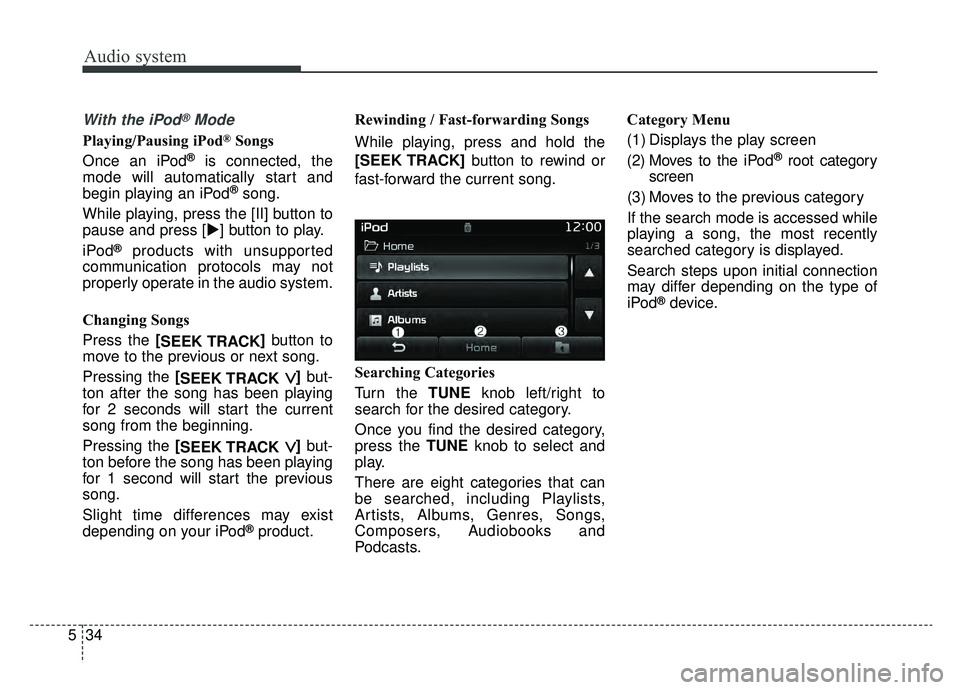

With the iPod®Mode
Playing/Pausing iPod®Songs
Once an iPod
®is connected, the
mode will automatically start and
begin playing an iPod
®song.
While playing, press the [II] button to
pause and press [] button to play.
iPod
®products with unsupported
communication protocols may not
properly operate in the audio system.
Changing Songs
Press the [ SEEK TRACK ]
button to
move to the previous or next song.
Pressing the [ SEEK TRACK
∨ ∨]but-
ton after the song has been playing
for 2 seconds will start the current
song from the beginning.
Pressing the [ SEEK TRACK
∨ ∨]but-
ton before the song has been playing
for 1 second will start the previous
song.
Slight time differences may exist
depending on your iPod
®product. Rewinding / Fast-forwarding Songs
While playing, press and hold the
[SEEK TRACK]
button to rewind or
fast-forward the current song.
Searching Categories
Turn the TUNE knob left/right to
search for the desired category.
Once you find the desired category,
press the TUNE knob to select and
play.
There are eight categories that can
be searched, including Playlists,
Artists, Albums, Genres, Songs,
Composers, Audiobooks and
Podcasts. Category Menu
(1) Displays the play screen
(2) Moves to the iPod
®root category
screen
(3) Moves to the previous category
If the search mode is accessed while
playing a song, the most recently
searched category is displayed.
Search steps upon initial connection
may differ depending on the type of
iPod
®device.

Audio system
535

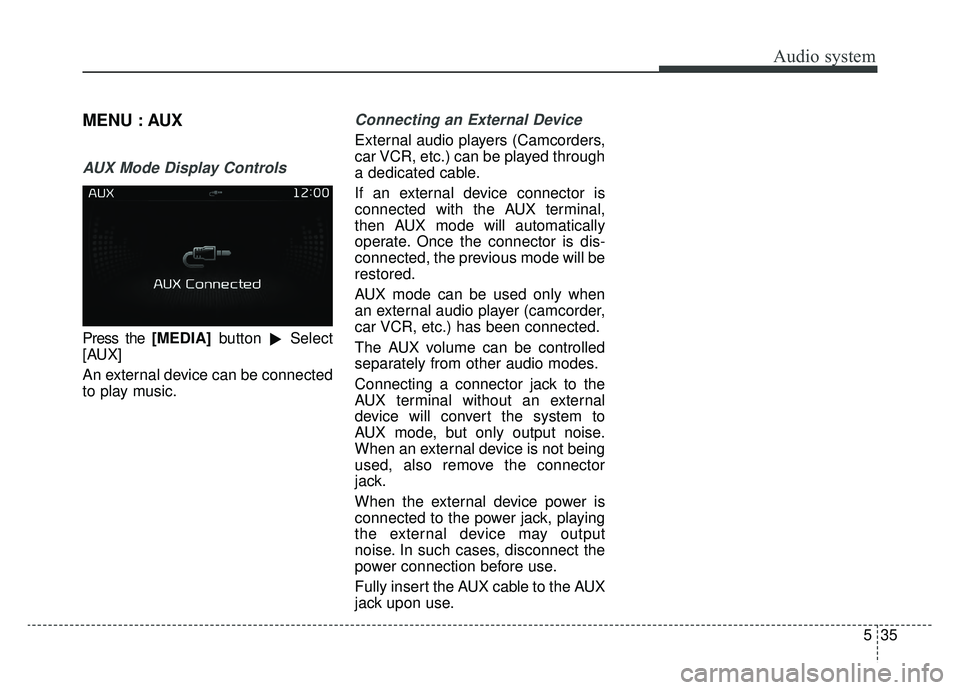

MENU : AUX
AUX Mode Display Controls
Press the [MEDIA]button
Select
[AUX]
An external device can be connected
to play music.
Connecting an External Device
External audio players (Camcorders,
car VCR, etc.) can be played through
a dedicated cable.
If an external device connector is
connected with the AUX terminal,
then AUX mode will automatically
operate. Once the connector is dis-
connected, the previous mode will be
restored.
AUX mode can be used only when
an external audio player (camcorder,
car VCR, etc.) has been connected.
The AUX volume can be controlled
separately from other audio modes.
Connecting a connector jack to the
AUX terminal without an external
device will convert the system to
AUX mode, but only output noise.
When an external device is not being
used, also remove the connector
jack.
When the external device power is
connected to the power jack, playing
the external device may output
noise. In such cases, disconnect the
power connection before use.
Fully insert the AUX cable to the AUX
jack upon use.

Audio system
36
5
MENU : My Music
My Music Mode Display Controls
(1) Mode
Displays current operating mode.
(2) Operation State
From Repeat/Shuffle/Scan, displays the
currently operating function.
(3) File Index
Displays the current file/total number
of files.
(4) File Info
Displays information about the cur-
rent file.
(5) Play/Pause
Changes the play/pause state.
(6) Play Time
Displays the current play time. (7) Info
Displays detailed information for the
current file.
The title, artist and album info are
displayed only when such informa-
tion is recorded within the MP3 file
ID3 tag.
(8)
Shuffle
Turns the Shuffle f eature on/off.
(9) Repeat
Turns the Repeat feature on/off.
(10) Delete
Deletes the current file.
(11) List
Moves to the list screen.
Turn the TUNE knob left/right to
search for files. Once the desired file
is displayed, press the knob to select
and play.

Audio system
537

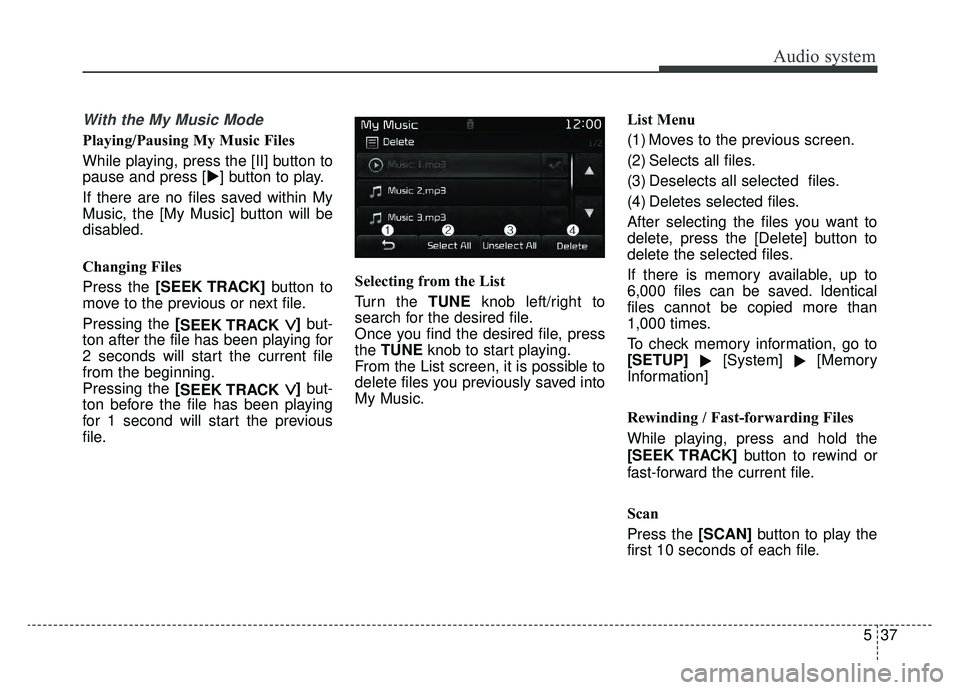

With the My Music Mode
Playing/Pausing My Music Files
While playing, press the [II] button to
pause and press [] button to play.
If there are no files saved within My
Music, the [My Music] button will be
disabled.
Changing Files
Press the [SEEK TRACK]button to
move to the previous or next file.
Pressing the [ SEEK TRACK
∨ ∨]but-
ton after the file has been playing for
2 seconds will start the current file
from the beginning.
Pressing the [ SEEK TRACK
∨ ∨]but-
ton before the file has been playing
for 1 second will start the previous
file. Selecting from the List
Turn the TUNE
knob left/right to
search for the desired file.
Once you find the desired file, press
the TUNE knob to start playing.
From the List screen, it is possible to
delete files you previously saved into
My Music. List Menu
(1) Moves to the previous screen.
(2) Selects all files.
(3) Deselects all selected files.
(4) Deletes selected files.
After selecting the files you want to
delete, press the [Delete] button to
delete the selected files.
If there is memory available, up to
6,000 files can be saved. Identical
files cannot be copied more than
1,000 times.
To check memory information, go to
[SETUP]
[System]
[Memory
Information]
Rewinding / Fast-forwarding Files
While playing, press and hold the
[SEEK TRACK] button to rewind or
fast-forward the current file.
Scan
Press the [SCAN] button to play the
first 10 seconds of each file.
