KIA SPORTAGE 2019 Quick Start Guide Base Audio
Manufacturer: KIA, Model Year: 2019, Model line: SPORTAGE, Model: KIA SPORTAGE 2019Pages: 2, PDF Size: 1.43 MB

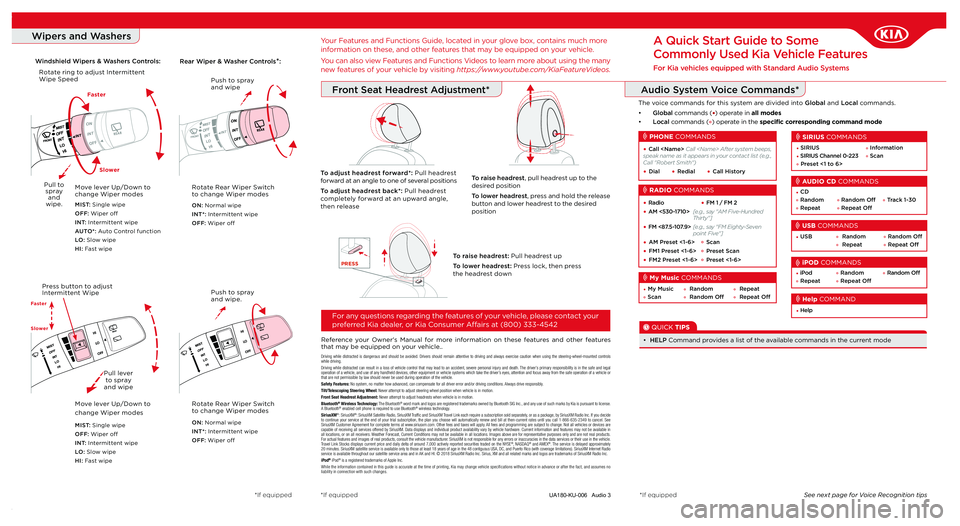

Page 1 of 2
Audio System Voice Commands*
Wipers and Washers
UA180-KU-006 Audio 3
Reference your Owner's Manual for more information on these features and other features that may be equipped on your vehicle..
See next page for Voice Recognition tips
For any questions regarding the features of your vehicle, please contact your
preferred Kia dealer, or Kia Consumer Affairs at (800) 333-4542
Your Features and Functions Guide, located in your glove box, contains much more
information on these, and other features that may be equipped on your vehicle.
You can also view Features and Functions Videos to learn more about using the many
new features of your vehicle by visiting https://www.youtube.com/KiaFeatureVideos.
A Quick Start Guide to Some
Commonly Used Kia Vehicle Features
For Kia vehicles equipped with Standard Audio Systems
The voice commands for this system are divided into Global and Local commands.
• Global commands (●) operate in all modes
• Local commands (°) operate in the specific corresponding command mode
• Call
• Dial • Redial • Call History
PHONE COMMANDS
• SIRIUS
• SIRIUS Channel 0-223
° Preset <1 to 6>
° Information
° Scan
SIRIUS COMMANDS
• CD
° Random ° Random Off ° Track 1-30
° Repeat ° Repeat Off
AUDIO CD COMMANDS
• My Music ° Random ° Repeat
° Scan ° Random Off ° Repeat Off
My Music COMMANDS• iPod ° Random ° Random Off
° Repeat ° Repeat Off
iPOD COMMANDS
• USB ° Random ° Random Off
° Repeat ° Repeat Off
USB COMMANDS
• HELP Command provides a list of the available commands in the current mode
*If equipped*If equipped*If equipped
Front Seat Headrest Adjustment*
Driving while distracted is dangerous and should be avoided. Drivers should remain attentive to driving and always exercise caution \
when using the steering-wheel-mounted controls while driving.Driving while distracted can result in a loss of vehicle control that may lead to an accident, severe personal injury and death. The driver’s primary responsibility is in the safe and legal operation of a vehicle, and use of any handheld devices, other equipment or vehicle systems which take the driver’s eyes, attention and focus away from the safe operation of a vehicle or that are not permissible by law should never be used during operation of\
the vehicle.Safety Features: No system, no matter how advanced, can compensate for all driver error and/or driving conditions. Always drive responsibly.Tilt/Telescoping Steering Wheel: Never attempt to adjust steering wheel position when vehicle is in moti\
on.Front Seat Headrest Adjustment: Never attempt to adjust headrests when vehicle is in motion.Bluetooth® Wireless Technology: The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG In\
c., and any use of such marks by Kia is pursuant to license. A Bluetooth® enabled cell phone is required to use Bluetooth® wireless technology.SiriusXM®: SiriusXM®: SiriusXM Satellite Radio, SiriusXM Traffic and SiriusXM Travel Link each require a subscription sold separately, or as a package, by SiriusXM Radio Inc. If you decide to continue your service at the end of your trial subscription, the plan you choose will automatically renew and bill at then-current rates until you call 1-866-635-2349 to cancel. See SiriusXM Customer Agreement for complete terms at www.siriusxm.com. Other fees and taxes will apply. All fees and programming are subject to change. Not all vehicles or devices are capable of receiving all services offered by SiriusXM. Data displays and individual product availability vary by vehicle hardware. Current information and features may not be available in all locations, or on all receivers. Weather Forecast, Current Conditions may not be available in all locations. Images above are for representative purposes only and are not real prod\
ucts. For actual features and images of real products, consult the vehicle manufacturer. SiriusXM is not responsible for any errors or inaccuracies in the data \
services or their use in the vehicle. Travel Link Stocks displays current price and daily delta of around 7,000\
actively reported securities traded on the NYSE®, NASDAQ® and AMEX®. The service is delayed approximately 20 minutes. SiriusXM satellite service is available only to those at least 18 years of age in the 48 conti\
guous USA, DC, and Puerto Rico (with coverage limitations). SiriusXM Internet Radio service is available throughout our satellite service area and in AK and HI. © 2018 SiriusXM Radio Inc. Sirius, XM and all related marks and logos are trademarks of SiriusXM Radio Inc\
. iPod® iPod® is a registered trademarks of Apple Inc.While the information contained in this guide is accurate at the time of printing, Kia may change vehicle specifications without notice in advance or after the fact, and assumes no liability in connection with such changes.
RADIO COMMANDS
• Radio • FM 1 / FM 2
• AM <530-1710> [e.g., say "AM Five-Hundred Thirty"]
• FM <87.5-107.9> [e.g., say "FM Eighty-Seven point Five"]
• AM Preset <1-6> ° Scan
• FM1 Preset <1-6> ° Preset Scan
• FM2 Preset <1-6> ° Preset <1-6>
• Help
Help COMMAND
To raise headrest: Pull headrest up
To lower headrest: Press lock, then press the headrest down
PRESS
To raise headrest, pull headrest up to the desired position
To lower headrest, press and hold the release button and lower headrest to the desired position
To adjust headrest forward*: Pull headrest forward at an angle to one of several positions
To adjust headrest back*: Pull headrest completely forward at an upward angle, then release
Windshield Wipers & Washers Controls:Rear Wiper & Washer Controls*:
Move lever Up/Down to change Wiper modes
M I S T: Single wipe
OFF: Wiper off
I N T: Intermittent wipe
AUTO*: Auto Control function
LO: Slow wipe
HI: Fast wipe
Pull to sprayand wipe.
Rotate ring to adjust Intermittent Wipe SpeedPush to spray and wipe
ON: Normal wipe
INT*: Intermittent wipe
OFF: Wiper off
Rotate Rear Wiper Switch to change Wiper modes
Faster
Slower
Move lever Up/Down to
change Wiper modes
M I S T: Single wipe
OFF: Wiper off
I N T: Intermittent wipe
LO: Slow wipe
HI: Fast wipe
Pull lever to spray and wipe
Push to spray and wipe.
ON: Normal wipe
INT*: Intermittent wipe
OFF: Wiper off
Rotate Rear Wiper Switch to change Wiper modes
Press button to adjust Intermittent Wipe
Faster
Slower

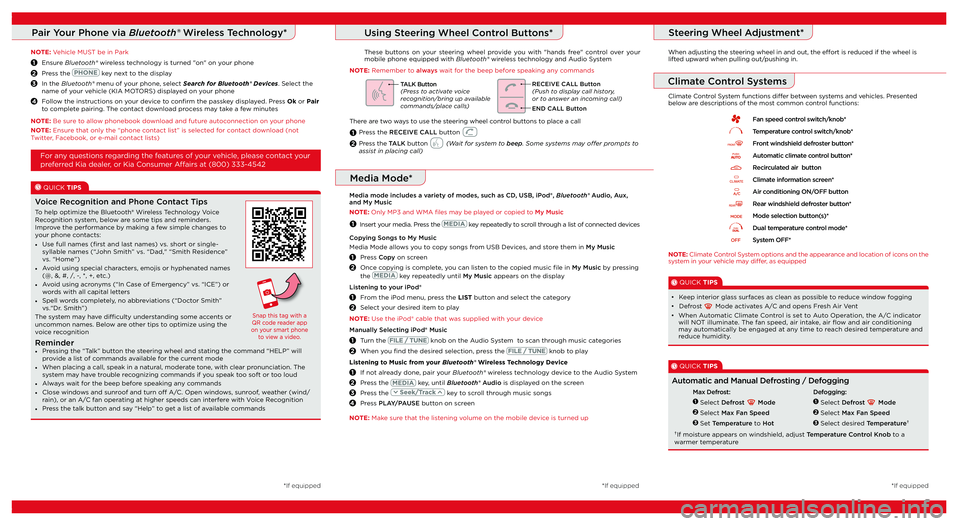

Page 2 of 2
Copying Songs to My Music
Media Mode allows you to copy songs from USB Devices, and store them in My Music
1 Press Copy on screen
2 Once copying is complete, you can listen to the copied music file in My Music by pressing
the key repeatedly until My Music appears on the display
Listening to your iPod®
1 From the iPod menu, press the LIST button and select the category
2 Select your desired item to play
NOTE: Use the iPod® cable that was supplied with your device
Manually Selecting iPod® Music
1 Turn the knob on the Audio System to scan through music categories
2 When you find the desired selection, press the knob to play
Listening to Music from your Bluetooth® Wireless Technology Device
1 If not already done, pair your Bluetooth® wireless technology device to the Audio System
2 Press the key, until Bluetooth® Audio is displayed on the screen
3 Press the key to scroll through music songs
4 Press PLAY/PAUSE button on screen
NOTE: Make sure that the listening volume on the mobile device is turned up
When adjusting the steering wheel in and out, the effort is reduced if the wheel is lifted upward when pulling out/pushing in.
There are two ways to use the steering wheel control buttons to place a call
NOTE: Remember to always wait for the beep before speaking any commands
These buttons on your steering wheel provide you with "hands free" control over your mobile phone equipped with Bluetooth® wireless technology and Audio System
TALK Button(Press to activate voice recognition/bring up available commands/place calls)
RECEIVE CALL Button(Push to display call history, or to answer an incoming call)
END CALL Button
*If equipped*If equipped*If equipped
Press the RECEIVE CALL button
Press the TALK button (Wait for system to beep. Some systems may offer prompts to assist in placing call)
1
2
Using Steering Wheel Control Buttons*
Climate Control Systems
NOTE: Climate Control System options and the appearance and location of icons on the system in your vehicle may differ, as equipped
Fan speed control switch/knob*
Temperature control switch/knob*
Front windshield defroster button*
Automatic climate control button*
Recirculated air button
Climate information screen*
Air conditioning ON/OFF button
Rear windshield defroster button*
Mode selection button(s)*
Dual temperature control mode*
System OFF*
B G
C
A
F
E
D
HJ
ED
B
B G
C
A
F
E
D
HJ
ED
B
B G
C
A
F
E
D
HJ
ED
B
B G
C
A
F
E
D
HJ
ED
B
B G
C
A
F
E
D
HJ
ED
B
B G
C
A
F
E
D
HJ
ED
B
B G
C
A
F
E
D
HJ
ED
B
B G
C
A
F
E
D
HJ
ED
B
B G
C
A
F
E
D
HJ
ED
B
B G
C
A
F
E
D
HJ
ED
B
B G
C
A
F
E
D
HJ
ED
B
Climate Control System functions differ between systems and vehicles. Presented below are descriptions of the most common control functions:
QUICK TIPS
• Keep interior glass surfaces as clean as possible to reduce window fogging
• Defrost Mode activates A/C and opens Fresh Air Vent
• When Automatic Climate Control is set to Auto Operation, the A/C indicator will NOT illuminate. The fan speed, air intake, air flow and air conditioning may automatically be engaged at any time to reach desired temperature and reduce humidity.
QUICK TIPS
Automatic and Manual Defrosting / Defogging
Max Defrost:
Select Defrost Mode
Select Max Fan Speed
Set Temperature to Hot
1
2
3
Defogging:
Select Defrost Mode
Select Max Fan Speed
Select desired Temperature†
1
2
3
†If moisture appears on windshield, adjust Temperature Control Knob to a warmer temperature
QUICK TIPS
To help optimize the Bluetooth® Wireless Technology Voice Recognition system, below are some tips and reminders. Improve the performance by making a few simple changes to your phone contacts:
• Use full names (first and last names) vs. short or single-syllable names (“John Smith” vs. “Dad," “Smith Residence” vs. “Home”)
• Avoid using special characters, emojis or hyphenated names (@, &, #, /, -, *, +, etc.)
• Avoid using acronyms (“In Case of Emergency” vs. “ICE”) or words with all capital letters
• Spell words completely, no abbreviations (“Doctor Smith” vs.“Dr. Smith”)
The system may have difficulty understanding some accents or uncommon names. Below are other tips to optimize using the voice recognition
Reminder• Pressing the “Talk” button the steering wheel and stating the command “HELP” will provide a list of commands available for the current mode
• When placing a call, speak in a natural, moderate tone, with clear pronunciation. The system may have trouble recognizing commands if you speak too soft or too loud
• Always wait for the beep before speaking any commands
• Close windows and sunroof and turn off A/C. Open windows, sunroof, weather (wind/rain), or an A/C fan operating at higher speeds can interfere with Voice Recognition
• Press the talk button and say “Help” to get a list of available commands
Voice Recognition and Phone Contact Tips
Pair Your Phone via Bluetooth® Wireless Technology*
NOTE: Vehicle MUST be in Park
1 Ensure Bluetooth® wireless technology is turned "on" on your phone
2 Press the key next to the display
3 In the Bluetooth® menu of your phone, select Search for Bluetooth® Devices. Select the name of your vehicle (KIA MOTORS) displayed on your phone
4 Follow the instructions on your device to confirm the passkey displayed. Press Ok or Pair to complete pairing. The contact download process may take a few minutes
Insert your media. Press the key repeatedly to scroll through a list of connected devices
Media Mode*
Media mode includes a variety of modes, such as CD, USB, iPod®, Bluetooth® Audio, Aux, and My Music
NOTE: Only MP3 and WMA files may be played or copied to My Music
Steering Wheel Adjustment*
For any questions regarding the features of your vehicle, please contact your
preferred Kia dealer, or Kia Consumer Affairs at (800) 333-4542
NOTE: Be sure to allow phonebook download and future autoconnection on your phone
NOTE: Ensure that only the “phone contact list” is selected for contact download (not Twitter, Facebook, or e-mail contact lists)
1
