KIA SPORTAGE 2022 Owners Manual

7105
Maintenance

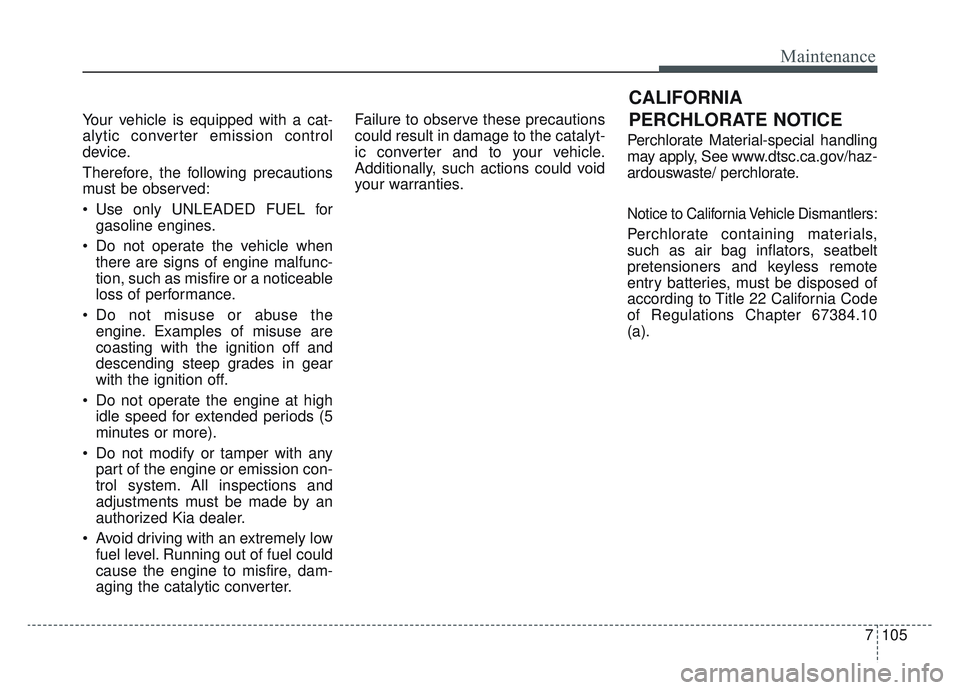

Your vehicle is equipped with a cat-
alytic converter emission control
device.
Therefore, the following precautions
must be observed:
Use only UNLEADED FUEL forgasoline engines.
Do not operate the vehicle when there are signs of engine malfunc-
tion, such as misfire or a noticeable
loss of performance.
Do not misuse or abuse the engine. Examples of misuse are
coasting with the ignition off and
descending steep grades in gear
with the ignition off.
Do not operate the engine at high idle speed for extended periods (5
minutes or more).
Do not modify or tamper with any part of the engine or emission con-
trol system. All inspections and
adjustments must be made by an
authorized Kia dealer.
Avoid driving with an extremely low fuel level. Running out of fuel could
cause the engine to misfire, dam-
aging the catalytic converter. Failure to observe these precautions
could result in damage to the catalyt-
ic converter and to your vehicle.
Additionally, such actions could void
your warranties.
Perchlorate Material-special handling
may apply, See www.dtsc.ca.gov/haz-
ardouswaste/ perchlorate.
Notice to California Vehicle Dismantlers:
Perchlorate containing materials,
such as air bag inflators, seatbelt
pretensioners and keyless remote
entry batteries, must be disposed of
according to Title 22 California Code
of Regulations Chapter 67384.10
(a).
CALIFORNIA
PERCHLORATE NOTICE

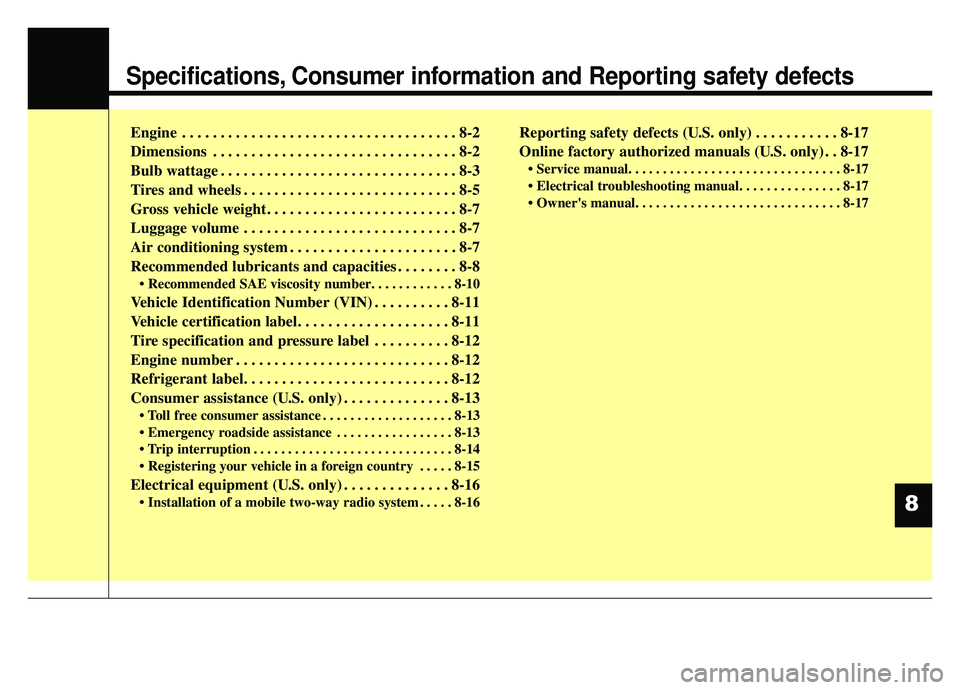

Specifications, Consumer information and Reporting safety defects
Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
8-2
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-2
Bulb wattage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-3
Tires and wheels . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-5
Gross vehicle weight. . . . . . . . . . . . . . . . . . . . . . . . . 8-7
Luggage volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-7
Air conditioning system . . . . . . . . . . . . . . . . . . . . . . 8-7
Recommended lubricants and capacities . . . . . . . . 8-8
• Recommended SAE viscosity number. . . . . . . . . . . . 8-10
Vehicle Identification Number (VIN) . . . . . . . . . . 8-11
Vehicle certification label. . . . . . . . . . . . . . . . . . . . 8-11
Tire specification and pressure label . . . . . . . . . . 8-12
Engine number . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-12
Refrigerant label. . . . . . . . . . . . . . . . . . . . . . . . . . . 8-12
Consumer assistance (U.S. only) . . . . . . . . . . . . . . 8-13
. . . . . . . . . . . . . . . . . . . 8-13
. . . . . . . . . . . . . . . . . 8-13
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-14
. . . . . 8-15
Electrical equipment (U.S. only) . . . . . . . . . . . . . . 8-16
. . . . . 8-16
Reporting safety defects (U.S. only) . . . . . . . . . . . 8-17
Online factory authorized manuals (U.S. only) . . 8-17



8

Specifications, Consumer information, Reporting safety defects
28

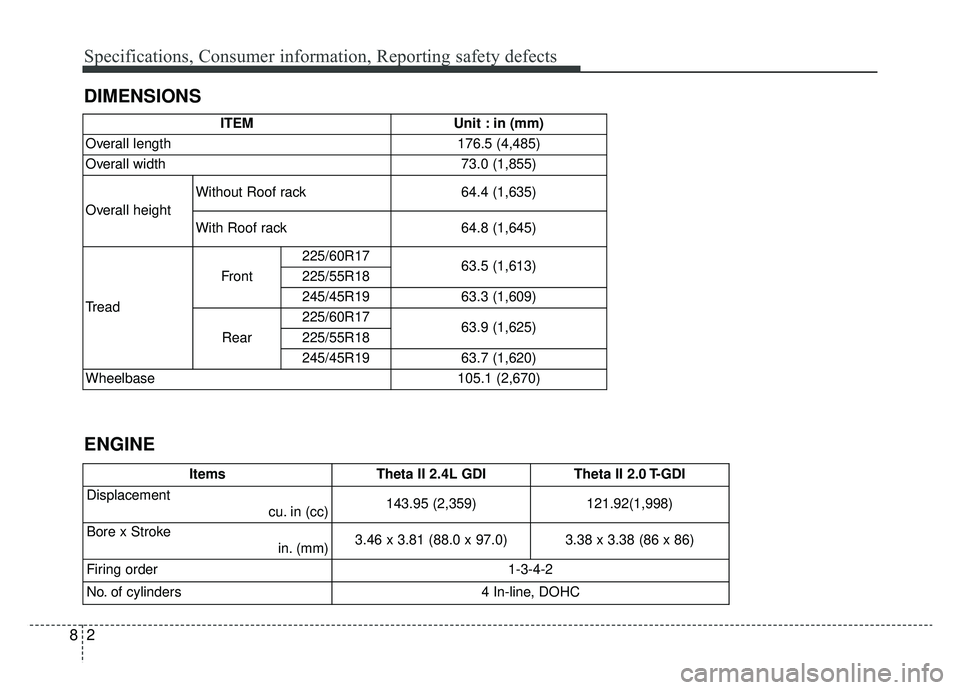

DIMENSIONS
ENGINE
ITEMUnit : in (mm)
Overall length176.5 (4,485)
Overall width73.0 (1,855)
Overall height
Without Roof rack64.4 (1,635)
With Roof rack64.8 (1,645)
Tread
Front
225/60R1763.5 (1,613)225/55R18
245/45R1963.3 (1,609)
Rear
225/60R1763.9 (1,625)225/55R18
245/45R1963.7 (1,620)
Wheelbase105.1 (2,670)
Items Theta II 2.4L GDITheta II 2.0 T-GDI
Displacementcu. in (cc)143.95 (2,359)121.92(1,998)
Bore x Stroke in. (mm)3.46 x 3.81 (88.0 x 97.0)3.38 x 3.38 (86 x 86)
Firing order1-3-4-2
No. of cylinders4 In-line, DOHC

83
Specifications, Consumer information, Reporting safety defects

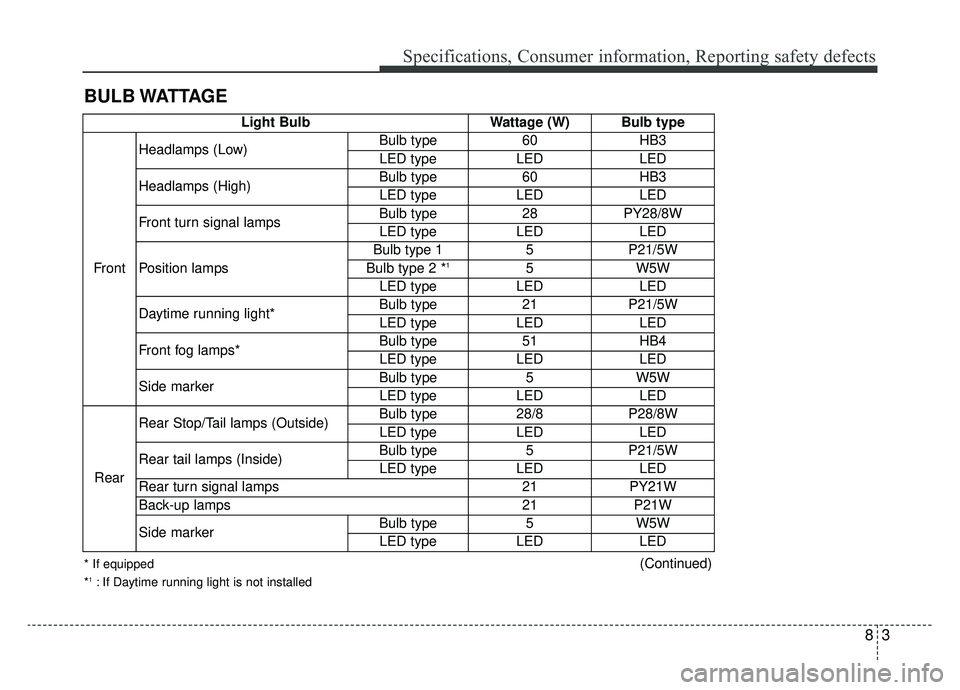

BULB WATTAGE
Light BulbWattage (W) Bulb type
Front Headlamps (Low)
Bulb type
60HB3
LED type LEDLED
Headlamps (High) Bulb type
60HB3
LED type LEDLED
Front turn signal lamps Bulb type
28PY28/8W
LED type LEDLED
Position lamps Bulb type 1
5P21/5W
Bulb type 2 *
15 W5W
LED typeLEDLED
Daytime running light*Bulb type21P21/5W
LED typeLEDLED
Front fog lamps*Bulb type51HB4
LED typeLEDLED
Side markerBulb type5W5W
LED typeLEDLED
Rear Rear Stop/Tail lamps (Outside)
Bulb type 28/8 P28/8W
LED type LED LED
Rear tail lamps (Inside) Bulb type 5 P21/5W
LED type LED LED
Rear turn signal lamps 21 PY21W
Back-up lamps 21 P21W
Side marker Bulb type 5 W5W
LED type LED LED
* If equipped
*1: If Daytime running light is not installed
(Continued)

Specifications, Consumer information, Reporting safety defects
48

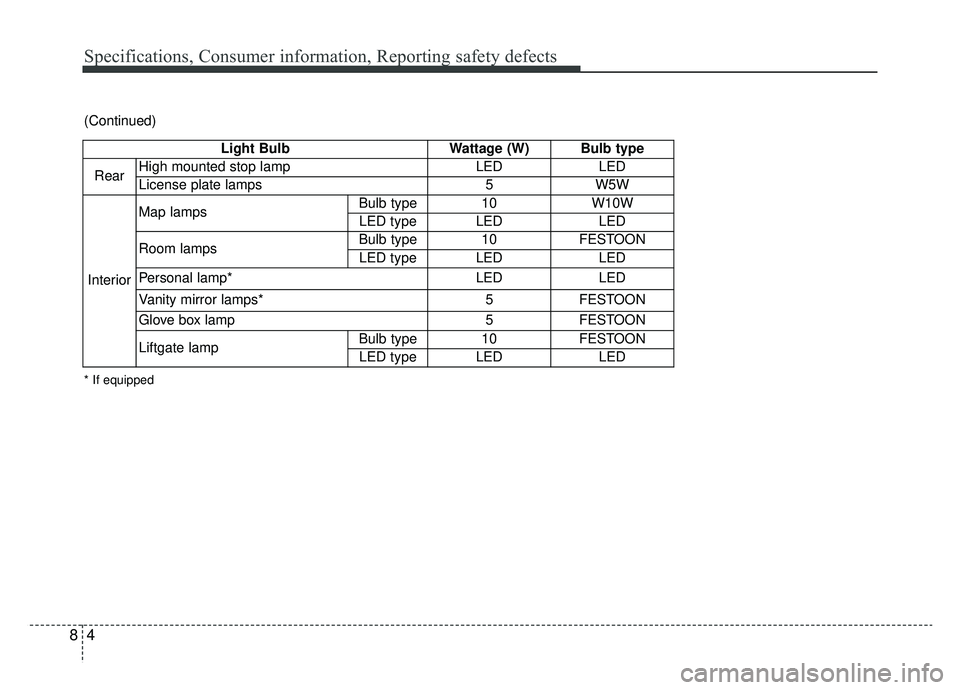

(Continued)Light Bulb Wattage (W) Bulb type
Rear High mounted stop lamp LED LED
License plate lamps 5 W5W
Interior Map lamps
Bulb type 10 W10W
LED type LED LED
Room lamps Bulb type 10 FESTOON
LED type LED LED
Personal lamp*LEDLED
Vanity mirror lamps*5FESTOON
Glove box lamp5FESTOON
Liftgate lampBulb type10FESTOON
LED typeLEDLED
* If equipped

85
Specifications, Consumer information, Reporting safety defects

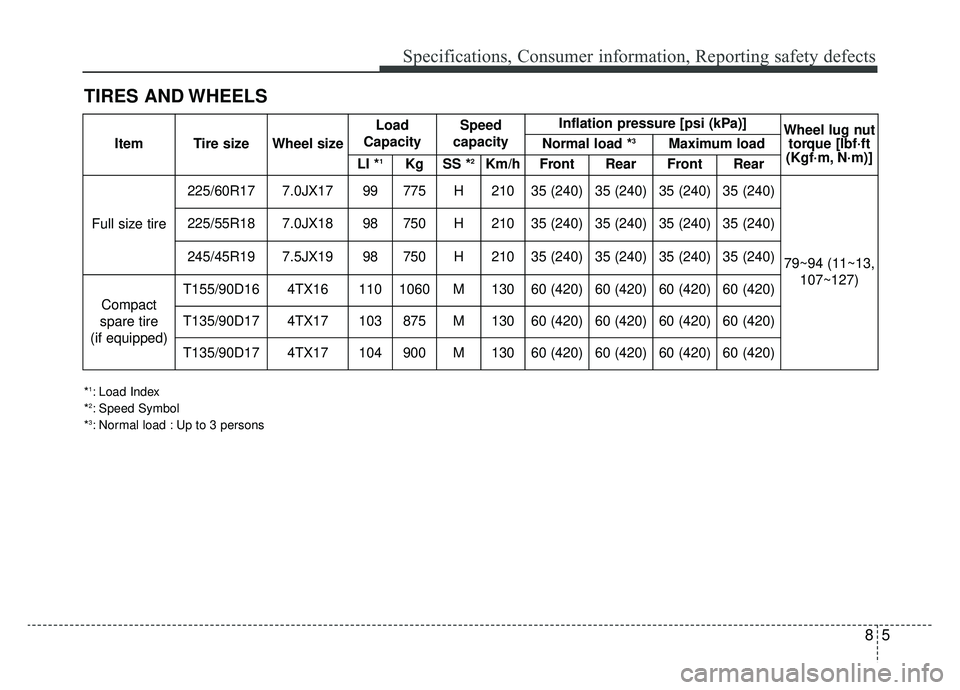

TIRES AND WHEELS
*1: Load Index
*2: Speed Symbol
*3: Normal load : Up to 3 persons
ItemTire sizeWheel size
Load
CapacitySpeed
capacityInflation pressure [psi (kPa)]Wheel lug nut torque [lbf·ft
(Kgf·m, N·m)]Normal load *3Maximum load
LI *1KgSS *2Km/hFront RearFront Rear
Full size tire
225/60R177.0JX1799775H21035 (240)35 (240)35 (240)35 (240)
79~94 (11~13,
107~127)
225/55R187.0JX1898750H21035 (240)35 (240)35 (240)35 (240)
245/45R197.5JX1998750H21035 (240)35 (240)35 (240)35 (240)
Compact
spare tire
(if equipped)T155/90D164TX161101060M13060 (420)60 (420)60 (420)60 (420)
T135/90D174TX17103875M13060 (420)60 (420)60 (420)60 (420)
T135/90D174TX17104900M13060 (420)60 (420)60 (420)60 (420)

Specifications, Consumer information, Reporting safety defects
68

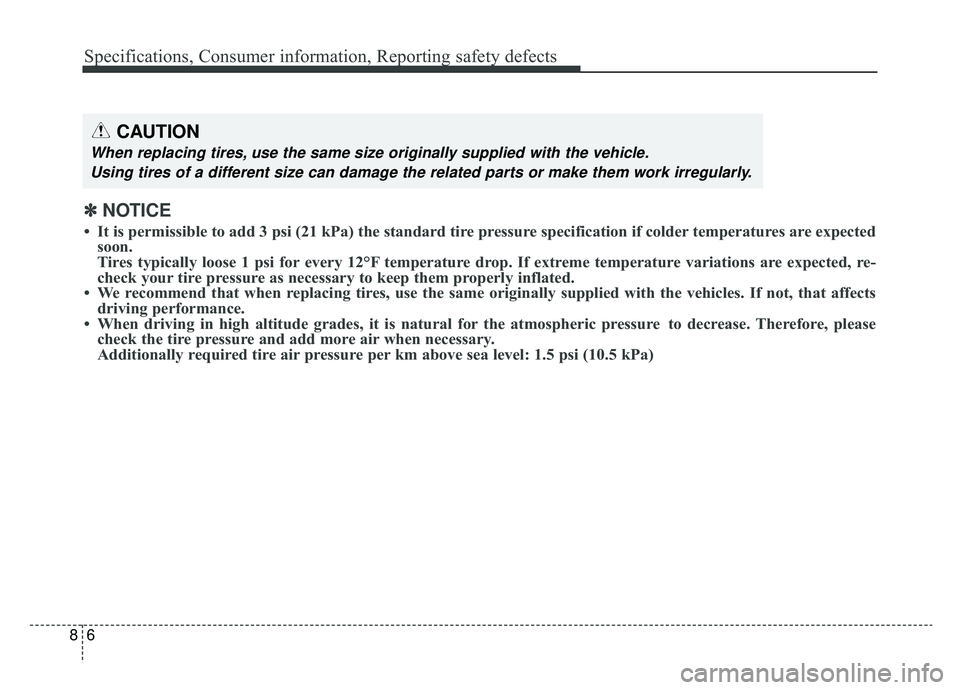

CAUTION
When replacing tires, use the same size originally supplied with the vehicle.Using tires of a different size can damage the related parts or make them work irregularly.
✽ ✽ NOTICE
• It is permissible to add 3 psi (21 kPa) the standard tire pressure specification if colder temperatures are expected
soon.
Tires typically loose 1 psi for every 12°F temperature drop. If extreme temperature variations are expected, re-
check your tire pressure as necessary to keep them properly inflated.
• We recommend that when replacing tires, use the same originally supplied with the vehicles. If not, that aff\
ects driving performance.
• When driving in high altitude grades, it is natural for the atmospheric pressure to decrease. Therefore, please check the tire pressure and add more air when necessary.
Additionally required tire air pressure per km above sea level: 1.5 psi (10.5 kPa)

87
Specifications, Consumer information, Reporting safety defects

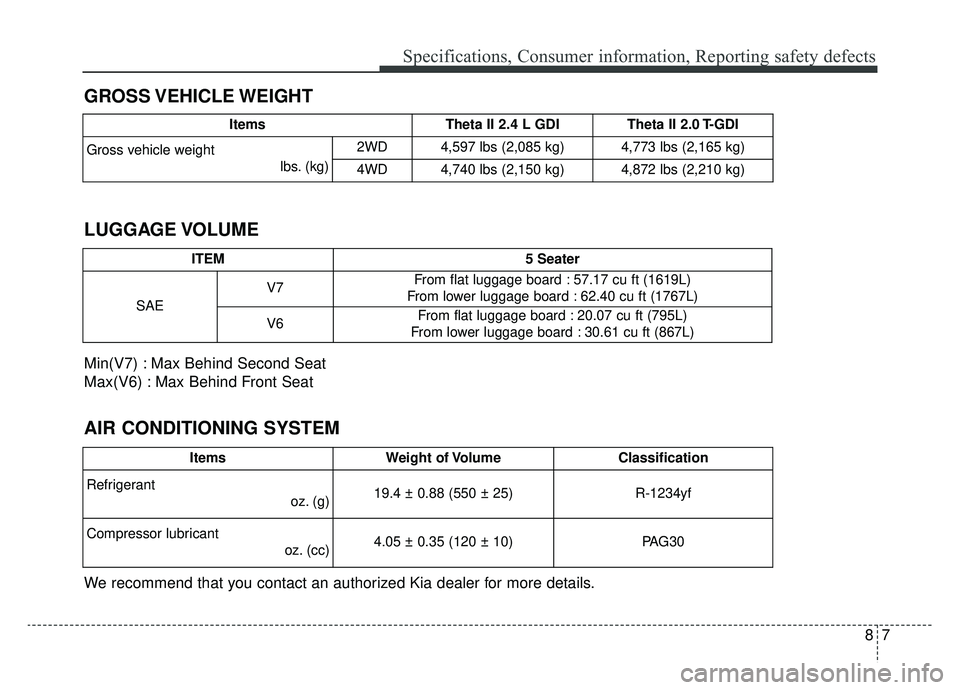

GROSS VEHICLE WEIGHT
AIR CONDITIONING SYSTEM LUGGAGE VOLUME
We recommend that you contact an authorized Kia dealer for more details. Min(V7) : Max Behind Second Seat
Max(V6) : Max Behind Front Seat
ItemsTheta II 2.4 L GDITheta II 2.0 T-GDI
Gross vehicle weightlbs. (kg)2WD4,597 lbs (2,085 kg)4,773 lbs (2,165 kg)
4WD4,740 lbs (2,150 kg)4,872 lbs (2,210 kg)
ITEM5 Seater
SAE
V7From flat luggage board : 57.17 cu ft (1619L)
From lower luggage board : 62.40 cu ft (1767L)
V6From flat luggage board : 20.07 cu ft (795L)
From lower luggage board : 30.61 cu ft (867L)
ItemsWeight of VolumeClassification
Refrigerant oz. (g)19.4 ± 0.88 (550 ± 25)R-1234yf
Compressor lubricantoz. (cc) 4.05 ± 0.35 (120 ± 10)PAG30

Specifications, Consumer information, Reporting safety defects
88

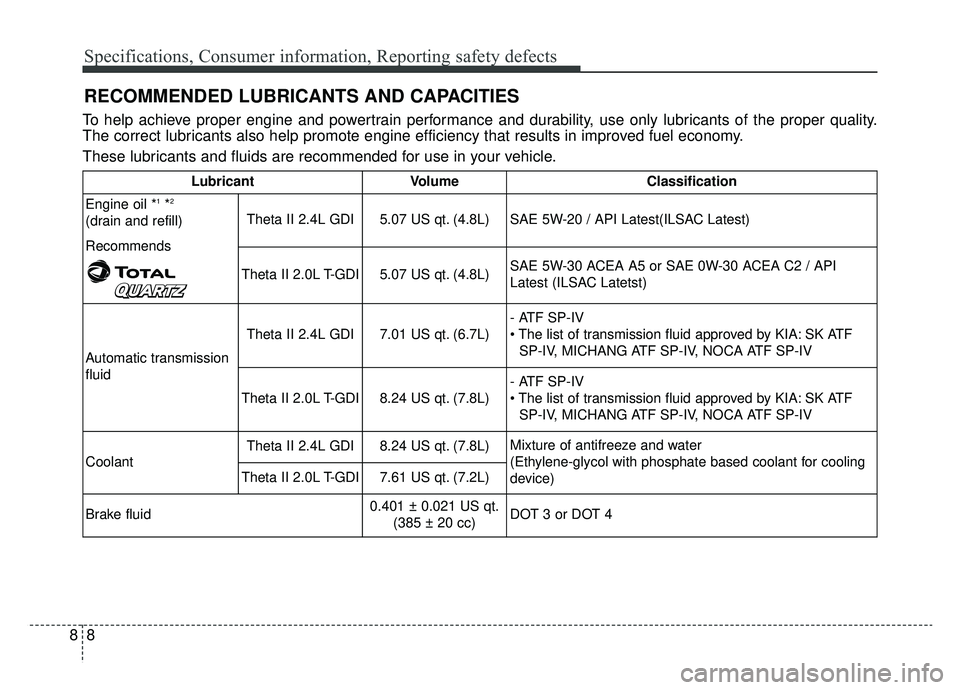

RECOMMENDED LUBRICANTS AND CAPACITIES
To help achieve proper engine and powertrain performance and durability, use only lubricants of the proper quality.
The correct lubricants also help promote engine efficiency that results in improved fuel economy.
These lubricants and fluids are recommended for use in your vehicle.
LubricantVolumeClassification
Engine oil *
1*2
(drain and refill)
Recommends Theta II 2.4L GDI5.07 US qt. (4.8L) SAE 5W-20 / API Latest(ILSAC Latest)
Theta II 2.0L T-GDI
5.07 US qt. (4.8L) SAE 5W-30 ACEA A5 or SAE 0W-30 ACEA C2 / API
Latest (ILSAC Latetst)
Automatic transmission
fluid Theta II 2.4L GDI
7.01 US qt. (6.7L)
- ATF SP-IV
• The list of transmission fluid approved by KIA: SK ATF
SP-IV, MICHANG ATF SP-IV, NOCA ATF SP-IV
Theta II 2.0L T-GDI
8.24 US qt. (7.8L) - ATF SP-IV
SK ATF
SP-IV, MICHANG ATF SP-IV, NOCA ATF SP-IV
Coolant Theta II 2.4L GDI
8.24 US qt. (7.8L)
Mixture of antifreeze and water
(Ethylene-glycol with phosphate based coolant for cooling
device)
Theta II 2.0L T-GDI
7.61 US qt. (7.2L)
Brake fluid
0.401 ± 0.021 US qt. (385 ± 20 cc) DOT 3 or DOT 4

89
Specifications, Consumer information, Reporting safety defects
*1: Refer to the recommended SAE viscosity numbers on the next page.
*
2: Engine oils labeled Energy Conserving Oil are now available. Along with other additional benefits, they contribute to fuel econ-
omy by reducing the amount of fuel necessary to overcome engine friction. Often, these improvements are difficult to measure
in everyday driving, but in a year’s time, they can offer significant cost and energy savings. Lubricant
Volume
Classification

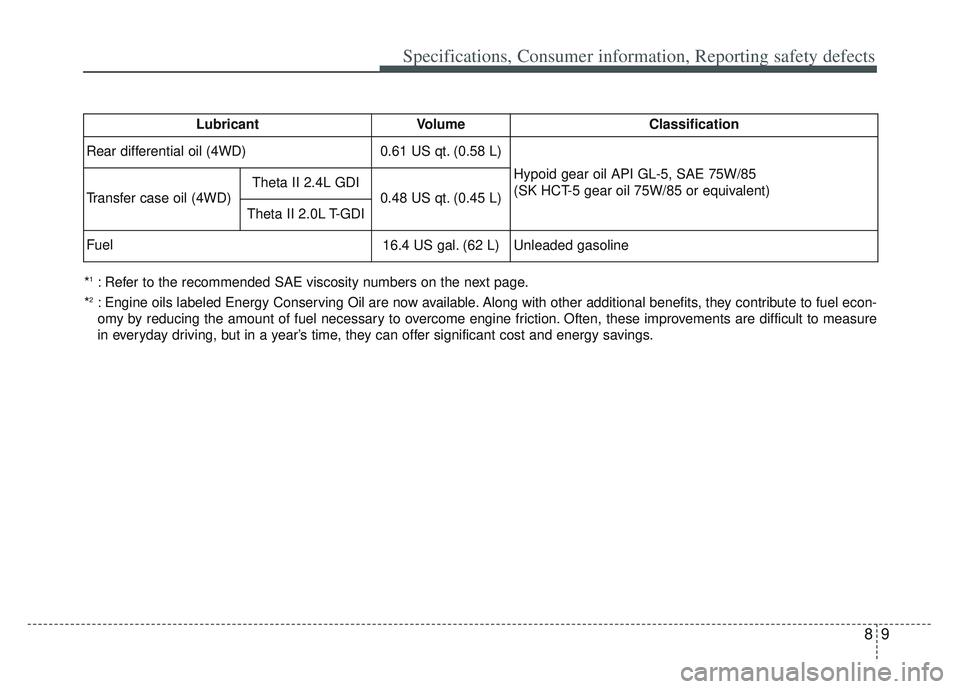

Rear differential oil (4WD)
0.61 US qt. (0.58 L) Hypoid gear oil API GL-5, SAE 75W/85
(SK HCT-5 gear oil 75W/85 or equivalent)
Transfer case oil (4WD) Theta II 2.4L GDI
0.48 US qt. (0.45 L)
Theta II 2.0L T-GDI
Fuel
16.4 US gal. (62 L) Unleaded gasoline
