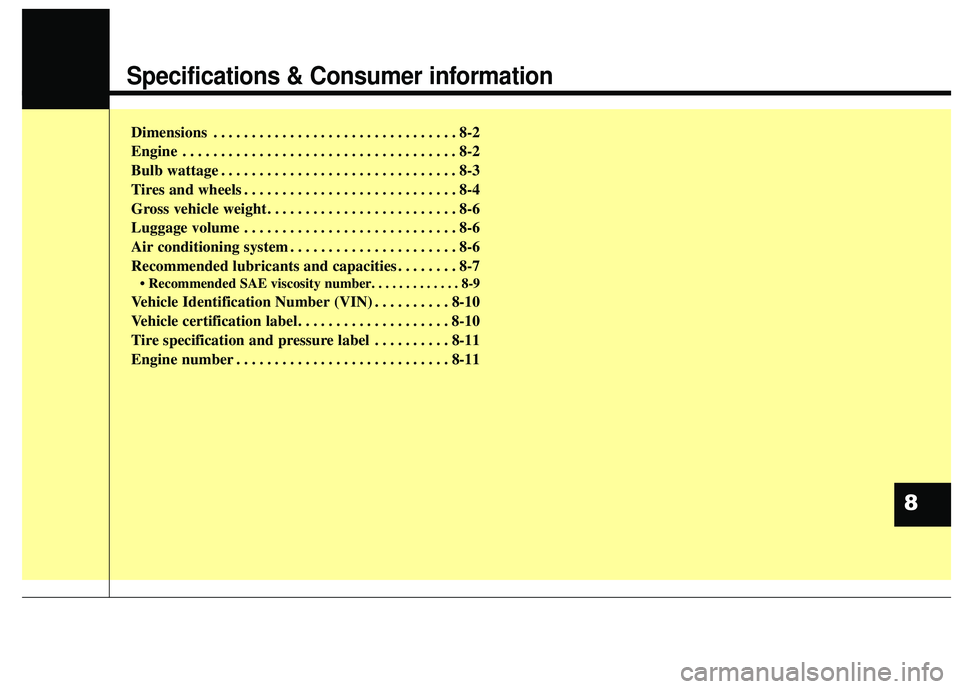

Specifications & Consumer information
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-2
Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
8-2
Bulb wattage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-3
Tires and wheels . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-4
Gross vehicle weight. . . . . . . . . . . . . . . . . . . . . . . . . 8-6
Luggage volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-6
Air conditioning system . . . . . . . . . . . . . . . . . . . . . . 8-6
Recommended lubricants and capacities . . . . . . . . 8-7
• Recommended SAE viscosity number. . . . . . . . . . . . . 8-9
Vehicle Identification Number (VIN) . . . . . . . . . . 8-10
Vehicle certification label. . . . . . . . . . . . . . . . . . . . 8-10
Tire specification and pressure label . . . . . . . . . . 8-11
Engine number . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-11
8

28

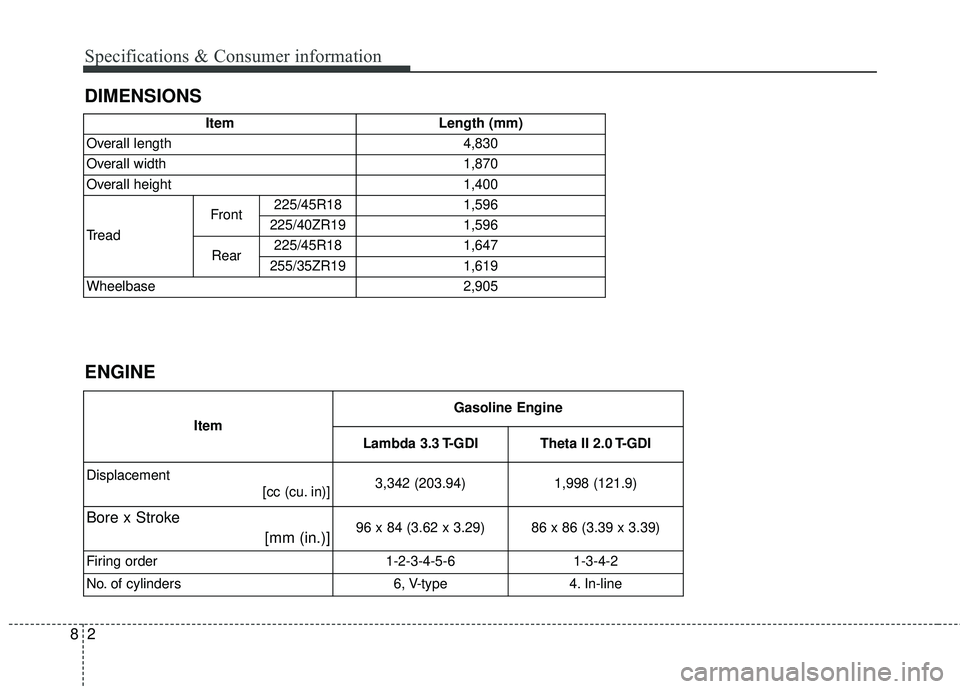

DIMENSIONS Specifications & Consumer information
ENGINE
ItemLength (mm)
Overall length4,830
Overall width1,870
Overall height1,400
Tread
Front225/45R181,596
225/40ZR191,596
Rear225/45R181,647
255/35ZR191,619
Wheelbase2,905
ItemGasoline Engine
Lambda 3.3 T-GDI Theta II 2.0 T-GDI
Displacement [cc (cu. in)]3,342 (203.94) 1,998 (121.9)
Bore x Stroke
[mm (in.)]96 x 84 (3.62 x 3.29) 86 x 86 (3.39 x 3.39)
Firing order 1-2-3-4-5-6 1-3-4-2
No. of cylinders 6, V-type4. In-line

83

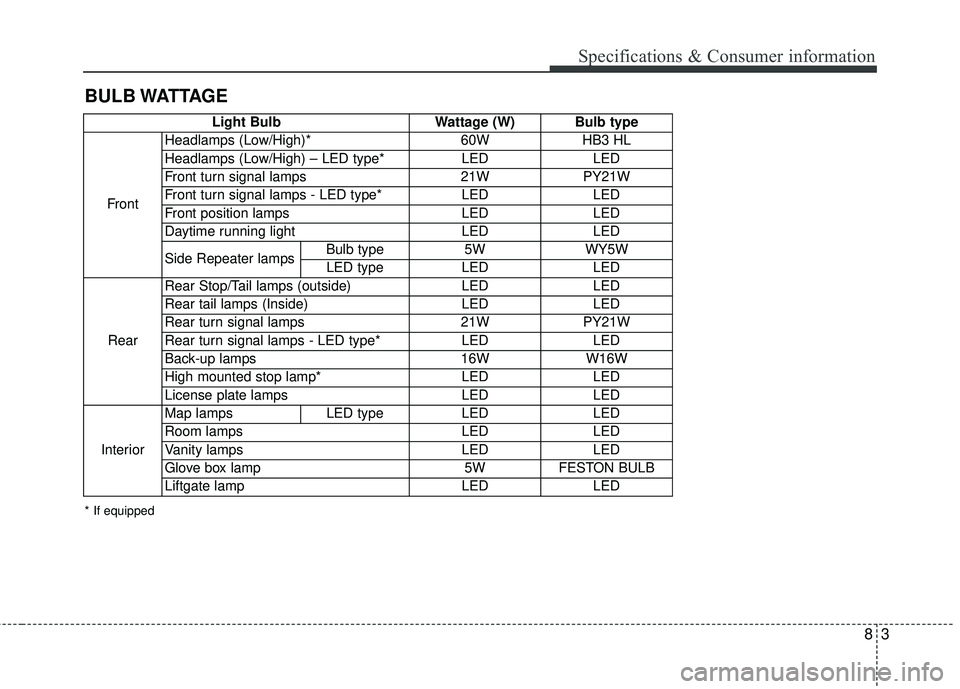

BULB WATTAGESpecifications & Consumer information
Light Bulb
Wattage (W) Bulb type
Front Headlamps (Low/High)*
60WHB3 HL
Headlamps (Low/High) – LED type* LEDLED
Front turn signal lamps 21WPY21W
Front turn signal lamps - LED type* LEDLED
Front position lamps LEDLED
Daytime running light LEDLED
Side Repeater lamps Bulb type
5WWY5W
LED type LEDLED
Rear Rear Stop/Tail lamps (outside)
LEDLED
Rear tail lamps (Inside) LEDLED
Rear turn signal lamps 21WPY21W
Rear turn signal lamps - LED type* LEDLED
Back-up lamps 16WW16W
High mounted stop lamp* LEDLED
License plate lamps LEDLED
Interior Map lamps
LED typeLEDLED
Room lamps LEDLED
Vanity lamps LEDLED
Glove box lamp 5WFESTON BULB
Liftgate lamp LEDLED
* If equipped

48
Specifications & Consumer information

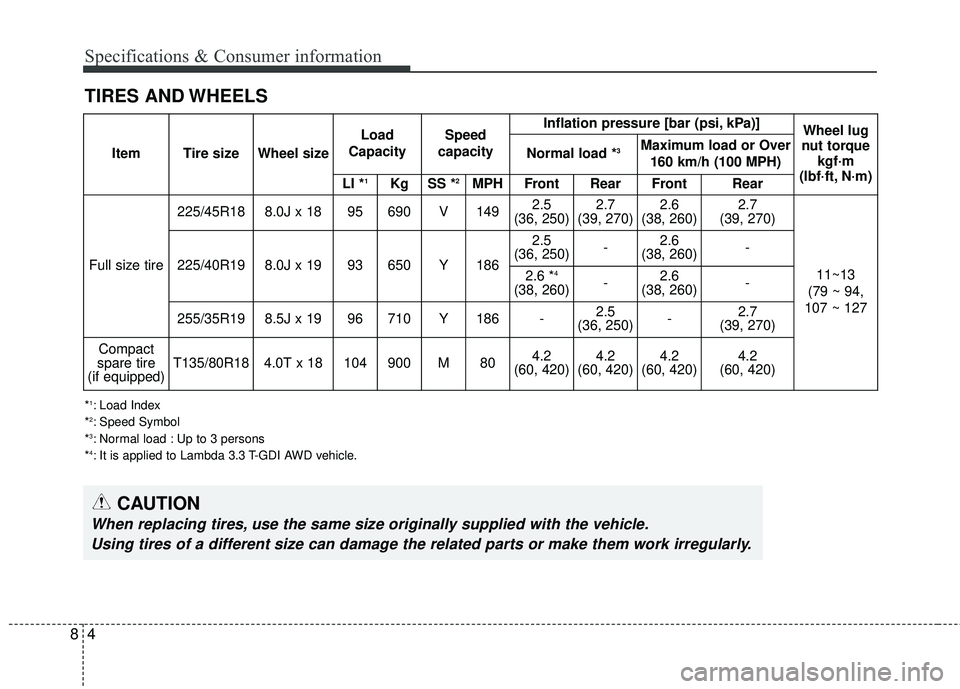

TIRES AND WHEELS
*1: Load Index
*2: Speed Symbol
*3: Normal load : Up to 3 persons
*4: It is applied to Lambda 3.3 T-GDI AWD vehicle.
CAUTION
When replacing tires, use the same size originally supplied with the vehicle. Using tires of a different size can damage the related parts or make them work irregularly.
ItemTire sizeWheel size
Load
CapacitySpeed
capacityInflation pressure [bar (psi, kPa)]Wheel lug
nut torque kgf·m
(lbf·ft, N·m)
Normal load *3Maximum load or Over
160 km/h (100 MPH)
LI *1KgSS *2MPHFrontRearFrontRear
Full size tire
225/45R188.0J x 1895690V1492.5
(36, 250)2.7
(39, 270)2.6
(38, 260)2.7
(39, 270)
11~13
(79 ~ 94,
107 ~ 127225/40R198.0J x 1993650Y186
2.5
(36, 250)-2.6
(38, 260)-
2.6 *4
(38, 260)-2.6
(38, 260)-
255/35R198.5J x 1996710Y186-2.5
(36, 250)-2.7
(39, 270)
Compact
spare tire
(if equipped)T135/80R184.0T x 18104900M804.2
(60, 420)4.2
(60, 420)4.2
(60, 420)4.2
(60, 420)

85
Specifications & Consumer information

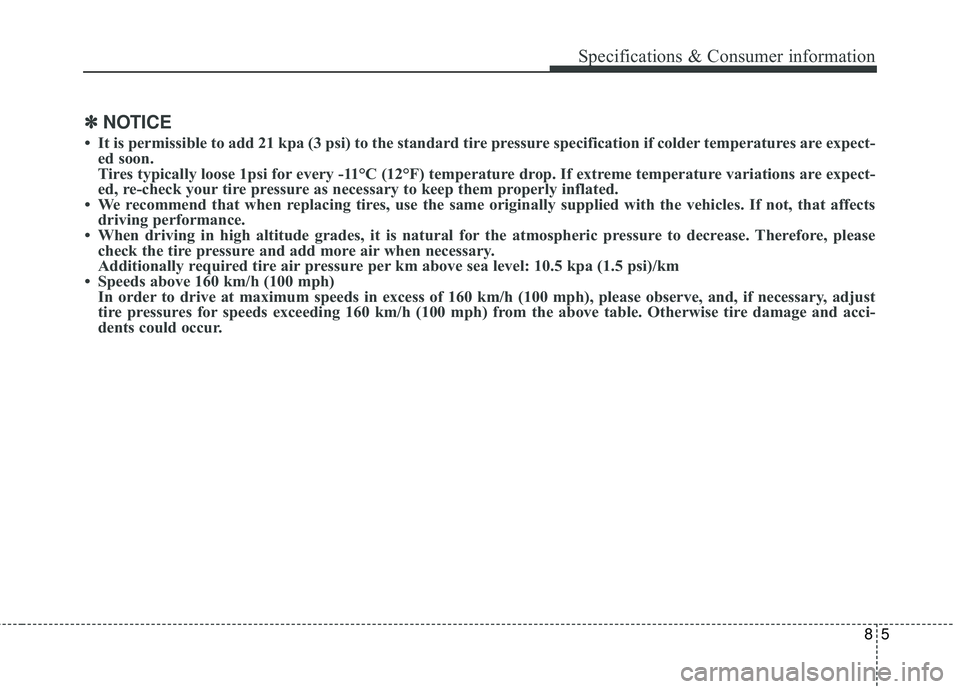

✽ ✽NOTICE
• It is permissible to add 21 kpa (3 psi) to the standard tire pressure specification if colder temperatures are expect-
ed soon.
Tires typically loose 1psi for every -11°C (12°F) temperature drop. If extreme temperature variations are expect-
ed, re-check your tire pressure as necessary to keep them properly inflated.
• We recommend that when replacing tires, use the same originally supplied with the vehicles. If not, that aff\
ects driving performance.
• When driving in high altitude grades, it is natural for the atmospheric pressure to decrease. Therefore, please check the tire pressure and add more air when necessary.
Additionally required tire air pressure per km above sea level: 10.5 kpa (1.5 psi)/km
• Speeds above 160 km/h (100 mph) In order to drive at maximum speeds in excess of 160 km/h (100 mph), please obs\
erve, and, if necessary, adjust
tire pressures for speeds exceeding 160 km/h (100 mph) from the above table. Otherwise tire damage and acci-
dents could occur.

68
Specifications & Consumer information

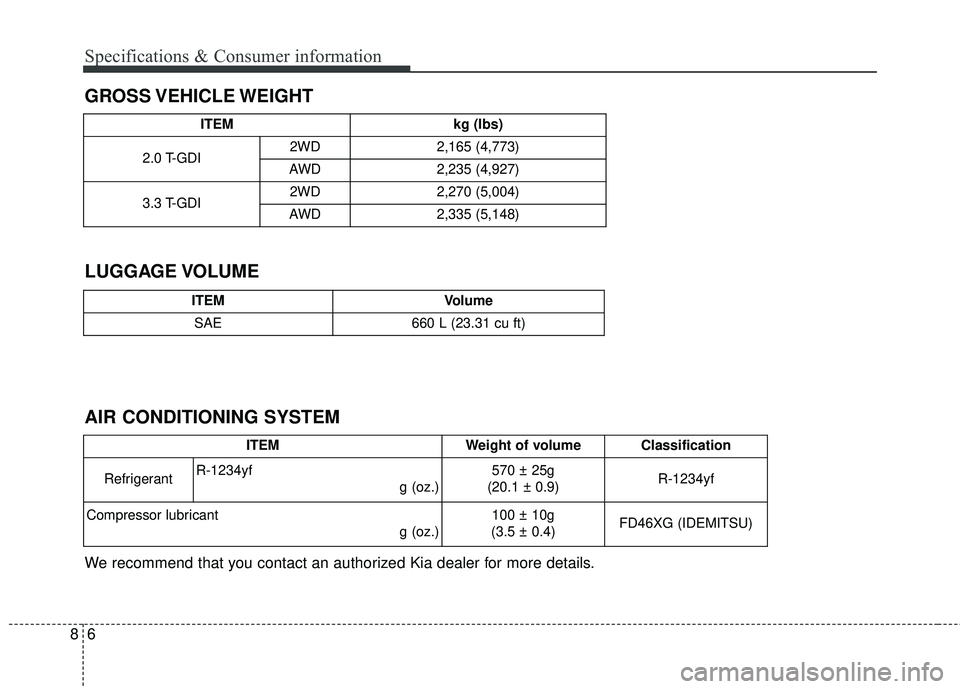

GROSS VEHICLE WEIGHT
AIR CONDITIONING SYSTEM LUGGAGE VOLUME
We recommend that you contact an authorized Kia dealer for more details.
ITEMVolume
SAE660 L (23.31 cu ft)
ITEMkg (lbs)
2.0 T-GDI2WD2,165 (4,773)
AWD2,235 (4,927)
3.3 T-GDI2WD2,270 (5,004)
AWD2,335 (5,148)
ITEMWeight of volumeClassification
RefrigerantR-1234yfg (oz.)570 ± 25g
(20.1 ± 0.9)R-1234yf
Compressor lubricant g (oz.) 100 ± 10g
(3.5 ± 0.4)FD46XG (IDEMITSU)

87
Specifications & Consumer information

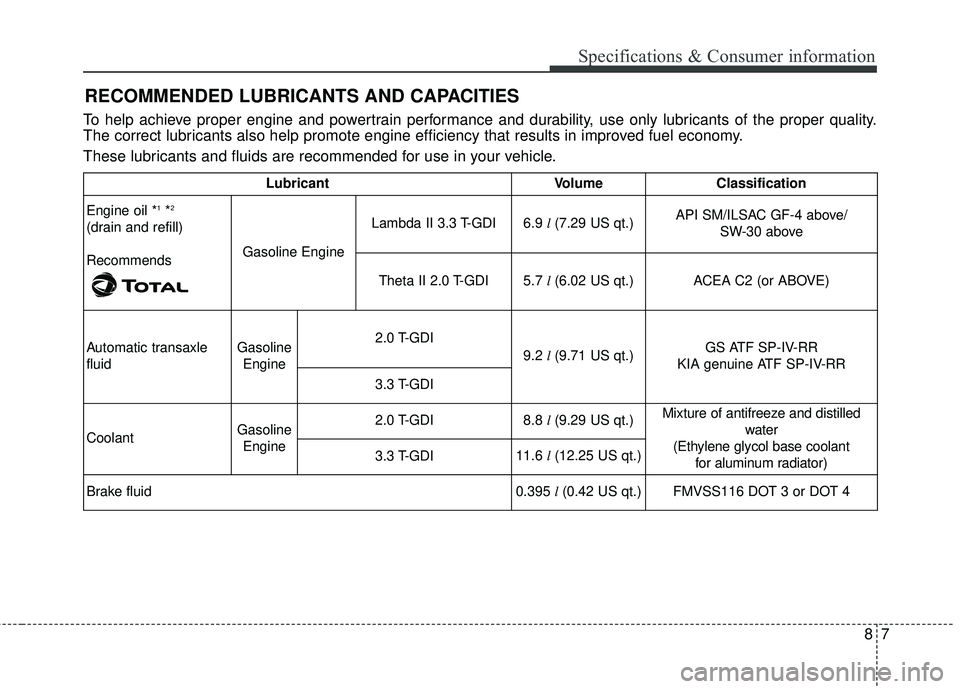

RECOMMENDED LUBRICANTS AND CAPACITIES
To help achieve proper engine and powertrain performance and durability, use only lubricants of the proper quality.
The correct lubricants also help promote engine efficiency that results in improved fuel economy.
These lubricants and fluids are recommended for use in your vehicle.
Lubricant VolumeClassification
Engine oil *1*2
(drain and refill)
Recommends
Gasoline Engine
Lambda II 3.3 T-GDI6.9 l (7.29 US qt.)API SM/ILSAC GF-4 above/
SW-30 above
Theta II 2.0 T-GDI5.7 l (6.02 US qt.)ACEA C2 (or ABOVE)
Automatic transaxle
fluidGasoline
Engine 2.0 T-GDI
9.2 l (9.71 US qt.)GS ATF SP-IV-RR
KIA genuine ATF SP-IV-RR
3.3 T-GDI
CoolantGasoline Engine2.0 T-GDI8.8 l (9.29 US qt.)Mixture of antifreeze and distilled
water
(Ethylene glycol base coolant for aluminum radiator)
3.3 T-GDI11.6 l (12.25 US qt.)
Brake fluid0.395 l (0.42 US qt.)FMVSS116 DOT 3 or DOT 4

88
Specifications & Consumer information

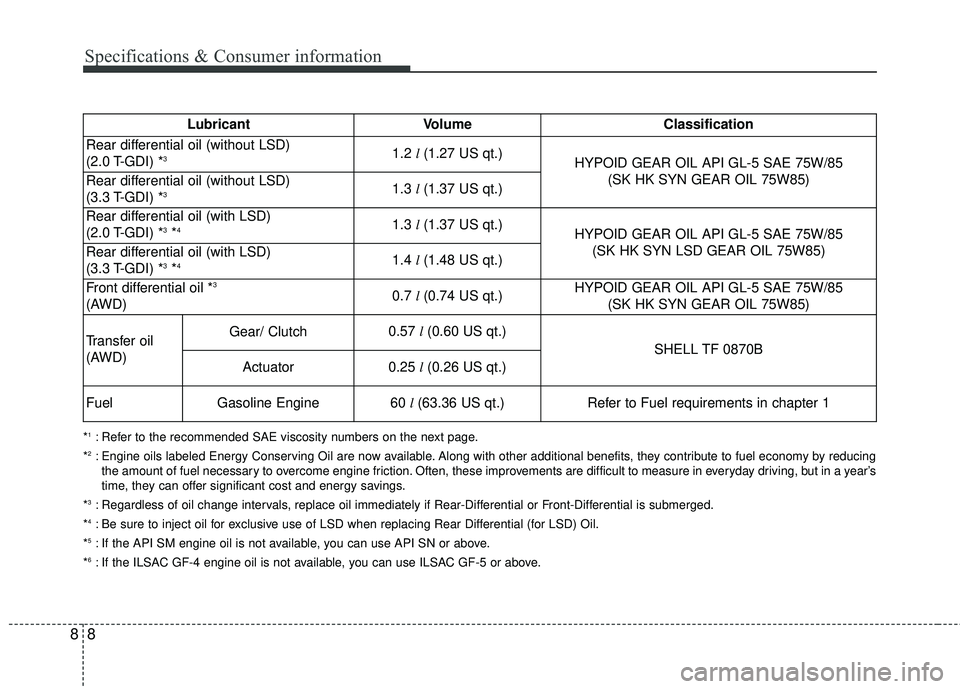

Lubricant VolumeClassification
Rear differential oil (without LSD)
(2.0 T-GDI) *31.2 l (1.27 US qt.)HYPOID GEAR OIL API GL-5 SAE 75W/85
(SK HK SYN GEAR OIL 75W85)
Rear differential oil (without LSD)
(3.3 T-GDI) *31.3 l (1.37 US qt.)
Rear differential oil (with LSD)
(2.0 T-GDI) *3*41.3 l (1.37 US qt.)HYPOID GEAR OIL API GL-5 SAE 75W/85
(SK HK SYN LSD GEAR OIL 75W85)
Rear differential oil (with LSD)
(3.3 T-GDI) *3*41.4 l (1.48 US qt.)
Front differential oil *3
(AWD)0.7 l (0.74 US qt.)HYPOID GEAR OIL API GL-5 SAE 75W/85
(SK HK SYN GEAR OIL 75W85)
Transfer oil
(AWD)Gear/ Clutch0.57 l (0.60 US qt.)
SHELL TF 0870B
Actuator0.25 l (0.26 US qt.)
FuelGasoline Engine60 l (63.36 US qt.)Refer to Fuel requirements in chapter 1
*1: Refer to the recommended SAE viscosity numbers on the next page.
*2: Engine oils labeled Energy Conserving Oil are now available. Along with other additional benefits, they contribute to fuel economy by reducing the amount of fuel necessary to overcome engine friction. Often, these improvements are difficult to measure in everyday driving, but in a year’s
time, they can offer significant cost and energy savings.
*
3: Regardless of oil change intervals, replace oil immediately if Rear-Differential or Front-Differential is submerged.
*4: Be sure to inject oil for exclusive use of LSD when replacing Rear Differential (for LSD) Oil.
*5: If the API SM engine oil is not available, you can use API SN or above.
*6: If the ILSAC GF-4 engine oil is not available, you can use ILSAC GF-5 or above.

89
Specifications & Consumer information

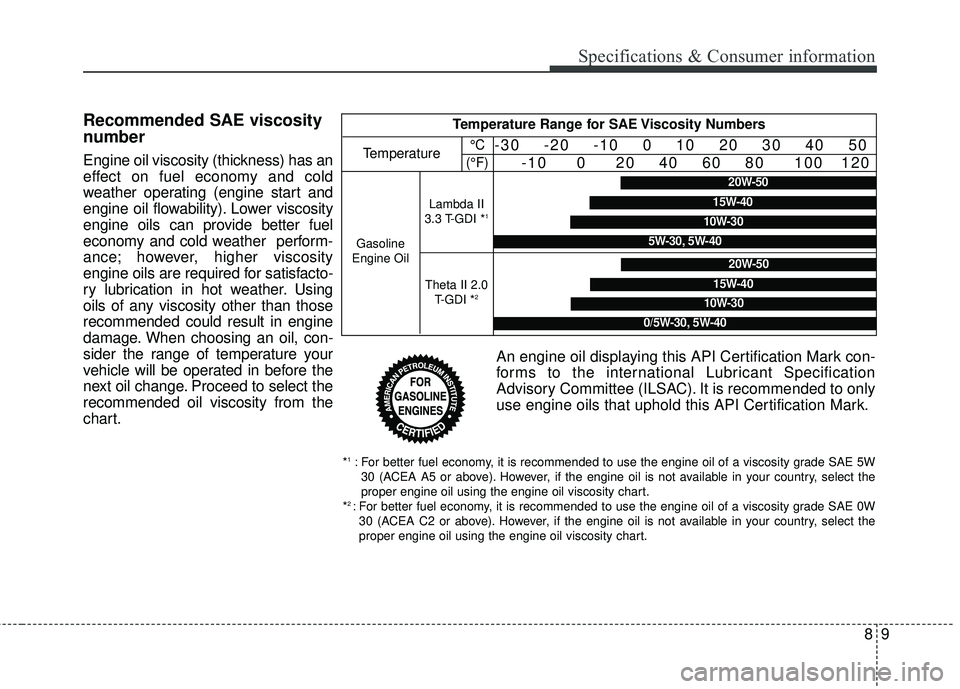

Recommended SAE viscosity
number
Engine oil viscosity (thickness) has an
effect on fuel economy and cold
weather operating (engine start and
engine oil flowability). Lower viscosity
engine oils can provide better fuel
economy and cold weather perform-
ance; however, higher viscosity
engine oils are required for satisfacto-
ry lubrication in hot weather. Using
oils of any viscosity other than those
recommended could result in engine
damage. When choosing an oil, con-
sider the range of temperature your
vehicle will be operated in before the
next oil change. Proceed to select the
recommended oil viscosity from the
chart.
An engine oil displaying this API Certification Mark con-
forms to the international Lubricant Specification
Advisory Committee (ILSAC). It is recommended to only
use engine oils that uphold this API Certification Mark.
Temperature Range for SAE Viscosity Numbers
Temperature°C
(°F)-30 -20 -10 0 10 20 30 40 50 -10 0 20 40 60 80 100 120
Gasoline
Engine Oil
20W-50
10W-30
15W-40
5W-30, 5W-40
Lambda II
3.3 T-GDI *1
Theta II 2.0 T-GDI *2
20W-50
10W-30
15W-40
0/5W-30, 5W-40
*1: For better fuel economy, it is recommended to use the engine oil of a viscosity grade SAE 5W30 (ACEA A5 or above). However, if the engine oil is not available in your country, select the
proper engine oil using the engine oil viscosity chart.
*
2 : For better fuel economy, it is recommended to use the engine oil of a viscosity grade SAE 0W 30 (ACEA C2 or above). However, if the engine oil is not available in your country, select the
proper engine oil using the engine oil viscosity chart.

10
8
Specifications & Consumer information

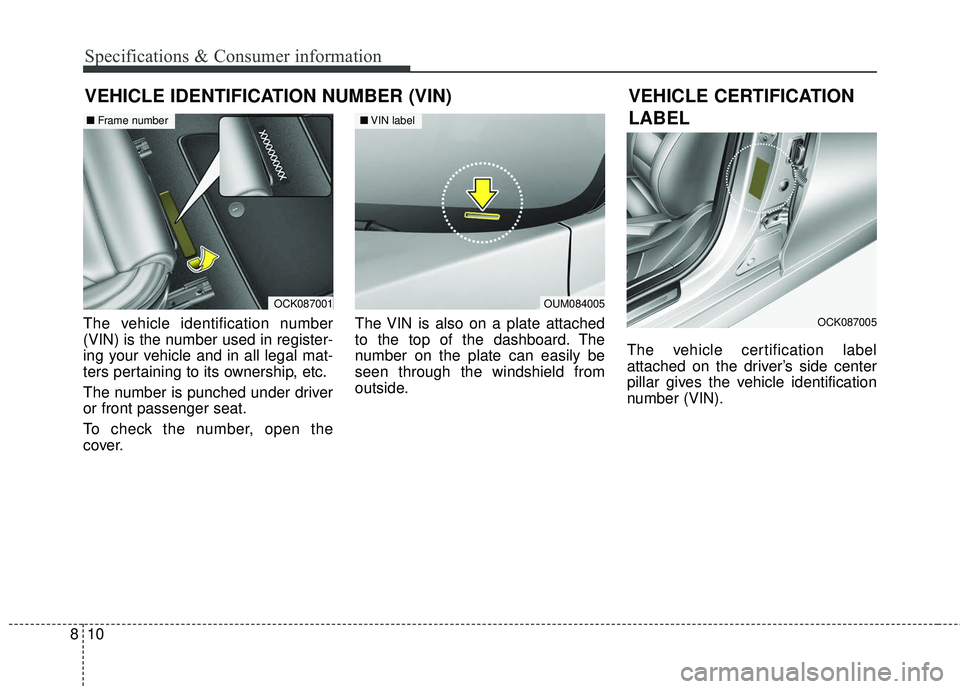

VEHICLE IDENTIFICATION NUMBER (VIN)
The vehicle identification number
(VIN) is the number used in register-
ing your vehicle and in all legal mat-
ters pertaining to its ownership, etc.
The number is punched under driver
or front passenger seat.
To check the number, open the
cover. The VIN is also on a plate attached
to the top of the dashboard. The
number on the plate can easily be
seen through the windshield from
outside.
The vehicle certification label
attached on the driver’s side center
pillar gives the vehicle identification
number (VIN).
VEHICLE CERTIFICATION
LABEL
OCK087001
■
Frame number
OUM084005
■VIN label
OCK087005
