Maintenance
100
7

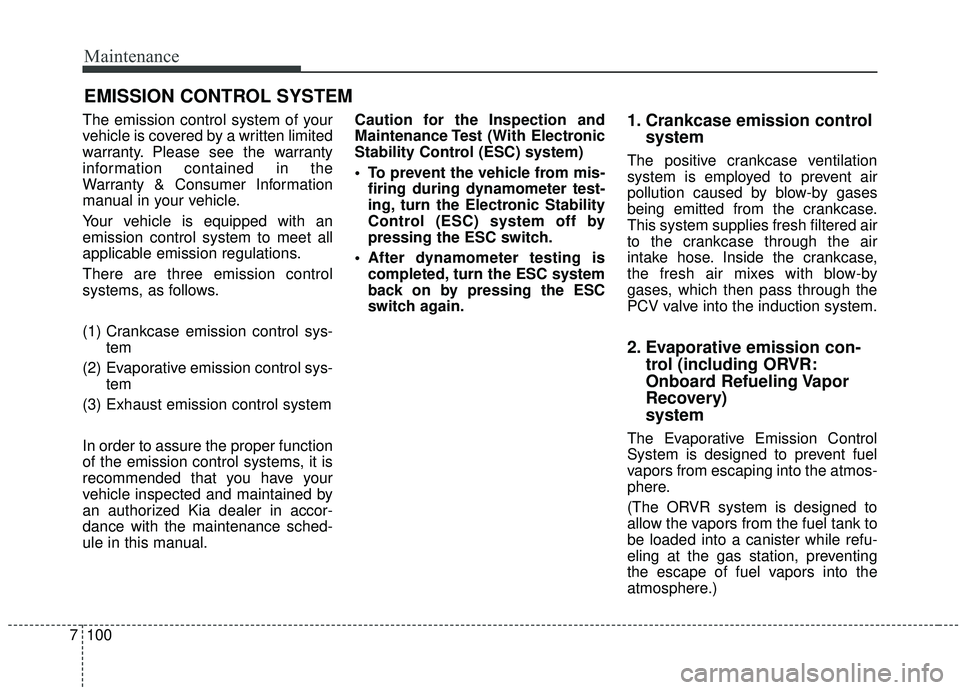

EMISSION CONTROL SYSTEM
The emission control system of your
vehicle is covered by a written limited
warranty. Please see the warranty
information contained in the
Warranty & Consumer Information
manual in your vehicle.
Your vehicle is equipped with an
emission control system to meet all
applicable emission regulations.
There are three emission control
systems, as follows.
(1) Crankcase emission control sys-
tem
(2) Evaporative emission control sys- tem
(3) Exhaust emission control system
In order to assure the proper function
of the emission control systems, it is
recommended that you have your
vehicle inspected and maintained by
an authorized Kia dealer in accor-
dance with the maintenance sched-
ule in this manual. Caution for the Inspection and
Maintenance Test (With Electronic
Stability Control (ESC) system)
To prevent the vehicle from mis-
firing during dynamometer test-
ing, turn the Electronic Stability
Control (ESC) system off by
pressing the ESC switch.
After dynamometer testing is completed, turn the ESC system
back on by pressing the ESC
switch again.1. Crankcase emission control system
The positive crankcase ventilation
system is employed to prevent air
pollution caused by blow-by gases
being emitted from the crankcase.
This system supplies fresh filtered air
to the crankcase through the air
intake hose. Inside the crankcase,
the fresh air mixes with blow-by
gases, which then pass through the
PCV valve into the induction system.
2. Evaporative emission con-trol (including ORVR:
Onboard Refueling Vapor
Recovery)
system
The Evaporative Emission Control
System is designed to prevent fuel
vapors from escaping into the atmos-
phere.
(The ORVR system is designed to
allow the vapors from the fuel tank to
be loaded into a canister while refu-
eling at the gas station, preventing
the escape of fuel vapors into the
atmosphere.)

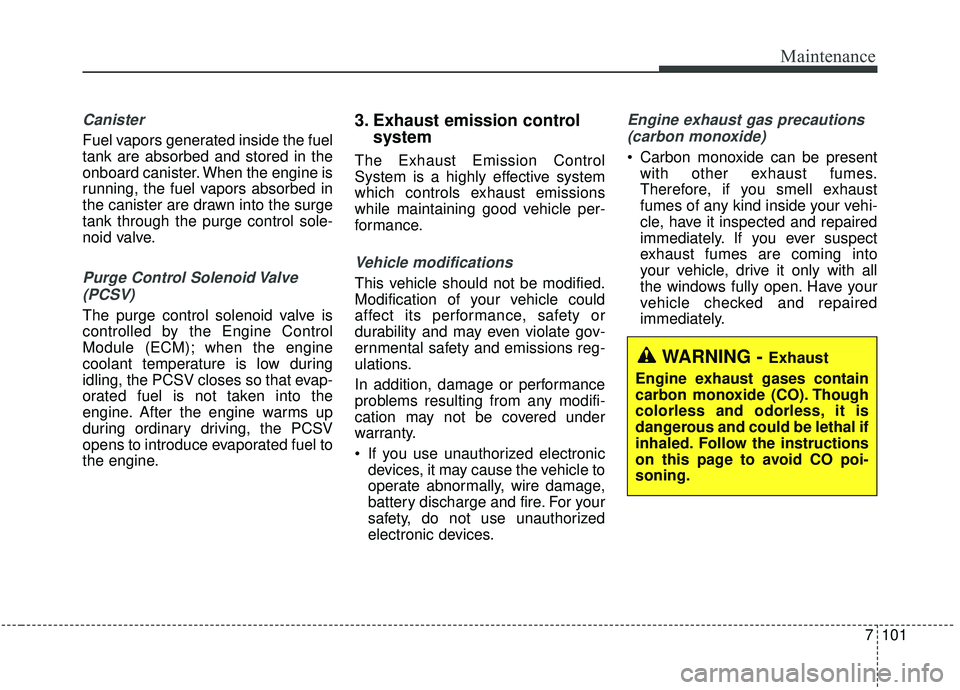

7101
Maintenance
Canister
Fuel vapors generated inside the fuel
tank are absorbed and stored in the
onboard canister. When the engine is
running, the fuel vapors absorbed in
the canister are drawn into the surge
tank through the purge control sole-
noid valve.
Purge Control Solenoid Valve(PCSV)
The purge control solenoid valve is
controlled by the Engine Control
Module (ECM); when the engine
coolant temperature is low during
idling, the PCSV closes so that evap-
orated fuel is not taken into the
engine. After the engine warms up
during ordinary driving, the PCSV
opens to introduce evaporated fuel to
the engine.
3. Exhaust emission control system
The Exhaust Emission Control
System is a highly effective system
which controls exhaust emissions
while maintaining good vehicle per-
formance.
Vehicle modifications
This vehicle should not be modified.
Modification of your vehicle could
affect its performance, safety or
durability and may even violate gov-
ernmental safety and emissions reg-
ulations.
In addition, damage or performance
problems resulting from any modifi-
cation may not be covered under
warranty.
If you use unauthorized electronic
devices, it may cause the vehicle to
operate abnormally, wire damage,
battery discharge and fire. For your
safety, do not use unauthorized
electronic devices.
Engine exhaust gas precautions
(carbon monoxide)
Carbon monoxide can be present with other exhaust fumes.
Therefore, if you smell exhaust
fumes of any kind inside your vehi-
cle, have it inspected and repaired
immediately. If you ever suspect
exhaust fumes are coming into
your vehicle, drive it only with all
the windows fully open. Have your
vehicle checked and repaired
immediately.
WARNING - Exhaust
Engine exhaust gases contain
carbon monoxide (CO). Though
colorless and odorless, it is
dangerous and could be lethal if
inhaled. Follow the instructions
on this page to avoid CO poi-
soning.

Maintenance
102
7

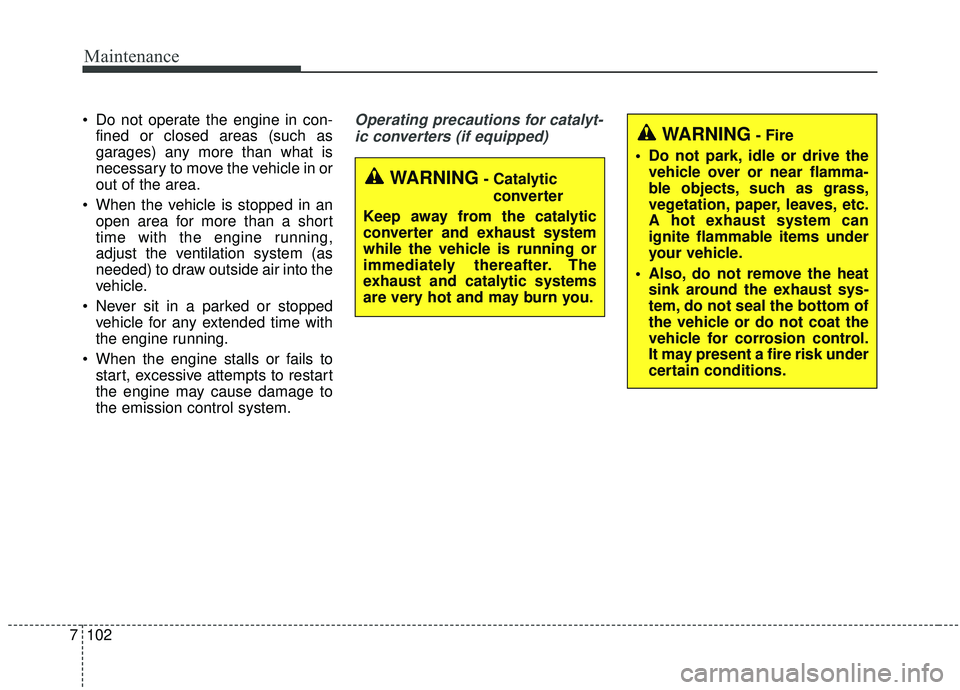

Do not operate the engine in con-
fined or closed areas (such as
garages) any more than what is
necessary to move the vehicle in or
out of the area.
When the vehicle is stopped in an open area for more than a short
time with the engine running,
adjust the ventilation system (as
needed) to draw outside air into the
vehicle.
Never sit in a parked or stopped vehicle for any extended time with
the engine running.
When the engine stalls or fails to start, excessive attempts to restart
the engine may cause damage to
the emission control system.Operating precautions for catalyt-
ic converters (if equipped)
WARNING- Catalytic converter
Keep away from the catalytic
converter and exhaust system
while the vehicle is running or
immediately thereafter. The
exhaust and catalytic systems
are very hot and may burn you.
WARNING- Fire
Do not park, idle or drive the vehicle over or near flamma-
ble objects, such as grass,
vegetation, paper, leaves, etc.
A hot exhaust system can
ignite flammable items under
your vehicle.
Also, do not remove the heat sink around the exhaust sys-
tem, do not seal the bottom of
the vehicle or do not coat the
vehicle for corrosion control.
It may present a fire risk under
certain conditions.

7103
Maintenance

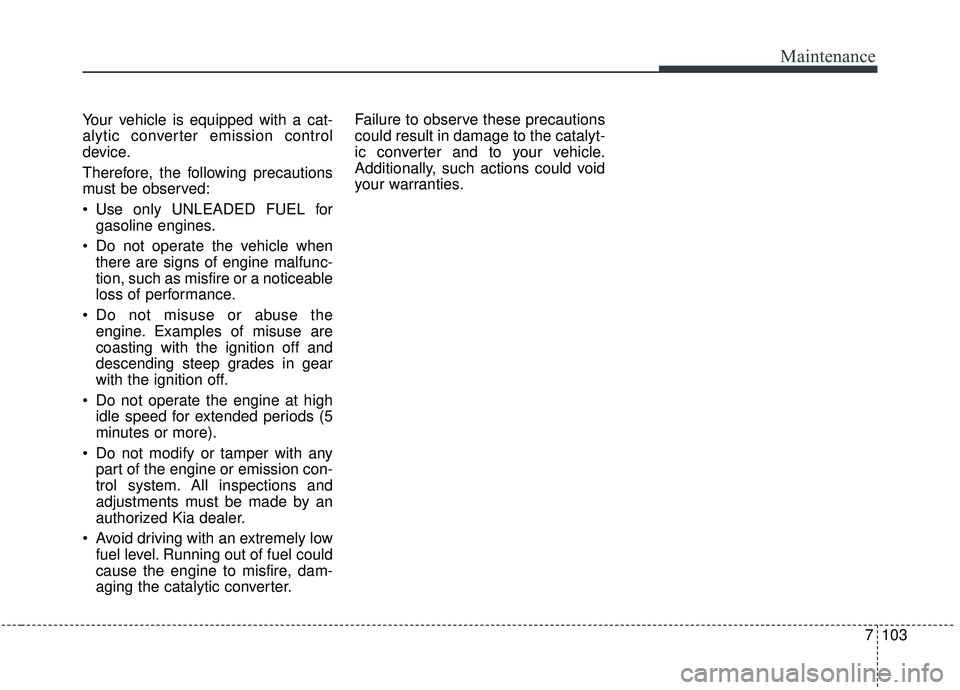

Your vehicle is equipped with a cat-
alytic converter emission control
device.
Therefore, the following precautions
must be observed:
Use only UNLEADED FUEL forgasoline engines.
Do not operate the vehicle when there are signs of engine malfunc-
tion, such as misfire or a noticeable
loss of performance.
Do not misuse or abuse the engine. Examples of misuse are
coasting with the ignition off and
descending steep grades in gear
with the ignition off.
Do not operate the engine at high idle speed for extended periods (5
minutes or more).
Do not modify or tamper with any part of the engine or emission con-
trol system. All inspections and
adjustments must be made by an
authorized Kia dealer.
Avoid driving with an extremely low fuel level. Running out of fuel could
cause the engine to misfire, dam-
aging the catalytic converter. Failure to observe these precautions
could result in damage to the catalyt-
ic converter and to your vehicle.
Additionally, such actions could void
your warranties.

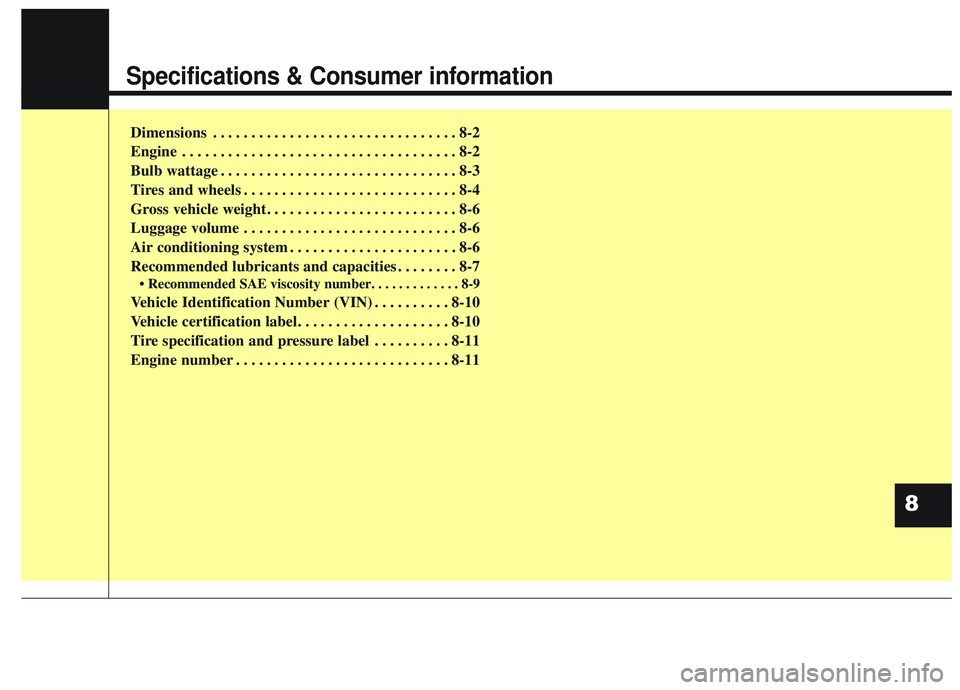

Specifications & Consumer information
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-2
Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
8-2
Bulb wattage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-3
Tires and wheels . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-4
Gross vehicle weight. . . . . . . . . . . . . . . . . . . . . . . . . 8-6
Luggage volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-6
Air conditioning system . . . . . . . . . . . . . . . . . . . . . . 8-6
Recommended lubricants and capacities . . . . . . . . 8-7
• Recommended SAE viscosity number. . . . . . . . . . . . . 8-9
Vehicle Identification Number (VIN) . . . . . . . . . . 8-10
Vehicle certification label. . . . . . . . . . . . . . . . . . . . 8-10
Tire specification and pressure label . . . . . . . . . . 8-11
Engine number . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-11
8

28

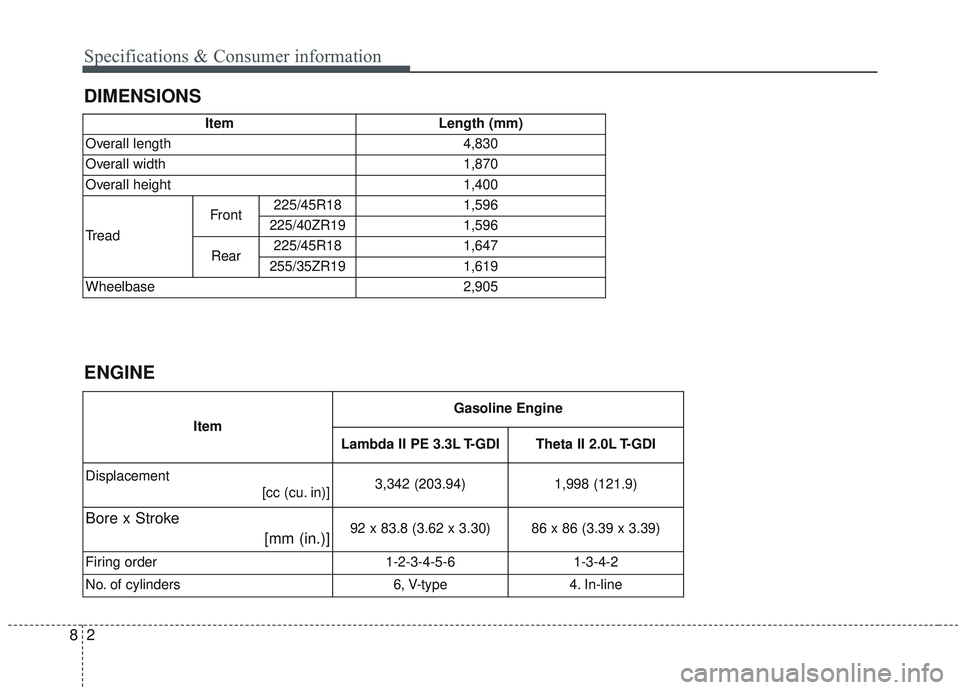

DIMENSIONS Specifications & Consumer information
ENGINE
ItemLength (mm)
Overall length4,830
Overall width1,870
Overall height1,400
Tread
Front225/45R181,596
225/40ZR191,596
Rear225/45R181,647
255/35ZR191,619
Wheelbase2,905
ItemGasoline Engine
Lambda II PE 3.3L T-GDI Theta II 2.0L T-GDI
Displacement [cc (cu. in)]3,342 (203.94) 1,998 (121.9)
Bore x Stroke
[mm (in.)]92 x 83.8 (3.62 x 3.30) 86 x 86 (3.39 x 3.39)
Firing order 1-2-3-4-5-6 1-3-4-2
No. of cylinders 6, V-type4. In-line

83

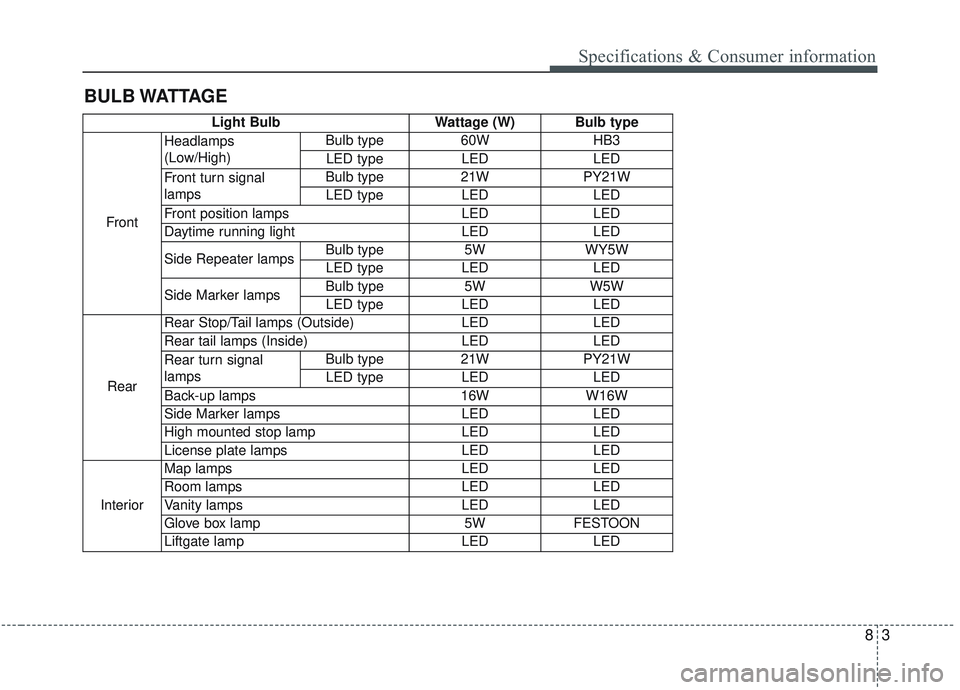

BULB WATTAGESpecifications & Consumer information
Light Bulb
Wattage (W) Bulb type
Front Headlamps
(Low/High)
Bulb type
60WHB3
LED type LEDLED
Front turn signal
lamps Bulb type
21WPY21W
LED type LEDLED
Front position lamps LEDLED
Daytime running light LEDLED
Side Repeater lamps Bulb type
5WWY5W
LED type LEDLED
Side Marker lamps Bulb type
5WW5W
LED type LEDLED
Rear Rear Stop/Tail lamps (Outside)
LEDLED
Rear tail lamps (Inside) LEDLED
Rear turn signal
lamps Bulb type
21WPY21W
LED type LEDLED
Back-up lamps 16WW16W
Side Marker lamps LEDLED
High mounted stop lamp LEDLED
License plate lamps LEDLED
Interior Map lamps
LEDLED
Room lamps LEDLED
Vanity lamps LEDLED
Glove box lamp 5WFESTOON
Liftgate lamp LEDLED

48
Specifications & Consumer information

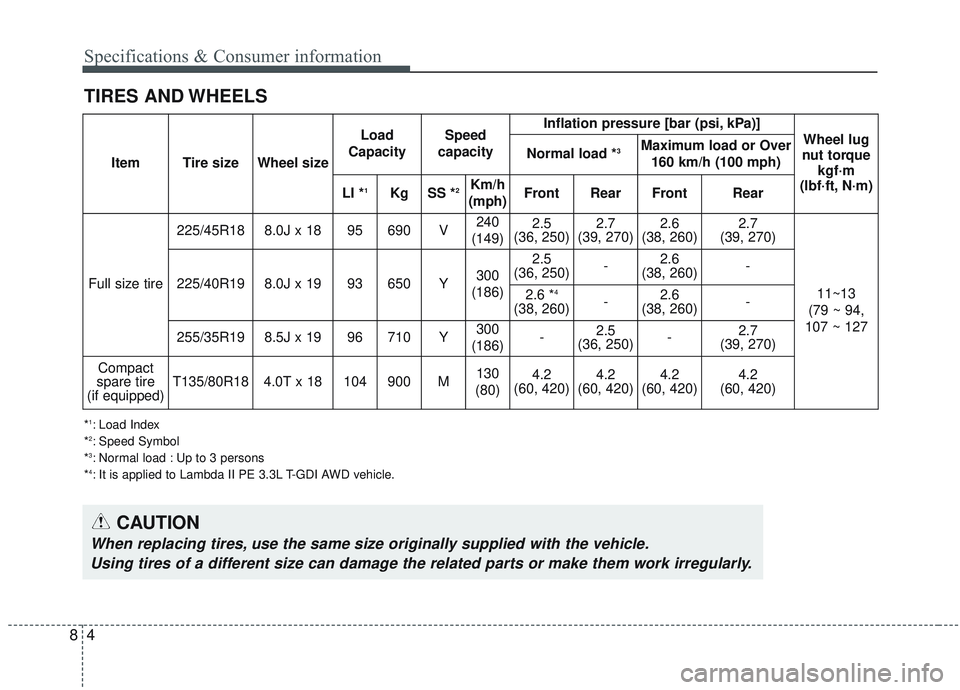

TIRES AND WHEELS
*1: Load Index
*2: Speed Symbol
*3: Normal load : Up to 3 persons
*4: It is applied to Lambda II PE 3.3L T-GDI AWD vehicle.
CAUTION
When replacing tires, use the same size originally supplied with the vehicle. Using tires of a different size can damage the related parts or make them work irregularly.
ItemTire sizeWheel size
Load
CapacitySpeed
capacityInflation pressure [bar (psi, kPa)]
Wheel lug
nut torque kgf·m
(lbf·ft, N·m)Normal load *3Maximum load or Over
160 km/h (100 mph)
LI *1KgSS *2Km/h
(mph)FrontRearFrontRear
Full size tire
225/45R188.0J x 1895690V240
(149)2.5
(36, 250)2.7
(39, 270)2.6
(38, 260)2.7
(39, 270)
11~13
(79 ~ 94,
107 ~ 127225/40R198.0J x 1993650Y300
(186)
2.5
(36, 250)-2.6
(38, 260)-
2.6 *4
(38, 260)-2.6
(38, 260)-
255/35R198.5J x 1996710Y300
(186)-2.5
(36, 250)-2.7
(39, 270)
Compact
spare tire
(if equipped)T135/80R184.0T x 18104900M130
(80)4.2
(60, 420)4.2
(60, 420)4.2
(60, 420)4.2
(60, 420)

85
Specifications & Consumer information
✽ ✽NOTICE
• It is permissible to add 21 kPa (3 psi) to the standard tire pressure specification if colder temperatures are expect-
ed soon.
Tires typically loose 7 kPa (1 psi) for every -11°C (12°F) temperature drop. If extreme temperature variations are
expected, re-check your tire pressure as necessary to keep them properly inflated.
• We recommend that when replacing tires, use the same originally supplied with the vehicles. If not, that aff\
ects driving performance.
• When driving in high altitude grades, it is natural for the atmospheric pressure to decrease. Therefore, please check the tire pressure and add more air when necessary.
Additionally required tire air pressure per km above sea level: 10.5 kPa (1.5 psi)/km
• Speeds above 160 km/h (100 mph) In order to drive at maximum speeds in excess of 160 km/h (100 mph), please obs\
erve, and, if necessary, adjust
tire pressures for speeds exceeding 160 km/h (100 mph) from the above table. Otherwise tire damage and acci-
dents could occur.

68
Specifications & Consumer information

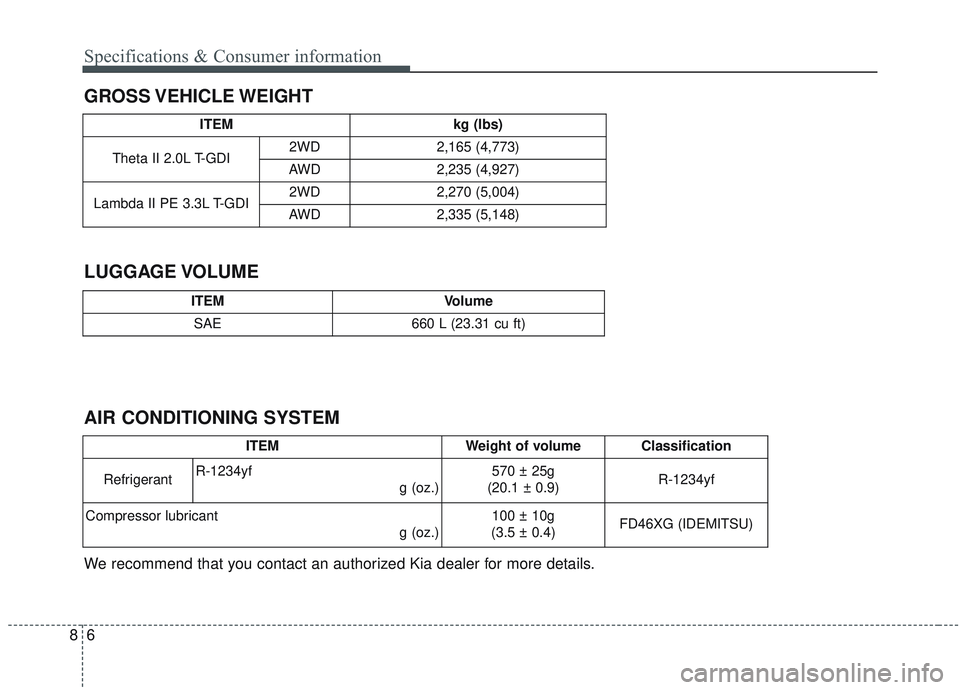

GROSS VEHICLE WEIGHT
AIR CONDITIONING SYSTEM LUGGAGE VOLUME
We recommend that you contact an authorized Kia dealer for more details.
ITEMVolume
SAE660 L (23.31 cu ft)
ITEMkg (lbs)
Theta II 2.0L T-GDI2WD2,165 (4,773)
AWD2,235 (4,927)
Lambda II PE 3.3L T-GDI2WD2,270 (5,004)
AWD2,335 (5,148)
ITEMWeight of volumeClassification
RefrigerantR-1234yfg (oz.)570 ± 25g
(20.1 ± 0.9)R-1234yf
Compressor lubricant g (oz.) 100 ± 10g
(3.5 ± 0.4)FD46XG (IDEMITSU)
