KIA STINGER 2019 Performance Features

GTS PERFORMANCE FEATURES

STINGER GTS
This limited edition vehicle raises the bar even higher for driving
enthusiasts. We’ve taken the world renowned performance of
the Stinger and added more aesthetics and dynamic driving
features. This guide provides an overview of some of the
specific features available on the Stinger GTS. All other features
and functions relating the operation of your Stinger GTS can be
found in the Owner’s Manual and Features & Functions Guide.

THIS VEHICLE IS DISTINGUISHED BY UNIQUE FEATURES FOUND ONLY ON THE LIMITED EDITION STINGER GTS.
POWERTRAIN – ALL WHEEL DRIVE*
4 The optional Dynamic - All Wheel Drive powertrain (D-AWD) has been enhanced with the addition of new control logic, and a rear axle mechanical limited slip differential which are designed to help enhance traction and distribute power more evenly in a variety of conditions.
4 The Stinger’s Drive Mode feature integrates with D-AWD and provides three selectable modes:
• COMFORT MODE sends up to 60 percent of torque to the wheels to help enhance the feeling of stability
• SPORT MODE sends up to 80 percent of torque to the wheels for more spirited driving
• DRIFT MODE sends up to 100 percent of torque to the rear wheels and holds the transmission from upshifting when in manual shift mode
EXTERIOR
4 Exclusive Federation Orange paint
4 Genuine carbon fiber accents that outline the signature tiger nose grille, side mirror caps and side vents
4 GTS rear emblem
4 Centralized Stinger lettering replaces the Kia logo on the trunk lid for a more unique appearance
INTERIOR
4 Alcantara® †2 steering wheel and center console
4 Headliner in premium suede-like Chamude®†3
*If equipped.† Legal disclaimers on back inside cover.

DRIVE MODE INTEGRATED CONTROL SYSTEM
SMART, COMFORT, SPORT/CUSTOM* and ECO drive modes may be changed according to the driver’s preference or road conditions. To change the drive mode, rotate the DRIVE MODE knob.
SMART Mode automatically adjusts the driving mode in accordance with the driver’s driving habits.
COMFORT Mode is for those seeking smooth driving and a comfortable ride.
SPORT Mode provides a sporty but firm ride.
CUSTOM Mode allows the driver to mix aspects of other driving modes to make a customized mode.
ECO Mode is designed to help fuel efficiency under certain conditions
Drive Modes
DRIVE MODESMARTEconomicalAggressive
DRIVE MODECOMFORTEconomicalAggressive
DRIVE MODEECOEconomicalAggressive
DRIVE MODESPORTEconomicalAggressive
DRIVE MODECUSTOMEconomicalAggressive
*If equipped.

LAUNCH CONTROL
With Drive Mode in Sport Mode
To turn on, press and hold the ESC OFF button for more than three seconds to disable both traction and stability controls.
Launch Control Operation†1
Launch Control is available when Drive Mode is in Sport Mode. Launch Control is designed to help maximize acceleration from a standing start.
HOL
AUTO
D
DRIVE MODE
OF F
OFF
P
To activate, with the left foot press brake pedal firmly while gear shift is in D (Drive) and then press the accelerator pedal fully to the floor. The LCD will display a ready status.
REMINDERS:
4 When launching, stop vehicle and keep steering wheel straight
4 The brake pedal, electric parking brake and Auto Hold must be released for smooth launching
Launch ControlActive
Average16.8MPG
Launch ControlReady
Average16.8MPG
† Legal disclaimers on back inside cover.

DYNAMIC - AWD DRIFT MODE*†1
D - AWD is designed to vary the amount of power to each wheel in certain situations, either physically with differentials or transfer cases, or electronically with brake vectoring (where the brakes are used to slow down a specific wheel due to traction loss). When Drive Mode is placed in Drift Mode, up to 100% of torque will be transferred to the rear wheels.
Activating D-AWD Drift Mode*
HOL
AUTO
D
DRIVE MODE
OF F
OFF
P
With Drive Mode in Sport Mode
To turn on, press and hold the ESC OFF button for more than three seconds to disable both traction and stability controls.
You are now in Drift Mode.
*If equipped.
REMINDERS:
4 There are no indicators to show Drift Mode is active.
† Legal disclaimers on back inside cover.

COMBINATION OIL TEMP, TORQUE, & TURBO
• Shows the engine oil temperature
• Displays calculated instantaneous engine torque
• Shows turbo boost pressure
LAP TIMER
1. Press OK A on the steering wheel to start the timer
2. Press OK again at the end of each lap
3. Press and hold OK to stop the timer
4. Afterwards, press and hold OK to reset the timer
G-FORCE
G-Force is a measurement of acceleration: longitudinal (forward and rearward) or lateral (left and right). This gauge displays a graphic with G-Force indicated as a dot. G-Force numerical values are displayed outside of the graphic.
When the vehicle quickly accelerates or turns, the dot will move indicating the direction of the G-Force along with its instantaneous values.
SPORT MODE GAUGES
A

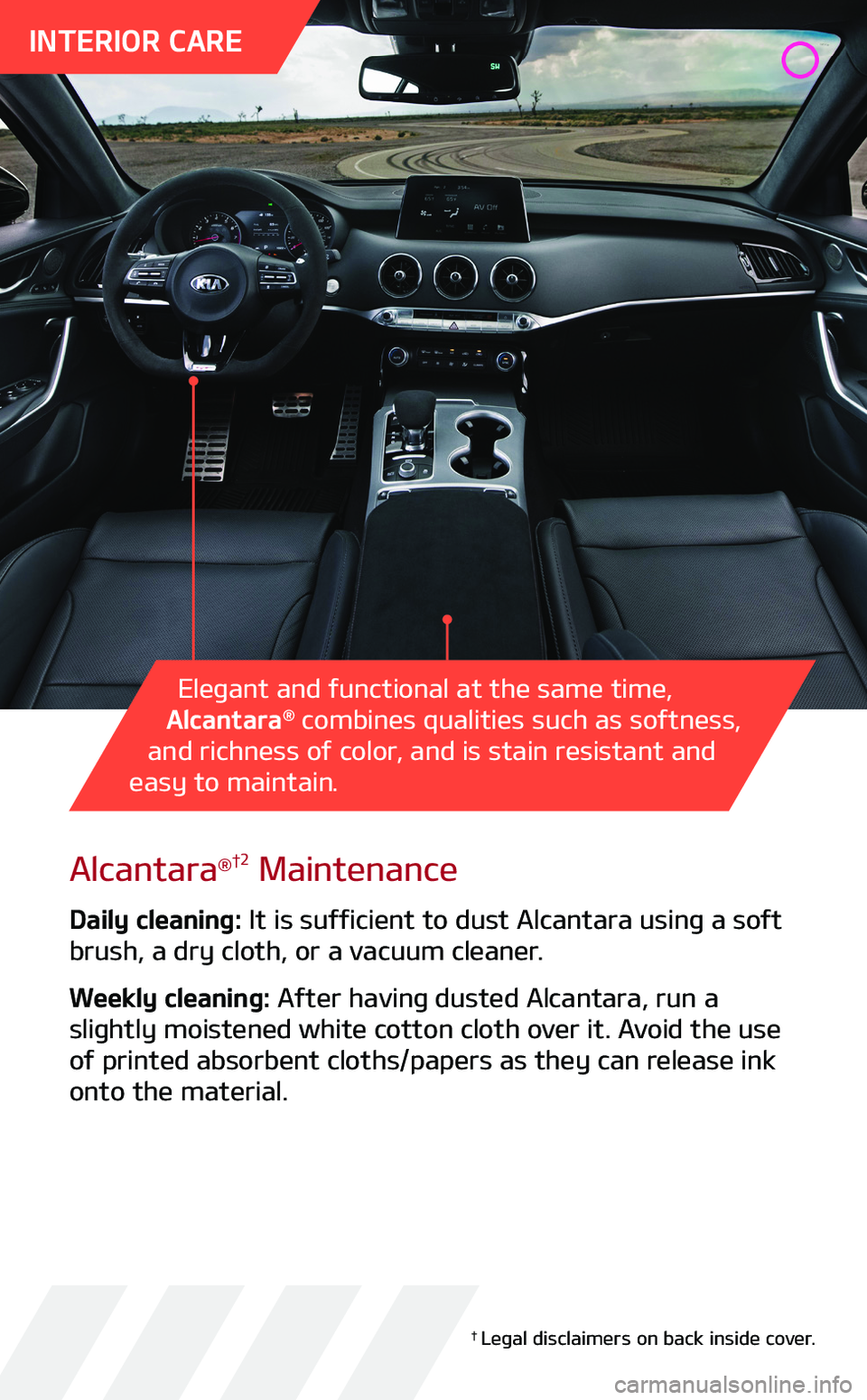

Alcantara®†2 Maintenance
Daily cleaning: It is sufficient to dust Alcantara using a soft brush, a dry cloth, or a vacuum cleaner.
Weekly cleaning: After having dusted Alcantara, run a slightly moistened white cotton cloth over it. Avoid the use of printed absorbent cloths/papers as they can release ink onto the material.
INTERIOR CARE
Elegant and functional at the same time, Alcantara® combines qualities such as softness, and richness of color, and is stain resistant and easy to maintain.
† Legal disclaimers on back inside cover.
