KIA STINGER 2023 Features and Functions Guide
Manufacturer: KIA, Model Year: 2023, Model line: STINGER, Model: KIA STINGER 2023Pages: 72, PDF Size: 5.51 MB
Page 51 of 72
CENTER PANEL
ALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS . *IF EQUIPPED49
CENTER PANEL
P
R
N
D
AUTO
HOLD
DRIVE MODE
OFFOFF
P
See section 5 in the Owner’s Manual for more information .
The Electric Parking Brake (EPB) system utilizes an electric motor to engage the parking brake .
Applying the Parking Brake
Depress the brake pedal and pull up the EPB switch A . Ensure that the indicator light is illuminated on the instrument cluster .
Releasing the Parking Brake
The EPB will automatically release when the brake pedal is engaged and shifter is shifted out of P (Park) to R (Reverse) or shifted out of N (Neutral) to Reverse or D (Drive) .
To release EPB manually, depress the brake pedal, then press the EPB switch A , with the ignition switch in the ON position . Ensure that the indicator light is OFF .
Electric Parking Brake (EPB)*
Refer to the inside front cover for more information on QR codes .www .youtube .com/KiaFeatureVideos
Electric Parking Brake / Auto Hold Video
QR CODE
•
Pull up and hold EPB switch again to increase brake pressure if parked on a decline or incline
•
When leaving your keys with parking lot at tendants or valet, make sure to inform them how to operate the EPB
•
If parked on a steep incline, pull up the EPB switch for more than 3 seconds for a firmer EPB application
QUICK TIPSREMINDERS:
•
The EPB malfunction indicator will illuminate for approximately 3 seconds as a bulb check when the ignition switch is turned ON
•
If the warning light does not illuminate temporarily or remains continuously lit, take your vehicle to an authorized Kia dealer and have the system checked
•
The EPB should not be operated while the vehicle is moving
•
A click or electric brake motor sound may be heard while operating or releasing the EPB . These conditions are normal and indicate that the EPB is functioning properly
•
EPB will not release unless the hood, liftgate and all doors are closed and seat belts are fastened
A
Page 52 of 72
P
R
N
D
AUTO
HOLD
DRIVE MODE
OFFOFF
P
P
Front Seats
Seat Warmers:
•Press button A up once for high setting (3 LEDs lit)
•Press button twice for medium setting (2 LEDs lit)
•Press a third time for low setting (1 LED lit) and again to turn OFF
Ventilated Seats:
•Press button B down once for high setting (3 LEDs lit)
•Press twice for medium setting (2 LEDs lit)
•Press a third time for low setting (1 LED lit) and again to turn OFF

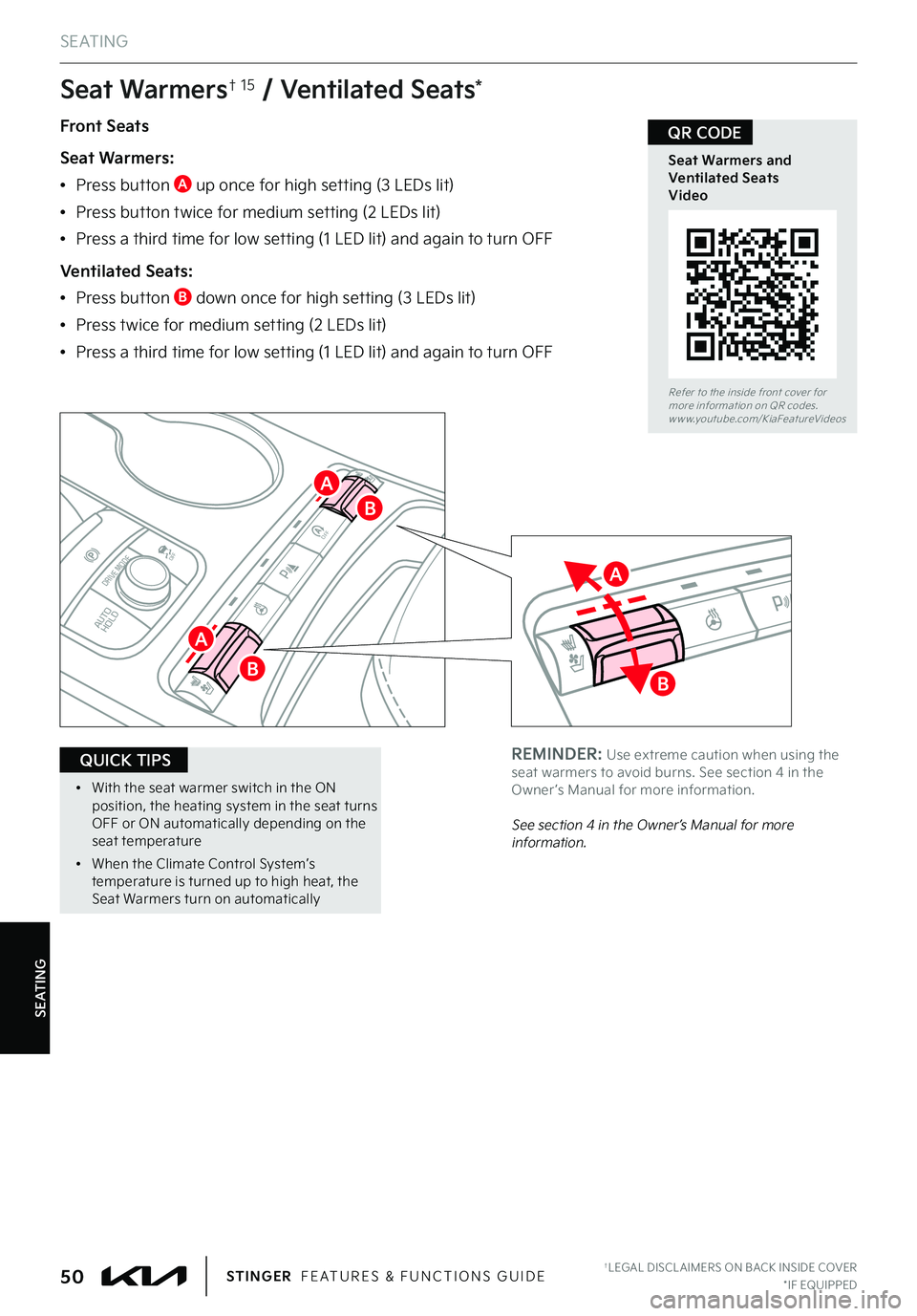

Seat Warmers† 15 / Ventilated Seats*
See section 4 in the Owner’s Manual for more information .
Refer to the inside front cover for more information on QR codes .www .youtube .com/KiaFeatureVideos
Seat Warmers and Ventilated Seats Video
QR CODE
†LEGAL DISCL AIMERS ON BACK INSIDE COVER*IF EQUIPPED50STINGER FEATURES & FUNCTIONS GUIDE
•
With the seat warmer switch in the ON position, the heating system in the seat turns OFF or ON automatically depending on the seat temperature
•
When the Climate Control System’s temperature is turned up to high heat, the Seat Warmers turn on automatically
QUICK TIPSREMINDER: Use extreme caution when using the seat warmers to avoid burns . See section 4 in the Owner ’s Manual for more information .
A
A
A
B
B
B
S E AT I N G
SEATING
Page 53 of 72
S E AT I N G
ALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS . †LEGAL DISCL AIMERS ON BACK INSIDE COVER*IF EQUIPPED51
SEATING
SeatbackLumbar / Power Seat-back Bolster Control*Seat Cushion Extension*SeatSeat Cushion

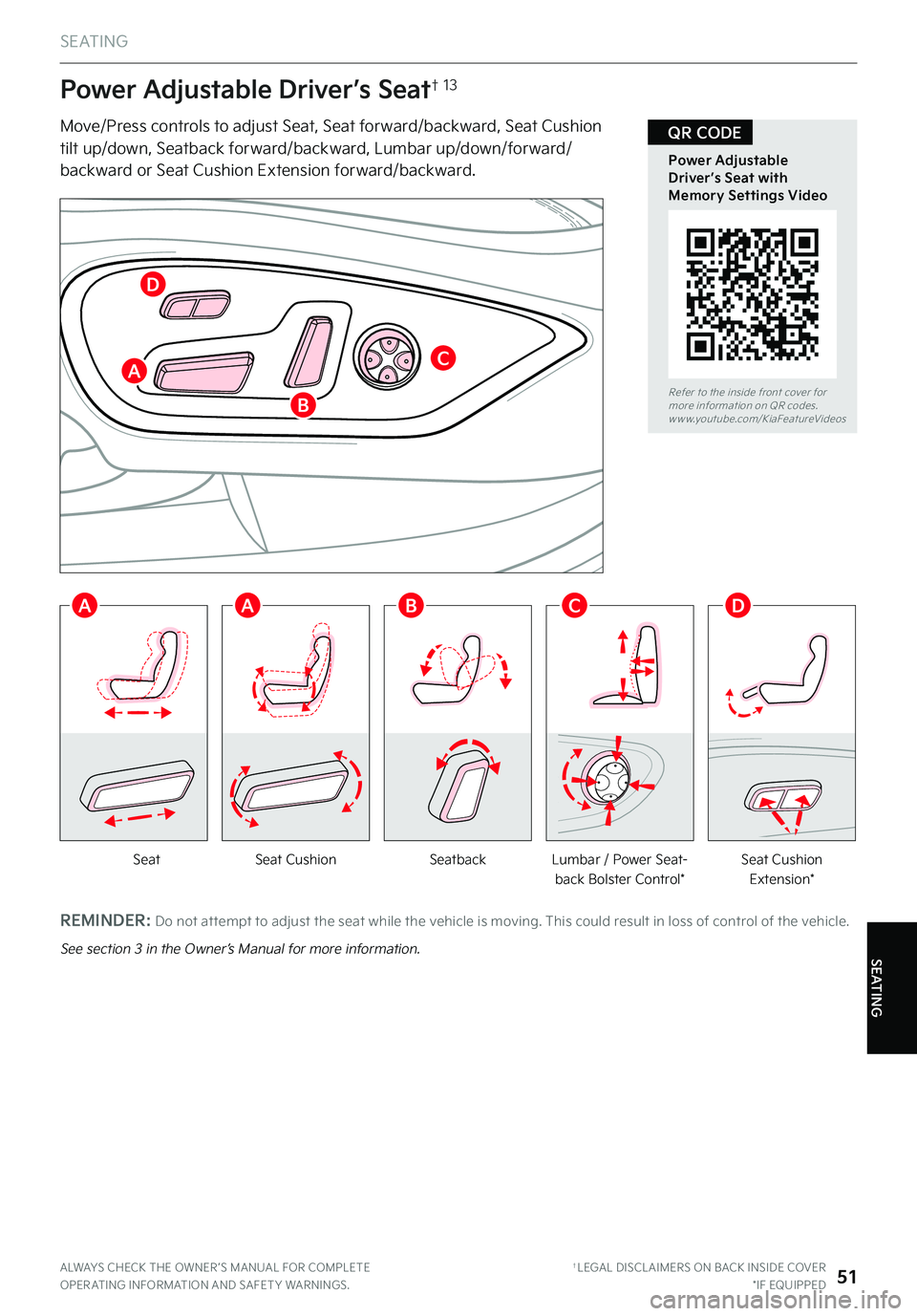

Power Adjustable Driver’s Seat† 13
Move/Press controls to adjust Seat, Seat forward/backward, Seat Cushion tilt up/down, Seatback forward/backward, Lumbar up/down/forward/backward or Seat Cushion Extension forward/backward .
REMINDER: Do not at tempt to adjust the seat while the vehicle is moving . This could result in loss of control of the vehicle .
See section 3 in the Owner’s Manual for more information .
AABC
A
B
C
D
D
Refer to the inside front cover for more information on QR codes .www .youtube .com/KiaFeatureVideos
Power Adjustable Driver’s Seat with Memory Settings Video
QR CODE
Page 54 of 72
S E AT I N G
SEATING
Driver Position Memory System*
The integrated system stores into memory the position of the driver ’s seat, outside rearview mirrors, steering wheel positions and seat cushion extension* . To store positions into memory, first place the gear shift into P (Park) while the Engine Star t/Stop button is in the ON position . Then:
1 .
Adjust the driver ’s seat, outside rearview mirrors, settings and steering wheel positions
2 .
Press the SET button B on the control panel . System will BEEP once
3 .
Press one of the memory buttons 1 or 2 C within 4 seconds . The system will BEEP twice when memory has been stored
(Located on driver ’s door control panel)
†LEGAL DISCL AIMERS ON BACK INSIDE COVER*IF EQUIPPED52STINGER FEATURES & FUNCTIONS GUIDE
REMINDERS:
•But ton may be hard to see if headrest is in its lowest position
•
Do not operate the vehicle with the headrests removed . Headrests can provide critical neck and head suppor t in an accident . Do not at tempt to adjust the seat while the vehicle is moving . This could result in loss of control of the vehicle .
See section 3 in the Owner’s Manual for more information .
REMINDER: Do not operate the vehicle with the headrests removed . Headrests can provide critical neck and head suppor t in an accident .
See section 3 in the Owner’s Manual for more information .
To raise headrest: Pull headrest up .
To lower headrest: Press the lock button A , then press the
headrest down .
Front Seat Headrest Adjustment†7
A
B
C
•
For easy adjustments, hold a headrest post with one hand while using the other hand to pull the headrest from underneath
QUICK TIP
Page 55 of 72
ALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS . †LEGAL DISCL AIMERS ON BACK INSIDE COVER*IF EQUIPPED53
How to Sync Transmitter with HomeLink®
If programming for the first time, begin with Step 1 (repeating this step will delete all information) .
To program non-rolling and rolling code garage door openers and other devices:
1 . Press and hold the left A and center C buttons simultaneously until the indicator light G begins to flash (to reprogram buttons, skip this step)
2 . Press and hold the desired button A B C and hold the button on the transmitter while it is approximately 1 to 3 inches away from the mirror . The HomeLink® Indicator light F will flash rapidly once the frequency signal has been successfully programmed
To finish programming rolling code garage door openers, complete these steps:
3 . Locate the “learn” or “smart ” button on the garage door ’s motor head unit . Press and release the button and complete Step 4 within 30 seconds
4 . Firmly press and release the programmed HomeLink® button up to three times
Operating HomeLink®:
Press one of the programmed HomeLink® buttons .
Erasing programmed buttons:
Press and hold the A and C buttons simultaneously for approximately 20 seconds, and then release both buttons within 30 seconds .
The HomeLink® / Auto-Dimming Rearview Mirror* is designed to reduce glare from a vehicle’s headlights located in the rear and also connect up to three electronic transmitters into one location .

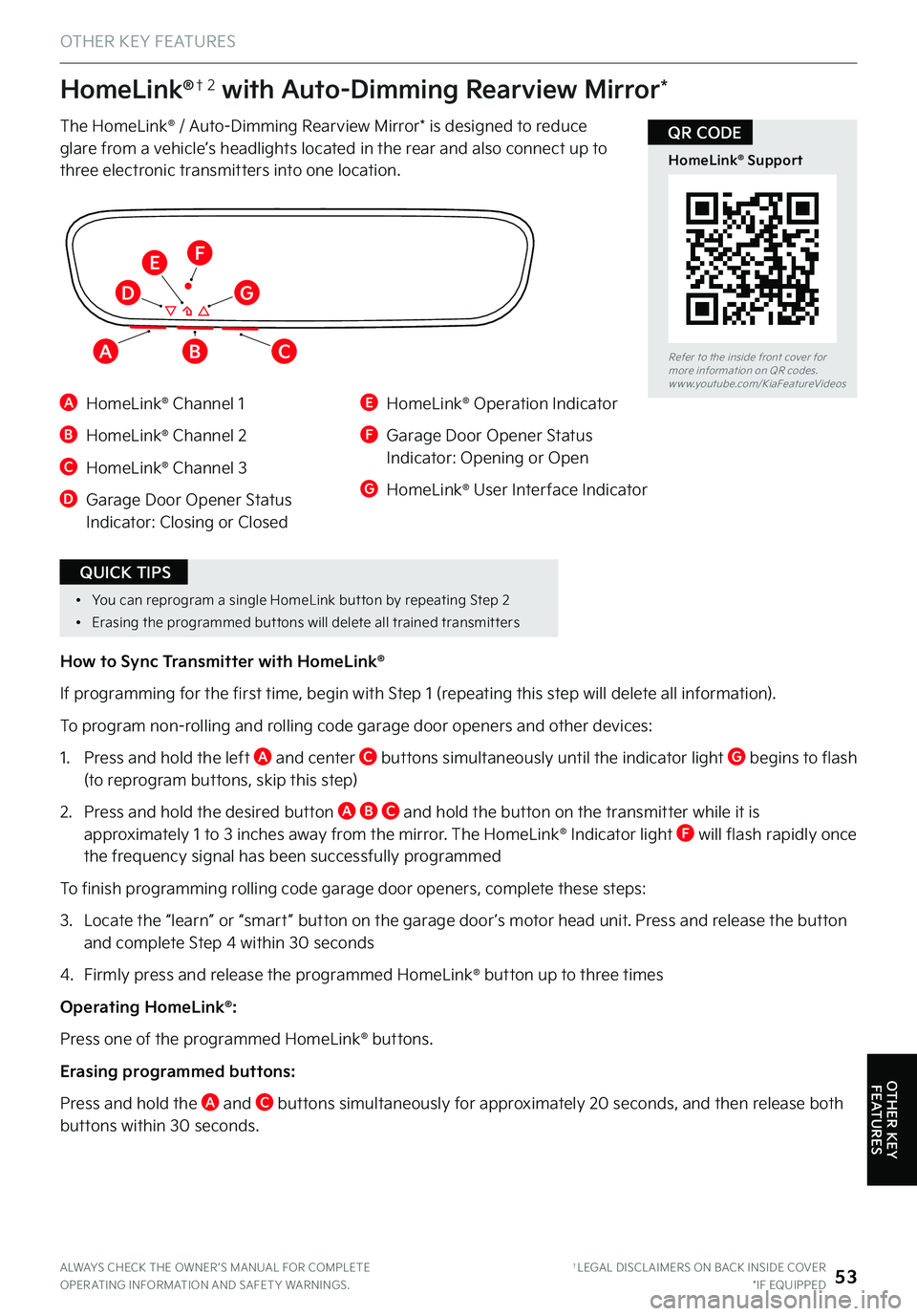

HomeLink®†2 with Auto-Dimming Rearview Mirror*
A HomeLink® Channel 1
B HomeLink® Channel 2
C HomeLink® Channel 3
D Garage Door Opener Status Indicator: Closing or Closed
E HomeLink® Operation Indicator
F Garage Door Opener Status Indicator: Opening or Open
G HomeLink® User Interface Indicator
Refer to the inside front cover for more information on QR codes .www .youtube .com/KiaFeatureVideos
HomeLink® Support
QR CODE
•
You can reprogram a single HomeLink but ton by repeating Step 2
•Erasing the programmed but tons will delete all trained transmit ters
QUICK TIPS
ABC
D
EF
G
OTHER KEY
FEATURES
OTHER KEY FEATURES
Page 56 of 72
OTHER KEY
FEATURES
OTHER KEY FEATURES
*IF EQUIPPED54STINGER FEATURES & FUNCTIONS GUIDE
The sunroof glass and sunshade operation is controlled by a multi-directional switch A . The Start/Stop button needs to be in the ON or START position to operate the sunroof .
To slide the sunshade and sunroof glass:
Auto Open – Push the switch A backward to the second detent position and release .
Auto Close – Push the switch A forward to the second detent position and release .
To slide the sunshade only:
Auto Open – Push the switch A backward to the first detent position and release .
Auto Close – Push the switch A forward to the first detent position and release .
Slide the sunroof glass (with sunshade open):
Auto Open – Push the switch A backward to the first detent position and release .
Auto Close – Push the switch A forward to the first detent position and release to close sunroof glass only . Push the switch A forward to the second detent position and release to close sunroof glass and sunshade .
To tilt the sunroof glass:
Raise: Push and release switch A upward
Lower: Push and release switch A upward
Auto-close sunroof glass and sunshade:
Slide the switch forward to the farthest position .
Your vehicle’s sunroof controls may differ from that in the illustration .
See section 4 in the Owner’s Manual for more information .
Sunroof Operation*
Refer to the inside front cover for more information on QR codes .www .youtube .com/KiaFeatureVideos
Sunroof Operation Video
QR CODE
A
•To stop the sunroof glass/sunshade at any position, press or pull the sunroof control switch in any direction
QUICK TIP
REMINDERS:
•
Sunshade must remain OPEN while sunroof is open
•
If the vehicle is turned off with the Sunroof not fully closed, the Instrument Cluster LCD will display a warning message and a chime will sound for a few seconds
•
Do not adjust the sunroof or sunshade while driving . This could result in loss of control of the vehicle
•When closing, be mindful of any objects or persons
(But ton located within overhead lamp console)
Page 57 of 72
HOLD
LockUnlock
Smart Key with Remote Start†6
A Press to lock all doors
B Press to unlock driver ’s door . Press twice within 4 seconds to unlock all doors
C Press and hold for more than 1 second to unlock the Liftgate and open manually (the Smart Power Liftgate* will unlock and automatically open)
REMINDERS:
•
Manual-Liftgate lid will par tially open . To fully open, lift up manually
•
The Liftgate unlocks when the Smar t Key is within close proximit y of the vehicle
D Press and hold more than a half a second for panic alarm . To turn off alarm, press any button
E Press to release mechanical key F
G Remote Start: Lock the doors by pressing the door lock button A within 32 feet distance from the vehicle . Within four (4) seconds of pressing the door lock button A , press and hold the Remote Start button D for more than two (2) seconds to start the vehicle . To stop the Remote Start operation, press the button again . If driver doesn’t enter the vehicle within ten minutes of starting the vehicle, the engine will automatically turn off .
Driver’s Door Lock/Unlock Button H :
To unlock door(s):
•Press button once to unlock driver ’s door
•Press again within 4 seconds to unlock all doors
To lock all doors:
•Press again to lock all doors
Mechanical Key F :
•Use to unlock/lock driver ’s door:
1 .
Remove door handle keyhole cover with mechanical key by pressing up into slot on bottom of cover as shown I
2 .
Insert mechanical key J and turn left to unlock driver ’s door
3 .
Insert mechanical key J and turn right to lock driver ’s door
4 .
Reinsert the Mechanical Key inside the Smart Key fob
•Use to lock and unlock glove box
OTHER KEY
FEATURES
OTHER KEY FEATURES
Refer to the inside front cover for more information on QR codes .www .youtube .com/KiaFeatureVideos
Kia Smart & Folding Key Fobs Video
Remote Start - Smart Key Video
QR CODES
ALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS . †LEGAL DISCL AIMERS ON BACK INSIDE COVER*IF EQUIPPED55
•
If the Smar t Key bat ter y is weak or not working properly, hold the Smar t Key fob up to the Engine Star t/Stop but ton (lock but ton side closest) and press to star t engine
•
The Smar t Key ’s signal can be blocked by the normal operation of a cellular phone or smar tphone . To help prevent this, store each device separately
•
When reinser ting the mechanical key into the fob, make sure it is pushed all the way in until there is a click sound
QUICK TIPS
A
B
C
D
E
F
H
I
J
G
REMINDER: Remote but ton configuration may var y depending on vehicle options
See section 4 in the Owner’s Manual for more information .
Do not use remote climate control or remote start if vehicle is in an enclosed area (e .g ., closed garage) or a partially enclosed area without ventilation . Close all doors leading from adjacent living areas to the vehicle area before executing a remote climate control or remote start command .
Page 58 of 72
Smart Power Liftgate*† 11
The Smart Power Liftgate can be operated from several controls to either open, close or lock the Liftgate .
To turn the Smart Power Liftgate features ON, go to User Setting mode in the LCD Instrument Cluster Modes and set to ON .
The Smart Power Liftgate will close the Liftgate, lock all doors and Liftgate and then arm the vehicle .
Opening from Inside the Vehicle:
Press the Smart Power Liftgate Open/Close button* A to automatically open/close the Liftgate .
Opening from Outside the Vehicle:
To open the Smart Power Liftgate automatically, press the Liftgate Release handle switch B on exterior of the Liftgate .
Automatically close by pressing Smart Power Liftgate Close button* C located inside the Liftgate lid .
(But ton located on driver ’s panel, left of the steering wheel)
(Located inside Liftgate lid)
See section 4 in the Owner’s Manual for more information .
OTHER KEY FEATURES
Refer to the inside front cover for more information on QR codes .www .youtube .com/KiaFeatureVideos
Smart Power Liftgate Video
QR CODE
†LEGAL DISCL AIMERS ON BACK INSIDE COVER*IF EQUIPPED56STINGER FEATURES & FUNCTIONS GUIDE
OTHER KEY
FEATURES
AB
C
•To cancel the Smar t Power Liftgate while automatically opening or closing, press any but ton on the Smar t Key fob
QUICK TIP
REMINDERS:
•
All doors are closed and locked after about 15 seconds
•
The Smar t Power Liftgate feature will not operate when the following occurs:
–Doors are recently closed and locked
–The Smar t Key is still detected after 15 seconds near the vehicle or within 60 inches of the door handles
–A door is not locked or closed
–The Smar t Key is in the vehicle
•
Pulling the Liftgate upward by the handle or pressing the but ton a second time will interrupt the automatic opening of the Smar t Power Liftgate
Page 59 of 72
Smart Power Liftgate*† 11 (Continued)
HOLD
See section 4 in the Owner’s Manual for more information .
Opening with no-touch activation:
When the Smart Key fob is on your person and you are within close proximity
of the back of the vehicle, the hazard lights will blink and a chime will sound for about 3 seconds as an alert that the Smart Power Liftgate is about to open .
Then the alert system will blink and chime two additional times before opening the Smart Power Liftgate .
The Smart Power Liftgate feature is OFF by default . To enable the Smart Power Liftgate, go to User Settings in the LCD Instrument Cluster modes .
Smart Key:
Using the Smart Key fob to automatically open the Smart Power Liftgate*, press and hold the Smart Key Liftgate button A . Press again and hold to close .
OTHER KEY FEATURES
Refer to the inside front cover for more information on QR codes .www .youtube .com/KiaFeatureVideos
Kia Smart & Folding Key Fob Video
QR CODE
ALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS . †LEGAL DISCL AIMERS ON BACK INSIDE COVER*IF EQUIPPED57
OTHER KEY
FEATURES
A
•
The Liftgate must be unlocked before it can be opened by the Liftgate Release but ton
•
The Liftgate unlocks automatically and then can be opened manually when the Smar t Key is within close proximit y to the back of the vehicle
QUICK TIPS
REMINDERS:
•
Smar t Power Liftgate may be damaged if at tempting to open or close manually
•
If going through a car wash, remind the at tendant to keep the vehicle in Neutral (N) and keep the engine running . Also, disable the Smar t Power Liftgate lid control using the but ton inside the glove compar tment, turn off the auto rain-sensing wipers and fold in the mirrors
•
When not in use, keep the Liftgate Lid Control but ton in the OFF position
•
Ensure all obstacles are out of the way of the Liftgate lid when operating the Smar t Power Liftgate
Page 60 of 72
Automatic Turn Off Function
The interior lights automatically turn off approximately 20 seconds after the Engine Start/Stop button is
turned OFF .
Map/Room Lamp Operation
Map Lamps – Press lens A to turn the Driver ’s/Passenger ’s Map Lamps ON/OFF . This light produces a spot beam for convenient use as a map lamp or as a personal lamp for the driver or the front passenger .
Room button – Press button B to turn all the Map/Room Lamps ON/OFF .
Door button – Press button C to turn the Map/Room Lamp ON, for 30 seconds, when a door is opened, unlocked from Smart Key or the ignition is turned OFF . When pressed and a door is opened, or doors are unlocked from the Smart Key, the Map and Room Lamps turn ON for approximately 30 seconds .
The lamps will turn OFF immediately if the Engine Start/Stop button is turned ON or all doors are locked .
OTHER KEY FEATURES
Map/Room Lamps
See section 4 in the Owner’s Manual for more information .
*IF EQUIPPED58STINGER FEATURES & FUNCTIONS GUIDE
ABC
A
OTHER KEY
FEATURES
•
When doors are unlocked by the Smar t Key, the lamp turns ON for approximately 30 seconds
•
If your vehicle is equipped with the theft alarm system, the interior lights automatically turn off approximately 3 seconds after the system is in armed stage
•
Using interior lights for an extended period of time may cause bat ter y discharge
QUICK TIPS
REMINDER: When room lamp lens is pressed ON it will remain ON, even when the map lamp switch is in the OFF position .
(Overhead lamp console)
