KIA STONIC 2018 Owners Manual

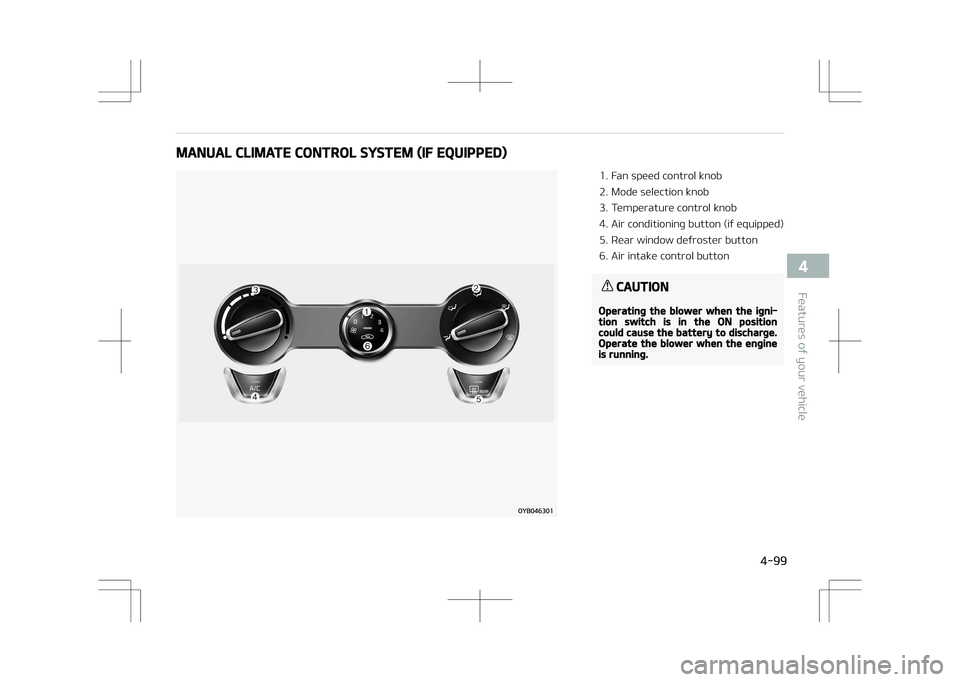

MANUAL CLIMATE CONTROL SYSTEM (IF EQUIPPED)
1. Fan speed control knob
2. Mode selection knob
3. Temperature control knob
4. Air conditioning button (if equipped)
5. Rear window defroster button
6. Air intake control button
CAUTION
Operating the blower when the igni‐tion switch is in the ON positioncould cause the battery to discharge.Operate the blower when the engineis running.

4-99
4
Features of your vehicle

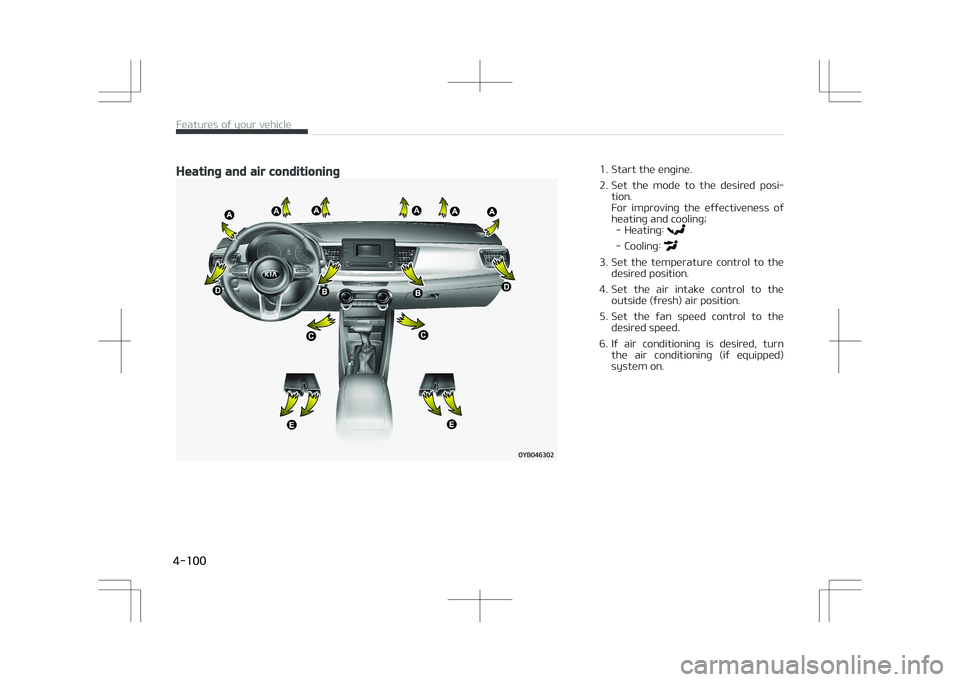

Heating and air conditioning1. Start the engine.
2. Set the mode to the desired posi‐tion.
For improving the effectiveness of
heating and cooling; - Heating:
- Cooling:
3. Set the temperature control to the desired position.
4. Set the air intake control to the outside (fresh) air position.
5. Set the fan speed control to the desired speed.
6. If air conditioning is desired, turn the air conditioning (if equipped)
system on.
Features of your vehicle
4-100

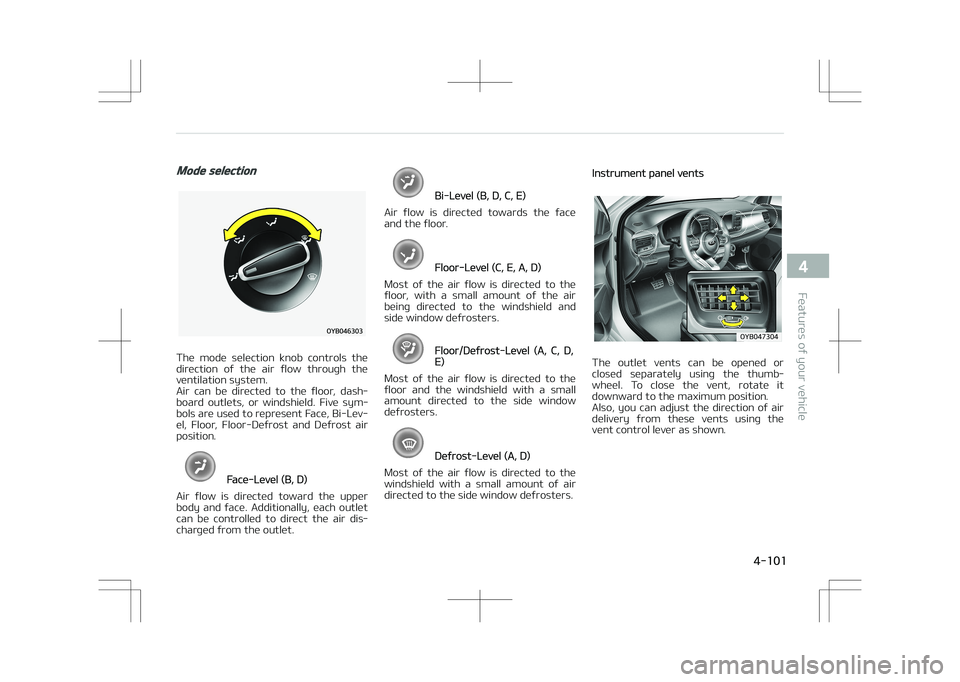

Mode selection
The mode selection knob controls the
direction of the air flow through the ventilation system.
Air can be directed to the floor, dash‐
board outlets, or windshield. Five sym‐
bols are used to represent Face, Bi-Lev‐
el, Floor, Floor-Defrost and Defrost air position.
Face-Level (B, D)
Air flow is directed toward the upper
body and face. Additionally, each outlet can be controlled to direct the air dis‐
charged from the outlet.
Bi-Level (B, D, C, E)
Air flow is directed towards the face
and the floor.
Floor-Level (C, E, A, D)
Most of the air flow is directed to the
floor, with a small amount of the air being directed to the windshield and
side window defrosters.
Floor/Defrost-Level (A, C, D,E)
Most of the air flow is directed to the floor and the windshield with a small
amount directed to the side window
defrosters.
Defrost-Level (A, D)
Most of the air flow is directed to the
windshield with a small amount of air directed to the side window defrosters.
Instrument panel vents
0:#
The outlet vents can be opened or
closed separately using the thumb‐ wheel. To close the vent, rotate it
downward to the maximum position.
Also, you can adjust the direction of air
delivery from these vents using the vent control lever as shown.

4-101
4
Features of your vehicle

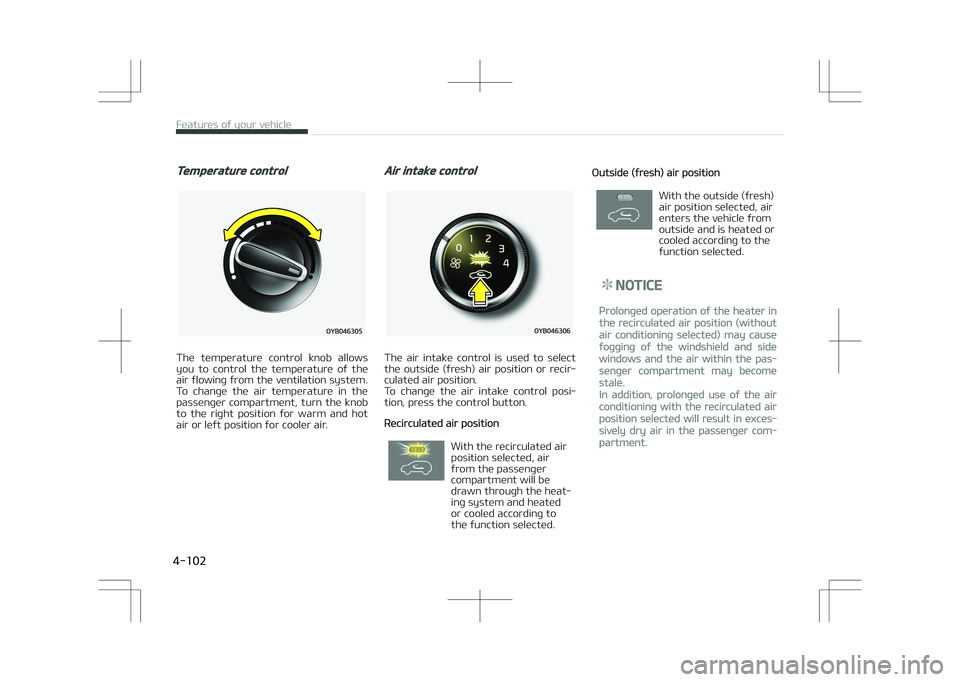

Temperature control
The temperature control knob allows
you to control the temperature of the air flowing from the ventilation system.
To change the air temperature in the
passenger compartment, turn the knob to the right position for warm and hot
air or left position for cooler air.
Air intake control
The air intake control is used to select
the outside (fresh) air position or recir‐ culated air position.
To change the air intake control posi‐
tion, press the control button.
Recirculated air position
With the recirculated air position selected, airfrom the passenger
compartment will bedrawn through the heat‐ing system and heated
or cooled according tothe function selected.
Outside (fresh) air position
With the outside (fresh) air position selected, air
enters the vehicle fromoutside and is heated or
cooled according to thefunction selected.
NOTICE
Prolonged operation of the heater in
the recirculated air position (without
air conditioning selected) may cause
fogging of the windshield and side
windows and the air within the pas‐
senger compartment may become
stale.
In addition, prolonged use of the air
conditioning with the recirculated air
position selected will result in exces‐
sively dry air in the passenger com‐
partment.
Features of your vehicle
4-102

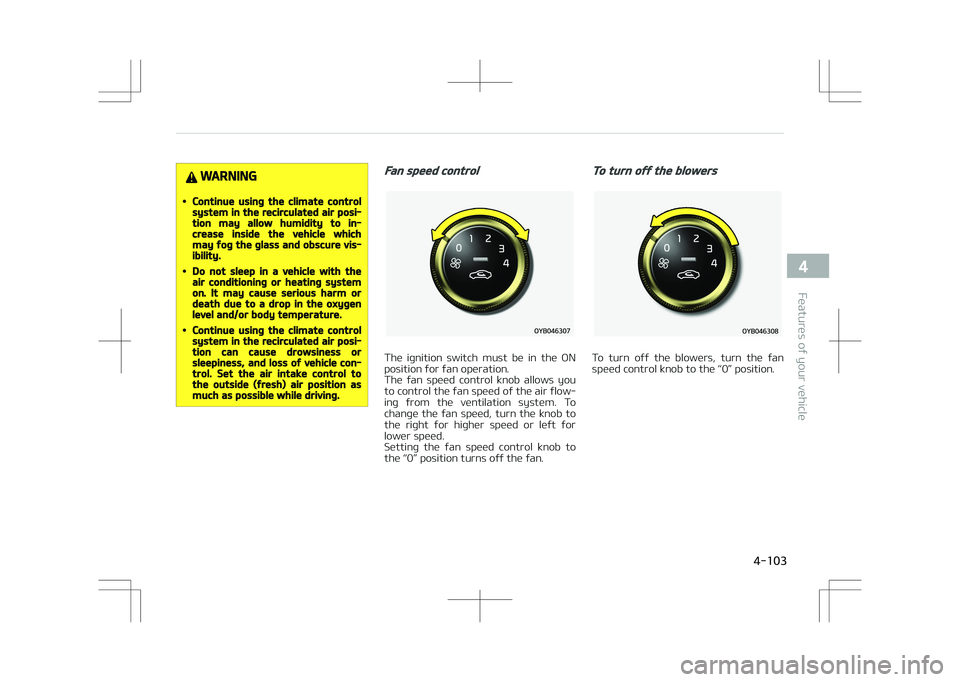

WARNING
•Continue using the climate controlsystem in the recirculated air posi‐tion may allow humidity to in‐crease inside the vehicle whichmay fog the glass and obscure vis‐ibility.
•Do not sleep in a vehicle with theair conditioning or heating systemon. It may cause serious harm ordeath due to a drop in the oxygenlevel and/or body temperature.
•Continue using the climate controlsystem in the recirculated air posi‐tion can cause drowsiness orsleepiness, and loss of vehicle con‐trol. Set the air intake control tothe outside (fresh) air position asmuch as possible while driving.
Fan speed control
The ignition switch must be in the ON
position for fan operation.
The fan speed control knob allows you to control the fan speed of the air flow‐
ing from the ventilation system. To
change the fan speed, turn the knob to
the right for higher speed or left for lower speed.
Setting the fan speed control knob to
the L

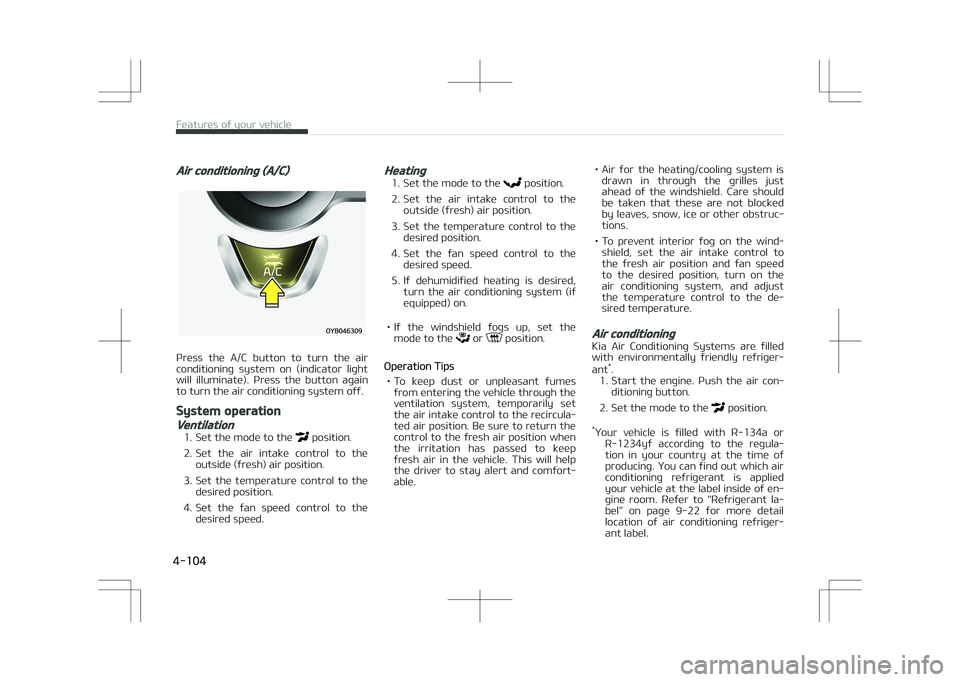

Air conditioning (A/C)
Press the A/C button to turn the air
conditioning system on (indicator light will illuminate). Press the button again
to turn the air conditioning system off.
System operation
Ventilation
1. Set the mode to the position.
2. Set the air intake control to the outside (fresh) air position.
3. Set the temperature control to the desired position.
4. Set the fan speed control to the desired speed.
Heating
1. Set the mode to the position.
2. Set the air intake control to the outside (fresh) air position.
3. Set the temperature control to the desired position.
4. Set the fan speed control to the desired speed.
5. If dehumidified heating is desired, turn the air conditioning system (if
equipped) on.
• If the windshield fogs up, set the mode to the
or position.
Operation Tips
• To keep dust or unpleasant fumes from entering the vehicle through the
ventilation system, temporarily set the air intake control to the recircula‐
ted air position. Be sure to return the
control to the fresh air position when
the irritation has passed to keep
fresh air in the vehicle. This will help the driver to stay alert and comfort‐
able. • Air for the heating/cooling system is
drawn in through the grilles just
ahead of the windshield. Care should
be taken that these are not blocked by leaves, snow, ice or other obstruc‐
tions.
• To prevent interior fog on the wind‐ shield, set the air intake control to
the fresh air position and fan speed to the desired position, turn on the
air conditioning system, and adjust
the temperature control to the de‐
sired temperature.
Air conditioning
Kia Air Conditioning Systems are filled
with environmentally friendly refriger‐
ant *
.
1. Start the engine. Push the air con‐ ditioning button.
2. Set the mode to the
position.
* Your vehicle is filled with R-134a or
R-1234yf according to the regula‐tion in your country at the time of
producing. You can find out which air
conditioning refrigerant is applied
your vehicle at the label inside of en‐
gine room. Refer to L

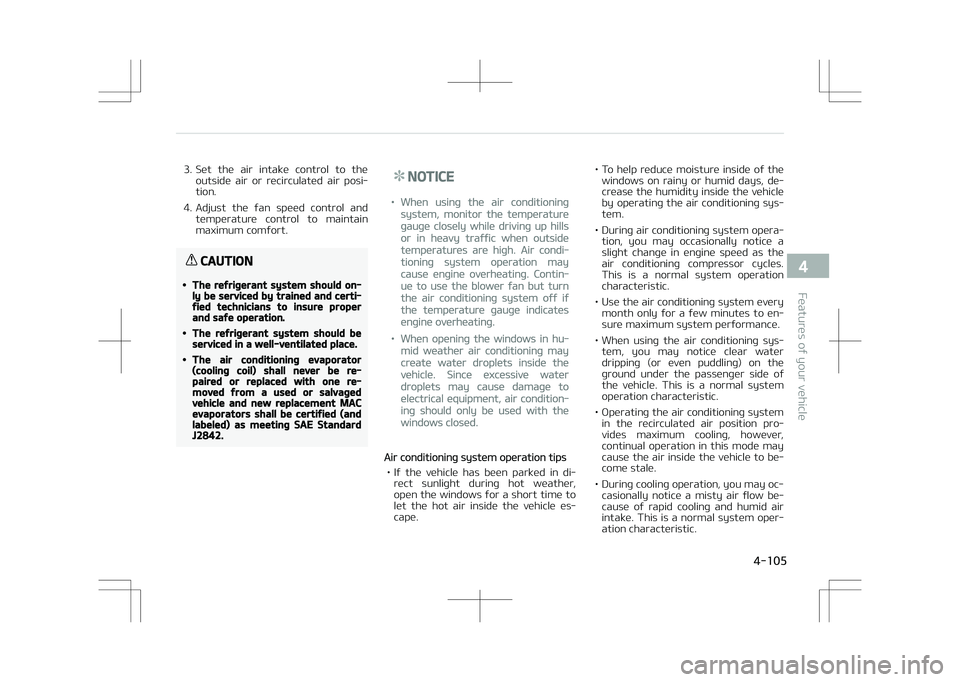

3. Set the air intake control to theoutside air or recirculated air posi‐
tion.
4. Adjust the fan speed control and temperature control to maintain
maximum comfort.
CAUTION
•The refrigerant system should on‐ly be serviced by trained and certi‐fied technicians to insure properand safe operation.
•The refrigerant system should beserviced in a well-ventilated place.
•The air conditioning evaporator(cooling coil) shall never be re‐paired or replaced with one re‐moved from a used or salvagedvehicle and new replacement MACevaporators shall be certified (andlabeled) as meeting SAE StandardJ2842.
NOTICE
•When using the air conditioning
system, monitor the temperature
gauge closely while driving up hills
or in heavy traffic when outside
temperatures are high. Air condi‐
tioning system operation may
cause engine overheating. Contin‐
ue to use the blower fan but turn
the air conditioning system off if
the temperature gauge indicates
engine overheating.
•When opening the windows in hu‐
mid weather air conditioning may
create water droplets inside the
vehicle. Since excessive water
droplets may cause damage to
electrical equipment, air condition‐
ing should only be used with the
windows closed.
Air conditioning system operation tips
• If the vehicle has been parked in di‐ rect sunlight during hot weather,
open the windows for a short time to let the hot air inside the vehicle es‐
cape. • To help reduce moisture inside of the
windows on rainy or humid days, de‐
crease the humidity inside the vehicle
by operating the air conditioning sys‐ tem.
• During air conditioning system opera‐ tion, you may occasionally notice a
slight change in engine speed as the
air conditioning compressor cycles.
This is a normal system operation characteristic.
• Use the air conditioning system every month only for a few minutes to en‐
sure maximum system performance.
• When using the air conditioning sys‐ tem, you may notice clear waterdripping (or even puddling) on the
ground under the passenger side of
the vehicle. This is a normal system
operation characteristic.
• Operating the air conditioning system in the recirculated air position pro‐vides maximum cooling, however,
continual operation in this mode may
cause the air inside the vehicle to be‐
come stale.
• During cooling operation, you may oc‐ casionally notice a misty air flow be‐
cause of rapid cooling and humid air
intake. This is a normal system oper‐
ation characteristic.

4-105
4
Features of your vehicle

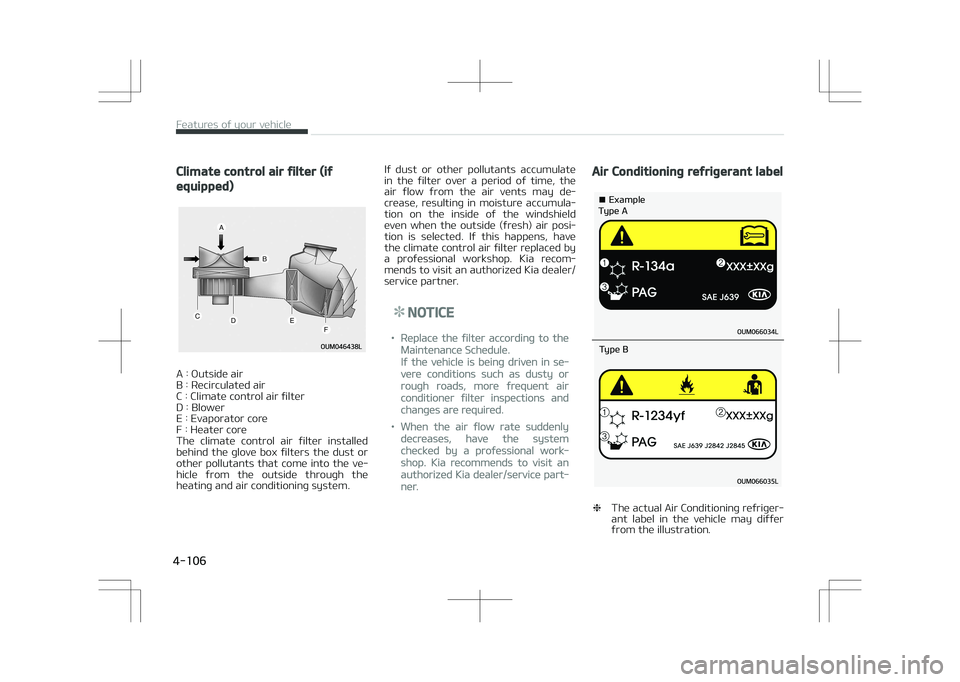

Climate control air filter (if
equipped)
A : Outside air
B : Recirculated air
C : Climate control air filterD : Blower
E : Evaporator core
F : Heater core
The climate control air filter installed
behind the glove box filters the dust or other pollutants that come into the ve‐
hicle from the outside through the
heating and air conditioning system. If dust or other pollutants accumulate
in the filter over a period of time, the
air flow from the air vents may de‐
crease, resulting in moisture accumula‐ tion on the inside of the windshield
even when the outside (fresh) air posi‐
tion is selected. If this happens, have the climate control air filter replaced by
a professional workshop. Kia recom‐
mends to visit an authorized Kia dealer/ service partner.
NOTICE
•Replace the filter according to the
Maintenance Schedule.
If the vehicle is being driven in se‐
vere conditions such as dusty or
rough roads, more frequent air
conditioner filter inspections and
changes are required.
•When the air flow rate suddenly
decreases, have the system
checked by a professional work‐
shop. Kia recommends to visit an
authorized Kia dealer/service part‐
ner.
Air Conditioning refrigerant label
¥
&YBNQMF
5ZQF
"
5ZQF
#
❈ The actual Air Conditioning refriger‐
ant label in the vehicle may differ
from the illustration.
Features of your vehicle
4-106

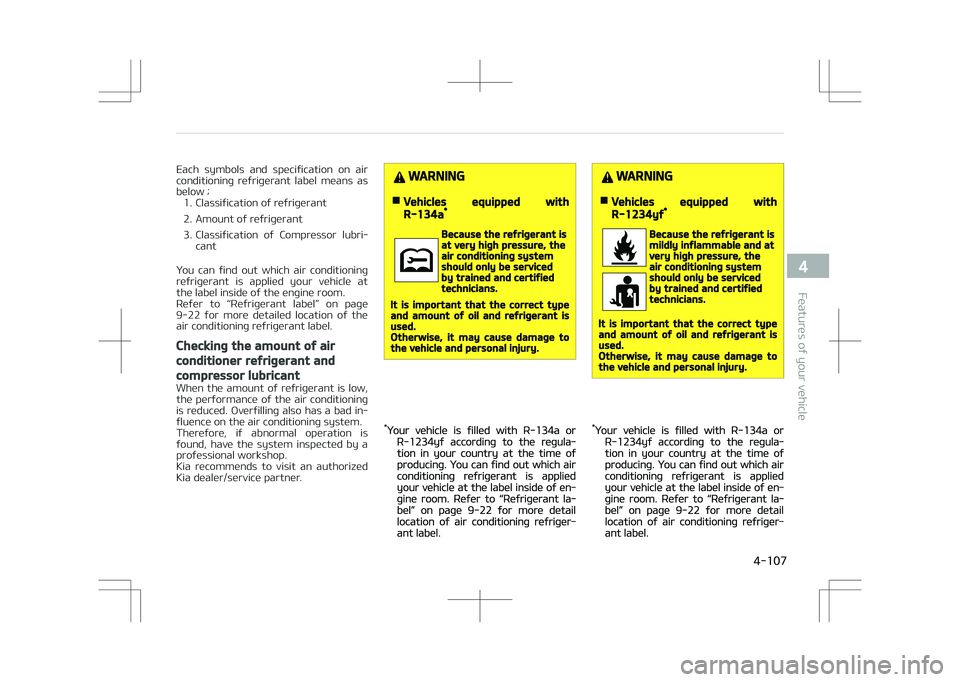

Each symbols and specification on air
conditioning refrigerant label means as below ; 1. Classification of refrigerant
2. Amount of refrigerant
3. Classification of Compressor lubri‐ cant
You can find out which air conditioning
refrigerant is applied your vehicle at
the label inside of the engine room.
Refer to L

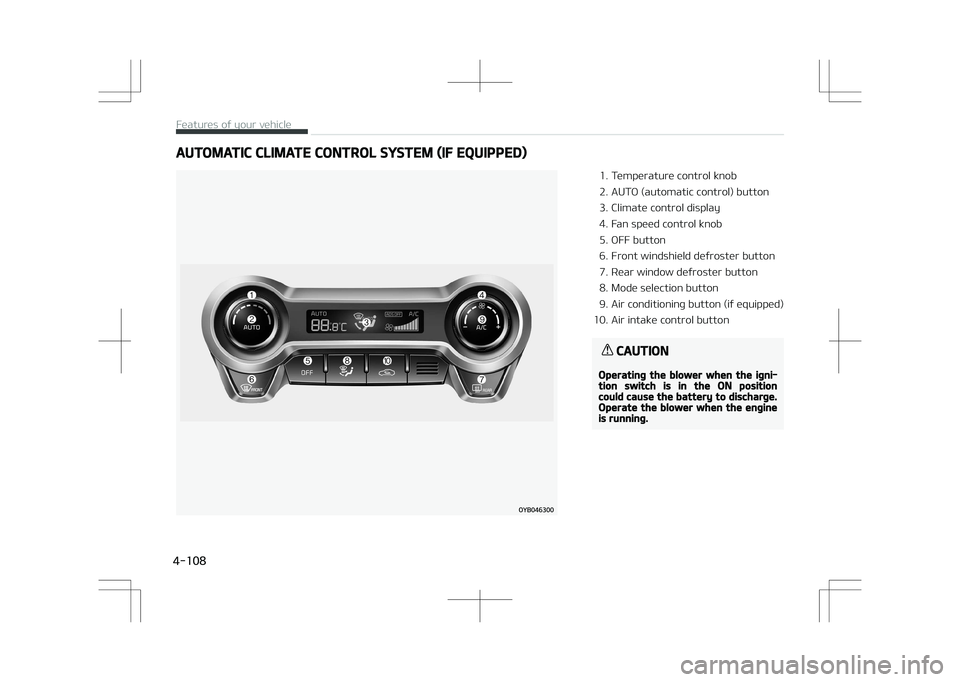

AUTOMATIC CLIMATE CONTROL SYSTEM (IF EQUIPPED)
1. Temperature control knob
2. AUTO (automatic control) button
3. Climate control display
4. Fan speed control knob
5. OFF button
6. Front windshield defroster button
7. Rear window defroster button
8. Mode selection button
9. Air conditioning button (if equipped)
10. Air intake control button
CAUTION
Operating the blower when the igni‐tion switch is in the ON positioncould cause the battery to discharge.Operate the blower when the engineis running.
