engine oil capacity KIA STONIC 2018 Owners Manual

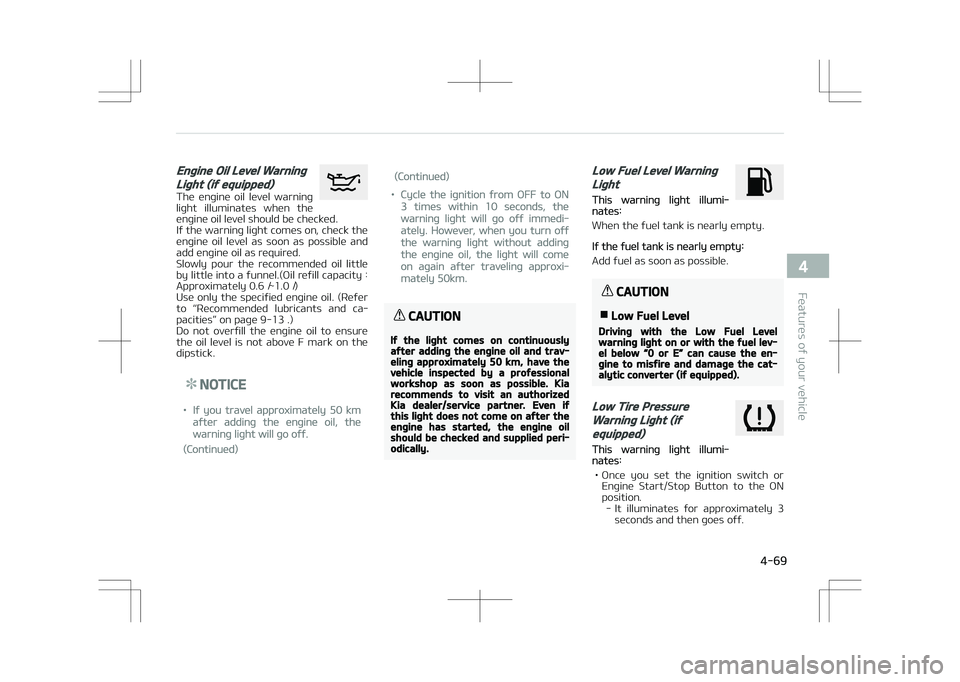

Engine Oil Level Warning
Light (if equipped)
The engine oil level warninglight illuminates when the
engine oil level should be checked.
If the warning light comes on, check the engine oil level as soon as possible and
add engine oil as required.
Slowly pour the recommended oil little
by little into a funnel.(Oil refill capacity : Approximately 0.6
l~1.0 l)
Use only the specified engine oil. (Refer
to L

Changing the engine oil and filter...................................... 8-45
Engine oil (Diesel)...................................................................... 8-46 Checking the engine oil level................................................8-46
Changing the engine oil and filter...................................... 8-46
Engine coolant........................................................................... 8-48 Checking the coolant level................................................... 8-48
Changing the coolant............................................................ 8-51
Brake/Clutch fluid .....................................................................8-52 Checking the brake/clutch fluid level................................. 8-52
Automatic transaxle fluid ....................................................... 8-53 Checking the automatic transaxle fluid level .................. 8-53
Changing the automatic transaxle fluid............................ 8-54
Washer fluid............................................................................... 8-55 Checking the washer fluid level.......................................... 8-55
Parking brake............................................................................. 8-56 Checking the parking brake................................................. 8-56
Fuel filter (for diesel)................................................................ 8-57 Draining water from the fuel filter.................................... 8-57
Fuel filter cartridge replacement....................................... 8-57
Air cleaner.................................................................................. 8-58 Filter replacement.................................................................8-58
Climate control air filter........................................................... 8-59 Filter inspection..................................................................... 8-59
Wiper blades...............................................................................8-60 Blade inspection.................................................................... 8-60
Blade replacement................................................................ 8-60
Battery........................................................................................8-63 For best battery service...................................................... 8-63
Battery capacity label.......................................................... 8-64
Battery recharging................................................................8-65 Reset items............................................................................ 8-65
Tires and wheels....................................................................... 8-67 Tire care.................................................................................. 8-67
Recommended cold tire inflation pressures..................... 8-67
Checking tire inflation pressure.......................................... 8-68
Tire rotation........................................................................... 8-69
Wheel alignment and tire balance...................................... 8-70
Tire replacement................................................................... 8-70
Wheel replacement............................................................... 8-72
Tire traction........................................................................... 8-72
Tire maintenance.................................................................. 8-72
Tire sidewall labeling............................................................ 8-72
Low aspect ratio tire ........................................................... 8-75
Fuses........................................................................................... 8-77 Inner panel fuse replacement............................................. 8-79
Engine compartment fuse replacement........................... 8-80
Fuse/relay panel description............................................... 8-82
Light bulbs................................................................................8-104 Bulb replacement precaution............................................8-104
Light bulb position (Front).................................................8-106
Light bulb position (Rear).................................................. 8-107
Light bulb position (Side)................................................... 8-108
Side repeater lamp (LED type) bulb Replacement........ 8-108
Side repeater lamp (bulb type) bulb Replacement....... 8-109
Headlamp (Low/High beam) bulb replacement
(Headlamp Type A)............................................................. 8-109
Front turn signal lamp bulb replacement (Head‐
lamp Type A)........................................................................8-110
Position lamp / Day time running lamp bulb re‐
placement (Headlamp Type A)......................................... 8-110


8

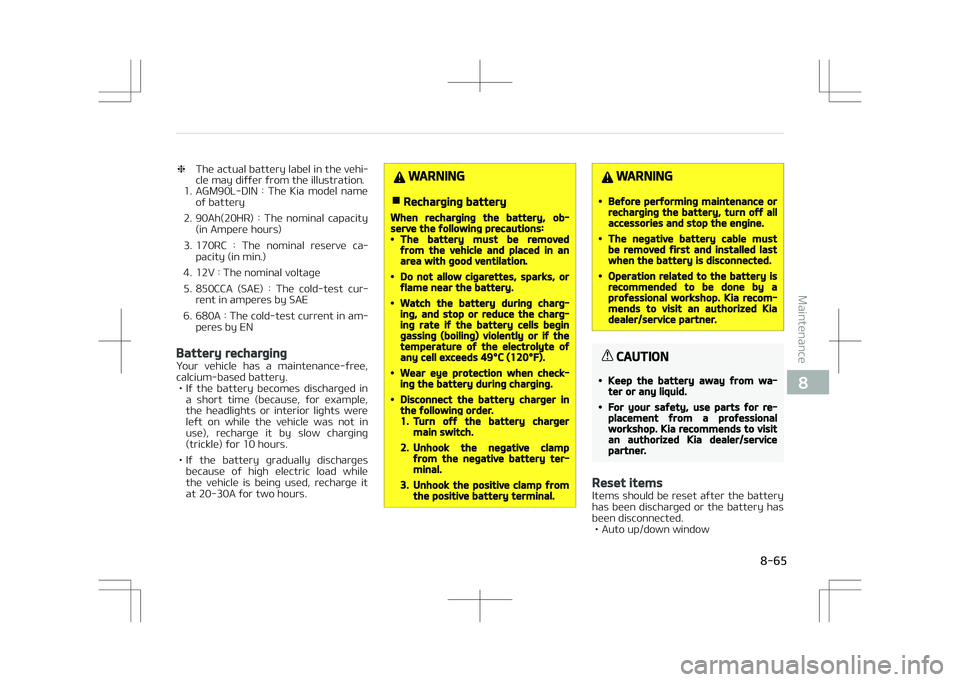

❈The actual battery label in the vehi‐
cle may differ from the illustration.
1. AGM90L-DIN : The Kia model name
of battery
2. 90Ah(20HR) : The nominal capacity (in Ampere hours)
3. 170RC : The nominal reserve ca‐ pacity (in min.)
4. 12V : The nominal voltage
5. 850CCA (SAE) : The cold-test cur‐ rent in amperes by SAE
6. 680A : The cold-test current in am‐ peres by EN
Battery recharging
Your vehicle has a maintenance-free,
calcium-based battery. • If the battery becomes discharged in a short time (because, for example,the headlights or interior lights were
left on while the vehicle was not in
use), recharge it by slow charging
(trickle) for 10 hours.
• If the battery gradually discharges because of high electric load while
the vehicle is being used, recharge it
at 20-30A for two hours.
WARNING
nRecharging battery
When recharging the battery, ob‐serve the following precautions:•The battery must be removedfrom the vehicle and placed in anarea with good ventilation.
•Do not allow cigarettes, sparks, orflame near the battery.
•Watch the battery during charg‐ing, and stop or reduce the charg‐ing rate if the battery cells begingassing (boiling) violently or if thetemperature of the electrolyte ofany cell exceeds 49°C (120°F).
•Wear eye protection when check‐ing the battery during charging.
•Disconnect the battery charger inthe following order.1.Turn off the battery chargermain switch.
2.Unhook the negative clampfrom the negative battery ter‐minal.
3.Unhook the positive clamp fromthe positive battery terminal.
WARNING
•Before performing maintenance orrecharging the battery, turn off allaccessories and stop the engine.
•The negative battery cable mustbe removed first and installed lastwhen the battery is disconnected.
•Operation related to the battery isrecommended to be done by aprofessional workshop. Kia recom‐mends to visit an authorized Kiadealer/service partner.
CAUTION
•Keep the battery away from wa‐ter or any liquid.
•For your safety, use parts for re‐placement from a professionalworkshop. Kia recommends to visitan authorized Kia dealer/servicepartner.
Reset items
Items should be reset after the battery
has been discharged or the battery has been disconnected. • Auto up/down window

8-65
8
Maintenance

FUSES
¥
#MBEF
UZQF
¥
$BSUSJEHF
UZQF
¥
.VMUJ


GVTF ¥
#'5
❈Left side : Normal Right side : Blown

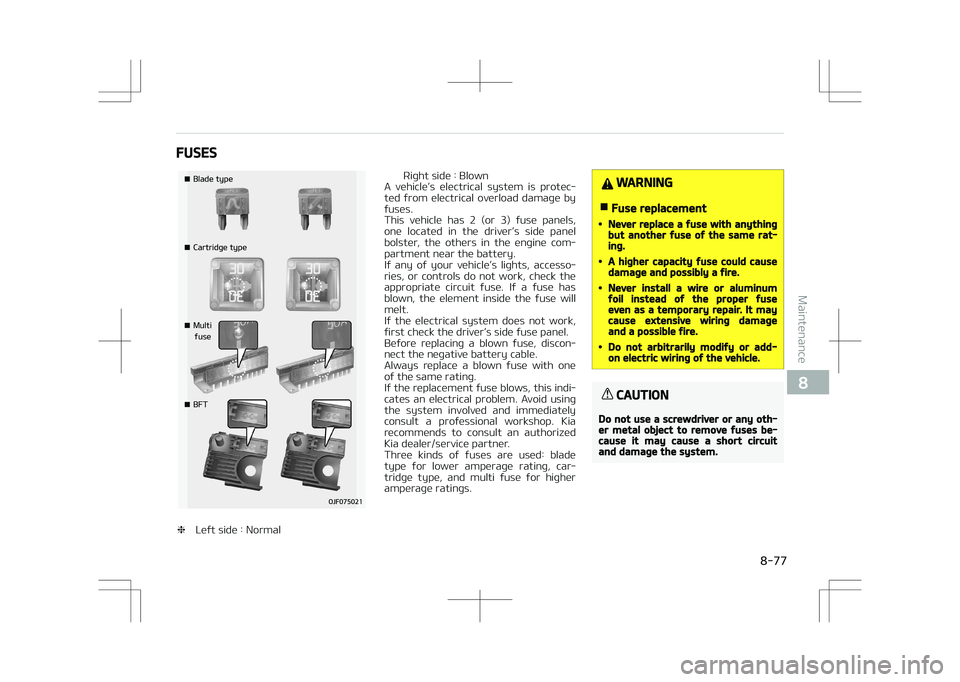

A vehicle’s electrical system is protec‐
ted from electrical overload damage by fuses.
This vehicle has 2 (or 3) fuse panels,
one located in the driver’s side panel
bolster, the others in the engine com‐ partment near the battery.
If any of your vehicle’s lights, accesso‐
ries, or controls do not work, check the
appropriate circuit fuse. If a fuse has blown, the element inside the fuse will
melt.
If the electrical system does not work,
first check the driver’s side fuse panel.
Before replacing a blown fuse, discon‐ nect the negative battery cable.
Always replace a blown fuse with one
of the same rating.
If the replacement fuse blows, this indi‐
cates an electrical problem. Avoid using the system involved and immediately
consult a professional workshop. Kia
recommends to consult an authorized Kia dealer/service partner.
Three kinds of fuses are used: blade
type for lower amperage rating, car‐
tridge type, and multi fuse for higher amperage ratings.
WARNING
nFuse replacement
•Never replace a fuse with anythingbut another fuse of the same rat‐ing.
•A higher capacity fuse could causedamage and possibly a fire.
•Never install a wire or aluminumfoil instead of the proper fuseeven as a temporary repair. It maycause extensive wiring damageand a possible fire.
•Do not arbitrarily modify or add-on electric wiring of the vehicle.
CAUTION
Do not use a screwdriver or any oth‐er metal object to remove fuses be‐cause it may cause a short circuitand damage the system.

8-77
8
Maintenance
