KIA VENGA 2016 Owners Manual

87
Specifications & Consumer information

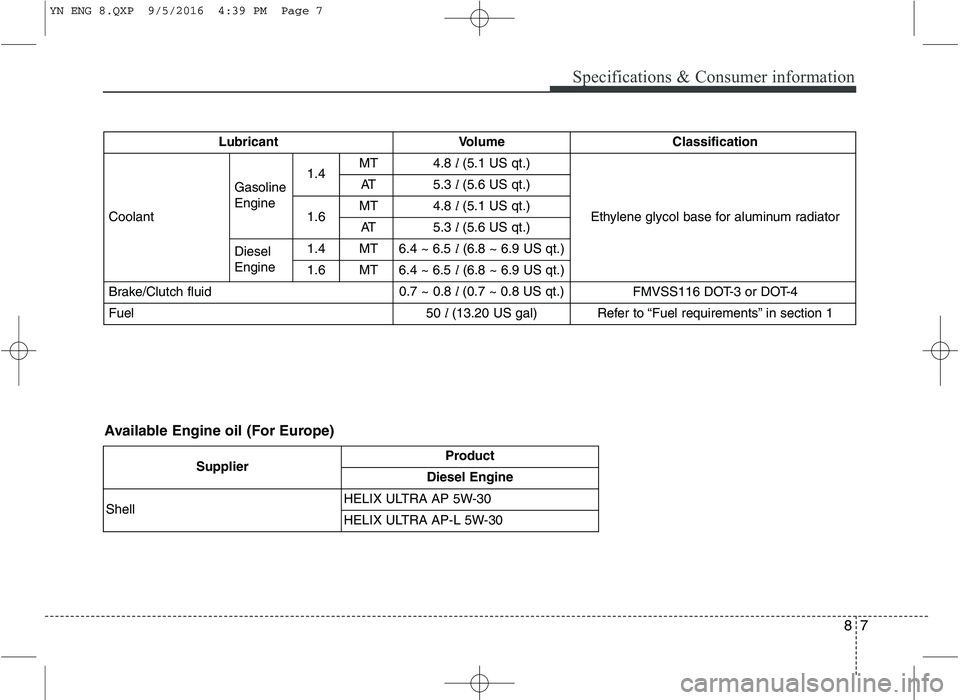

LubricantVolumeClassification
Coolant
Gasoline Engine1.4MT4.8 l (5.1 US qt.)
Ethylene glycol base for aluminum radiator
AT5.3 l (5.6 US qt.)
1.6MT4.8 l (5.1 US qt.)
AT5.3 l (5.6 US qt.)
Diesel Engine1.4MT6.4 ~ 6.5 l(6.8 ~ 6.9 US qt.)
1.6MT6.4 ~ 6.5 l(6.8 ~ 6.9 US qt.)
Brake/Clutch fluid0.7 ~ 0.8 l (0.7 ~ 0.8 US qt.)FMVSS116 DOT-3 or DOT-4
Fuel50 l (13.20 US gal)Refer to “Fuel requirements” in section 1
Available Engine oil (For Europe)
Supplier Product
Diesel Engine
Shell HELIX ULTRA AP 5W-30
HELIX ULTRA AP-L 5W-30
YN ENG 8.QXP 9/5/2016 4:39 PM Page 7

Specifications & Consumer information
8
8
Recommended SAE viscosity
number

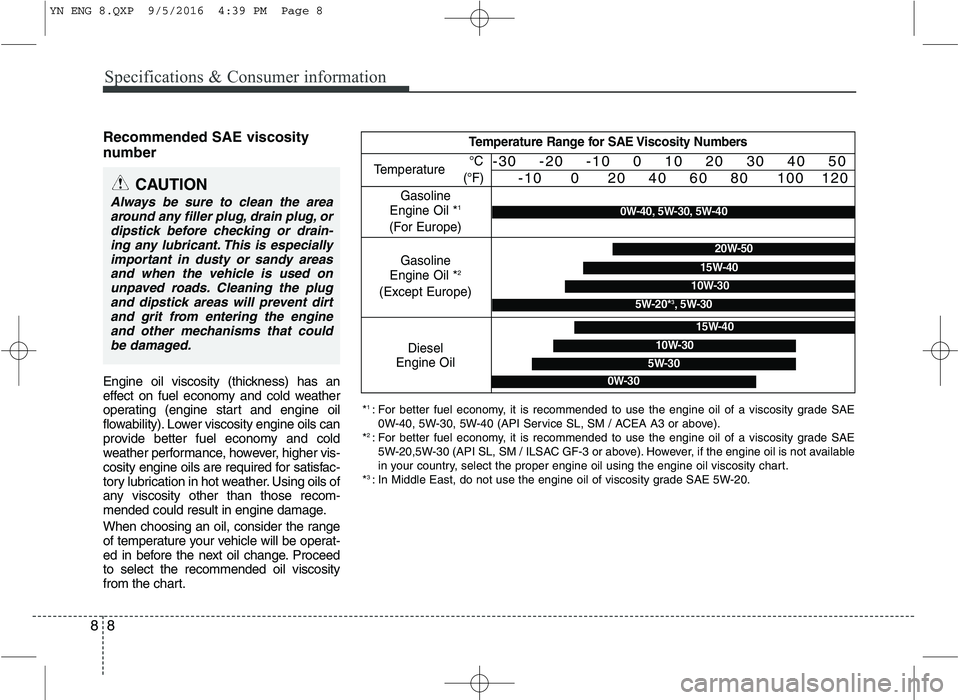

Engine oil viscosity (thickness) has an
effect on fuel economy and cold weather
operating (engine start and engine oil
flowability). Lower viscosity engine oils can
provide better fuel economy and cold
weather performance, however, higher vis-
cosity engine oils are required for satisfac-
tory lubrication in hot weather. Using oils of
any viscosity other than those recom-
mended could result in engine damage.
When choosing an oil, consider the range
of temperature your vehicle will be operat-
ed in before the next oil change. Proceedto select the recommended oil viscosity
from the chart.
CAUTION
Always be sure to clean the area
around any filler plug, drain plug, ordipstick before checking or drain-
ing any lubricant. This is especiallyimportant in dusty or sandy areasand when the vehicle is used on
unpaved roads. Cleaning the plug and dipstick areas will prevent dirtand grit from entering the engine and other mechanisms that could
be damaged.
* 1
: For better fuel economy, it is recommended to use the engine oil of a viscosity grade SAE
0W-40, 5W-30, 5W-40 (API Service SL, SM / ACEA A3 or above).
* 2
: For better fuel economy, it is recommended to use the engine oil of a viscosity grade SAE
5W-20,5W-30 (API SL, SM / ILSAC GF-3 or above). However, if the engine oil is not available
in your country, select the proper engine oil using the engine oil viscosity chart.
* 3
: In Middle East, do not use the engine oil of viscosity grade SAE 5W-20.
Temperature Range for SAE Viscosity Numbers
Temperature
Gasoline
Engine Oil * 1
(For Europe) °C
(°F)-30 -20 -10 0 10 20 30 40 50 -10 0 20 40 60 80 100 120
Diesel
Engine Oil
5W-30
15W-40
10W-30
0W-40, 5W-30, 5W-40
Gasoline
Engine Oil * 2
(Except Europe)20W-50
10W-30
15W-40
5W-20* 3
, 5W-30
0W-30
YN ENG 8.QXP 9/5/2016 4:39 PM Page 8

89
Specifications & Consumer information
The vehicle identification number (VIN) is
the number used in registering your car
and in all legal matters pertaining to its
ownership, etc.
The number is punched on the floor
under the passenger seat. To check the
number, remove the cover (1).VIN label
The VIN is also on a plate attached to the
top of the dashboard. The number on theplate can easily be seen through the
windshield from outside.The vehicle certification label attached
on the driver’s (or front passenger’s) side
center pillar gives the vehicle identifica-
tion number (VIN).

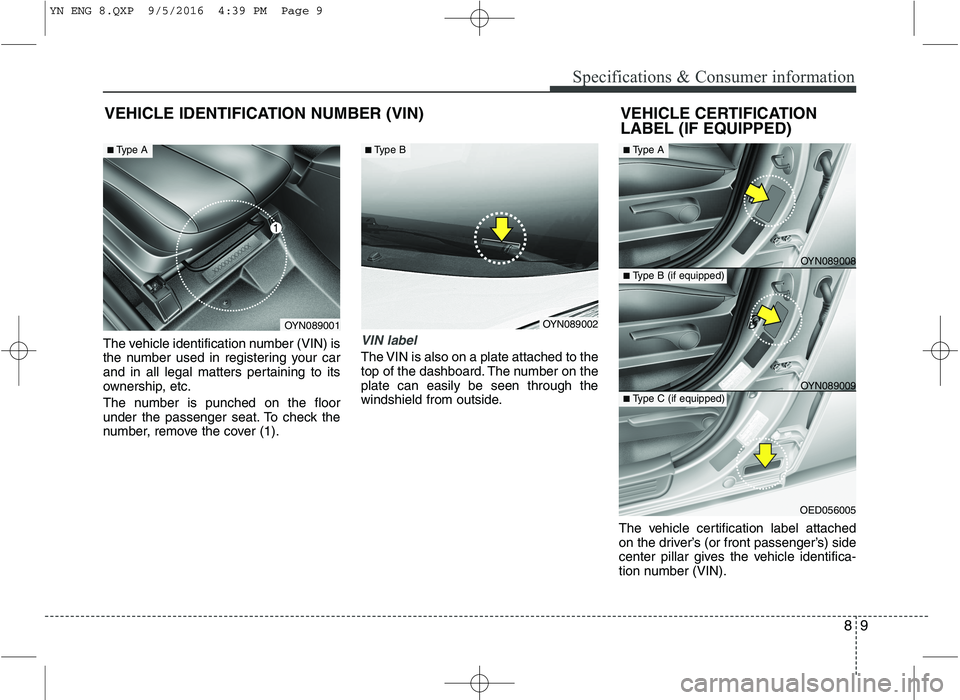

VEHICLE IDENTIFICATION NUMBER (VIN) VEHICLE CERTIFICATION
LABEL (IF EQUIPPED)
OYN089008
OYN089009
OED056005
OYN089001
■ Type A
OYN089002
■Type B■Type A
■Type B (if equipped)
■Type C (if equipped)
YN ENG 8.QXP 9/5/2016 4:39 PM Page 9

Specifications & Consumer information
10
8
The tires supplied on your new vehicle
are chosen to provide the best perform-
ance for normal driving.
The tire label located on the driver's side
center pillar gives the tire pressures rec-
ommended for your car.
The engine number is stamped on the
engine block as shown in the drawing.A compressor label informs you the type
of compressor your vehicle is equipped
with such as model, supplier part num-
ber, production number, refrigerant (1)
and refrigerant oil (2).
OYN089003

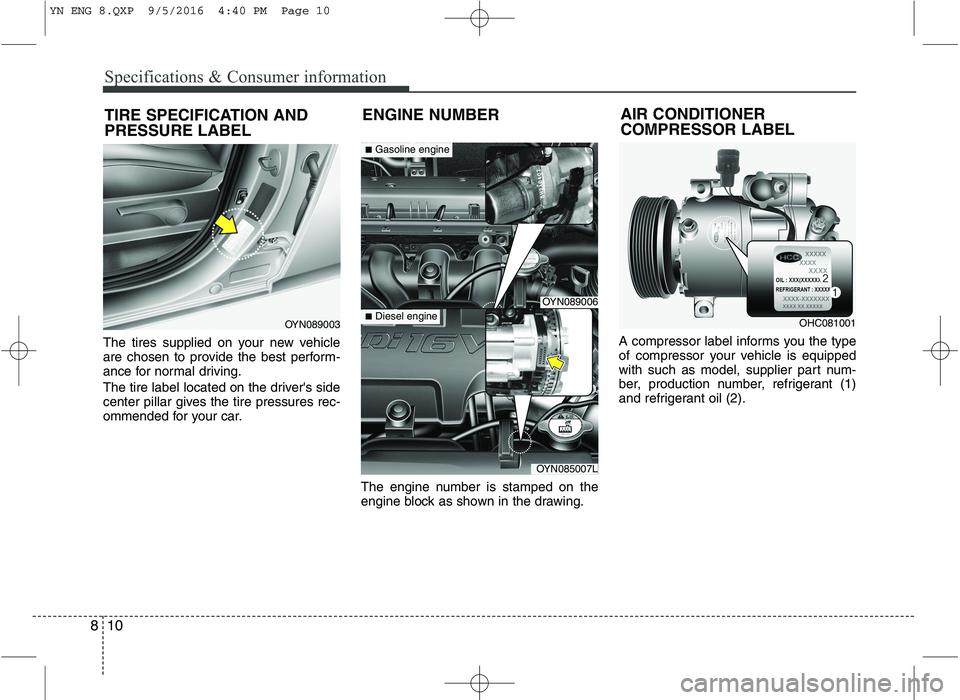

TIRE SPECIFICATION AND PRESSURE LABEL
ENGINE NUMBER
OYN089006
OYN085007L
■
Gasoline engine
■Diesel engineOHC081001
AIR CONDITIONER COMPRESSOR LABEL
YN ENG 8.QXP 9/5/2016 4:40 PM Page 10

811
Specifications & Consumer information
The refrigerant label is located on the underside of the hood.The radio frequency components of the
vehicle comply with requirements and
other relevant provisions of Directive
1995/5/EC.
Further information including the manu-
facturer's declaration of conformity is
available on Kia web site as follows;
http://www.kia-hotline.comCE0678
■
Example
DECLARATION OF CONFORMITY
OYN086010

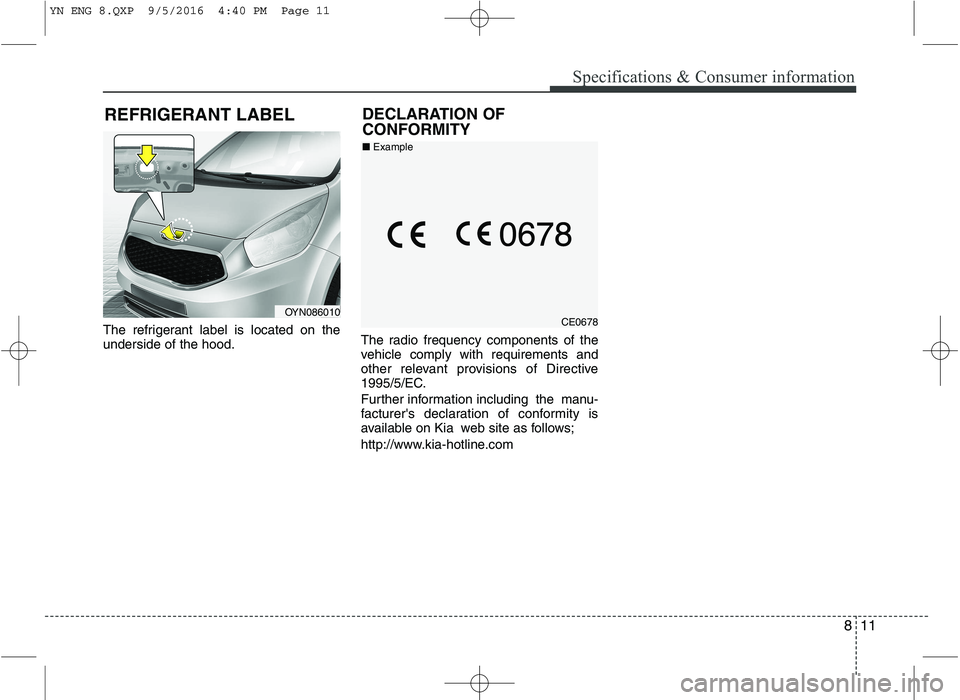

REFRIGERANT LABEL
YN ENG 8.QXP 9/5/2016 4:40 PM Page 11
