Bulbs Type Power Re. figure
Front side lights/Day lights
Rear side lights
Dipped headlamps
Main beam headlamps
Front direction indicator
Rear direction indicator
Side direction indicator
Stop
3rdbrake light
Number plate
Fog lights
Rear fog lamp
Reverse gear
Front courtesy light (white LEDs)
Rear roof light
Glove compartment/luggage
compartment courtesy light
Puddle light

210IN AN EMERGENCY
REPLACING EXTERIOR BULBS
FRONT LIGHT CLUSTERS fig. 15
These contain the bulbs for the dipped beams, main
beams and direction indicators. The bulbs are arranged
as follows:
A. Main beam headlights:
B. Dipped beam headlights;
C. Direction indicators DIPPED BEAM HEADLIGHTS
With incandescent bulbs
To change the bulb, proceed as follows:
❍remove the protective cover B-fig. 15;
❍release the bulb holder clip A-fig. 16;
❍disconnect the electrical connector B;
❍remove the bulb C and replace it;
❍fit the new bulb, ensuring that the outline of the metal
part coincides with the splining on the curve of the
headlight. Then reconnect the electrical connector B
and reattach the bulb holding clip A;
❍refit the protective cover B-fig. 15.
fig. 15L0E0154mfig. 16L0E0155m

IN AN EMERGENCY211
4
With gas discharge bulbs (Xenon)
(for versions/markets where provided)
MAIN BEAM HEADLIGHTS
With incandescent bulbs
To change the bulb, proceed as follows:
❍remove the protective cover A-fig. 15;
❍release the bulb holder clip A-fig. 17;
❍disconnect the electrical connector B;
❍remove the bulb C and replace it;
❍fit the new bulb, ensuring that the outline of the metal
part coincides with the splining on the curve of the
headlight. Then reconnect the electrical connector B
and reattach the bulb holding clip A;
❍refit the protective cover A-fig. 15.
fig. 17L0E0156m
Due to the high power supply voltage, gas
discharge bulbs (Xenon) should only be re-
placed by specialised personnel: danger of
death! Go to a Lancia Dealership.
With gas discharge bulbs (Xenon)
(for versions/markets where provided)
Due to the high power supply voltage, gas
discharge bulbs (Xenon) should only be re-
placed by specialised personnel: danger of
death! Go to a Lancia Dealership.

212IN AN EMERGENCY
SIDE LIGHTS/DAY LIGHTS
The side lights/day lights are LED-based.
Contact a Lancia dealership to have these lights replaced.
DIRECTION INDICATORS
Front
To change the bulb, proceed as follows:
❍remove the protective cover C-fig. 15;
❍press down near the bulb holder locking tabs (shown
in fig. 18 by the arrows) and simultaneously pull the
unit;
❍remove the bulb A and replace it;
❍refit the protective cover C.Side
To change the bulb, proceed as follows:
❍work on the lens cover A-fig. 19 to compress catch B,
then pull the unit outwards;
❍turn the bulb holder C, anticlockwise, extract the
press-fitted bulb D and replace it;
❍refit the bulb holder C in the lens cover and turn it
clockwise;
❍refit the unit making sure that the internal clip B
clicks into place.
fig. 18L0E0157mfig. 19L0E0158m

IN AN EMERGENCY213
4
FOG LIGHTS fig. 20
(for versions/markets where provided)
To replace the bulbs in the front fog lights you must con-
tact a Lancia Dealership.
REAR LIGHT CLUSTERS
Contact a Lancia Dealership to replace the LED lights
in the rear light clusters.
REVERSING LIGHTS fig. 21
To replace the bulbs in the reversing lights you must con-
tact a Lancia Dealership.REAR FOG LIGHTS fig. 22
To replace the bulbs in the rear fog lights you must con-
tact a Lancia Dealership.
fig. 20L0E0159mfig. 22L0E0161m
fig. 21L0E0160m

214IN AN EMERGENCY
THIRD BRAKE LIGHT fig. 23
Contact a Lancia Dealership to replace the LED lights
in the third brake light.
NUMBER PLATE LIGHTS
To change the bulb proceed as follows:
❍remove the lens units A-fig. 24 by acting on the points
shown by the arrows;
❍remove the bulb B and replace it.
fig. 23L0E0162mfig. 25L0E0282m
fig. 24L0E0163m

IN AN EMERGENCY215
4
fig. 27L0E0166m
fig. 26L0E0165m
REPLACING AN INTERIOR BULB
For the type of bulb and power rating, see the “Types of
bulbs” paragraph.FRONT ROOF LIGHT
Proceed as follows to replace the bulbs:
❍remove the roof light A-fig. 26 by acting on the points
shown by the arrows;
❍open the protective flap B-fig. 27;
❍replace the bulbs C releasing them from the side con-
tacts and making sure that the new bulbs are correctly
secured between the contacts;
❍close the lid B-fig. 27 and fasten the roof light A-fig.
26 in its housing, making sure it is locked correctly.
IMPORTANT In some versions, the roof light in fig. 26
is at the back (electric sun roof version). To replace the
relevant bulbs, refer to the procedure described in para-
graph “Front roof light” in this chapter.

216IN AN EMERGENCY
fig. 28L0E0167mfig. 30L0E0169m
fig. 29L0E0168m
REAR ROOF LIGHT
Versions without sun roof
Proceed as follows to replace the bulbs:
❍work at the point shown by the arrow and remove roof
light A-fig. 28;
❍replace bulb B-fig. 29 releasing it from the side con-
tacts and making sure the new bulb is correctly fas-
tened between the contacts.
Versions with sun roof
To change the bulb, proceed as follows:
❍work at the point shown by the arrow and remove
light A-fig. 30;❍replace bulb B-fig. 29 releasing it from the side con-
tacts and making sure the new bulb is correctly fas-
tened between the contacts.

IN AN EMERGENCY217
4
fig. 32L0E0171mfig. 33L0E0172m
LUGGAGE COMPARTMENT LIGHT
To change the bulb, proceed as follows:
❍open the luggage compartment;
❍remove the light A-fig. 32 using leverage at the point
shown by the arrow;
❍open protection B-fig. 33 and replace the press-fitted
bulb;❍close protection B onto the lens cover;
❍refit the light A by inserting it in its correct position
firstly on one side and then on the other until it clicks
into place.

218IN AN EMERGENCY
fig. 34L0E0173mfig. 36L0E0175m
fig. 35L0E0174m

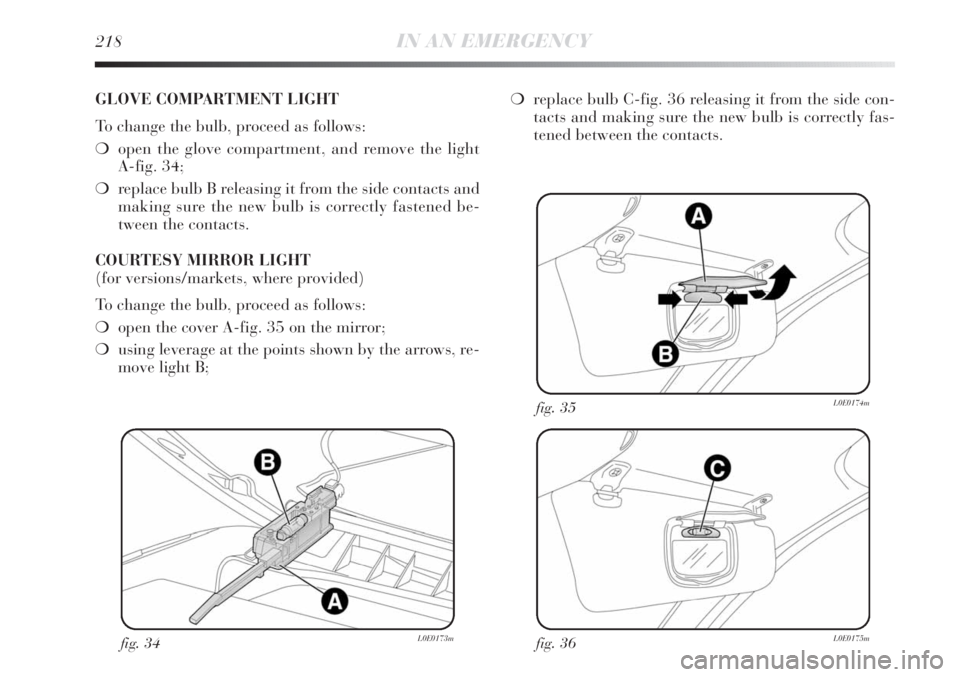

GLOVE COMPARTMENT LIGHT
To change the bulb, proceed as follows:
❍open the glove compartment, and remove the light
A-fig. 34;
❍replace bulb B releasing it from the side contacts and
making sure the new bulb is correctly fastened be-
tween the contacts.
COURTESY MIRROR LIGHT
(for versions/markets, where provided)
To change the bulb, proceed as follows:
❍open the cover A-fig. 35 on the mirror;
❍using leverage at the points shown by the arrows, re-
move light B;❍replace bulb C-fig. 36 releasing it from the side con-
tacts and making sure the new bulb is correctly fas-
tened between the contacts.
