KNOWING YOUR CAR7
1
Dashboard .................................................. 8
Control panel and on-board in strument s...... 9
Dis play ....................................................... 26
Menu items ................................................. 30
Trip Comput er ............................................ 40
Symbols ...................................................... 42
Lancia Code system..................................... 43
The keys ..................................................... 44
Alarm ......................................................... 48
Ignition switch ............................................ 51
S eats .......................................................... 52
Head res traints ........................................... 55
S teering wheel ............................................ 56
Rear view mirrors ....................................... 56
Climatic comfort ......................................... 58
Manual climate control system .................... 59
Dual-zone automatic climate control system ... 61
External light s............................................. 67
Window cleani ng ......................................... 70
Cruis e Control ............................................. 73
Roof light s................................................... 75
Controls ...................................................... 77
Fuel cut-off system ...................................... 80 Interior fittings
............................................ 81
S unroof ....................................................... 86
Doors .......................................................... 89
Electric windows ........................................ 92
Luggage compart ment................................. 96
Bonnet ........................................................ 102
Roof rack/s ki rack ....................................... 104
Headlight s................................................... 105
D ST system ................................................. 107
S P
ORT function .......................................... 107
Reactive Suspens ion System ........................ 109
Driving Advis or ........................................... 110
Advanced ES P system ................................. 117
EOBD system .............................................. 124
“Dualdrive” electric power
s teering system ............................................ 125
TPMS system .............................................. 127
Parking sens ors ........................................... 131
Magic Parking ............................................. 134
Wiring for radio system .............................. 148
Accessories purchased by the owne r............. 149
Refuelling the car ........................................ 150
Protecting the environment.......................... 152
001-154 Delta GB 1ed 03/03/14 09.59 Pagina 7

56KNOWING YOUR CAR
STEERING WHEEL
It can be adjusted vertically (and axially).
To adjust the steering wheel, move the lever fig. 25 up-
wards to pos ition 1. Adjus t the steering wheel into the mos t
s uitable pos ition and lock it in this position by moving the
lever to po sition 2.
REAR VIEW MIRRORS
INTERNAL REAR VIEW MIRROR fig . 26
The mirror is fitted with a s afety device that caus es its
releas e in the event of a violent impact with the passen-
ger.
Lever A can be us ed to move the mirror to two different
pos itions : normal or antiglare.
INTERNAL ELEC TROCHROMIC REAR VIEW
MIRROR (for versions/markets , where provided)
S ome vers ions have an electrochromic mirror with auto-
matic antiglare function.
When revers e gear is engaged, the mirror i s automatical-
l y s et for day time use.
Any adjustments must be carried out only
with the car stationary and engine off.
fig. 26L0E0013mfig. 25L0E0012m
001-154 Delta GB 1ed 03/03/14 10.00 Pagina 56

KNOWING YOUR CAR57
1
DOOR MIRRORS
Mirror electric folding fig. 27
(for vers ions/markets , where provided)
Proceed as follows to adjus t the position of the door mir-
ror s:
❍ select the mirror us ing selector B;
❍ adjus t the mirror u sing the control s A, in all four di-
rections . Mirror manual foldin
g fig . 28
When required (for example when the mirror cau se s dif-
ficulty in narrow s paces) it is possible to fold the mirror
b y moving it from pos ition 1 (open), to pos ition 2
(clos ed).
On some vers ions the door mirrors can be folded back elec-
trically by operating a dedicated control.
fig. 27L0E0014mfig. 28L0E0015m
When driving, the mirrors should always be
in position 1. As the door mirrors are curved,
they may slightly alter the perception of dis-
tance.
001-154 Delta GB 1ed 03/03/14 10.00 Pagina 57

KNOWING YOUR CAR65
1
Heated rear window and door mirrors
demisting/defrosting fig. 31
Press button F
(to activate; when this function is acti-
vated, the button LED light s up.
This function is timed and will turn off automaticall y af-
ter 20 minute s. Press the button
(again to s witch the
function off.
IMPORTANT Do not appl y s tickers on the ins ide of the
rear window over the heating filaments to avoid damage.
IMPORTANT Press
Tto introduce air from the out-
s ide (in this case the LED on the button i s off). Rapid front window demistin
g/defrosting
(MAX-DEF function) fi g. 31
Press button G
-to automaticall y activate the timed op-
eration of all the functions required to rapidly demist/de-
fros t the winds creen and front s ide windows.
The functions are:
❍ climate control compre ssor engagement (with an out-
s ide temperature of above 4°C);
❍ switching off, if previous ly on, of the interior air re-
circulation (LED on button
Toff);
❍ switching on of heated rear window (LED on button
-on) and door mirror heater coil s;
❍ air temperature s et to maximum;
❍ activation of air flow.
001-154 Delta GB 1ed 03/03/14 10.00 Pagina 65

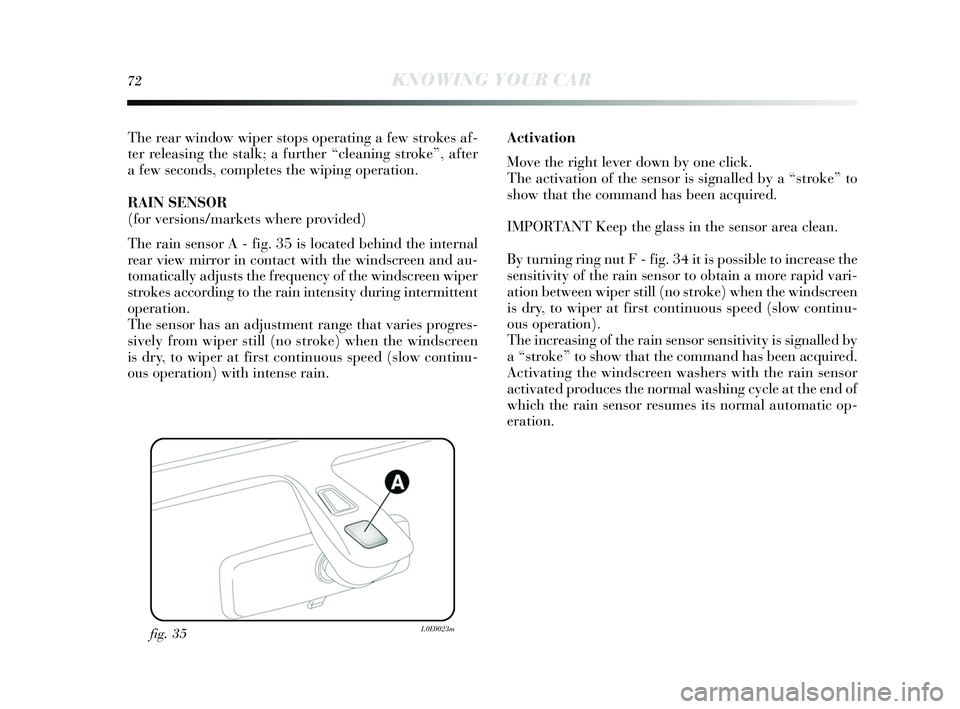

72KNOWING YOUR CAR
The rear window wiper stops operating a few strokes af-
ter releas ing the stalk; a further “cleaning stroke”, after
a few s econds, completes the wiping operation.
RAIN SENS OR
(for vers ions/markets where provided)
The rain s ensor A - fig. 35 i s located behind the internal
rear view mirror in contact with the wind screen and au-
tomatically adjusts the frequenc y of the winds creen wiper
s trokes according to the rain intens ity during intermittent
operation.
The sens or has an adjus tment range that varie s progres -
s ively from wiper s till (no stroke) when the wind screen
i s dry , to wiper at firs t continuous s peed (s low continu-
ou s operation) with inten se rain.
fig. 35L0E0023m
Activation
Move the right lever down b y one click.
The activation of the sens or is s ignalled by a “stroke” to
s how that the command ha s been acquired.
IMPORTANT Keep the gla ss in the sensor area clean.
B y turning ring nut F - fig. 34 it i s possible to increas e the
s ens itivity of the rain sens or to obtain a more rapid vari-
ation between wiper s till (no stroke) when the winds creen
i s dry , to wiper at firs t continuous s peed (s low continu-
ous operation).
The increas ing of the rain sens or sens itivity is s ignalled b y
a “s troke” to s how that the command ha s been acquired.
Activating the winds creen washers with the rain s ensor
activated pr

oduce s the normal was hing cycle at the end of
which the rain s ensor res umes its normal automatic op-
eration.
001-154 Delta GB 1ed 03/03/14 10.00 Pagina 72

KNOWING YOUR CAR81
1
INTERIOR FITTINGS
SUN VIS ORS fig. 44
They are located at the s ides of the interior rear view
mirror.
They can be adju sted forwards and sideways.
A mirror is provided on the back of the sun vis ors.
This is illuminated by roof light A. The driver and pas -
s enger-s ide sun vis ors als o feature a document holder.
IMPORTANT On both sides of the passenger side sun vi-
s or there is a label remembering that it i s compuls ory to
deactivate the airbag s if a rearward facing child re straint
system i s fitted. Always comply with the instructions
on the label (s ee the “Front Airbag s” paragraph in chap-
ter “S afety”).
fig. 44L0E0032m
FRONT ARMRES T WITH STORAGE
C OMPARTMENTS
This is located between the front seats . A s torage com-
partment and cooled drinks compartment are located in-
s ide the armres t (for versions/markets , where provided)
( see following paragraphs ). The armrest can be moved
backwards and forward s b y operating the cover A - fig. 45.
S torag e compartment
Lift up cover A - fig. 45: you can thu s access the s torage
compartment B.
fig. 45L0E0033m
001-154 Delta GB 1ed 03/03/14 10.00 Pagina 81

110KNOWING YOUR CAR
DRIVING ADVISOR
(Lane crossing warning )
(for versions/markets , where provided)
The Driving Advisor is a warnin g s ystem which no-
tifies the driver if they cross lanes, assisting the dri-
ver when distracted.
A video s ensor, fitted on the winds creen near the interior
rear view mirror, detect s the lane demarcation line s and
the pos ition of the car in relation to them.
IMPORTANT On cars with Driving Advisor, it is advisable
to contact a Lancia Dealer ship should the winds creen need
to be replaced. If the repair i s being carried out at a spe-
cialis t window replacement centre, it i s s till necessary to
go to a Lancia Dealer ship to have the TV camera cali-
brated.
System failure
In the event of a malfunction, the
system notifies the dri-
ver of the fault via a dedicated message in the reconfig-
urable multifunction di splay instrument panel and the
amber isymbol coming on.
In this case, go to a Lancia Dealer ship.
001-154 Delta GB 1ed 03/03/14 10.00 Pagina 110

STARTING AND DRIVING191
3
TOWING TRAILERS
IMPORTANT
For towing caravans or trailers the car must be fitted with
a certified tow hook and an adequate electrical system. In-
stallation should be carried out by specialised personnel
who will issue the required papers for travelling on roads.
Install any specific and/or additional door mirrors as spec-
ified by the Highway Code.
Remember that when towing a trailer, steep hills are hard-
er to climb, braking spaces increase and overtaking takes
longer depending on the overall weight.
Engage a low gear when driving downhill, rather than con-
stantly using the brake.
The weight the trailer exerts on the car tow hook reduces
the car’s loading capacity by the same amount. To make
sure that the maximum towable weight is not exceeded
(given in the car registration document) account should
be taken of the fully laden trailer, including accessories
and luggage.
Do not exceed the speed limits specific to each country you
are driving in, in the case of vehicles towing trailers. In
any case, the top speed must not exceed 100 km/h.
The ABS with which the vehicle may be
equipped does not control the braking system
of the trailer. Take specific care when trav-
elling on slippery roads.
Never modify the braking system of the car
to control the trailer brake. The trailer brak-
ing system must be fully independent from
the hydraulic system of the car.
183-194 Delta GB 1ed 26/08/13 12.15 Pagina 191

222IN AN EMERGENCY
fig. 34L0E0173mfig. 36L0E0175m
fig. 35L0E0174m
GLOVE COMPARTMENT LIGHT
To replace the bulb, proceed as follows:
❍open the glove compartment, and remove the light
A - fig. 34;
❍ replace bulb B releasing it from the side contacts and
making sure the new bulb is correctly fastened between
the contacts.
COURTESY MIRROR LIGHT
(for versions/markets, where provided)
To replace the bulb, proceed as follows:
❍ open the cover A - fig. 35 on the mirror;
❍ applying leverage at the points shown by the arrows,
remove light B; ❍
replace bulb C - fig. 36 releasing it from the side con-
tacts and making sure the new bulb is correctly fas-
tened between the contacts.
195-232 Delta GB 1ed 03/03/14 09.15 Pagina 222

IN AN EMERGENCY227
4
F12
F12
F13
F13
F31
F33
F34
F35
F36
F37
F38
F39
F40
F417.515
7.5 15 5
20
20 5
20
7,5 10
10
30
7.539
39
39
39
39
39
39
39
39
39
39
39
39
39
FUSE SUMMARY TABLE
ELECTRIC DEVICES FUSE AMPERE FIGURE
Right dipped beam headlight
Right dipped beam headlight (Xenon gas discharge bulb)
Left dipped beam headlight, headlight alignment corrector
Left dipped beam headlight (Xenon gas discharge bulb)
Climate control system fan relay coil, Body Computer
Rear left electric window
Rear right electric window
Reversing lights, engine compartment junction unit relay coils,
brake light pedal control (normally closed contact), water in diesel sensor,
flow meter
Central locking system control unit, fuel flap, dead lock, tailgate release
Third brake light, instrument panel, Adaptive Headlights Node,
control unit on left-hand gas discharge headlight
Front roof lights, rear central roof light,
driver side and passenger side sun visor lights, luggage compartment lig\
ht,
glove compartment light (Platinum trim level with optional sun roof)
Radio setup/Radio/Radio Navigator, Blue&Me
TMnode, alarm siren, alarm
system on roof light, climate control unit, tyre pressure monitoring control
unit, diagnosis socket connector, rear roof lights
Heated rear window
Electric door mirror demisters, demisters on windscreen jets
195-232 Delta GB 1ed 03/03/14 09.15 Pagina 227
