Lancia Thema 2013 Owner handbook (in English)

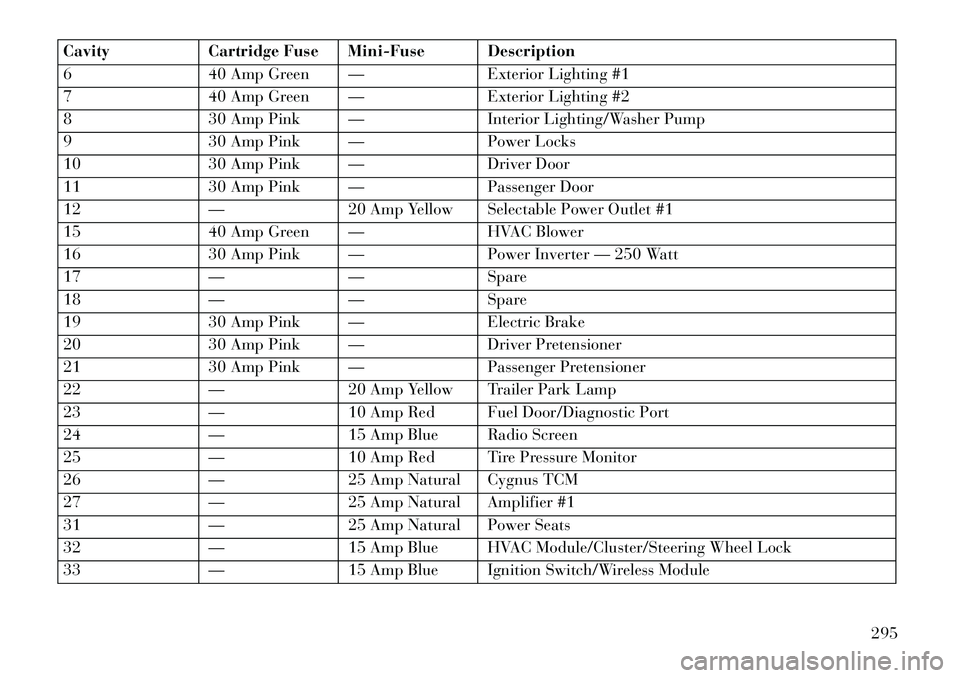

CavityCartridge Fuse Mini-Fuse Description
6 40 Amp Green — Exterior Lighting #1
7 40 Amp Green — Exterior Lighting #2
8 30 Amp Pink — Interior Lighting/Washer Pump
9 30 Amp Pink — Power Locks
10 30 Amp Pink — Driver Door
11 30 Amp Pink — Passenger Door
12 —20 Amp Yellow Selectable Power Outlet #1
15 40 Amp Green — HVAC Blower
16 30 Amp Pink — Power Inverter — 250 Watt
17 —— Spare
18 —— Spare
19 30 Amp Pink — Electric Brake
20 30 Amp Pink — Driver Pretensioner
21 30 Amp Pink — Passenger Pretensioner
22 —20 Amp Yellow Trailer Park Lamp
23 —10 Amp Red Fuel Door/Diagnostic Port
24 —15 Amp Blue Radio Screen
25 —10 Amp Red Tire Pressure Monitor
26 —25 Amp Natural Cygnus TCM
27 —25 Amp Natural Amplifier #1
31 —25 Amp Natural Power Seats
32 —15 Amp Blue HVAC Module/Cluster/Steering Wheel Lock
33 —15 Amp Blue Ignition Switch/Wireless Module
295

CavityCartridge Fuse Mini-Fuse Description
34 —10 Amp Red Steering Column Module/Clock
35 —10 Amp Red Battery Sensor
36 —20 Amp Yellow T/Tow Module Lighting
37 —15 Amp Blue Radio
38 —20 Amp Yellow Console Power Outlet
40 —— Spare
41 —— Spare
42 30 Amp Pink — Rear Defrost (EBL Feed)
43 —25 Amp Natural Rear Heated Seats/Heated Steering Wheel
44 —10 Amp Red Park Assist/Blind Spot/Camera/T-Tow Mod Run Sense
45 —15 Amp Blue Cluster/Rearview Mirror/Compass/Humidity Sensor
46 —10 Amp Red Adaptive Cruise Control
47 —10 Amp Red Adaptive Front Lighting
48 —20 Amp Yellow Active Suspension — If Equipped
49 —— Spare
50 —— Spare
51 —20 Amp Yellow Front Heated Seats
52 —10 Amp Red Heated Cupholders/Rear Heated Seat Switches
53 —10 Amp Red HVAC Module/In Car Temperature Sensor
54 —— Spare
55 —— Spare
56 —— Spare
296

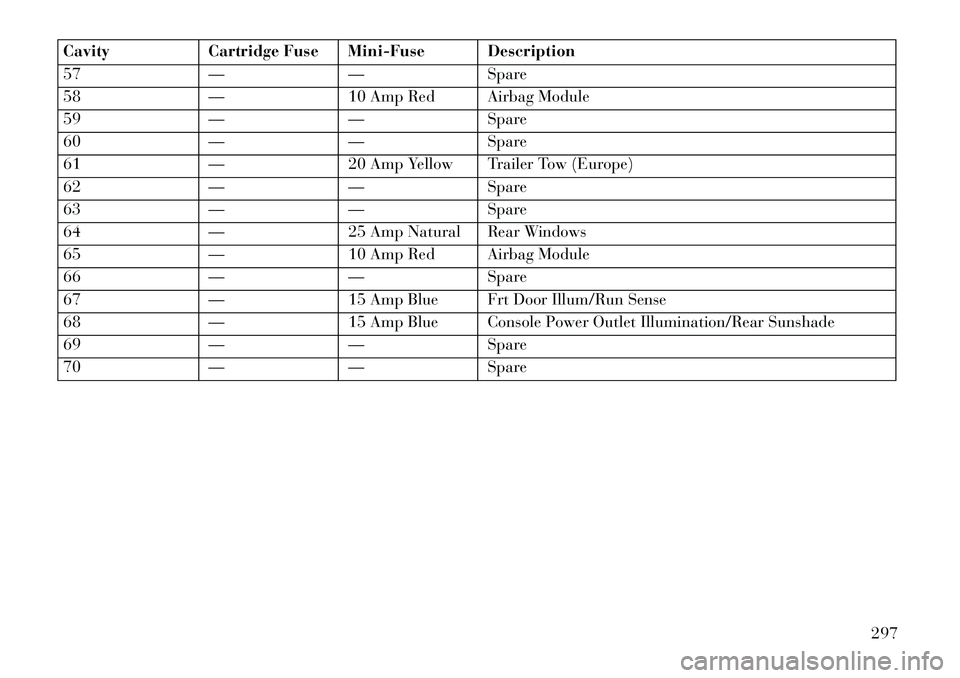

CavityCartridge Fuse Mini-Fuse Description
57 —— Spare
58 —10 Amp Red Airbag Module
59 —— Spare
60 —— Spare
61 —20 Amp Yellow Trailer Tow (Europe)
62 —— Spare
63 —— Spare
64 —25 Amp Natural Rear Windows
65 —10 Amp Red Airbag Module
66 —— Spare
67 —15 Amp Blue Frt Door Illum/Run Sense
68 —15 Amp Blue Console Power Outlet Illumination/Rear Sunshade
69 —— Spare
70 —— Spare
297

VEHICLE STORAGE
If you are leaving your vehicle dor-
mant for more than 21 days, you may
want to take these steps to protect
your battery.
1.
Disconnect the negative cable from
the battery.
NOTE: When the negative cable
is disconnected from the battery,
and the trunk lid is completely
closed, it is necessary to pull the
emergency release lever of the
trunk latching mechanism to open
it again. To access the trunk and operate the lever, fold the rear
seatbacks. Please refer to “FOLD-
ING REAR SEAT” in “UNDER-
STANDING THE FEATURES OF
YOUR VEHICLE” and "TRUNK
EMERGENCY RELEASE” in
“THINGS TO KNOW BEFORE
STARTING YOUR VEHICLE” for
further information.
2. Anytime you store your vehicle, or
keep it out of service (i.e., vacation)
for two weeks or more, run the air
conditioning system at idle for about
five minutes in the fresh air and high
blower setting. This will ensure ad-
equate system lubrication to minimize
the possibility of compressor damage
when the system is started again.
REPLACEMENT BULBS
Interior Bulb Number
Rear Courtesy/Reading
Lamps . . . . . . . . . . . . . . . W5W
Rear Compartment
(Trunk) Lamp . . . . . . . . . . 562
Overhead Console Reading
Lamps . . . . . . . . . . . . . . . . . 578
Visor Vanity Lamps . . . . . . 194
Glove Box Lamp
(for versions/markets,
where provided) . . . . . . . . . 194
Door Courtesy . . . . . . . . . . . 562
Shift Indicator
Lamp . . . . . . . . . . . JKLE14140
Optional Door Map
Pocket/Cupholder . . . . . . . LED
(Serviced at Authorized Dealer)
NOTE: For lighted switches, see
your authorized dealer for re-
placement instructions.
All of the interior bulbs are glass wedge
base or glass cartridge types. Alumi-
num base bulbs are not approved and
should not be used for replacement.
Negative Battery Cable
298

Exterior Bulb Number
Low Beam/High Beam
(Bi-Xenon Headlamp) . . . . D3S
(Serviced at Authorized Dealer)
Front Turn Signal
Lamp . . . . . . . . . . . PSY24WSV
Front Park Lamp . . . . . . . . LED(Serviced at Authorized Dealer)
Daytime Running Lamp . . . LED (Serviced at Authorized Dealer)
Front Fog Lamp
(for versions/markets,
where provided) . . . . . . . . . . H11
Front Position Lamp . . . . . . LED (Serviced at Authorized Dealer)
Front Side Marker Lamp . . . LED (Serviced at Authorized Dealer)
Side Repeater Lamps . . . . . . LED (Serviced at Authorized Dealer)
Rear Tail/Stop/Side Marker
Lamp . . . . . . . . . . . . . . . . . LED(Serviced at Authorized Dealer)
Rear Turn Signal Lamp . . WY21W
Rear Fog Lamps . . . . . . . . . . LED (Serviced at Authorized Dealer) Backup Lamp . . . . . . . . . . W16W
Center High Mount Stop
Lamp (CHMSL) . . . . . . . . . . LED
(Serviced at Authorized Dealer)
License . . . . . . . . . . . . . . . . W5W
BULB REPLACEMENT
LOW BEAM HEADLAMP,
HIGH BEAM HEADLAMP,
PARK/TURN LAMP, INNER
PARK LAMP, AND OUTER
PARK LAMP
High Intensity Discharge
Headlamps (HID)
(for versions/markets, where
provided)CAUTION!
Where possible, it is advisable to
have bulbs changed at a LANCIA
Dealership. Proper operation and
orientation of the external lights are
essential for driving safety and
complying with the law. The headlamps are a type of high
voltage discharge tube. High voltage
can remain in the circuit even with the
headlamp switch off and the key re-
moved.
Because of this, you should
not attempt to service a headlamp
bulb yourself. If a headlamp bulb
fails, take your vehicle to an au-
thorized dealer for service.
WARNING!
A transient high voltage occurs at
the bulb sockets of HID headlamps
when the headlamp switch is
turned ON. It may cause serious
electrical shock or electrocution if
not serviced properly. See your au-
thorized dealer for service.
NOTE: On vehicles equipped
with HID headlamps, when the
headlamps are turned on, there is
a blue hue to the lights. This di-
minishes and becomes more white
after approximately 10 seconds, as
the system charges.
299

Standard Low Beam Headlamp,
High Beam Headlamp, Park/Turn
Lamp, Inner Park Lamp, And
Outer Park LampCAUTION!
Where possible, it is advisable to
have bulbs changed at a LANCIA
Dealership. Proper operation and
orientation of the external lights are
essential for driving safety and
complying with the law.
1. Open the hood.
NOTE:
Removal of the air cleaner
filter housing may be necessary
prior to replacing bulbs in the head-
lamp assembly on the driver side of
the vehicle.
2. Twist the appropriate bulb and
socket assembly counterclockwise,
and then pull it out of the headlamp
assembly.
3.
Disconnect the bulb from the socket
assembly and install the replacement
bulb.
4. Reinstall the bulb and socket as-
sembly into the headlamp assembly,
and then turn it clockwise.CAUTION!
Do not touch the new bulb with
your fingers. Oil contamination will
severely shorten bulb life. If the
bulb comes in contact with an oily
surface, clean the bulb with rub-
bing alcohol.
FRONT TURN SIGNAL
LAMPS
1. Open the hood.
NOTE:
Removal of the air cleaner
filter housing may be necessary
prior to replacing bulbs in the head-
lamp assembly on the driver side of
the vehicle.
2. Remove plastic cap from the back
of the headlamp housing.
3. Squeeze the two tabs on the side of
the turn signal bulb socket and pull
straight out from the lamp. 4.
Install replacement bulb and con-
nector assembly straight into the lamp
until it locks in place.
5. Reinstall plastic cap to headlamp
assembly housing.
REAR TURN SIGNAL AND
BACKUP LAMPS
1. Open the trunk.
2.
Remove the trunk trim by removing
the grocery hook (using a T-20 torx
driver or similar tool), remove the fas-
tener, and pull back the weather strip.
3. Pull back the trunk liner to gain
access to the tail lamp wing nuts.
4. Remove the three wing nuts from
the back of the tail lamp assembly.
5. Pull the tail lamp assembly away
from the vehicle enough to access the
electrical connector.
6. Push the electrical connector lock-
ing tab to the side.
7.
Disconnect the electrical connector.
300

8. Continue removing lamp from
vehicle in order to access the bulb(s).
9. Turn the appropriate bulb and
socket assembly counterclockwise to
remove it from the tail lamp assembly.
10. Disconnect the bulb from the
socket assembly and install the re-
placement bulb.
11. Reinstall the bulb and socket as-
sembly into the tail lamp assembly,
and then turn it clockwise.
12. Reinstall the tail lamp assembly,
fasteners, electrical connector, and
trunk trim.
13. Close the trunk.LICENSE LAMP
1. Remove the screws securing the
lamp to the rear fascia.
2. Remove the bulb and socket as-
sembly.
3.
Disconnect the bulb from the socket
assembly and install the replacement
bulb.
4. Reinstall the bulb and socket as-
sembly.
5. Reattach the lamp to the rear fas-
cia, and then install the screws.
1 — License Lamp Bulb
2 — Socket
301

FLUID CAPACITIES
Metric
Fuel (Approximate)
All Engines 72 Liters
Engine Oil with Filter
3.6 Liter Engine 5.6 Liters
3.0L Diesel Engine 9.2 Liters
Cooling System *
3.6 Liter Engine 9.5 Liters
3.0L Diesel Engine 12 Liters
* Includes heater and coolant recovery bottle filled to MAX level.
FLUIDS, LUBRICANTS AND GENUINE PARTS
ENGINE
Component Fluids and Lubricants Specs (Genuine Parts)
Engine Coolant* Red protective agent with antifreeze action, based on inhibited monoethyl
glycol with organic formula. Exceeds CUNA NC 956-16, ASTM D 3306
specifications, FIAT Classification 9.55523 (PARAFLU UP Contractual
Technical Reference N° F101.M01. Cooling circuit usage percentage:
50% water 50% PARAFLU UP **)
Engine Oil – 3.6L Engine*** SAE Grade 5W-30 fully synthetic engine oil that meets FIAT Classification
9.55535–CR1, API SN, ILSAC GF-5 (SELENIA K POWER, Contractual
Technical Reference N° F042.F11)
302

ComponentFluids and Lubricants Specs (Genuine Parts)
Engine Oil – 3.0L Diesel Engine*** SAE Grade 5W-30 fully synthetic engine oil that meets FIAT Classification 9.55535–S3, API SM/CF, ACEA C3 (SELENIA MULTIPOWER C3,
Contractual Technical Reference N° 510.D07)
Spark Plugs – 3.6L Engine RER8ZWYCB4 (Gap 1.1 mm)
Fuel Selection – 3.6L Engine 91 Octane or higher
Fuel Selection – 3.0L Diesel Engine This vehicle must only use premium diesel fuel that meets the requirements of EN 590. Biodiesel blends that meet EN 590 may also be used.
Fuel Additive – 3.0L Diesel Engine Additive for diesel with antifreeze and protective action for diesel engines. (TUTELA DIESEL ART, Contractual Technical Reference N° F601.L06.
To be mixed with the diesel fuel: 25 cc per 10 litres)
* Do not top up or mix with fluids
with different specifications.
** For particularly harsh climate con-
ditions, a mixture of 60% PARAFLU
UP and 40% demineralized water is
recommended. *** In the event of an emergency in
which the original products are not
available, lubricants with at least IL-
SAC GF-5 performance for petrol en-
gines and ACEA C3 performance for
diesel engines are acceptable. In this
case optimum engine performance is
not guaranteed and the lubricantsshould be replaced with recom-
mended products as soon as possible
at a LANCIA Dealership. Using prod-
ucts with specifications lower than
ILSAC GF-5 for gasoline engines or
lower than ACEA C3 for Diesel en-
gines may cause engine damage not
covered by warranty.
303

CHASSISComponentFluids and Lubricants Specs (Genuine Parts)
Automatic Transmission –
3.6L Engine
Totally synthetic lubricant that meets FIAT Classification 9.55550-AV5
(TUTELA TRANSMISSION AS8, Contractual Technical Reference N° F139.I11)
Automatic Transmission –
3.0L Diesel Engine Totally synthetic lubricant that meets FIAT Classification 9.55550-AV3
(TUTELA TRANSMISSION FORCE4, Contractual Technical Reference
N° F108.F11)
Brake Master Cylinder Synthetic fluid that meets FIAT Classification 9.55597, FMVSS n° 116, DOT 4,
ISO 4925, SAE J-1704 (TUTELA TOP 4, Contractual Technical Reference
N° F001.A93)
Power Steering Reservoir Totally synthetic lubricant that meets FIAT Classification 9.55550-AG3
(TUTELA GI/R, Contractual Technical Reference N° F428.H04)
Front Axle – All Wheel Drive Only SAE Grade 75W–140 Synthetic gear lubricant that meets FIAT Classification 9.55550-DA5, API GL-5, SAE J-2360 (TUTELA TRANSMISSION X-ROAD,
Contractual Technical Reference N° F140.F11).
Rear Axle SAE Grade 75W–140 Synthetic gear lubricant that meets FIAT Classification
9.55550-DA5, API GL-5, SAE J-2360 (TUTELA TRANSMISSION X-ROAD,
Contractual Technical Reference N° F140.F11).
Transfer Case – All Wheel Drive
Only Contact a LANCIA Dealership.
Windshield/Rear Window
Washer Fluid Mixture of alcohol, water and surfactants that meets FIAT Classification
9.55522, CUNA NC 956-11 (TUTELA PROFESSIONAL SC35, Contractual
Technical Reference N° F201.D02)
304
