WARNING!(Continued)
Do not attempt to modify any part
of your air bag system. The air bag
may inflate accidentally or may
not function properly if modifica-
tions are made. Take your vehicle
to an authorized dealer for any
air bag system service. If your seat,
including your trim cover and
cushion, needs to be serviced in
any way (including removal or
loosening/tightening of seat at-
tachment bolts), take the vehicle
to your authorized dealer. Only
manufacturer approved seat ac-
cessories may be used. If it is nec-
essary to modify the air bag system
for persons with disabilities, con-
tact your authorized dealer.
Air Bag Warning Light
You will want to have the
air bags ready to inflate for
your protection in a colli-
sion. The Air Bag Warning
Light monitors the internal circuits
and interconnecting wiring associated with air bag system electrical compo-
nents. While the air bag system is
designed to be maintenance free. If
any of the following occurs, have an
authorized dealer service the air bag
system immediately.
 The Air Bag Warning Light does
not come on during the four to eight
seconds when the ignition is first
cycled to the ON/RUN.
 The Air Bag Warning Light remains on after the four to eight-second
interval.
 The Air Bag Warning Light comes on intermittently or remains on
while driving.
NOTE:
If the speedometer, ta-
chometer, or any engine related
gauges are not working, the Occu-
pant Restraint Controller (ORC)
may also be disabled. The air bags
may not be ready to inflate for your
protection. Promptly check the fuse
block for blown fuses. Refer to the
label located on the inside of the
fuse block cover for the proper air
bag fuses. See your authorized
dealer if the fuse is good.
Event Data Recorder (EDR)This vehicle is equipped with an event
data recorder (EDR). The main pur-
pose of an EDR is to record, in certain
crash or near crash-like situations,
such as an air bag deployment or hit-
ting a road obstacle, data that will
assist in understanding how a vehicle’s
systems performed. The EDR is de-
signed to record data related to vehicle
dynamics and safety systems for a
short period of time, typically 30 sec-
onds or less. The EDR in this vehicle is
designed to record such data as: How various systems in your ve-
hicle were operating;
 Whether or not the driver and pas- senger safety belts were
buckled/fastened;
 How far (if at all) the driver was depressing the accelerator and/or
brake pedal; and,
 How fast the vehicle was traveling.
These data can help provide a better
understanding of the circumstances in
which crashes and injuries occur.
45

NOTE:
 For vehicles equipped with theEVIC, the power sunroof switch
will remain active for up to ap-
proximately ten minutes after
the ignition switch is turned to
the LOCK position. Opening ei-
ther front door will cancel this
feature.
 The Ignition Off time is pro- grammable using the Uconnect
Touch™ System. Refer to
“Uconnect Touch™ Settings” in
“Understanding Your Instru-
ment Panel” for further infor-
mation.
SUNROOF FULLY CLOSED
Press the switch forward and release
to ensure that the sunroof is fully
closed. ELECTRICAL POWER
OUTLETS
There are three 12 Volt (13 Amp)
electrical power outlets on this ve-
hicle. The power outlets are protected
by a fuse.
Insert cigar lighter or accessory plug
into the power outlets for use to en-
sure proper operation.
CAUTION!
Do not exceed the maximum
power of 160 Watts (13 Amps) at
12 Volts. If the 160 Watt (13 Amp)
power rating is exceeded, the fuse
protecting the system will need to
be replaced. Power outlets are designed for ac-
cessory plugs only. Do not insert
any other object in the power out-
lets as this will damage the outlet
and blow the fuse. Improper use
of the power outlet can cause
damage not covered by your New
Vehicle Limited Warranty. The front 12 Volt power outlet has
power available only when the igni-
tion is placed in the ACC or RUN
position.
WARNING!
Do not place ashes inside the cubby
bin located on the center console on
vehicle's not equipped with the ash
receiver tray. A fire leading to
bodily injury could result.
Front Power Outlet
145

The center console outlet is powered
directly from the battery (power
available at all times). Items plugged
into this outlet may discharge the
battery and/or prevent the engine
from starting.
There is also a 12 volt power outlet
located on the back of the center con-
sole for rear passengers. This power
outlet has power available only when
the ignition is placed in the ACC or
RUN position.
WARNING!
To avoid serious injury or death:
 Only devices designed for use inthis type of outlet should be in-
serted into any 12 Volt outlet.
 Do not touch with wet hands.
 Close the lid when not in use and while driving the vehicle.
 If this outlet is mishandled, it may cause an electric shock and fail-
ure.
CAUTION!
 Many accessories that can beplugged in draw power from the
vehicle's battery even when not in
use (i.e., cellular phones, etc.).
Eventually, if plugged in long
enough, the vehicle's battery will
discharge sufficiently to degrade
battery life and/or prevent the
engine from starting.
 Accessories that draw higher
power (i.e., coolers, vacuum
cleaners, lights, etc.) will degrade
the battery even more quickly.
Only use these intermittently and
with greater caution.
 After the use of high power draw accessories or long periods of the
vehicle not being started (with
accessories still plugged in), the
vehicle must be driven a suffi-
cient length of time to allow the
alternator to recharge the vehi-
cle's battery.
(Continued)
Center Console Power Outlet
Rear Center Console Power Outlet
Power Outlet Fuse Locations
1 — #12 Fuse 20 A Yellow Cigar
Lighter Instrument Panel And Power
Outlet Console Rear
2 — #38 Fuse 20 A Yellow Power
Outlet Inside Arm Rest
146

 EXHAUST SYSTEM . . . . . . . . . . . . . . . . . . . . .280
 COOLING SYSTEM . . . . . . . . . . . . . . . . . . . . .281
 BRAKE SYSTEM . . . . . . . . . . . . . . . . . . . . . . .284
 AUTOMATIC TRANSMISSION . . . . . . . . . . . . .286
 ALL WHEEL DRIVE (AWD)(for versions/markets, where provided) . . . . . .287
 REAR AXLE . . . . . . . . . . . . . . . . . . . . . . . . . .287
 APPEARANCE CARE AND PROTECTION FROM CORROSION . . . . . . . . . . . . . . . . . . . . .288
 FUSES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .290
 Integrated Power Module . . . . . . . . . . . . . . . .290
 Rear Power Distribution Center . . . . . . . . . . .294
 VEHICLE STORAGE . . . . . . . . . . . . . . . . . . . . . .298
 REPLACEMENT BULBS . . . . . . . . . . . . . . . . . . .298
 BULB REPLACEMENT . . . . . . . . . . . . . . . . . . . .299
 LOW BEAM HEADLAMP, HIGH BEAMHEADLAMP, PARK/TURN LAMP, INNER
PARK LAMP, AND OUTER PARK LAMP . . . . . .299
 FRONT TURN SIGNAL LAMPS . . . . . . . . . . . . .300
REAR TURN SIGNAL AND BACKUP LAMPS . . .300 LICENSE LAMP . . . . . . . . . . . . . . . . . . . . . . . .301
 FLUID CAPACITIES . . . . . . . . . . . . . . . . . . . . . .302
FLUIDS, LUBRICANTS AND GENUINE PARTS . . .302 ENGINE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .302
 CHASSIS . . . . . . . . . . . . . . . . . . . . . . . . . . . . .304
270

ENGINE COMPARTMENT — 3.6L1 — Integrated Power Module (Fuses)5 — Air Cleaner Filter
2 — Engine Oil Dipstick 6 — Engine Oil Fill
3 — Brake Fluid Reservoir Access Cover 7 — Remote Jump Start (Positive Battery Post)
4 — Engine Coolant Reservoir 8 — Washer Fluid Reservoir
271

ENGINE COMPARTMENT — 3.0L DIESEL1 — Totally Integrated Power Module (Fuses)5 — Engine Air Cleaner Filter
2 — Engine Oil Fill 6 — Engine Oil Dipstick
3 — Brake Fluid Reservoir 7 — Washer Fluid Reservoir
4 — Engine Coolant Reservoir
272

Cleaning Headlights
Your vehicle has plastic headlights
that are lighter and less susceptible to
stone breakage than glass headlights.Plastic is not as scratch resistant as
glass and therefore different lens clean-
ing procedures must be followed.To minimize the possibility of scratch-
ing the lenses and reducing light out-
put, avoid wiping with a dry cloth. To
remove road dirt, wash with a mild
soap solution followed by rinsing.Do not use abrasive cleaning compo-
nents, solvents, steel wool or other ag-
gressive material to clean the lenses.Glass Surfaces
All glass surfaces should be cleaned
on a regular basis with any commer-
cial household-type glass cleaner.
Never use an abrasive type cleaner.
Use caution when cleaning the inside
rear window equipped with an elec-
tric defroster. Do not use scrapers or
other sharp instruments that may
scratch the elements.When cleaning the rear view mirror,
spray cleaner on the towel or rag that
you are using. Do not spray cleaner
directly on the mirror.
Cleaning Plastic Instrument
Cluster Lenses
The lenses in front of the instruments
in this vehicle are molded in clear
plastic. When cleaning the lenses,
care must be taken to avoid scratch-
ing the plastic.
1. Clean with a wet soft rag. A mild
soap solution may be used, but do not
use high alcohol content or abrasive
cleaners. If soap is used, wipe clean
with a clean damp rag.
2. Dry with a soft cloth.
Seat Belt Maintenance
Do not bleach, dye, or clean the belts
with chemical solvents or abrasive
cleaners. This will weaken the fabric.
Sun damage can also weaken the fabric.If the belts need cleaning, use a mild
soap solution, or lukewarm water. Do
not remove the belts from the vehicle
to wash them.Replace the belts if they appear frayed
or worn or if the buckles do not work
properly.
Cleaning The Center Console
Cupholders
Clean with a damp cloth or towel using
a mild detergent with the cupholder in
the center console.NOTE: The cupholder cannot be
removed.
FUSES
Integrated Power ModuleThe Integrated Power Module is lo-
cated in the engine compartment. This
module contains fuses and relays.
Integrated Power Module
290

CAUTION!
 When installing the integratedpower module cover, it is impor-
tant to ensure the cover is prop-
erly positioned and fully latched.
Failure to do so may allow water
to get into the integrated power
module and possibly result in an
electrical system failure.
(Continued)
CAUTION!(Continued)
 When replacing a blown fuse, it is important to use only a fuse hav-
ing the correct amperage rating.
The use of a fuse with a rating
other than indicated may result in
a dangerous electrical system
overload. If a properly rated fuse
continues to blow, it indicates a
problem in the circuit that must
be corrected.

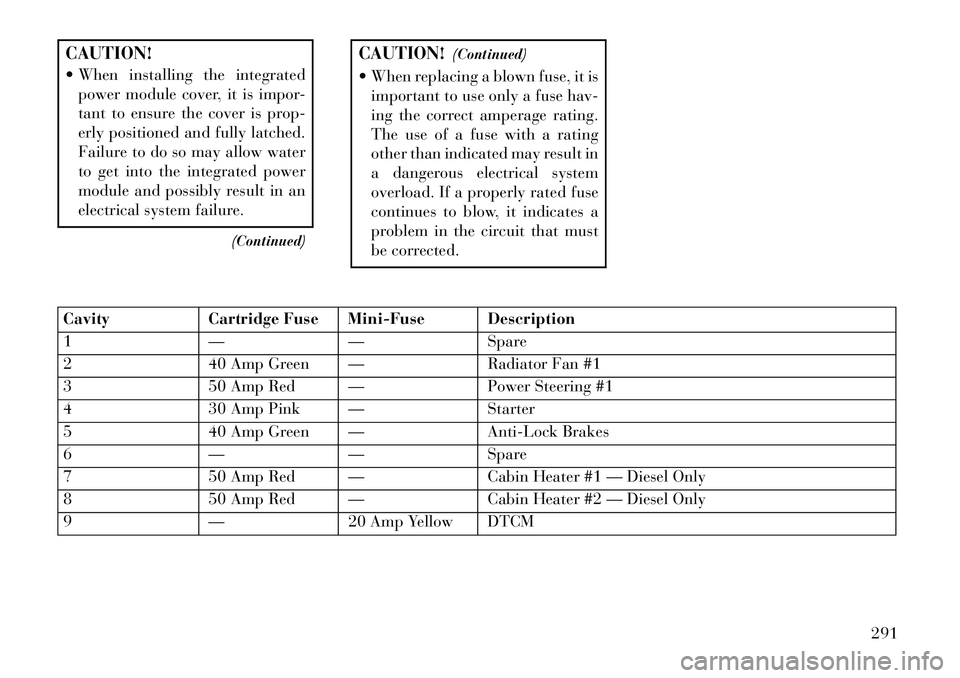

Cavity Cartridge Fuse Mini-Fuse Description
1 —— Spare
2 40 Amp Green — Radiator Fan #1
3 50 Amp Red — Power Steering #1
4 30 Amp Pink — Starter
5 40 Amp Green — Anti-Lock Brakes
6 —— Spare
7 50 Amp Red — Cabin Heater #1 — Diesel Only
8 50 Amp Red — Cabin Heater #2 — Diesel Only
9 —20 Amp Yellow DTCM
291

CavityCartridge Fuse Mini-Fuse Description
10 —5 Amp Tan Security
11 —20 Amp Yellow Horns
12 —10 Amp Red Air Conditioning Clutch
13 —— Spare
14 —25 Amp Natural Anti-Lock Brakes
15 —— Spare
16 —— Spare
18 50 Amp Red — Radiator Fan #2
19 50 Amp Red — Power Steering #2
20 30 Amp Pink — Wiper Motor
21 30 Amp Pink — Headlamp Washers
22 50 Amp Red — Glow Plug Module — Diesel Only
23 30 Amp Pink — Fuel Pump Feed/Diesel Fuel Heater — Diesel Only
24 50 Amp Red — Cabin Heater #3 — Diesel Only
28 —25 Amp Natural Fuel Pump
29 —15 Amp Blue Transmission/Shifter (TCM Module)
30 —— Spare
31 —25 Amp Natural Engine Module (PCM)
32 —— Spare
33 —— Spare
292

CavityCartridge Fuse Mini-Fuse Description
34 —25 Amp Natural ASD Feed #1
35 —20 Amp Yellow ASD Feed #2
36 —10 Amp Red Anti-Lock Brake Module (ABS/ESP Module)
37 —10 Amp Red Engine Controller (PCM)/Rad Fan Relay Coils
38 —10 Amp Red Airbag Module/Start Feed
39 —10 Amp Red Power Steering Module/AC Clutch Relay/Cabin Heater
Relay Coils — Diesel Only
48 —10 Amp Red DTCM/Diesel Scr Module — Diesel Only
49 —15 Amp Blue ASD Feed #3
50 —15 Amp Blue ASD Feed #4
51 —20 Amp Yellow Vacuum Pump
52 —— Spare
53 —— Spare
293
