torque Lancia Thema 2013 Owner handbook (in English)

WARNING!Do not downshift for additional en-
gine braking on a slippery surface.
The drive wheels could lose their grip
and the vehicle could skid, causing a
collision or personal injury.ALL-WHEEL DRIVE
(AWD) (for versions/
markets, where provided)
This vehicle is equipped with an
active on-demand All-Wheel Drive
(AWD) system which makes available
optimum traction for a wide variety of
road surface and driving conditions.
The system minimizes wheel slip by
automatically redirecting torque to
the front and rear wheels as necessary.To maximize fuel economy, your AWD
vehicle automatically defaults to rear-
wheel drive (RWD) when road and
environmental conditions are such
that wheel slip is unlikely to occur.
When specific road and environmental
conditions require increased levels of
road traction, the vehicle automati-
cally shifts into AWD mode. AutomaticAWD operation could be activated by
outside temperature, wheel slip, or
other predetermined conditions (there
may be a slight delay for AWD engage-
ment after a wheel slip condition
occurs). AWD can also be manually
selected by moving the shift lever into
the AutoStick® mode (+/-) (for
versions/markets, where provided) or
activating the windshield wipers for an
extended period of time. Drive mode,
RWD or AWD, is displayed momen-
tarily in the Electronic Vehicle Infor-
mation Center (EVIC) in the gage area
of the vehicle display when the trans-
mission is first shifted into gear, and if
the drive mode changes during vehicle
operation.
NOTE: If the “SERVICE AWD
SYSTEM” warning message ap-
pears after engine start up, or dur-
ing driving, it means that the AWD
system is not functioning properly
and that service is required. Refer
to “Electronic Vehicle Information
Center (EVIC)” in “Understanding
Your Instrument Panel” for further
information.
CAUTION!
All wheels must have the same size
and type tires. Unequal tire sizes
must not be used. Unequal tire size
may cause failure of the front dif-
ferential and/or the transfer case.
DRIVING ON SLIPPERY
SURFACES
ACCELERATION
Rapid acceleration on snow covered,
wet, or other slippery surfaces may
cause the driving wheels to pull errati-
cally to the right or left. This phenom-
enon occurs when there is a difference
in the surface traction under the rear
(driving) wheels.WARNING!Rapid acceleration on slippery sur-
faces is dangerous. Unequal traction
can cause sudden pulling of the rear
wheels. You could lose control of the
vehicle and possibly have a collision.
Accelerate slowly and carefully
whenever there is likely to be poor
traction (ice, snow, wet mud, loose
sand, etc.).
210

AUTOMATIC
TRANSMISSION
Selection Of Lubricant
It is important to use the proper trans-
mission fluid to ensure optimum
transmission performance and life.
Use only the manufacturer’s recom-
mended transmission fluid. Refer to
“Fluids, Lubricants, and Genuine
Parts” in “Maintaining Your Vehicle”
for fluid specifications. It is important
to maintain the transmission fluid at
the correct level using the recom-
mended fluid. No chemical flushes
should be used in any transmission;
only the approved lubricant should be
used.CAUTION!
Using a transmission fluid other
than the manufacturer’s recom-
mended fluid may cause deteriora-
tion in transmission shift quality
and/or torque converter shudder,
and will require more frequent fluid
and filter changes. Refer to “Fluids,(Continued)
CAUTION!(Continued)
Lubricants, and Genuine Parts” in
“Maintaining Your Vehicle” for
fluid specifications.
Special Additives
Automatic Transmission Fluid (ATF)
is an engineered product and its per-
formance may be impaired by supple-
mental additives. Therefore, do not
add any fluid additives to the trans-
mission. The only exception to this
policy is the use of special dyes for
diagnosing fluid leaks. Avoid using
transmission sealers as they may ad-
versely affect seals.CAUTION!
Using a transmission fluid other
than the manufacturer's recom-
mended fluid may cause deteriora-
tion in transmission shift quality
and/or torque converter shudder.
Using a transmission fluid other
than that recommended by the
manufacturer, and will require
more frequent fluid and filter
(Continued)
CAUTION! (Continued)changes. Refer to “Fluids, Lubri-
cants, and Genuine Parts” in
“Maintaining Your Vehicle” for
further fluid specification.If a transmission fluid leak occurs,
visit your authorized dealer imme-
diately. Severe transmission dam-
age may occur. Your authorized
dealer has the proper tools to ad-
just the fluid level accurately.
Fluid Level Check
The fluid level is preset at the factory
and does not require adjustment un-
der normal operating conditions.
Routine fluid level checks are not re-
quired, therefore the transmission has
no dipstick. Your authorized dealer
can check your transmission fluid
level using special service tools.
If you notice fluid leakage or trans-
mission malfunction, visit your au-
thorized dealer immediately to have
the transmission fluid level checked.
Operating the vehicle with an im-
proper fluid level can cause severe
transmission damage.
286

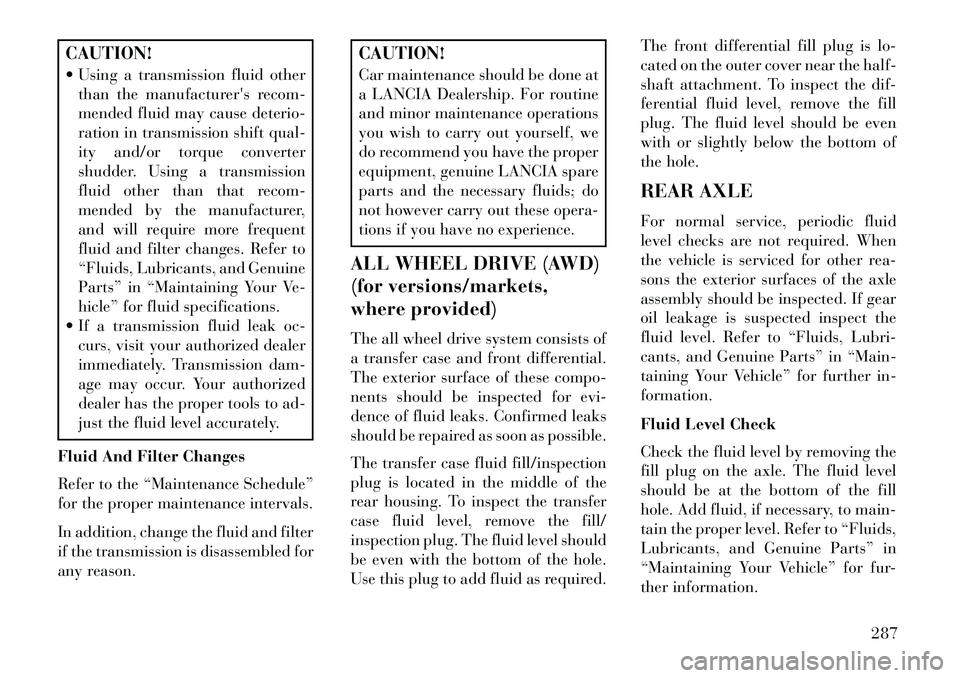

CAUTION!
 Using a transmission fluid otherthan the manufacturer's recom-
mended fluid may cause deterio-
ration in transmission shift qual-
ity and/or torque converter
shudder. Using a transmission
fluid other than that recom-
mended by the manufacturer,
and will require more frequent
fluid and filter changes. Refer to
“Fluids, Lubricants, and Genuine
Parts” in “Maintaining Your Ve-
hicle” for fluid specifications.
 If a transmission fluid leak oc-
curs, visit your authorized dealer
immediately. Transmission dam-
age may occur. Your authorized
dealer has the proper tools to ad-
just the fluid level accurately.
Fluid And Filter Changes
Refer to the “Maintenance Schedule”
for the proper maintenance intervals.
In addition, change the fluid and filter
if the transmission is disassembled for
any reason.
CAUTION!
Car maintenance should be done at
a LANCIA Dealership. For routine
and minor maintenance operations
you wish to carry out yourself, we
do recommend you have the proper
equipment, genuine LANCIA spare
parts and the necessary fluids; do
not however carry out these opera-
tions if you have no experience.
ALL WHEEL DRIVE (AWD)
(for versions/markets,
where provided)
The all wheel drive system consists of
a transfer case and front differential.
The exterior surface of these compo-
nents should be inspected for evi-
dence of fluid leaks. Confirmed leaks
should be repaired as soon as possible.
The transfer case fluid fill/inspection
plug is located in the middle of the
rear housing. To inspect the transfer
case fluid level, remove the fill/
inspection plug. The fluid level should
be even with the bottom of the hole.
Use this plug to add fluid as required. The front differential fill plug is lo-
cated on the outer cover near the half-
shaft attachment. To inspect the dif-
ferential fluid level, remove the fill
plug. The fluid level should be even
with or slightly below the bottom of
the hole.
REAR AXLE
For normal service, periodic fluid
level checks are not required. When
the vehicle is serviced for other rea-
sons the exterior surfaces of the axle
assembly should be inspected. If gear
oil leakage is suspected inspect the
fluid level. Refer to “Fluids, Lubri-
cants, and Genuine Parts” in “Main-
taining Your Vehicle” for further in-
formation.
Fluid Level Check
Check the fluid level by removing the
fill plug on the axle. The fluid level
should be at the bottom of the fill
hole. Add fluid, if necessary, to main-
tain the proper level. Refer to “Fluids,
Lubricants, and Genuine Parts” in
“Maintaining Your Vehicle” for fur-
ther information.
287
