8. Tire Pressure Monitoring Tell-
tale LightEach tire, including the
spare (if provided), should
be checked monthly when
cold and inflated to the in-
flation pressure recommended by the
vehicle manufacturer on the vehicle
placard or tire inflation pressure la-
bel.
As an added safety feature, your ve-
hicle has been equipped with a Tire
Pressure Monitoring System (TPMS)
that illuminates a low tire pressure
telltale when one or more of your tires
is significantly under-inflated. Ac-
cordingly, when the low tire pressure
telltale illuminates, you should stop
and check your tires as soon as pos-
sible, and inflate them to the proper
pressure. Driving on a significantly
under-inflated tire causes the tire to
overheat and can lead to tire failure.
Under-inflation also reduces fuel effi-
ciency and tire tread life, and may
affect the vehicle’s handling and stop-
ping ability. Please note that the TPMS is not a
substitute for proper tire mainte-
nance, and it is the driver’s responsi-
bility to maintain correct tire pres-
sure, even if under-inflation has not
reached the level to trigger illumina-
tion of the TPMS low tire pressure
telltale.
Your vehicle has also been equipped
with a TPMS malfunction indicator to
indicate when the system is not oper-
ating properly. The TPMS malfunc-
tion indicator is combined with the
low tire pressure telltale. When the
system detects a malfunction, the tell-
tale will flash for approximately one
minute and then remain continuously
illuminated. This sequence will con-
tinue upon subsequent vehicle start-
ups as long as the malfunction exists.
When the malfunction indicator is il-
luminated, the system may not be
able to detect or signal low tire pres-
sure as intended. TPMS malfunctions
may occur for a variety of reasons,
including the installation of replace-
ment or alternate tires or wheels on
the vehicle that prevent the TPMS
from functioning properly. Alwayscheck the TPMS malfunction telltale
after replacing one or more tires or
wheels on your vehicle, to ensure that
the replacement or alternate tires and
wheels allow the TPMS to continue to
function properly.
CAUTION!
The TPMS has been optimized for
the original equipment tires and
wheels. TPMS pressures and warn-
ing have been established for the
tire size equipped on your vehicle.
Undesirable system operation or
sensor damage may result when us-
ing replacement equipment that is
not of the same size, type, and/or
style. Aftermarket wheels can cause
sensor damage. Do not use tire seal-
ant from a can or balance beads if
your vehicle is equipped with a
TPMS, as damage to the sensors
may result.
161

information, refer to “Electronic
Speed Control” in “Understanding
The Features Of Your Vehicle.”
Adaptive Cruise Control (ACC)
ON (for versions/markets, where
equipped)This telltale will illuminate
when the ACC is ON. For
further information, refer
to “Adaptive Cruise Control
(ACC)” in “Understanding The Fea-
tures Of Your Vehicle.”
Adaptive Cruise Control (ACC)
SET (for versions/markets, where
equipped)
This telltale will illuminate
when the ACC is SET. For
further information, refer
to “Adaptive Cruise Control
(ACC)” in “Understanding The Fea-
tures Of Your Vehicle.”
EVIC AMBER TELLTALES
This area will show reconfigurable
amber caution telltales. These tell-
tales include: Forward Collision Warning
(FCW) OFF (for versions/markets,
where equipped)
This telltale informs the
driver that the Forward
Collision Warning feature is
Off. The telltale is On when
the front radar sensor is blocked and
requires cleaning, the ACC/FCW sen-
sors require service, or the ACC/FCW
system is unavailable because of a
system error. For further information,
refer to “Adaptive Cruise Control
(ACC)” in “Understanding The Fea-
tures Of Your Vehicle.”
Low Fuel Telltale
When the fuel level reaches
approximately 11.0 L this
light will turn on, and remain on until
fuel is added.
Windshield Washer Fluid Low
Indicator
This telltale will turn on to
indicate the windshield
washer fluid is low. Adaptive Cruise Control (ACC)
Malfunction (for versions/markets,
where equipped)
This light will turn on when
a ACC is not operating and
needs service. For further
information, refer to
“Adaptive Cruise Control (ACC)” in
“Understanding The Features Of
Your Vehicle.”
Wait To Start Light — Diesel
Engines Only
The Wait To Start Light will
turn on when the ignition key
is first turned to the ON/RUN posi-
tion. Wait until the Wait To Start
Light turns OFF to start the engine.
(Refer to “Starting Procedures” in
“Starting And Operating” for further
information).
Water In Fuel Indicator Light —
Diesel Engines Only
Indicates there is water de-
tected in the fuel filter. If
this light remains on, DO
NOT start the vehicle be-
fore you drain the water from the fuel
168

than 18 km/h. The system can be
enabled with Sound Only, Sound and
Display, or turned OFF. To change the
Park Assist status, touch and release
the OFF, Sound Only or Sounds and
Display button. Then touch the arrow
back soft-key. Refer to “ParkSense®
Rear Park Assist” in “Understanding
The Features Of Your Vehicle” for
system function and operating
information.
Tilt Mirrors In Reverse (for
versions/markets, where provided)
When this feature is selected, the out-
side sideview mirrors will tilt down-
ward when the ignition is in the RUN
position and the transmission shift le-
ver is in the REVERSE position. The
mirrors will move back to their previ-
ous position when the transmission is
shifted out of REVERSE. To make
your selection, touch the Tilt Mirrors
In Reverse soft-key, until a check-
mark appears next to setting, showing
that setting has been selected. Touch
the back arrow soft-key to return to
the previous menu. Blind Spot Alert (for versions/
markets, where provided)
When this feature is selected, the
Blind Spot Alert feature can be set to
Off, Lights or Lights and Chime. The
Blind Spot Alert feature can be acti-
vated in “Lights” mode. When this
mode is selected, the Blind Spot Moni-
tor (BSM) system is activated and will
only show a visual alert in the outside
mirrors. When “Lights & Chime”
mode is activated, the Blind Spot
Monitor (BSM) will show a visual
alert in the outside mirrors as well as
an audible alert when the turn signal
is on. When “Off” is selected, the
Blind Spot Monitor (BSM) system is
deactivated. To change the Blind Spot
Alert status, touch the Off, Lights or
Lights & Chime soft-key. Then touch
the arrow back soft-key.
NOTE: If your vehicle has expe-
rienced any damage in the area
where the sensor is located, even if
the fascia is not damaged, the sen-
sor may have become misaligned.
Take your vehicle to an authorized
dealer to verify sensor alignment.Having a sensor that is misaligned
will result in the BSM not operat-
ing to specification.
ParkView® Backup Camera (for
versions/markets, where provided)
Your vehicle may be equipped with
the ParkView® Rear Back Up Cam-
era that allows you to see an on-screen
image of the rear surroundings of
your vehicle whenever the shift lever
is put into REVERSE. The image will
be displayed on the radio touchscreen
display along with a caution note to
“check entire surroundings” across
the top of the screen. After five sec-
onds, this note will disappear. The
ParkView® camera is located on the
rear of the vehicle above the rear Li-
cense plate. To make your selection,
touch the ParkView® Backup Cam-
era soft-key, until a check-mark ap-
pears next to setting, showing that
setting has been selected. Touch the
back arrow soft-key to return to the
previous menu.
178

desired. Once the brake pedal is re-
leased, the BAS is deactivated.
WARNING!
The BAS cannot prevent the natu-
ral laws of physics from acting on
the vehicle, nor can it increase the
traction afforded by prevailing
road conditions. The BAS cannot
prevent collisions, including those
resulting from excessive speed in
turns, driving on very slippery sur-
faces, or hydroplaning. The capa-
bilities of a BAS-equipped vehicle
must never be exploited in a reck-
less or dangerous manner that
could jeopardize the user's safety or
the safety of others.
ELECTRONIC STABILITY
CONTROL (ESC)
This system enhances directional con-
trol and stability of the vehicle under
various driving conditions. The ESC
corrects for oversteering and under-
steering the vehicle by applying the
brake of the appropriate wheel. En-
gine power may also be reduced to
assist in counteracting the condition
of oversteer or understeer and help
the vehicle maintain the desired path.
The ESC uses sensors in the vehicle to
determine the path that the driver
intends to steer the vehicle and com-
pares it to the actual path of the ve-
hicle. When the actual path does not
match the intended path, the ESC
applies the brake of the appropriate
wheel to assist in counteracting the
condition of oversteer or understeer.
Oversteer - when the vehicle isturning more than appropriate for
the steering wheel position.
Understeer - when the vehicle is turning less than appropriate for
the steering wheel position.
WARNING!
The Electronic Stability Control
(ESC) cannot prevent the natural
laws of physics from acting on the
vehicle, nor can it increase the trac-
tion afforded by prevailing road
conditions. ESC cannot prevent all
accidents, including those resulting
from excessive speed in turns, driv-
ing on very slippery surfaces, or
hydroplaning. ESC also cannot
prevent collisions resulting from
loss of vehicle control due to inap-
propriate driver input for the con-
ditions. Only a safe, attentive, and
skillful driver can prevent acci-
dents. The capabilities of an ESC
equipped vehicle must never be ex-
ploited in a reckless or dangerous
manner which could jeopardize the
user’s safety or the safety of others.
ESC Operating Modes
The ESC system has two or three
available operating modes:
ESC On
This is the normal operating mode for
the ESC. Whenever the vehicle is
220

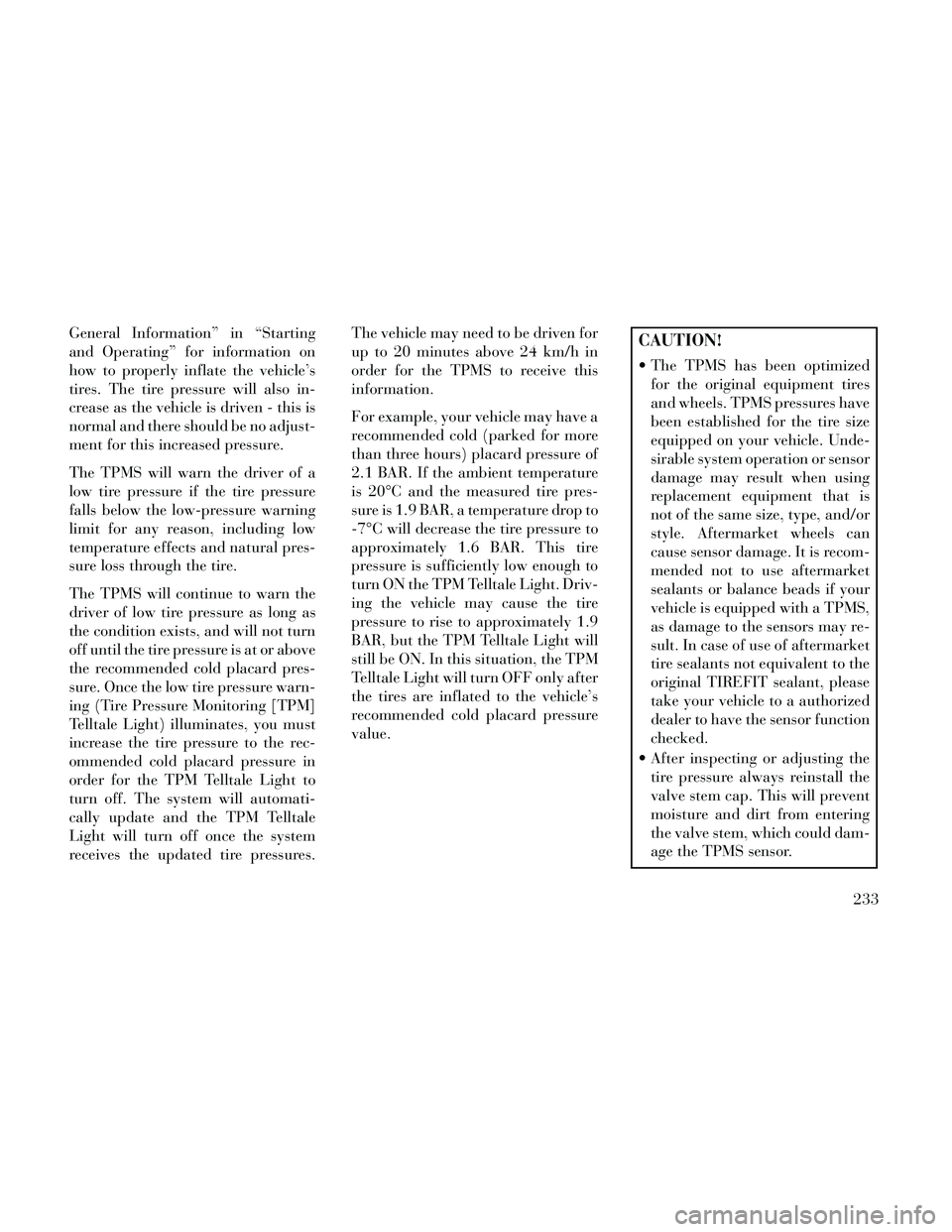

General Information” in “Starting
and Operating” for information on
how to properly inflate the vehicle’s
tires. The tire pressure will also in-
crease as the vehicle is driven - this is
normal and there should be no adjust-
ment for this increased pressure.
The TPMS will warn the driver of a
low tire pressure if the tire pressure
falls below the low-pressure warning
limit for any reason, including low
temperature effects and natural pres-
sure loss through the tire.
The TPMS will continue to warn the
driver of low tire pressure as long as
the condition exists, and will not turn
off until the tire pressure is at or above
the recommended cold placard pres-
sure. Once the low tire pressure warn-
ing (Tire Pressure Monitoring [TPM]
Telltale Light) illuminates, you must
increase the tire pressure to the rec-
ommended cold placard pressure in
order for the TPM Telltale Light to
turn off. The system will automati-
cally update and the TPM Telltale
Light will turn off once the system
receives the updated tire pressures.The vehicle may need to be driven for
up to 20 minutes above 24 km/h in
order for the TPMS to receive this
information.
For example, your vehicle may have a
recommended cold (parked for more
than three hours) placard pressure of
2.1 BAR. If the ambient temperature
is 20°C and the measured tire pres-
sure is 1.9 BAR, a temperature drop to
-7°C will decrease the tire pressure to
approximately 1.6 BAR. This tire
pressure is sufficiently low enough to
turn ON the TPM Telltale Light. Driv-
ing the vehicle may cause the tire
pressure to rise to approximately 1.9
BAR, but the TPM Telltale Light will
still be ON. In this situation, the TPM
Telltale Light will turn OFF only after
the tires are inflated to the vehicle’s
recommended cold placard pressure
value.CAUTION!
The TPMS has been optimized
for the original equipment tires
and wheels. TPMS pressures have
been established for the tire size
equipped on your vehicle. Unde-
sirable system operation or sensor
damage may result when using
replacement equipment that is
not of the same size, type, and/or
style. Aftermarket wheels can
cause sensor damage. It is recom-
mended not to use aftermarket
sealants or balance beads if your
vehicle is equipped with a TPMS,
as damage to the sensors may re-
sult. In case of use of aftermarket
tire sealants not equivalent to the
original TIREFIT sealant, please
take your vehicle to a authorized
dealer to have the sensor function
checked.
After inspecting or adjusting the tire pressure always reinstall the
valve stem cap. This will prevent
moisture and dirt from entering
the valve stem, which could dam-
age the TPMS sensor.
233

NOTE:
The TPMS is not intended to re-place normal tire care and
maintenance or to provide
warning of a tire failure or con-
dition.
The TPMS should not be used as a tire pressure gauge while ad-
justing your tire pressure.
Driving on a significantly under- inflated tire causes the tire to
overheat and can lead to tire
failure. Under-inflation also re-
duces fuel efficiency and tire
tread life, and may affect the ve-
hicle’s handling and stopping
ability.
The TPMS is not a substitute for proper tire maintenance, and it
is the driver’s responsibility to
maintain correct tire pressure
using an accurate tire pressure
gauge, even if under-inflation
has not reached the level to trig-
ger illumination of the TPM
Telltale Light. Seasonal temperature changes
will affect tire pressure, and the
TPMS will monitor the actual
tire pressure in the tire.
PREMIUM SYSTEM
The Tire Pressure Monitor System
(TPMS) uses wireless technology with
wheel rim mounted electronic sensors
to monitor tire pressure levels. Sen-
sors mounted to each wheel as part of
the valve stem transmit tire pressure
readings to the receiver module.
NOTE: It is particularly impor-
tant for you to check the tire pres-
sure in all of the tires on your ve-
hicle monthly and to maintain the
proper pressure.
The TPMS consists of the following
components:
Receiver module,
Four TPM sensors,
Various TPMS messages, whichdisplay in the Electronic Vehicle In-
formation Center (EVIC), and
TPM Telltale Light Tire Pressure Monitoring Low
Pressure Warnings
The TPM Telltale Light will
illuminate in the instrument
cluster and a chime will sound when
tire pressure is low in one or more of
the four active road tires. In addition,
the EVIC will display an “Inflate Tire
to XX” message for a minimum of five
seconds and a "LOW TIRE" message
and a graphic showing the pressure
values of each tire with the low tire
pressure values flashing or in a differ-
ent color. The recommended cold
placard pressure inflation value is the
pressure value displayed in the "In-
flate Tire to XX" message displayed in
the EVIC.
Should this occur, you should stop as
soon as possible and inflate the tires
with a low pressure condition (those
flashing or in a different color in the
EVIC graphic) to the vehicle’s recom-
mended cold placard pressure infla-
tion value. Once the system receives
the updated tire pressures, the system
234

will automatically update, the “In-
flate Tire to XX” message will no lon-
ger be displayed, the graphic display
in the EVIC will stop flashing or re-
turn to it's original color, and the TPM
Telltale Light will turn off. The ve-
hicle may need to be driven for up to
20 minutes above 24 km/h in order
for the TPMS to receive this informa-
tion.
Service TPMS Warning
If a system fault is detected, the TPM
Telltale Light will flash on and off for
75 seconds and then remain on solid.
The system fault will also sound a
chime. In addition, the EVIC will dis-
play a "SERVICE TPM SYSTEM"
message for a minimum of five sec-
onds and then display dashes (- -) in
place of the pressure value to indicate
which sensor is not being received.
If the ignition switch is cycled, this
sequence will repeat, providing the
system fault still exists. If the system
fault no longer exists, the TPM Tell-
tale Light will no longer flash, and the
"SERVICE TPM SYSTEM" message
will no longer display, and a pressurevalue will display in place of the
dashes. A system fault can occur due
to any of the following:
1. Signal interference due to elec-
tronic devices or driving next to facili-
ties emitting the same radio frequen-
cies as the TPM sensors.
2. Installing aftermarket window
tinting that contains materials that
may block radio wave signals.
3. Accumulation of snow or ice
around the wheels or wheel housings.
4. Using tire chains on the vehicle.
5. Using wheels/tires not equipped
with TPM sensors.
The EVIC will also display a "SER-
VICE TPM SYSTEM" message for a
minimum of five seconds when a sys-
tem fault related to an incorrect sen-
sor location fault is detected. In this
case, the "SERVICE TPM SYSTEM"
message is then followed with a
graphic display with pressure values
still shown. This indicates that the
pressure values are still being received
from the TPM sensors but they may
not be located in the correct vehicle
position. The system still needs to be
serviced as long as the "SERVICE
TPM SYSTEM" message is displayed.
Vehicles With Compact Spare
1. The compact spare tire does not
have a TPM sensor. Therefore, the
TPMS will not monitor the pressure in
the compact spare tire.
2. If you install the compact spare
tire in place of a road tire that has a
pressure below the low-pressure
warning limit, upon the next ignition
switch cycle, the TPM Telltale Light
will remain ON and a chime will
sound. In addition, the graphic in the
EVIC will still display a flashing or
different color pressure value.
3. After driving the vehicle for up to
20 minutes above 24 km/h, the TPM
Telltale Light will flash on and off for
75 seconds and then remain on solid.
In addition, the EVIC will display a
"SERVICE TPM SYSTEM" message
for a minimum of five seconds and
then display dashes (- -) in place of
the pressure value.
235

4. For each subsequent ignition
switch cycle, a chime will sound, the
TPM Telltale Light will flash on and
off for 75 seconds and then remain on
solid, and the EVIC will display a
"SERVICE TPM SYSTEM" message
for a minimum of five seconds and
then display dashes (- -) in place of
the pressure value.
5. Once you repair or replace the
original road tire and reinstall it on
the vehicle in place of the compact
spare, the TPMS will update auto-
matically. In addition, the TPM Tell-
tale Light will turn OFF and the
graphic in the EVIC will display a new
pressure value instead of dashes (- -),
as long as no tire pressure is below the
low-pressure warning limit in any of
the four active road tires. The vehicle
may need to be driven for up to 20
minutes above 24 km/h in order for
the TPMS to receive this information.
TPMS DEACTIVATION
The TPMS can be deactivated if re-
placing all four wheel and tire assem-
blies (road tires) with wheel and tire
assemblies that do not have TPMSSensors, such as when installing win-
ter wheel and tire assemblies on your
vehicle. To deactivate the TPMS, first,
replace all four wheel and tire assem-
blies (road tires) with tires not
equipped with Tire Pressure Monitor-
ing (TPM) Sensors. Then, drive the
vehicle for 20 minutes above
24 km/h. The TPMS will chime, the
“TPM Telltale Light” will flash on
and off for 75 seconds and then re-
main on and the Electronic Vehicle
Information Center (EVIC) will dis-
play the “SERVICE TPM SYSTEM”
message and then display dashes (--)
in place of the pressure values. Begin-
ning with the next ignition switch
cycle, the TPMS will no longer chime,
flash the TPM Telltale Light or dis-
play the “SERVICE TPM SYSTEM”
message in the EVIC but dashes (--)
will remain in place of the pressure
values.
To reactivate the TPMS, replace all
four wheel and tire assemblies (road
tires) with tires equipped with TPM
sensors. Then, drive the vehicle for up
to 20 minutes above 24 km/h. The
TPMS will chime, the “TPM TelltaleLight” will flash on and off for 75
seconds and then turn off, and the
Electronic Vehicle Information Center
(EVIC) will display the “SERVICE
TPM SYSTEM” message. The EVIC
will also display pressure values in
place of the dashes. On the next igni-
tion switch cycle the “SERVICE TPM
SYSTEM” message will no longer be
displayed as long as no system fault
exists.
FUEL REQUIREMENTS
— GASOLINE ENGINES
3.6L ENGINE
All engines are designed to meet all
emissions regulations and provide ex-
cellent fuel economy and performance
when using high quality unleaded
gasoline with a minimum Research
Octane Number (RON) of 91 or
higher. The use of premium gasoline
will not provide any benefit over regu-
lar gasoline in these engines.
Light spark knock at low engine
speeds is not harmful to your engine.
However, continued heavy spark
236

TIREFIT STORAGE
The TIREFIT kit is located in the
trunk.
TIREFIT KIT
COMPONENTS AND
OPERATION
1. Sealant Bottle
2. Deflation Button
3. Pressure Gauge4. Power Button
5. Mode Select Knob
6. Sealant Hose (Clear)
7. Air Pump Hose (Black)
8. Power Plug
Using The Mode Select Knob And
Hoses
Your TIREFIT kit is equipped with
the following symbols to indicate the
air or sealant mode.
Selecting Air Mode
Turn the Mode Select Knob
(5) to this position for air
pump operation only. Use
the Black Air Pump Hose
(7) when selecting this mode.
Selecting Sealant Mode
Turn the Mode Se-
lect Knob (5) to this
position to inject
the TIREFIT Seal-
ant and to inflate
the tire. Use the
Sealant Hose (clear
hose) (6) when selecting this mode.
Using The Power Button
Push and release the Power
Button (4) once to turn On
the TIREFIT kit. Push and
release the Power Button
(4) again to turn Off the TIREFIT kit.
Using The Deflation Button
Press the Deflation Button
(2) to reduce the air pres-
sure in the tire if it becomes
over-inflated.
TIREFIT USAGE
PRECAUTIONS
Using the TIREFIT sealant maycause the Tire Pressure Monitoring
System (TPMS) to become inoper-
able. It is recommended that you
take your vehicle to an authorized
dealer to have the sensor function
checked.
Replace the TIREFIT Sealant Bottle (1) and Sealant Hose (6)
prior to the expiration date (printed
on the bottle label) to assure opti-
mum operation of the system. Refer
TIREFIT Location
254

Cavity Cartridge Fuse Mini-Fuse Description
16 — — Spare
17 — — Spare
18 — — Spare
19 — — Spare
20 — — Spare
21 — — Spare
22 — 20 Amp Yellow Trailer Park Lamp - If Equipped
23 — 10 Amp Red Fuel Door/Diagnostic Port
24 — 15 Amp Blue Radio Screen
25 — 10 Amp Red Tire Pressure Monitor
26 — 25 Amp Natural Transmission
27 — 25 Amp Natural Amplifier
31 — 25 Amp Natural Power Seats
32 — 15 Amp Blue HVAC Module/Cluster/Steering Wheel Lock
33 — 15 Amp Blue Ignition Switch/Wireless Module
34 — 10 Amp Red Steering Column Module/Clock
35 — 10 Amp Red Battery Sensor
36 — 20 Amp Yellow T/Tow Module Lighting - If Equipped
37 — 15 Amp Blue Radio
38 — 20 Amp Yellow Console Power Outlet
40 — — Spare
41 — — Spare
42 30 Amp Pink — Rear Defrost (EBL Feed)
43 — 25 Amp Natural Rear Heated Seats/Heated Steering Wheel
294
