battery Lancia Thesis 2006 Owner handbook (in English)

193
The following table summarizes warning light indications according to the different operating conditions.
Operating or failure conditions
Engine start up (key turned to MAR)
Driving in
normal
conditions
Driving inconditions which
might lead to
slipping
ASR fault
ESP fault
System condition
Warning light check
ASR on
ESP on
ASR off
ESP on
ASR active
ESP active
ASR off
ESP active
ASR and ESP off
ASR on
ESP off ASR on
ASR off
manually
ASR on
ASR off
manuallyASR button warning light
On for about 3 seconds
Off
On
Off
On
On
OffESP warning light on
instrument panel
On for about 4 seconds
Off
Off
Flashing
Flashing
On
On
INITIALISING THE ESP SYSTEM CONTROL UNIT
Whenever the battery is electrically connected again or it is reloaded after being completely flat or after replacing one of
the protection fuses, to restore the correct operation of the ESP system, of the door locking, and of the air conditioning, it
is necessary to perform the initialisation operations contained in the paragraph “If battery is to be disconnected” in the chap-
ter “In an emergency”.

220
POWER SOCKET
It is located inside the rear armrest.
The power socket can be accessed
by lifting the armrest from handgrip
A (fig. 180). To close the compart-
ment, lower the armrest.
To use the socket, lift cover C
(fig. 179).
Certain versions are fitted with a
power socket inside the glove com-
partment.
The socket is powered when the
key is turned to MAR. It can be used
only for accessories with a maximum
intake of 15A (power 180W).ELECTRIC SUNSHADE (fig. 181)
The electric sunshade works with
ignition key at MAR.
The buttons for operating it are
located on the central console, near
the gearshift lever and inside the
rear armrest.
To operate the electric sunshade
from the front seats: press button A
to open it and button Bto close it.
To operate the electric sunshade
from the rear seats: press the front
part of button Cto open it and press
the rear part to close it.
Do not use the socket for
power devices with a
higher intake than that
shown.
Prolonged current intake can
drain the battery and lead to
problems when starting the
engine.– the power socket
– the remote control used for the
CONNECT HI-FI and TV functions
– the additional phone handset.
IMPORTANTTo use the power
socket, read the instructions of the
relevant paragraph in this chapter.
The compartment can be accessed
by lifting the armrest from handgrip
A (fig. 180).
To close the compartment, lower
the armrest.
fig. 180
L0A0074b
fig. 181
L0A0280b

221
INSTALLATION OF ELECTRIC/
ELECTRONIC DEVICES
Electric/electronic devices installed
after buying the car or in aftermarket
shall bear the and marking:
Fiat Auto S.p.A. authorizes the in-
stallation of transceivers provided that
installation is carried out at a special-
ized shop, workmanlike performed
and in compliance with manufac-
turer's specifications.
IMPORTANTInstallation of devices
resulting in modifications of car char-
acteristics may cause driving license
seizing by traffic agents and also the
lapse of the warranty as concerns de-
fects due to the abovementioned mod-
ification or traceable back to it di-
rectly or indirectly.
Fiat Auto S.p.A. declines all respon-
sibility for damages caused by the in-
stallation of non-genuine accessories
or not recommended by Fiat Auto
S.p.A. and installed not in compliance
with the specified requirements. ACCESSORIES PURCHASED BY
THE USER
If after buying the car, you decide
to install electrical accessories that
require a permanent power supply
(e.g. satellite antitheft device), or
any other accessory that burden the
electric supply, contact your Lancia
Dealershipwhose qualified person-
nel, besides suggesting the most suit-
able devices belonging to the
Lineaccessori Lancia, will also eval-
uate the total electrical absorption,
checking whether the car’s electric
system is able to withstand the
required load or whether it must be
integrated with a more powerful
battery.
fig. 182
L0A0147b
fig. 183
L0A0222b
Before actuating the
sunshade, make sure that
no object is placed on the
rear parcel shelf.
MAP POCKETS (fig. 182)
(where provided)
Paper pockets are located on the
back of the front seats.
HANDLES (fig. 183)
They are placed just next to the
doors.
Each rear handle includes a clothes
hook A.

224
After battery disconnec-
tion or fuse interruption,
the anti-trap system must
be initialized again as follows:
1) turn selector A clockwise and
fully to its stop, to position 3 cor-
responding to maximum pivoting
(fig. 184)
2) keep selector A depressed
until the sunroof jolts along to the
maximum pivoting position
3) release the selector after the
sunroof has stopped for at least 2
seconds
4) press, within 5 seconds, the
selector again and keep it
depressed
5) the sunroof will start moving
within 5 further seconds and will
perform a complete opening and
closing cycle, after which it will
stop in the closed position
6) release the selector after the
sunroof has stopped for at least 2
seconds.The system is thus initialized
and resumes its normal opera-
tion. If this does not occur, con-
tact your Lancia Dealership.
If the operation is interrupted
before it is completed, repeat the
procedure from the start.Regularly check that the
water draining holes A
(fig. 187 set at the corners
of the sunroof housing, are not
obstructed.
fig. 187
L0A0283b

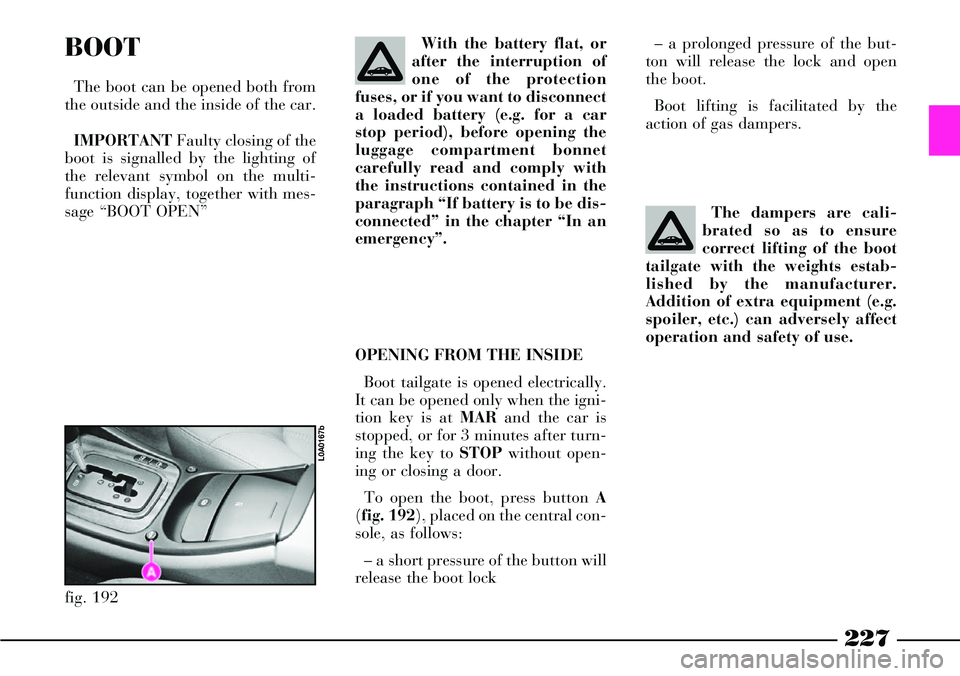

227
BOOT
The boot can be opened both from
the outside and the inside of the car.
IMPORTANT Faulty closing of the
boot is signalled by the lighting of
the relevant symbol on the multi-
function display, together with mes-
sage “BOOT OPEN”With the battery flat, or
after the interruption of
one of the protection
fuses, or if you want to disconnect
a loaded battery (e.g. for a car
stop period), before opening the
luggage compartment bonnet
carefully read and comply with
the instructions contained in the
paragraph “If battery is to be dis-
connected” in the chapter “In an
emergency”.
OPENING FROM THE INSIDE
Boot tailgate is opened electrically.
It can be opened only when the igni-
tion key is at MARand the car is
stopped, or for 3 minutes after turn-
ing the key to STOPwithout open-
ing or closing a door.
To open the boot, press button A
(fig. 192), placed on the central con-
sole, as follows:
– a short pressure of the button will
release the boot lock– a prolonged pressure of the but-
ton will release the lock and open
the boot.
Boot lifting is facilitated by the
action of gas dampers.
The dampers are cali-
brated so as to ensure
correct lifting of the boot
tailgate with the weights estab-
lished by the manufacturer.
Addition of extra equipment (e.g.
spoiler, etc.) can adversely affect
operation and safety of use.
fig. 192
L0A0167b

228
OPENING FROM THE OUTSIDE
WITH THE KEY (fig. 193)
The boot lock is electrified: press
button Aon the tailgate to open it.
In an emergency (battery run down
or electrical system failure), the tail-
gate can be opened by fully turning
counterclockwise the key in the lock
and exerting at the same time a
slight pressure on the lower edge of
the number plate holder to reduce
the opening effort.
IMPORTANTIf the boot was
opened using the key, at closing the
automatic function will be deacti-
vated. To restore the automatic
function press button A.OPENING BY MEANS OF THE
REMOTE CONTROL
The tailgate can be opened from
the outside by pressing button A
(fig. 194) on the remote control,
even when the electronic alarm is on.
When the electronic alarm is on,
boot opening is accompanied by
double flashing of direction indica-
tors; boot closing is accompanied by
one flashing.
IMPORTANTIf the boot is opened
with the key when the electronic
alarm is on, the latter will not be
deactivated.If the electronic alarm is on, both
the volumetric protection and the
boot control sensor will be switched
off, and the system will emit (except
for versions of certain markets) two
beeps.
fig. 193
L0A0181b
fig. 194
L0A0179b

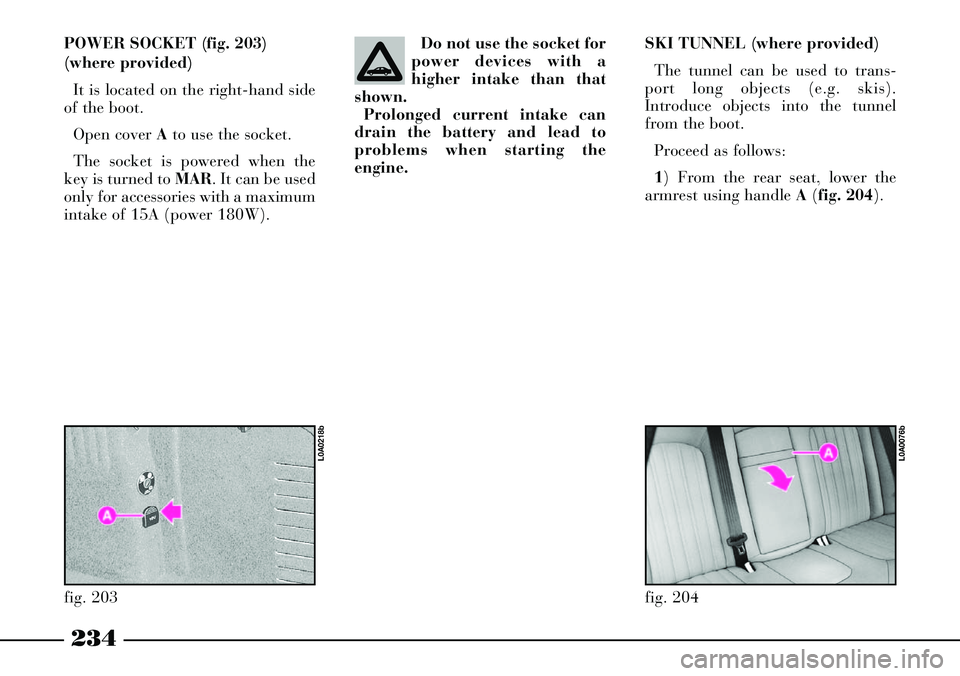

234
POWER SOCKET (fig. 203)
(where provided)
It is located on the right-hand side
of the boot.
Open cover Ato use the socket.
The socket is powered when the
key is turned to MAR. It can be used
only for accessories with a maximum
intake of 15A (power 180W).Do not use the socket for
power devices with a
higher intake than that
shown.
Prolonged current intake can
drain the battery and lead to
problems when starting the
engine.SKI TUNNEL (where provided)
The tunnel can be used to trans-
port long objects (e.g. skis).
Introduce objects into the tunnel
from the boot.
Proceed as follows:
1) From the rear seat, lower the
armrest using handle A (fig. 204).
fig. 203
L0A0218b
fig. 204
L0A0076b

250
STARTING
THE ENGINE
IMPORTANTThe car is equipped
with electronic engine immobilising
system. If the engine fails to start,
see paragraph “Lancia CODE sys-
tem”.
We recommend that
during the initial period
you do not drive to full
car performance (e.g.: excessive
accelerations, long journeys at
top speed, sharp braking etc.).It is dangerous to let the
engine run in a garage or
other closed area. The
engine consumes oxygen and
gives off carbon oxide, a poiso-
nous gas.
The ignition device is fitted with a
safety device which obliges the dri-
ver to return the key to STOPposi-
tion before repeating the starting
procedure.
In the same way, when the engine
is running, this device prevents any
shift from MARto AVV.Never leave the ignition
key at MAR when the
engine is off to prevent
battery draining due to current
absorption.
DRIVING YOUR CAR

252
IMPORTANTEnergy-absorbing
devices (climate control system,
heated rear window etc.) are auto-
matically disconnected at starting.
If the engine does not start at the
first attempt, return the ignition key
to STOPbefore trying to start the
engine again.
If starting is particularly diffi-
cult,(with the Lancia CODE system
working properly) do not keep try-
ing too many times.
Use an auxiliary battery only if the
battery has insufficient charge.
Never use a battery charger to start
the engine. ENGINE WARMING UP
– Begin to move forward slowly let-
ting the engine turn at medium revs.
Do not accelerate abruptly.
– Do not push the engine to its limit
for the first few kilometers. You are
recommended to wait until the
coolant temperature has reached 50
to 60 °C.STOPPING THE ENGINE
– Release the accelerator pedal and
wait until the engine is idling.
– Turn the ignition key to STOP
and turn the engine off. For versions
with electronic automatic gearbox,
put the selector to Pbefore turning
the engine off.
IMPORTANTAfter a taxing drive
you should allow the engine to
“catch its breath” before turning it
off by letting it idle to allow the tem-
perature in the engine compartment
to fall.

253
Remember that until the
engine has started, the
brake booster and power
steering systems will not work
and a greater effort will therefore
be required to press the brake
pedal and turn the steering
wheel. For cars equipped with
turbosupercharger in
particular, but generally
for any kind of cars, avoid abrupt
accelerations immediately before
turning the engine off. A quick
burst on the accelerator serves
absolutely no practical purpose,
wastes fuel and may damage seri-
ously the turbosupercharger
rotor bearings.EMERGENCY START-UP
If the Lancia CODE system fails to
recognise that code transmitted by
the ignition key (symbol Ytogeth-
er with message “VEHICLE PRO-
TECTION SYSTEM FAULT” on the
multifunction display) the emer-
gency start-up can be performed by
using the CODE card code.
For the correct procedure see chap-
ter “In an emergency”.
Before opening the lug-
gage compartment bonnet
to reload the battery or to
connect an auxiliary battery,
carefully read and comply with
the instructions contained in the
paragraph “If battery is to be dis-
connected” in the chapter “In an
emergency”. Never bump start the
engine (by pushing, tow-
ing or coasting downhill)
as this could cause fuel to flow
into the catalytic exhaust system
and damage it beyond repair.
IMPORTANTIf the engine turns
off while the car is running, the
Lancia CODE symbol Yand the
message “VEHICLE PROTECTION
SYSTEM FAULT” may appear on
the multifunction display when the
engine starts again. In this case
check that the warning light switch-
es off when turning the engine off
and on again with the car stationary.
Otherwise contact aLancia
Dealership.
