179
The car is fitted also with an emer-
gency button A(fig. 134), placed in
the boot right compartment, which
can be used to unblock the car if it has
been stopped on the road for a break-
down or an accident and the key can-
not be turned to MAR(accident with
fire risk). To reach the button remove
the compartment cover turning the
catch A(fig. 135) to 1with the igni-
tion key.
To disengage the parking brake
through the emergency button pro-
ceed as follows:
– press and release the main button
on the central console
– press and release the emergency
button in the boot
– press again and release the main
button on the central console.
The time elapsed between these
operations should be lower than 30
seconds.MANUAL GEARBOX
To engage the gears, press down
the clutch and put the gear lever into
one of the positions shown in the
diagram (fig. 136); the diagram is
also on the gear lever knob.
To engage reverse (R), wait for the
car to come to a standstill and lift
the ring Aunder the knob (with the
fingers of the hand operating the
lever).
Release the ring after engaging
reverse gear. You do not need to lift
the ring to disengage reverse.To change gear properly
you must push the clutch
pedal fully down. It is
therefore essential that there is
nothing under the pedals: make
sure mats are lying flat and do
not get in the way of the pedals.
Reverse can only be
engaged when the car is at
a standstill. Wait for two
seconds or longer with the clutch
fully pressed before engaging
reverse when the engine is run-
ning to prevent scraping and
damaging the gears.
Do not drive with your
hand resting on the gear
stick as the force exerted,
even if only slight, could lead to
premature wearing of the gear-
box internal components.
fig. 136
L0A0357b

180

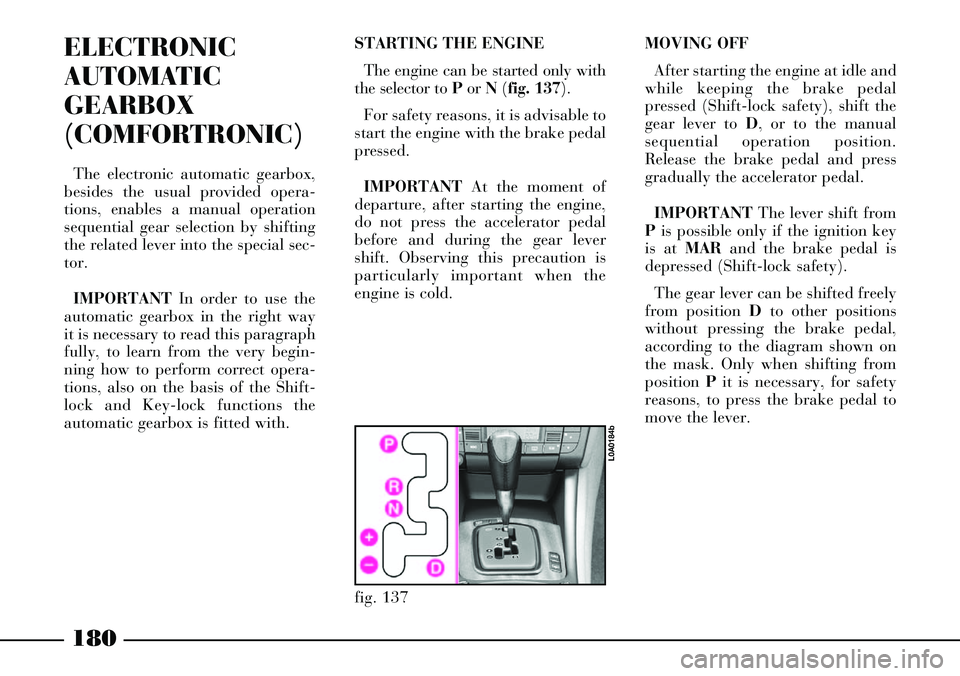

ELECTRONIC
AUTOMATIC
GEARBOX
(COMFORTRONIC)
The electronic automatic gearbox,
besides the usual provided opera-
tions, enables a manual operation
sequential gear selection by shifting
the related lever into the special sec-
tor.
IMPORTANTIn order to use the
automatic gearbox in the right way
it is necessary to read this paragraph
fully, to learn from the very begin-
ning how to perform correct opera-
tions, also on the basis of the Shift-
lock and Key-lock functions the
automatic gearbox is fitted with.STARTING THE ENGINE
The engine can be started only with
the selector to Por N (fig. 137).
For safety reasons, it is advisable to
start the engine with the brake pedal
pressed.
IMPORTANTAt the moment of
departure, after starting the engine,
do not press the accelerator pedal
before and during the gear lever
shift. Observing this precaution is
particularly important when the
engine is cold.MOVING OFF
After starting the engine at idle and
while keeping the brake pedal
pressed (Shift-lock safety), shift the
gear lever to D, or to the manual
sequential operation position.
Release the brake pedal and press
gradually the accelerator pedal.
IMPORTANTThe lever shift from
Pis possible only if the ignition key
is at MARand the brake pedal is
depressed (Shift-lock safety).
The gear lever can be shifted freely
from position Dto other positions
without pressing the brake pedal,
according to the diagram shown on
the mask. Only when shifting from
position Pit is necessary, for safety
reasons, to press the brake pedal to
move the lever.
fig. 137
L0A0184b

182
SELECTING THE AUTOMATIC/
MANUAL SEQUENTIAL
OPERATION
The main characteristic of this
gearbox is the possibility to be used
in automatic mode or in manual
sequential mode.
The operating mode can be select-
ed by setting the gear lever to the
right sector at D(automatic mode)
or to the left sector at (+/-) (manual
sequential mode).
On display A(fig. 140) of the
instrument panel it is possible to see
the engaged gear (1to 5in manual
sequential mode) or the symbol D
(automatic gearbox mode).AUTOMATIC OPERATION
To activate automatic operation,
move the lever to the right sector
(fig. 137) to one of the following
positions:
P- parking (the engine can be
started)
R- reverse
N- neutral (engine can be started)
D- automatic forward gear.
IMPORTANTThe lever can be
shifted from position Pis possible
only with the ignition key at MAR
and the brake pedal pressed (Shift-
lock safety).
The gear lever can be shifted freely
from position Dto other positions
without pressing the brake pedal,
according to the diagram shown on
the mask. Only when shifting from
position Pit is necessary, for safety
reasons, to press the brake pedal to
move the lever.
fig. 140
L0A0239b
P - Parking
When parking the car shift the gear
lever to this position. A gearbox
device will block the driving wheels.
To avoid accidental engaging, shift
from position P to any other position
is possible only with the brake pedal
pressed.
To bring the lever back to position
Pit is not necessary to press the
brake pedal, but as a rule it is sug-
gested to keep the brake pedal
pressed even in this case.
IMPORTANTShift the lever to P
only when the car is stationary.

265
TOW HITCH INSTALLATION
The tow hitch must be fixed to the
body by an expert in accordance
with the following instructions and
respecting the additional and/or
integrative information provided by
the tow hitch manufacturer.
The tow hitch to be fitted must
comply with the current regulations
in force, with reference to Directive
94/20/EEC and subsequent modifi-
cations.
Use a tow hitch suited for the max-
imum towable load of the car ver-
sion on which the tow hitch is to be
fitted.
Use a unified coupling for the elec-
trical connections. The coupling is
generally fitted on a specific mount
fastened to the tow hitch. A specific
trailer lights control unit shall be
installed on the car.For the electric connections, a 7
pole 12VDC coupling must be used
(CUNA/UNI and ISO/DIN stan-
dards). Follow the instructions pro-
vided by the manufacturer of the car
and/or the tow hitch.
The electrical brake (where rele-
vant) or other device (electrical
winch, etc.) must be powered direct-
ly from the battery by means of a
lead with a cross-section area no
smaller than 2.5 mm
2.
IMPORTANTUse the electrical
brake or winch only when the engine
is running.
In addition to the electrical connec-
tions, only the power wire for an
additional electrical brake and for
internal trailer lighting with a power
not exceeding 15W can be connect-
ed to the car’s electrical system.
For connections use the specific
control unit with battery cable not
less than 2.5 mm
2.INSTALLATION DIAGRAM (fig. 1)
Fasten the tow hitch in the points
marked with (1) using 18 M10
screws and, in the points marked
with (2) use four M8 screws.
Fasten the tow hitch to the body
avoiding any type of drilling and
trimming of the rear bumpers that
remains visible when the tow hitch is
removed.
IMPORTANTFasten a tag in a
clearly visible position at the same
height as the tow hitch. The tag is
compulsory. It must be adequately
sized, made of suitable material and
carry the following information:
MAX LOAD ON BALL COUPLING
75 kg.
After assembly, seal the fastening
screws holes to prevent exhaust fumes
from entering the passenger compart-
ment.

378
Ski tunnel ................................. 234
Snow chains ............................. 268
Solar cell operated sunroof ....... 222
- central locking/opening ....... 225
- emergency manoeuvre......... 226
- opening/closing .................. 223
- pivoting .............................. 223
- solar cells ........................... 226
Sound system ........................... 247
- Bose HI-FI sound system .... 248
- speakers ............................. 247
Spark plugs
- maintenance ....................... 330
- type .................................... 346
Speakers ................................... 247
Speedometer ............................ 107
Starting the engine ................... 250
- bump starting ..................... 273
- emergency start-up ..... 253-271
- engine stopping ................... 252
- engine warming up ............. 252
- ignition switch ..................... 24- JTD versions ...................... 251
- jump starting....................... 272
- petrol versions ..................... 251
Steering
- technical specifications ........ 352
Steering column lock ............... 24
Steering wheel........................... 70
- controls .............................. 18
- electric adjustment .............. 70
- manual adjustment ............ 70
Steering wheel stalks ............... 97
- left-hand stalk .................... 100
- right-hand stalk ................. 101
Stopping the engine ................. 252
Storing the car ......................... 269
- using the car again .............. 269
Sun visors ................................ 214
Supplementary heater ............... 162
- operation with engine
running .............................. 169
- operation with engine
stationary ............................ 163- technical specifications ....... 170
Suspensions
- technical specifications ........ 350
Symbols ................................... 9
Technical specifications..... 341
Third brake light ..................... 287
Tools ........................................ 275
Towing a trailer ....................... 264
- important ........................... 264
- installation diagram ........... 265
- tow hitch installation ......... 265
Towing the car ......................... 305
Transmission
- technical specifications ........ 348
Twilight sensor ........................ 99
Tyre inflation pressure .... 354-384
- important ........................... 331
Tyres
- changing a wheel ............... 274
- correct tyre reading ............ 356
- important .................. 332-356
