FRONT ASHTRAY AND CIGAR
LIGHTER
The ashtray and cigar lighter are
protected by a single flap. Press the
flap in the point shown (fig. 165).
Press button A(fig. 166) to work
the cigar lighter. After a few seconds
it will return to its initial position
and be ready for use.
The cigar lighter will only work
when the ignition key is at MAR.
Remove tray Bto empty the ash-
tray.Always verify that the
cigar lighter has been
switched off.
The cigar lighter gets
very hot. Be careful how
you handle it and make
sure it is not used by children:
danger of fire or burns.REAR ASHTRAYS (fig. 167)
Two ashtrays are provided for rear
seats: they are incorporated into rear
door panels.
To open the ashtray, press on the
point specified by the arrow.
To empty the ashtray, remove tray
A.
fig. 165
L0A0189b
fig. 166
L0A0188b
fig. 167
L0A0053b

216

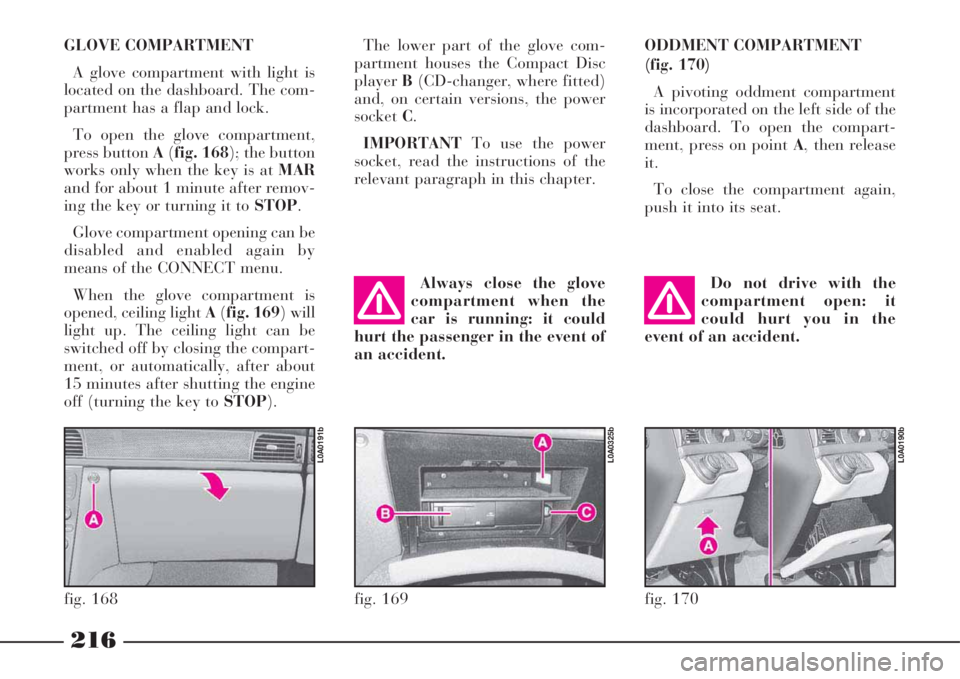

GLOVE COMPARTMENT
A glove compartment with light is
located on the dashboard. The com-
partment has a flap and lock.
To open the glove compartment,
press button A(fig. 168); the button
works only when the key is at MAR
and for about 1 minute after remov-
ing the key or turning it to STOP.
Glove compartment opening can be
disabled and enabled again by
means of the CONNECT menu.
When the glove compartment is
opened, ceiling light A(fig. 169) will
light up. The ceiling light can be
switched off by closing the compart-
ment, or automatically, after about
15 minutes after shutting the engine
off (turning the key to STOP).The lower part of the glove com-
partment houses the Compact Disc
playerB(CD-changer, where fitted)
and, on certain versions, the power
socketC.
IMPORTANTTo use the power
socket, read the instructions of the
relevant paragraph in this chapter.
Always close the glove
compartment when the
car is running: it could
hurt the passenger in the event of
an accident.ODDMENT COMPARTMENT
(fig. 170)
A pivoting oddment compartment
is incorporated on the left side of the
dashboard. To open the compart-
ment, press on point A, then release
it.
To close the compartment again,
push it into its seat.
Do not drive with the
compartment open: it
could hurt you in the
event of an accident.
fig. 168
L0A0191b
fig. 169
L0A0325b
fig. 170
L0A0190b

220
POWER SOCKET
It is located inside the rear armrest.
The power socket can be accessed
by lifting the armrest from handgrip
A(fig. 180). To close the compart-
ment, lower the armrest.
To use the socket, lift cover C
(fig. 179).
Certain versions are fitted with a
power socket inside the glove com-
partment.
The socket is powered when the
key is turned to MAR. It can be used
only for accessories with a maximum
intake of 15A (power 180W).ELECTRIC SUNSHADE (fig. 181)
The electric sunshade works with
ignition key at MAR.
The buttons for operating it are
located on the central console, near
the gearshift lever and inside the
rear armrest.
To operate the electric sunshade
from the front seats: press button A
to open it and button Bto close it.
To operate the electric sunshade
from the rear seats: press the front
part of button Cto open it and press
the rear part to close it.
Do not use the socket for
power devices with a
higher intake than that
shown.
Prolonged current intake can
drain the battery and lead to
problems when starting the
engine.– the power socket
– the remote control used for the
CONNECT HI-FI and TV functions
– the additional phone handset.
IMPORTANTTo use the power
socket, read the instructions of the
relevant paragraph in this chapter.
The compartment can be accessed
by lifting the armrest from handgrip
A(fig. 180).
To close the compartment, lower
the armrest.
fig. 180
L0A0074b
fig. 181
L0A0280b

222
SOLAR CELL
OPERATED
SUNROOF
The sunroof is electrically con-
trolled and its operation is possible
only with the ignition key at MAR.
The sunroof can slide lenghtwise,
with various opening positions, until
it fully retracts into the special hous-
ing, or can lift at the front (by pivot-
ing) to allow passenger compart-
ment aeration.
The upper part of the sunroof
incorporates a set of solar cells that
feed the climate control system fan
at first speed when the car is parked
to reduce the temperature inside the
passenger compartment.IMPORTANTBest operation of
the fan when the car is parked is
obtained by closing completely the
windows and sunroof. Furthermore,
to check operation at first speed of
the fan, disengage air vents and set
air distribution from central dash-
board vents only before leaving the
car.
The sunroof is equipped with an
anti-trap safety system, which con-
trols the closing lenghtwise sliding as
well as pivoting.
The electronic control unit that
controls the system is able to detect
the presence of obstacles when the
roof is closing or pivoting at the rear;
in this case, the system will interrupt
the sunroof travel and immediately
reverse it for a short stretch. RADIO TRANSMITTERS AND
CELLULAR TELEPHONES
Radio transceiver equipment (e.g.:
e-tacs mobile phones, HAM radio
systems and the like) shall not be
used inside the car unless a separate
aerial is mounted outside the car.
The use of these devices inside the
passenger compartment (without
external aerial) may cause electrical
systems equipping the car to mal-
function. This could compromise car
safety in addition to constituting a
potential hazard for the passengers.
In addition, transmission and
reception of these devices may be
affected by the shielding effect of the
car body.
As concerns the use of mobile
phones (GSM, GPRS, UMTS) pro-
vided with official EC approval,
strictly comply with the instructions
given by the mobile phone manufac-
turer.

223
The sunroof must not be
opened in the presence of
snow or ice; otherwise, it
could be damaged.
IMPORTANTOn versions fitted
with the Keyless System, do not lay
the CID device outside the car on the
sunroof, to avoid a fake identifica-
tion of the CID itself as if inside the
car.SUNROOF OPENING/CLOSING
AND PIVOTING
All the sunroof functions (opening,
closing and rear pivoting) are con-
trolled by selector A(fig. 184).
Six positions for lenghtwise open-
ing and three for pivoting are pro-
vided (fig. 185).
After rotating the selector, the sun-
roof will move and stop automatical-
ly in the required position.
When the sunroof is opened, a
deflectorA(fig. 186) will automati-
cally lift in the front part, which
deviates the air flow.
fig. 184
L0A0281b
fig. 186
L0A0282b
fig. 185
L0A0284b
Improper use of the sun-
roof can in any case be
dangerous, even if the
anti-trap safety system is avail-
able. Before and during sunroof
actuation, make sure that pas-
sengers are not exposed to the
risk of injuries caused by the
moving roof or by objects pulled
or hit by the roof itself. Always
remove the ignition key when you
leave your car, to prevent the
sunroof from being unintention-
ally actuated, which could be
dangerous for the passengers
inside the car.

225
CENTRAL SUNROOF AND
WINDOW LOCKING SYSTEM
Central locking/opening of sunroof
and windows can be actuated at the
following conditions:
– ignition key removed
– all doors closed correctly.To actuate central locking by
means of the remote control, keep
buttonB(fig. 188) depressed for
more than 3 seconds after closing
the doors: the sunroof and window
winders will be actuated until they
are completely closed or the button
is released.
To actuate central locking by
means of the remote control, keep
buttonA(fig. 188) depressed for
more than 3 seconds after opening
the doors: the sunroof and windows
winders will be actuated until they
are completely open or the button is
released.
This function can be used before
getting into the car when it has been
parked in the sun, in order to aerate
the passenger compartment.Central locking can also be actuat-
ed by turning the key in the lock of
one of the front doors: keep the key
turned to 2(fig. 189) for more than
3 seconds. The sunroof and window
winders are actuated until they are
completely closed or the key is
released.
By keeping the key turned to 1
(fig. 189) for more than 3 seconds,
both the sunroof and all the win-
dows will open. The sunroof and
window winders are actuated until
they are completely open or the key
is released.
fig. 188
L0A0174b
fig. 189
L0A6099b

227
BOOT
The boot can be opened both from
the outside and the inside of the car.
IMPORTANTFaulty closing of the
boot is signalled by the lighting of
the relevant symbol on the multi-
function display, together with mes-
sage “BOOT OPEN”With the battery flat, or
after the interruption of
one of the protection
fuses, or if you want to disconnect
a loaded battery (e.g. for a car
stop period), before opening the
luggage compartment bonnet
carefully read and comply with
the instructions contained in the
paragraph “If battery is to be dis-
connected” in the chapter “In an
emergency”.
OPENING FROM THE INSIDE
Boot tailgate is opened electrically.
It can be opened only when the igni-
tion key is at MARand the car is
stopped, or for 3 minutes after turn-
ing the key to STOPwithout open-
ing or closing a door.
To open the boot, press button A
(fig. 192), placed on the central con-
sole, as follows:
– a short pressure of the button will
release the boot lock– a prolonged pressure of the but-
ton will release the lock and open
the boot.
Boot lifting is facilitated by the
action of gas dampers.
The dampers are cali-
brated so as to ensure
correct lifting of the boot
tailgate with the weights estab-
lished by the manufacturer.
Addition of extra equipment (e.g.
spoiler, etc.) can adversely affect
operation and safety of use.
fig. 192
L0A0167b

228
OPENING FROM THE OUTSIDE
WITH THE KEY (fig. 193)
The boot lock is electrified: press
buttonAon the tailgate to open it.
In an emergency (battery run down
or electrical system failure), the tail-
gate can be opened by fully turning
counterclockwise the key in the lock
and exerting at the same time a
slight pressure on the lower edge of
the number plate holder to reduce
the opening effort.
IMPORTANTIf the boot was
opened using the key, at closing the
automatic function will be deacti-
vated. To restore the automatic
function press button A.OPENING BY MEANS OF THE
REMOTE CONTROL
The tailgate can be opened from
the outside by pressing button A
(fig. 194) on the remote control,
even when the electronic alarm is on.
When the electronic alarm is on,
boot opening is accompanied by
double flashing of direction indica-
tors; boot closing is accompanied by
one flashing.
IMPORTANTIf the boot is opened
with the key when the electronic
alarm is on, the latter will not be
deactivated.If the electronic alarm is on, both
the volumetric protection and the
boot control sensor will be switched
off, and the system will emit (except
for versions of certain markets) two
beeps.
fig. 193
L0A06022b
fig. 194
L0A0179b

230
Boot lock opening/closing by metal insert of the key
Central door locking system condition
To open the
boot tailgate
To close
the boot tailgate
On
Turn the key clock-
wise in the
lock latch
When the boot is
closed, the lock
remains
unlocked.
To lock the
tailgate lock, turn the
key counterclockwise
in the lock latch Off
Turn the key clock-
wise in the
lock latch
When the boot is
closed, the lock
remains
unlocked.
To lock the
tailgate lock, turn the
key counterclockwise
in the lock latch.
In any case, the lock
will automatically
lock when the car
speed exceeds 20
km/hOn
Turn the key clock-
wise in the
lock latch
When the boot is
closed, the lock
remains
unlocked.
To lock the
tailgate lock, turn the
key counterclockwise
in the lock latch Off
Press the tailgate but-
ton
When the boot is
closed, the lock
remains
unlockedNot bound to central door locking Bound to central door locking

234
POWER SOCKET (fig. 203)
(where provided)
It is located on the right-hand side
of the boot.
Open cover Ato use the socket.
The socket is powered when the
key is turned to MAR. It can be used
only for accessories with a maximum
intake of 15A (power 180W).Do not use the socket for
power devices with a
higher intake than that
shown.
Prolonged current intake can
drain the battery and lead to
problems when starting the
engine.SKI TUNNEL (where provided)
The tunnel can be used to trans-
port long objects (e.g. skis).
Introduce objects into the tunnel
from the boot.
Proceed as follows:
1) From the rear seat, lower the
armrest using handle A(fig. 204).
fig. 203
L0A0218b
fig. 204
L0A0076b
