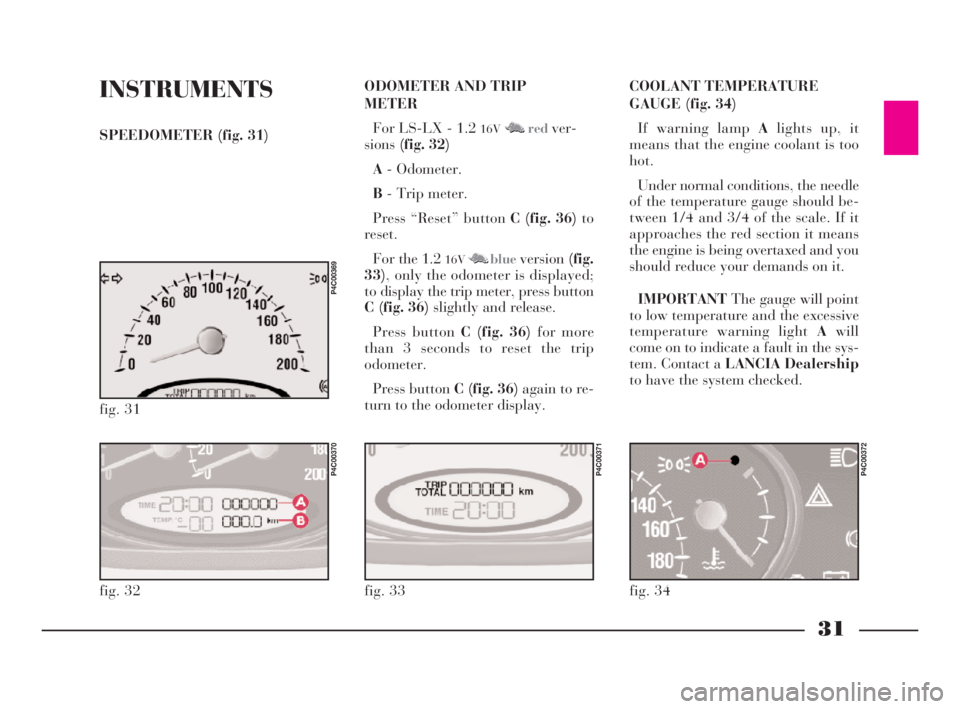

INSTRUMENTS
SPEEDOMETER (fig. 31)ODOMETER AND TRIP
METER
For LS-LX - 1.216VM M Nredver-
sions(fig. 32)
A- Odometer.
B- Trip meter.
Press “Reset” button C (fig. 36)to
reset.
For the 1.2
16VM Nblueversion(fig.
33), only the odometer is displayed;
to display the trip meter, press button
C (fig. 36)slightly and release.
Press button C (fig. 36)for more
than 3 seconds to reset the trip
odometer.
Press button C (fig. 36) again to re-
turn to the odometer display.COOLANT TEMPERATURE
GAUGE (fig. 34)
If warning lamp Alights up, it
means that the engine coolant is too
hot.
Under normal conditions, the needle
of the temperature gauge should be-
tween 1/4 and 3/4 of the scale. If it
approaches the red section it means
the engine is being overtaxed and you
should reduce your demands on it.
IMPORTANTThe gauge will point
to low temperature and the excessive
temperature warning light Awill
come on to indicate a fault in the sys-
tem. Contact a LANCIA Dealership
to have the system checked.
fig. 32
P4C00370
fig. 33
P4C00371
fig. 31
P4C00369
fig. 34
P4C00372
4C001-067 ING 11-03-2008 11:57 Pagina 31

34
G
WARNING LIGHTS
The warning lights will come on in
the following cases:
LOW ENGINE
OIL PRESSURE (red)
When the pressure of the
engine oil falls below the normal level.
When the key is turned to MAR, the
light comes on but should go out the
moment the engine is started.
A delay in the light going out is only
acceptable if the engine is idling.
If the engine has been taxed heavily,
the light might flash when idling but
should go out on accelerating slightly.
v
BATTERY NOT
RECHARGED
PROPERLY (red)
When there is a fault in the current
generating system.
Contact a LANCIA Dealership as
soon as possible to prevent draining
the battery.
The warning lamp will light up when
the ignition key is turned to MAR, but
should go out as soon as the engine
has started.
w
If the warning lamp v
lights up while the car is
moving, switch the engine
off and get in touch with a LANCIA
Dealership.
HANDBRAKE ON/
LOW BRAKE FLUID
LEVEL (red)
In three cases:
1.When the handbrake is engaged.
2.When the brake fluid level falls be-
low the minimum.
3.With the >warning light to indi-
cate an EBD electronic brake force
corrector failure.
x
If the xwarning light
comes on when travelling,
check whether the hand-
brake is engaged. If the warning
light stays on and the handbrake
is not engaged, stop immediately
and contact a LANCIA Dealership.
AIRBAG MALFUNCTION
(red)
When the system is ineffi-
cient.
û
The instrument panel
warning light should come
on when the ignition key is
turned to MAR and go out after ap-
proximately four seconds. Imme-
diately contact a LANCIA Dealer-
ship if the warning light either
does not come on or stays on when
travelling.
DOORS NOT CLOSED
PROPERLY (red)
When a door is not fully
closed.
´
4C001-067 ING 11-03-2008 11:57 Pagina 34

35
G
LANCIA CODE
(amber)
In three ways (with ignition
key at MAR):
1.A single flash - indicates that the
key code has been recognised. The en-
gine can be started.
2.A constant light - indicates that the
key code has not been recognised. To
start the engine, follow the emergency
startup procedure described in the “In
an emergency” section.
3.A flashing light - indicates that the
car is not protected by the immo-
biliser system. The engine can be
started however.
¢
ABS (ANTI-LOCKING
SYSTEM) FAILURE
(amber)
When the ABS system is inefficient.
The normal braking system continues
to work but you should have the car
seen to at a LANCIA Dealershipas
soon as you can.
The warning lamp will light up when
you turn the key to MAR, but it
should go out as soon as the engine
starts.
>
The car is fitted with an
electronic brake distribu-
tor (EBD). If warning lights
>andxlight up simultaneously
when the engine is running, this
indicates an EBD fault. This
means that violent braking could
cause early locking of the rear
wheels causing the car to skid.
Drive very carefully to the nearest
LANCIA Dealership to have the
system checked.EOBD SELF-
DIAGNOSTIC SYSTEM
(amber)
In normal conditions, the warning
light will come on when the ignition
key is turned to MARand should go
out as soon as the engine is started.
The initial lighting up shows that the
warning light is working properly.
If the warning light either stays on or
comes on while travelling:
1.Fixed light - warning of a fuel
feed/ignition system failure which
If only warning light>
switches on when the en-
gine is running, this usu-
ally indicates an ABS fault. In such
cases the braking system is still ef-
ficient, although the anti-locking
device does not function. The EBD
system may also be less efficient.
Go to a LANCIA Dealership imme-
diately, taking care not to brake
suddenly, and have the system
checked.HAZARD LIGHTS
(red) (flashing)
When the hazard lights are
switched on.
r
4C001-067 ING 11-03-2008 11:57 Pagina 35

58
G
FRONT AND SIDE
AIRBAGS
FRONT AIRBAGS (fig. 85)
Description and operation
The front airbag (driver and pas-
senger) is a safety device which is im-
mediately triggered in the event of a
front impact.
It consists of an instantly inflatable
bag housed in a special compartment
located:
– in the centre of the steering wheel
on the driver’s side;
– in the dashboard on the passen-
ger’s side (larger bag).
The front airbag (driver and pas-
senger) is a device which protects the
occupants of the car during a head-on
collision of a medium-high degree.
The system was designed to protect
from injury caused by the body crash-
ing to the steering wheel or the dash-
board. IMPORTANTCars fitted with ABS
must always be fitted with the wheel
rims, tyres and brake linings of the
type and make recommended by the
Manufacturer.
The system also includes the EBD
electronic brake correction (Electronic
Brake Distributor) which, through the
control unit and the ABSsensors fur-
ther enhances the braking system.
The car is fitted with an
electronic brake distribu-
tor (EBD). If warning lights
>andxlight up simultaneously
when the engine is running, this
indicates an EBD fault. This
means that violent braking could
cause early locking of the rear
wheels causing the car to skid.
Drive very carefully to the nearest
LANCIA Dealership to have the
system checked.
If only warning light >
switches on when the en-
gine is running, this usu-
ally indicates an ABS fault. In such
cases the braking system is still ef-
ficient, although the anti-locking
device does not function. The EBD
system may also be less efficient.
Go to a LANCIA Dealership imme-
diately, taking care not to brake
suddenly, and have the system
checked.
If the xbrake fluid low
warning light comes on,
stop the car immediately
and contact the nearest LANCIA
Dealership. Fluid leaks from the
hydraulic system, can compromise
brake system operation, both tra-
ditional systems and systems with
ABS.
4C001-067 ING 11-03-2008 11:57 Pagina 58

62
G
It is important to remem-
ber that the airbag can be
fired even when the engine
is not running and the key is at
MAR if it is hit by another vehicle
travelling at suitable speed. As a
consequence, LANCIA recom-
mends sitting children in their
specific restraint systems on the
back seat, which is the most pro-
tected position possible. On the
contrary, the airbags will not be
fired if the car is crashed into
when the key is not inserted or
turned. Consequently, in this case,
the fact that the system is not fired
does not indicate a fault.Always drive with both
hands on the rim of the
steering wheel so that the
airbag is free to inflate during a
head-on collision, and protect you
from serious injury. Do not drive
with your body bending towards
the steering wheel, but sit in an
upright position with your back
resting against the seat.
If an attempt has been
made to steal the car, or if
it has actually been stolen
or has been vandalised in any way
or subjected to flooding, have the
airbag system checked over at a
LANCIA Dealership. Do not apply stickers or
other objects to the steering
wheel or to the dashboard
on the passenger’s side. Do not
travel with objects on your lap or in
front of you nor with a pipe, pencil
or similar between your lips; you
could seriously hurt yourself if the
airbag inflates in a collision.
The correct operation of
front airbags, side airbags
and pretensioners is en-
sured only if the car is not over-
loaded. Do not exceed the maximum
permitted loads (see “Weights” in
“Technical specifications”).When the passenger’s
front airbag is active (pas-
senger front airbag deacti-
vation switch at ON), the warn-
ing light will come on for approx-
imately four seconds and flash for
other four seconds when the igni-
tion key is turned to MAR to re-
mind the driver than the passen-
ger’s front and side airbags (where
fitted) will be fired in the event of
a crash. The warning light should
go out immediately afterwards.
The airbag does not re-
place seat belts but rather
increases their effective-
ness. Furthermore, the airbag is
not fired in the event of low speed
front collisions, side collisions,
rear-end shunts and roll-overs. In
these cases, the passengers are
only protected by the seat belts
which for this reason must always
be fastened.
4C001-067 ING 11-03-2008 11:57 Pagina 62

63
G
Do not cover the seat
backs in cars with side
bags.The airbag does not re-
place seat belts but rather
increases their effective-
ness. Furthermore, the airbag is
not fired in the event of low speed
front collisions, side collisions,
rear-end shunts and roll-overs. In
these cases, the passengers are
only protected by the seat belts
which for this reason must always
be fastened.
Do not wash the seat
back in cars with side
airbags with pressurised
steam or water in automatic seat
washing stations.
EOBD SYSTEM
The EOBD (European On Board Di-
agnosis) system fitted in this car com-
plies with Directive 98/69/CE (EURO
3).
This system continuously monitors
the vehicle emission system compo-
nents. Furthermore, the system warns
the driver of deterioration concerning
the emission system components by
means of the warning light on the
instrument panel.
The objective is to:
– monitor system efficiency;
– warn when failures can increase
emissions over the threshold estab-
lished by the European regulations;
– warn of the need to replace deteri-
orated components.
Furthermore, the system is equipped
with a connector for interfacing with
specific tools used to read the error
codes stored in the control unit mem-
ory along with a set of diagnostic and
engine specific parameters.
IMPORTANTAfter eliminating the
problem, your LANCIA Dealership
will run a bench test to fully check the
system. In some cases, a long road test
may be required.Contact a LANCIA Deal-
ership as soon as possible
if the warning light ei-
ther does not come on when the
key is turned to MAR or comes on,
with fixed or flashing light, when
travelling.
4C001-067 ING 11-03-2008 11:57 Pagina 63

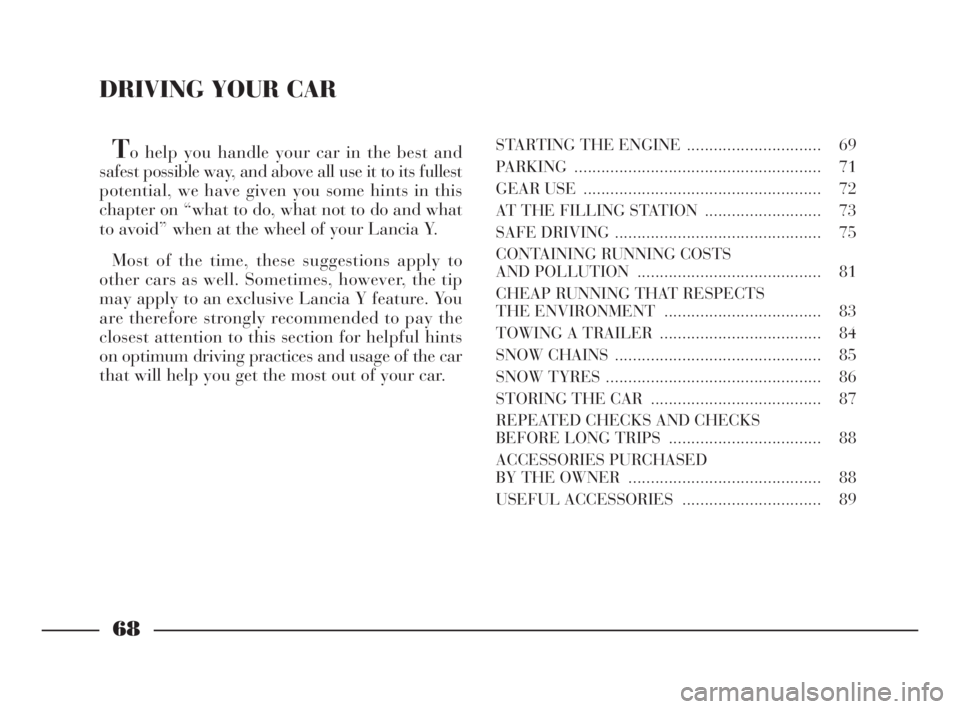

DRIVING YOUR CAR
To help you handle your car in the best and
safest possible way, and above all use it to its fullest
potential, we have given you some hints in this
chapter on “what to do, what not to do and what
to avoid” when at the wheel of your Lancia Y.
Most of the time, these suggestions apply to
other cars as well. Sometimes, however, the tip
may apply to an exclusive Lancia Y feature. You
are therefore strongly recommended to pay the
closest attention to this section for helpful hints
on optimum driving practices and usage of the car
that will help you get the most out of your car. STARTING THE ENGINE .............................. 69
PARKING ....................................................... 71
GEAR USE ..................................................... 72
AT THE FILLING STATION .......................... 73
SAFE DRIVING .............................................. 75
CONTAINING RUNNING COSTS
AND POLLUTION ......................................... 81
CHEAP RUNNING THAT RESPECTS
THE ENVIRONMENT ................................... 83
TOWING A TRAILER .................................... 84
SNOW CHAINS .............................................. 85
SNOW TYRES ................................................ 86
STORING THE CAR ...................................... 87
REPEATED CHECKS AND CHECKS
BEFORE LONG TRIPS .................................. 88
ACCESSORIES PURCHASED
BY THE OWNER ........................................... 88
USEFUL ACCESSORIES ............................... 89
68
G
4C068-089 ING 11-03-2008 11:59 Pagina 68

73
G

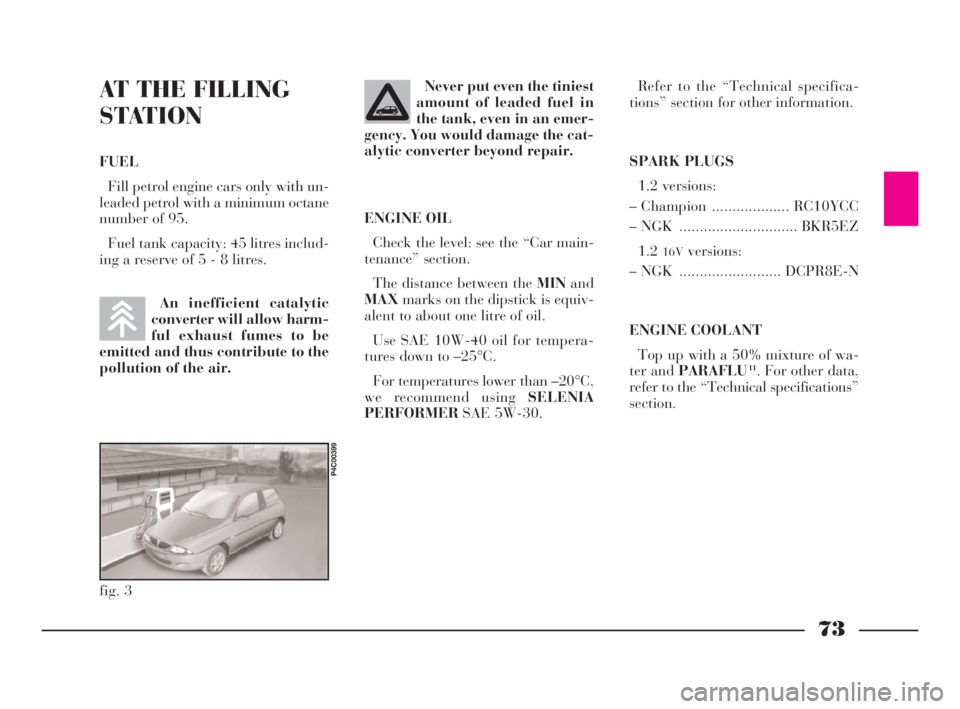

AT THE FILLING
STATION
FUEL
Fill petrol engine cars only with un-
leaded petrol with a minimum octane
number of 95.
Fuel tank capacity: 45 litres includ-
ing a reserve of 5 - 8 litres.Never put even the tiniest
amount of leaded fuel in
the tank, even in an emer-
gency. You would damage the cat-
alytic converter beyond repair.
ENGINE OIL
Check the level: see the “Car main-
tenance” section.
The distance between the MINand
MAXmarks on the dipstick is equiv-
alent to about one litre of oil.
Use SAE 10W-40 oil for tempera-
tures down to –25°C.
For temperatures lower than –20°C,
we recommend using SELENIA
PERFORMERSAE 5W-30.Refer to the “Technical specifica-
tions” section for other information.
SPARK PLUGS
1.2 versions:
– Champion ................... RC10YCC
– NGK ............................. BKR5EZ
1.2
16Vversions:
– NGK ......................... DCPR8E-N
ENGINE COOLANT
Top up with a 50% mixture of wa-
ter and PARAFLU
11. For other data,
refer to the “Technical specifications”
section.
An inefficient catalytic
converter will allow harm-
ful exhaust fumes to be
emitted and thus contribute to the
pollution of the air.
fig. 3
P4C00399
4C068-089 ING 11-03-2008 11:59 Pagina 73

79
G
DRIVING IN THE MOUNTAINS
– When driving downhill use the en-
gine braking effect by engaging a low
gear so as not to overheat the brakes.
– Under no circumstances should
you drive downhill with the engine off
or with the car in neutral, let alone
with the ignition key out.
– Drive at a moderate speed without
cutting corners.
– Remember that overtaking while
going uphill is slower and therefore re-
quires more free road. If you are being
overtaken while driving uphill, make
it easier for the other vehicle to pass.DRIVING ON SNOW OR ICE
Here are some tips for driving in
these conditions.
– Before starting off, check that the
windscreen wiper blades are not stuck
to the windscreen.
– Remove any snow from the climate
control system air intake.
– Keep your speed down.
– Use chains or snow tyres if the
roads are covered in snow, see the re-
spective paragraphs in this chapter.
– Do not keep the engine running for
long periods in deep snow as the snow
could push exhaust gases into the pas-
senger compartment.– Mainly use the braking effect of
the engine and under all circum-
stances avoid braking sharply.
– When braking in a car not fitted
with ABS, avoid the wheels locking by
varying the pressure you exert on the
brake pedal.
– Do not accelerate suddenly and
avoid swerving.
– In the winter, even apparently dry
roads may have icy patches. Be care-
ful therefore when driving over
stretches that do not get much expo-
sure to the sun or that are lined by
trees and rocks, where ice might not
have melted.
– Keep a good distance from the ve-
hicles in front.
4C068-089 ING 11-03-2008 11:59 Pagina 79

80
G
DRIVING WITH ABS
The car can be fitted with a wheel
anti-locking system (ABS) and with
electronic brake correction (EBD) sys-
tem.
ABS is a braking system that essen-
tially offers two advantages:
1)It prevents wheel locking and
consequent skidding in emergency
stops, particularly when the road does
not offer much grip.
2)It makes it possible to brake and
steer at the same time so you can
avoid unexpected obstacles and direct
the car where you want while brak-
ing. The extent to which this can be
done will depend on the physical lim-
its of the tyre’s total grip.To get the most out of ABS:
– During emergency stops or when
grip conditions are poor, you will feel
a slight pulsation on the brake pedal.
This is the sign that the ABS is work-
ing. Do not release the brake pedal
but continue to press so as not to in-
terrupt the braking action.
– ABS prevents the wheels from
locking, but it does not increase ac-
tual grip conditions between tyre and
road. Therefore, even if your car is fit-
ted with ABS, respect the safety dis-
tance from the car in front of you and
keep your speed down when driving
into bends.
ABS serves to increase the controlla-
bility of the car, not to enable you to
go faster.If warning light >
switches on when the en-
gine is running, this usu-
ally indicates an ABS fault. In such
cases the braking system is still ef-
ficient, although the anti-locking
device does not function. The EBD
system may also be less efficient.
Go to a LANCIA Dealership imme-
diately, taking care not to brake
suddenly, and have the system
checked.
The car is fitted with an
electronic brake corrector
(EBD). If warning lights >
andxlight up simultaneously
when the engine is running, this
indicates an EBD fault. This
means that violent braking could
cause early locking of the rear
wheels causing the car to skid.
Drive the car extremely carefully
to the nearest LANCIA Dealership
to have the system checked.
4C068-089 ING 11-03-2008 11:59 Pagina 80
