ACCESSORY INSTALLATION
Genuine Lancia accessories have been designed
with the Lancia Y specifically in mind and have
been selected and tested on the car. They are easy
to use, reliable and practical: qualities that lead
to enhanced comfort and safety under all driving
conditions.
For child safety, the child seats in the Lineac-
cessori Lancia line meet the strictest current Eu-
ropean standards.
You can find the Lancia accessories described in
a catalogue available from Lancia Dealerships.
Just ask the staff to give you all the details.
The following pages show diagrams and give in-
structions for correctly fitting a number of acces-
sories. Installation must always be entrusted to the
experts. Lancia has specially trained its Dealer-
ship staff for work on the Lancia Y.SOUND SYSTEM/RADIO NAVIGATION
SYSTEM......................................................... 169
TOW HITCH .................................................. 172
RF REMOTE CONTROL:
MINISTERIAL HOMOLOGATION .................. 175
168
G
4C168-176 ING 11-03-2008 12:03 Pagina 168

169
G
SOUND SYSTEM/RADIO NAVIGATION SYSTEM
SET-UP SYSTEM WIRING
DIAGRAM AND ADDITIONAL
BRANCHES (SOUND SYSTEM)
(fig. 1)
A- Radio aerial;
B- Terminal box;
C- High-amp fuse box;
D- Front left speaker;
E- Left tweeter;
F- Right tweeter;
G- Front right speaker;
H- Radio;
I- Rear right speaker;
L- Rear left speaker;
M- CD CHANGER (where fitted)
wire with respectiving connector,
where you can install a compatible
CD CHANGER if required;
m- +30;
n- Code positive;
o- Radio lights positive.
List of cable colour codes
N=Black - R=Red - AG=Blue/Yellow - AR=Blue/Red - CV=Orange/Green
CN=Orange/Black - BN=White-Black - GN=Yellow-Black - NZ=Black-Purple
RG=Red-Yellow - RN=Red-Black - SN=Red-Black
fig. 1
P4C00388
4C168-176 ING 11-03-2008 12:03 Pagina 169

170
G
List of cable colour codes
G=Yellow - N=Black - R=Red - AG=Blue/Yellow - AR=Blue/Red - BR=White/Red -
CV=Orange/Green - CN=Orange/Black - BN=White-Black - GN=Yellow-Black -
NZ=Black-PurpleRG=Red-Yellow - RN=Red-Black - SN=Red-Black
SET-UP SYSTEM WIRING
DIAGRAM AND ADDITIONAL
BRANCHES (RADIO
NAVIGATION SYSTEM) (fig. 2)
A- Radio aerial;
B- Terminal box;
C- High-amp fuse box;
D- Front left speaker;
E- Left tweeter;
F- Right tweeter;
G- Front right speaker;
H- Radio-navigator;
I- Rear right speaker;
L- Rear left speaker;
M- Vehicle speed signal;
N- GPS aerial;
O- Reversing signal;
P- CD CHANGER wire with re-
spectiving connector, where you can
install a compatible CD CHANGER if
required;
m- +30;
n- +15;
o- Radio lights positive.
fig. 2
P4C00423
4C168-176 ING 11-03-2008 12:03 Pagina 170

171
G
COMPONENT LOCATION
(SOUND SYSTEM AND RADIO
NAVIGATION SYSTEM) (fig. 3)
1- Front speaker on dashboard
(tweeter) and in doors (mid-
range/woofer)
2- Sound system or radio navigation
system
3- Rear speaker (woofer)
4- Radio aerial
5- Maxi fusebox
6- Fusebox
7- CD-CHANGER wire (in the car
radio set version, only where pro-
vided)
8- GPS aerial (radio navigation sys-
tem only).
fig. 3
P4C00426
4C168-176 ING 11-03-2008 12:03 Pagina 171

172
G
ELECTRICAL CONNECTION
DIAGRAM (fig. 4)
1- Connection on the branching box
for powering the relays
2- Terminal box
3- Left taillight
4- Relay for the power supply of the
trailer’s left-hand direction indicator
5- Relay for the power supply of the
trailer’s right-hand direction indicator
6- Right taillight
7- 7-pole socket
8- Rear left grounding point
9- Connection between dashboard
cables and rear cables
10- 7.5A fuse
List of cable colour codes
B=White - G- Yellow - L=Blue- M=Brown- N=Black- R=Red- V=Green
TOW HITCH
fig. 4
P4C00170
4C168-176 ING 11-03-2008 12:03 Pagina 172

173
G
For mechanical connections, the fol-
lowing must be used:
– “CUNA 501” 1
stclass ball coupling
(CUNA NC 138-40 table);
– “CUNA 501” 1
stclass socket cou-
pling (CUNA NC 438-40 table).For the electric connection a 7-pole,
12 Volt coupling must be used
(CUNA UNI 9128).
The electric coupling must be fixed
on a special mount to be attached to
the ball coupling.
The electrical functions for the cou-
pling must be connected as illustrated
in(fig. 5).
In addition to the electrical connec-
tions (illustrated in the diagram that
follows), only the lead for powering
an electric brake and the lead to
power a light inside the trailer not ex-
ceeding 15W may be connected to the
car’s electrical system.
The electric brake must be powered
directly from the battery by means of
a lead with a cross-section no less
than 2.5 sq. mm.
Location of the components
on the car:
1.Left taillight (rear foglight con-
nection) - 2.Right taillight (brake
lights connection) - 3.Pole socket -
4.Trailer direction indicators power
supply relays - 5.High-amp fusebox
-6.Branching box. TOW HITCH INSTALLATION
(fig. 5)
The tow hitch must be fixed to the
body by an expert in accordance with
the following instructions and with
any additional instructions or infor-
mation provided by the tow hitch
manufacturer.
fig. 5
P4C00416
4C168-176 ING 11-03-2008 12:03 Pagina 173

174
G
The underbody plate must be wider
than the plate in the boot. Further-
more, the edge of the plate must be
turned up to avoid sharp corners
coming into contact with the body.
The tow hitch must be anchored to
the body without any drilling or trim-
ming of the rear bumper that would
be visible when the tow hitch is re-
moved.
IMPORTANTA clearly visible plate
of a suitable size and made of suitable
material saying:
MAX LOAD ON THE BALL
COUPLING 70 kg
must be fixed at the height of the ball
coupling.
FITTING INSTRUCTIONS
The body of the tow hitch (fig. 6)
must be fixed using 7 M10 screws at
the points indicated with the sym-
bol
Ø.All the anchorage points must have
suitable internal reinforcements made
of steel, 3 mm thick
Æ.After installation, the
holes for the retaining
screws must be sealed to
prevent the infiltration of exhaust
gases.
(*) Alternative value according to the tow hitch fitted.
fig. 6
P4C00307
Min. area in contact with the plates: 150 cm2
Spare wheel
compartment flat centre
Outer rear
wall line
Ground
Min. area in contact
with the plates: 176 cm
2Vehicle centreline
(vehicle fully laden)Vehicle
centreline
Spare wheel
centre
Seen from X
Seen from A
4C168-176 ING 11-03-2008 12:03 Pagina 174

P4C20002
175
G

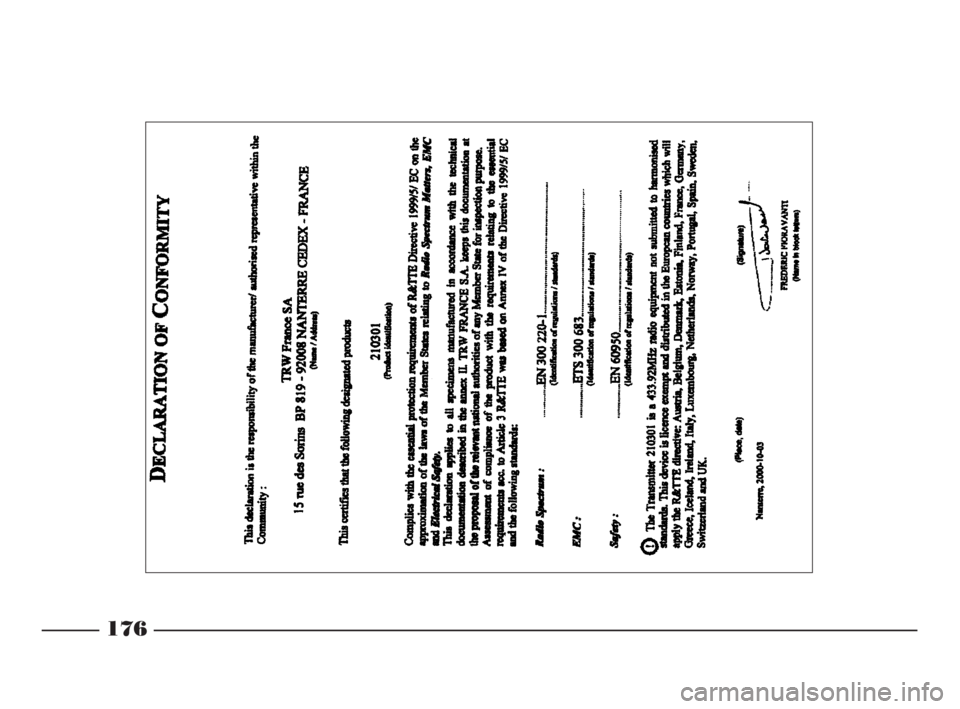

RF REMOTE CONTROL:
MINISTERIAL HOMOLOGATION
The homologation codes for the RF remote control fitted in the car are given below.
International Country Homologation code
motoring
code
A Austria
B Belgium
CH Switzerland
D Germany
E Spain
F France
GR Greece
I Italy
NL Netherlands
P Portugal
H Hungary –
PL Polonia _
4C168-176 ING 11-03-2008 12:03 Pagina 175

176
G
4C168-176 ING 11-03-2008 12:03 Pagina 176
