Lancia Ypsilon 2015 Owner handbook (in English)

TABLE OF CONTENTS
INTRODUCTION.....................................................269
TIPS ......................................................................269
TECHNICAL CHARACTERISTICS .......................271
Speakers for Basic Audio specification....................271
Speakers for 360° HI-FI MUSIC specification ........271
QUICK GUIDE ........................................................272
General functions ...................................................273
Radio functions ......................................................274
CD functions ..........................................................274
Media Player functions (only withBlue&Me™) ...275
STEERING WHEEL CONTROLS ..........................276
INTRODUCTION.....................................................278
FUNCTIONS AND ADJUSTMENTS ........................279
SWITCHING ON THE CAR RADIO ......................279
SWITCHING OFF THE CAR RADIO.....................279
SELECTING THE RADIO FUNCTIONS ...............279
SELECTING CD FUNCTION ................................280
AUDIO SOURCE MEMORY FUNCTION ...............280
VOLUME ADJUSTMENT ......................................280
MUTE/PAUSE FUNCTION....................................280
AUDIO SETTINGS ................................................281
TONE ADJUSTMENT (bass/treble) .......................281
BALANCE ADJUSTMENT.....................................282
FADER ADJUSTMENT ..........................................282
LOUDNESS FUNCTION .......................................282
EQ FUNCTION .....................................................282
USER EQ SETTINGS FUNCTION ........................283
MENU....................................................................283
AF SWITCHING function .....................................284
TRAFFIC INFORMATION function ......................285REGIONAL MODE function .................................286
MP3 DISPLAY function ........................................286
SPEED VOLUME function ...................................287
RADIO ON VOLUME function .............................287
PHONE FUNCTION ..............................................288
AUX OFFSET function .........................................289
RADIO OFF function ............................................289
SYSTEM RESET function......................................289
PHONE SET-UP ....................................................290
ANTI-THEFT PROTECTION ................................290
RADIO (TUNER) .....................................................292
INTRODUCTION...................................................292
FREQUENCY BAND SELECTION ........................293
PRESET BUTTONS...............................................293
STORING THE LAST STATION LISTENED TO...293
AUTOMATIC TUNING ..........................................294
MANUAL TUNING ................................................294
AUTOSTORE FUNCTION ....................................294
EMERGENCY ALARM RECEPTION ....................295
EON FUNCTION (Enhanced Other Network) ........295
STEREOPHONIC BROADCASTERS .....................295
CD PLAYER ............................................................296
INTRODUCTION...................................................296
SELECTING THE CD PLAYER ............................296
LOADING/EJECTING A CD..................................296
DISPLAY INFORMATION .....................................297
TRACK SELECTION (forward/back) ....................297
TRACK FAST FORWARD/REWIND ......................298
PAUSE FUNCTION ...............................................298
CD MP3 PLAYER ....................................................298
267
SOUND-SYSTEM

INTRODUCTION...................................................298
MP3 MODE ...........................................................298
SELECTING MP3 SESSIONS ON HYBRID
DISCS ....................................................................299
DISPLAY INFORMATION .....................................300
SELECTING NEXT/PREVIOUS FOLDER ............300
STRUCTURE OF THE FOLDERS.........................301AUX (only with theBlue&Me™ system) ................301
INTRODUCTION...................................................301
AUX MODE ...........................................................301
TROUBLESHOOTING ...........................................302
GENERAL .............................................................302
CD PLAYER ..........................................................303
MP3 FILE READING.............................................303
268
SOUND-SYSTEM

INTRODUCTION
The radio has been designed according to the
passenger compartment's specific characteristics
and with a personalised design that complements
the style of the dashboard.
The instructions for use are given below. We
recommend that you read them carefully.
TIPS
Road safety
Familiarise yourself with the various car radio
functions (e.g. storing radio stations), before
starting to drive.
Reception conditions
Reception conditions change constantly while
driving. Reception may be interfered with by the
presence of mountains, buildings or bridges, or
when you are far away from the broadcaster.
NoteThe volume may be increased when receiving
traffic alerts and news.
WARNING
If the volume is too loud this could be
dangerous for the driver and for
passengers when driving in traffic. Always
adjust the volume so that you can still hear
background noises.Maintenance and care
Only clean the cover with a soft, anti-static cloth.
Cleaning and polishing products may damage the
surface.
CD
Dirt, scratches or any distortions on CDs may
cause skipping during playback and poor sound
quality. Follow these tips for optimum playback
conditions:
❒only use CDs with the brand:
❒clean every CD thoroughly removing any
fingerprints or dust using a soft cloth. Hold CDs
by the circumference and clean them from the
centre towards the edge;
❒never use chemical products (e.g. antistatic or
thinner spray cans) for cleaning as they could
damage the surface of the CDs;
❒after listening to them place CDs back in their
cases to avoid them being damaged;
❒do not expose CDs to direct sunlight, high
temperatures or moisture for long periods;
269
SOUND-SYSTEM

❒do not stick labels on the surface of the CD and
do not write on the recorded surface using pens
or pencils;
❒Never use CDs that are very scratched, cracked,
distorted, etc. Their use could cause damage the
player or make it malfunction;
❒to achieve the best quality audio reproduction
we recommend the use of original CD media.
Correct operation is not guaranteed when CD-
R/RW media are used that were not correctly
burnt and/or with a maximum capacity above
650 Mb;
❒do not use commercially available protective
sheets for CDs or discs with stabilisers as they
could get stuck in the internal mechanism and
damage the disc;❒if a copy-protected CD is used, it may take a few
seconds before the system starts to play it. The
CD player cannot be guaranteed to play all
protected discs. The presence of copy protection
is often indicated in small letters or may be
difficult to read on the cover of the CD; it may
say something like, for example, "COPY
CONTROL", "COPY PROTECTED", "THIS
CD CANNOT BE PLAYED ON A PC/MAC" or
may be identified through the use of symbols,
such as, for example:
❒The CD player is able to read most of the
compression systems currently on the market
(e.g.:LAME, BLADE, XING, FRAUNHOFER)
but as these systems are continually evolving,
playback of all compression formats is not
guaranteed.
270
SOUND-SYSTEM

TECHNICAL CHARACTERISTICS
Speakers for Basic Audio specification
Front speakers
❒2
38 mm tweeters on the door pillar;
❒2
165 mm mid-woofer speakers in the door
panel.
Rear speakers
❒2
165 mm full-range speakers in the door
panel.
Speakers for 360° HI-FI MUSIC specification
(if requested as an optional, as an alternative
to the Basic Audio level)
Front speakers
❒2
39 mm tweeters on the door pillar;
❒2
165 mm mid-woofer speakers in the door
panel.Rear speakers
❒2
39 mm tweeters on the side panels;
❒2
165 mm mid-woofer speakers in the door
panel;
❒1 8-channel amplifier.
The 360° HI-FI MUSIC audio system has been
carefully designed to provide the best acoustic
performance and reproduce sound like a live
concert in all areas of the passenger compartment.
The system faithfully reproduces crystalline treble
tones and provides full and rich bass tones that
make the loudness function superfluous.
The complete range of sound is reproduced
throughout the entire passenger compartment so
that the occupants are enveloped with the feeling
of space experienced when listening to live music.
The components used have been patented and
make use of the most sophisticated technology
whilst at the same time being easy to use by even
the most inexperienced people.
271
SOUND-SYSTEM

QUICK GUIDE
fig. 1L0F0004
272
SOUND-SYSTEM

General functions
Button Functions Method
On short button press
Off short button press
Volume adjustment LH/RH knob rotation
FM ASFM1, FM2, FM Autostore radio source
selectionshort cyclical button press
AMMW1, MW2 radio source selection short cyclical button press
MEDIACD/Media Player source selection (only with
Blue&Me
™) / AUX (only with
Blue&Me
™, for versions/markets, where
provided)short cyclical button press
Volume activation/deactivation
(Mute/Pause)Short button press
Audio adjustments: low tones (BASS), high
tones (TREBLE), RH / LH balance
(BALANCE), front / rear balance (FADER)Menu activation: short button press
Selection of type of adjustment: pressing
orbuttons
Adjustment of values: pressing
or˙
buttons
MENUAdvanced functions adjustmentMenu activation: short button press
Selection of type of adjustment: pressing
orbuttons
Adjustment of values: pressing
or
buttons.
273
SOUND-SYSTEM

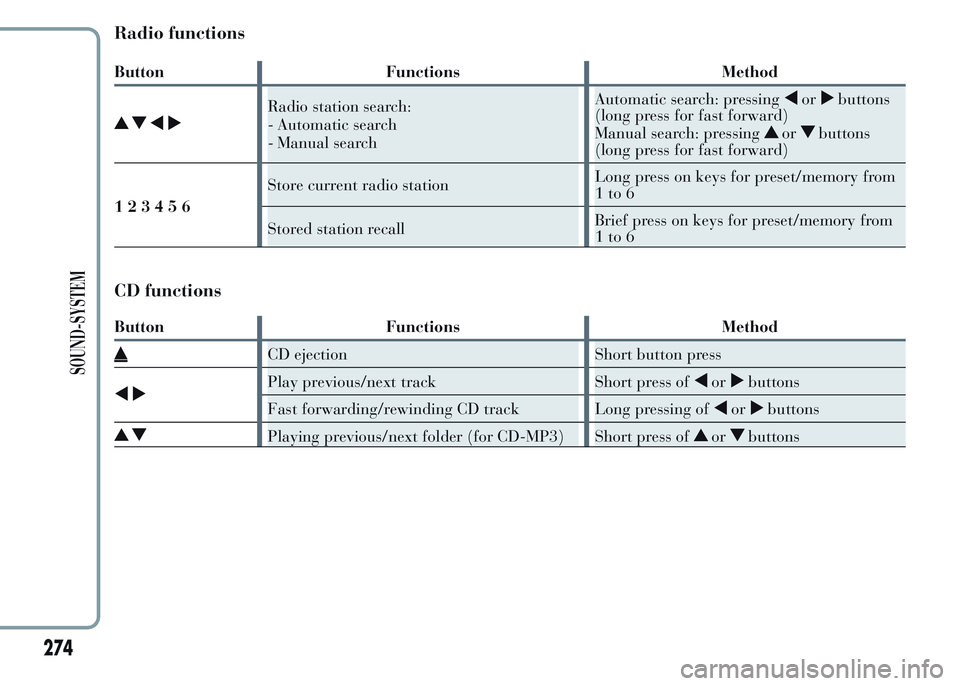

Radio functions
Button Functions Method
Radio station search:
- Automatic search
- Manual searchAutomatic search: pressingorbuttons
(long press for fast forward)
Manual search: pressing
orbuttons
(long press for fast forward)
123456Store current radio stationLong press on keys for preset/memory from
1to6
Stored station recallBrief press on keys for preset/memory from
1to6
CD functions
Button Functions Method
CD ejection Short button press
Play previous/next track Short press oforbuttons
Fast forwarding/rewinding CD track Long pressing of
orbuttons
Playing previous/next folder (for CD-MP3) Short press oforbuttons
274
SOUND-SYSTEM

Media Player functions (only with Blue&Me™)
Button Functions Method
Select previous/next
folder/artist/genre/album depending on the
active selection modeShort button press
Play previous/next track Short button press
275
SOUND-SYSTEM

STEERING WHEEL CONTROLS
(for versions/markets, where provided)
Button Functions Method
AudioMute on/off (Radio mode) or Pause
function (MP3 or Media Player mode only
withBlue&Me
™)Short button press
+Increasing volume Button press
-Decreasing volume Button press
SRCSelection of Radio frequency range (FM1,
FM2, FMT, FMA, MW1, MW2) and listening
sources; Radio, MP3 or Media Player (only
withBlue&Me
™) /AUX (only with
Blue&Me
™, for versions/markets, where
provided)Button press
NOTE: Starting from the FM or AM source set
on the radio (e.g. FM1 or MW1), if you cycle
through the audio sources using the SRC
button (stopping on a source other than radio)
when the radio source is selected (FM or AM)
using the commands on the radio panel, the
radio always switches to the last radio source
(FMA or MW2).
SRC
fig. 2L0F0049
276
SOUND-SYSTEM
