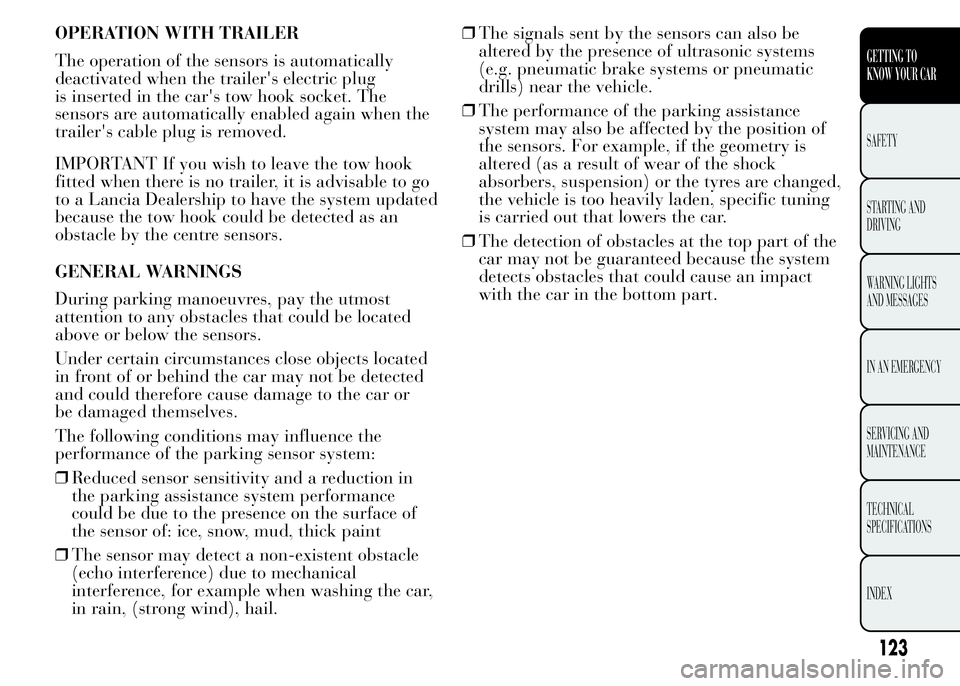

OPERATION WITH TRAILER
The operation of the sensors is automatically
deactivated when the trailer's electric plug
is inserted in the car's tow hook socket. The
sensors are automatically enabled again when the
trailer's cable plug is removed.
IMPORTANT If you wish to leave the tow hook
fitted when there is no trailer, it is advisable to go
to a Lancia Dealership to have the system updated
because the tow hook could be detected as an
obstacle by the centre sensors.
GENERAL WARNINGS
During parking manoeuvres, pay the utmost
attention to any obstacles that could be located
above or below the sensors.
Under certain circumstances close objects located
in front of or behind the car may not be detected
and could therefore cause damage to the car or
be damaged themselves.
The following conditions may influence the
performance of the parking sensor system:
❒Reduced sensor sensitivity and a reduction in
the parking assistance system performance
could be due to the presence on the surface of
the sensor of: ice, snow, mud, thick paint
❒The sensor may detect a non-existent obstacle
(echo interference) due to mechanical
interference, for example when washing the car,
in rain, (strong wind), hail.❒The signals sent by the sensors can also be
altered by the presence of ultrasonic systems
(e.g. pneumatic brake systems or pneumatic
drills) near the vehicle.
❒The performance of the parking assistance
system may also be affected by the position of
the sensors. For example, if the geometry is
altered (as a result of wear of the shock
absorbers, suspension) or the tyres are changed,
the vehicle is too heavily laden, specific tuning
is carried out that lowers the car.
❒The detection of obstacles at the top part of the
car may not be guaranteed because the system
detects obstacles that could cause an impact
with the car in the bottom part.
123
GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

IMPORTANT INFORMATION FOR VERSIONS
EQUIPPED WITH "Smart Fuel"
WARNING
At the end of the filler do not apply
any object/plug which is not provided
for for the car. The use of non compliant
objects/plugs could cause a pressure
increase inside the tank, generating
dangerous situations.
WARNING
Do not bring naked flames or lit
cigarettes near to the fuel filler: fire
risk. Keep your face away from the fuel filler
to prevent breathing in harmful vapours.
IMPORTANT If the filler compartment is washed
with a high pressure jet, keep it at a distance of
at least 20 cm.
PROTECTING THE ENVIRONMENT
The following devices are used for reducing petrol
fuel engine emissions: catalytic converter, oxygen
sensors and evaporation control system
Do not let the engine run, even for a test, with one
or more spark plugs disconnected.
The following devices are used for reducing diesel
fuel engine emissions: oxidising catalytic
converter, exhaust gas recirculation system (EGR)
and particulate filter (DPF).
DIESEL PARTICULATE FILTER (DPF)
(for versions/markets, where provided)
The Diesel Particulate Filter is a mechanical filter,
integral with the exhaust system, that physically
traps particulates present in the exhaust gases
of Diesel engines.
The diesel particulate filter is needed to eliminate
almost all particulates in compliance with
During normal use of the vehicle, the engine
control unit records a set of data (e.g. travel time,
type of route, temperatures, etc.) and it will then
calculate how much particulate has been trapped
by the filter.
Since this filter physically traps particulate, it
should be regenerated (cleaned) at regular
intervals by burning the carbon particles.
128
GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
current /future legislation.

WARNING
The driving speed should always be
suitable to traffic conditions, weather
conditions and the driver should always
comply with the Highway Code. The engine
may be turned off while the DPF light is
on; however, repeated interruption of the
regeneration process may result in
premature exhaustion of engine oil. For this
reason, always wait until the warning light
switches off before stopping the engine as
described above. It is not a good idea to
complete DPF regeneration with the
car stationary.
GENERIC FAILURE INDICATION
(amber)
(for versions/markets, where provided)
The warning light switches on in the following
circumstances. In these cases contact a Lancia
Dealership to have the fault fixed as soon as
possible.
Speed limit exceeded
(for versions/markets, where provided)
The warning light switches on (together with a
message on the display) when the speed limit set
in the Setup Menu is exceeded.When the car exceeds this value, on some versions
a message and a symbol are shown in the display
and an acoustic signal is emitted.
Fuel cut-off system intervention/fault
(for versions/markets, where provided)
The warning light switches on (together with a
message on the display) in the event of fuel cut-off
system intervention/fault.
Start&Stop failure
(for versions/markets, where provided)
The warning light switches on (together with a
message on the display) when a Start&Stop
system failure is detected.
Rain sensor failure
(for versions/markets, where provided)
The warning light switches on (together with a
message on the display) when a rain sensor failure
is detected.
Parking sensor failure
(for versions/markets, where provided)
The warning light switches on (together with a
message on the display) when a parking sensor
failure is detected.
173
GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

Dusk sensor failure
(for versions/markets, where provided)
The warning light switches on (together with a
message on the display) when a dusk sensor
failure is detected.
Engine oil pressure sensor failure
Versions with multifunction display:the engine oil
pressure sensor failure is indicated by the
instrument panel warning light switching on.
Versions with reconfigurable multifunction
display:the engine oil pressure sensor failure is
indicated by the display icon switching on.
EXTERNAL LIGHT FAILURE
(amber)
This warning light switches on (on some versions
together with a message and a symbol in the
display) if a fault is detected in one of the
following lights:
❒daytime running lights (DRLs) (for versions/
markets, where provided);
❒side lights;
❒direction indicators;
❒rear fog lamps;
❒number plate lights;
❒brake lights (for versions with multifunction
display only).The failure relating to these lights could be: one or
more blown bulbs, a blown protection fuse or a
break in the electrical connection.
REAR FOG LIGHTS (amber)
The warning light switches on when the rear fog
lights are activated. The LED over the button
will also light up.
FRONT FOG LIGHTS (green)
The warning light comes on when the front fog
lights are turned on. The LED over 5 button
will also light up.
SIDE LIGHTS AND DIPPED
HEADLAMPS (green)/FOLLOW ME
HOME (green)
SIDE LIGHTS AND DIPPED HEADLAMPS
The warning light comes on when side/tail lights
or dipped headlamps are turned on.
174
GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
FOLLOW ME HOME
This warning light switches on (on some versions
together with a message and a symbol in the
display) when this device is used (see the
paragraph "Follow me home" in the chapter
"Knowing your car").

START&STOP SYSTEM ACTIVATION/
DEACTIVATION
START&STOP SYSTEM FAILURE
Start&Stop system activation
A message will be displayed when the Start&Stop
system is on. In this condition the LED on the
button on the dashboard control panel (see
“Start&Stop” in the chapter "Knowing your car")
is off.
Turning the Start&Stop off
❒Versions with reconfigurable multifunction
display:a message appears on the display when
the Start&Stop system is deactivated.
❒Versions with reconfigurable multifunction
display:the
symbol and a message appear on
the display when the Start&Stop system is
deactivated.
The LED on the
button is on when the system
is deactivated.START&STOP SYSTEM FAILURE
Versions with multifunction display: the
warning light on the instrument panel switches
on and a message appears on the display in the
event of Start&Stop system failure.
Versions with reconfigurable multifunction
display:the
icon switches on and a message
appears on the display in the event of a
Start&Stop system failure.
In the event of a Start&Stop system failure,
contact a Lancia Dealership.
POSSIBLE ICE ON ROAD
(for versions/markets where provided)
On the versions equipped with reconfigurable
multifunction display, a message + symbol appear
on the display when the outdoor temperature
falls to or below 3°C.
IMPORTANT In the event of outdoor temperature
sensor failure, dashes are shown on the display
instead of the value.
176
GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

INSTRUMENT PANEL FUSE BOX
fig. 155
DEVICES FUSE AMPS
+15 Headlight alignment corrector F13 5
+15 ignition-operated control with inhibition during
engine startingF31 5
+30 Climate control unit, Blue&Me
TMcontrol unit,
EOBD socket, radio setupF36 10
+15 switch on brake pedal (NO) F37 7,5
Door central locking F38 20
Two-way windscreen washer pump F43 20
Front electric window (driver side) F47 20
Front electric window (passenger side) F48 20
+15 Sun roof, heated seats, rain/dusk sensor, electric
mirror control, control lighting, AUX socketF49 7,5
+15 Radio setup, climate control system control unit,
sun roof, parking control unit, brake pedal switch
(NC), clutch pedal switch (NC), reversing lights,
headlight washer coilF51 5
+30 Instrument panel F53 7,5
+15 = ignition-operated positive terminal
+30 = battery direct positive terminal (notignition-operated)
211
GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

BATTERY RECHARGING
IMPORTANT The battery recharging procedure is
given as information only. You are advised to go
to a Lancia Dealership to have this operation
performed.
Low amperage slow recharging for approximately
24 hours is advised. Charging for a longer time
may damage the battery.
VERSIONS WITHOUT Start&Stop SYSTEM
(for versions/markets, where provided)
Charge the battery as follows:
❒disconnect the negative battery terminal;
❒connect the charger cables to the battery
terminals, observing the polarity;
❒turn on the charger;
❒when finished, turn the charger off before
disconnecting the battery;
❒reconnect the negative battery terminal.
VERSIONS WITH Start&Stop SYSTEM
(for versions/markets, where provided)
Charge the battery as follows:
❒disconnect the connector A fig. 158 (pressing
the button B) from the sensor C monitoring
the battery conditions, on the negative pole D of
the battery;❒connect the positive cable of the battery charger
to the positive battery terminal E and the
negative cable to sensor terminal D as shown;
❒turn on the battery charger. At the end of the
charging process, switch the battery charger off;
❒after having disconnected the battery charger,
reconnect connector A fig. 158 to the sensor C
as shown.
WARNING
Battery fluid is poisonous and
corrosive: avoid contact with your
skin and eyes. The battery should be
charged in a well ventilated place, away
from naked flames or possible sources of
sparks: danger of explosion and fire.
WARNING
Do not attempt to charge a frozen
battery: it must be thawed first,
otherwise it may explode. If freezing has
occurred, the battery should be checked by
skilled personnel to make sure that the
internal elements are not damaged and that
the body is not cracked, with the risk of
leaking poisonous and corrosive acid.
213
GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
IMPORTANT After turning the ignition key to
STOP and having closed the driver's side door,
wait at least one minute before disconnecting and
then reconnecting the battery electrical supply.

Cruise control....................... 62
Dashboard........................... 3
Daytime running lights
(DRL)
– "Daytime Running
Lights" ............................ 54
Diesel filter ......................... 2
Dipped beam headlights
– bulb replacement............ 196
– control ............................. 55
Dipped headlights
– bulb replacement............ 196
– control ............................. 55
Direction indicators
– bulb replacement............ 197
– control ............................. 56
Display................................. 7
– Control buttons................ 10
Doors ................................... 79
– Door lock/unlock ............. 79
DPF (particulate filter) ....... 128
Driving style ....................... 159
DRLs (Daytime Running
Lights) ............................... 54
Dualdrive (electric power
steering) ............................ 104Dualdrive (electric power
steering) ............................ 104
Dusk sensor.......................... 55
Electric windows ............. 83-84
Engine codes....................... 243
Engine compartment
– checking fluid levels ....... 223
– opening/closing ............... 90
– washing .......................... 238
Engine coolant
temperature indicator ......... 6
Engine
– Engine cooling system
fluid level ....................... 228
– identification codes......... 243
– marking ......................... 242
– technical specifications ... 244
Engine oil
– consumption................... 227
– level check...................... 227
– specifications .................. 260
Environment protection ...... 128
EOBD system...................... 104
ESC (system) ....................... 96
External lights...................... 54
Extinguisher......................... 76
Fitting "Universal" child
seat ................................... 140
Fix&Go Automatic Kit ........ 185
Fluids and lubricants
(specifications) .................. 260
Fog lights............................ 198
Follow me home (device) ..... 57
Front roof light
– bulb replacement............ 201
– control ............................. 65
Fuel consumption ............... 263
Fuel level gauge ................... 6
Fuse boxes (location) .......... 206
Fuses
– Dashboard fuse box ........ 208
– Engine compartment
fuse box.......................... 206
– fuse list........................... 210
– Luggage compartment
fuse box.......................... 20
– replacing fuses................ 204
307
GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Gearbox (use of)................. 157
Gear Shift Indicator
(system) ............................. 9
Glove compartment light
– bulb replacement............ 2049 29

Parking sensors................... 108
Particulate filter (DPF) ....... 128
Passenger side glove
compartment ...................... 73
Performance (top speed) ..... 256
Plugs (type) ........................ 244
Pollen filter ......................... 229
Power socket ........................ 74
Power supply ...................... 245
Preparation to install a
portable navigation
system ............................... 107
Pretensioners ...................... 135
Protecting the
environment ...................... 128
Radio setup system............. 106
Rain sensor .......................... 59
Raising the car .................... 214
Rear fog lights .................... 200
Rear roof light
– bulb replacement............ 202
Rear view mirrors................. 37
Rear window washer jets..... 235
Rear window washer
– rear window washer
fluid level ....................... 228Rear window wiper
– blade replacement .......... 234
– blades............................. 233
– level check ....... 224-225-226
Rear window wiper/Rear
window washer ................... 61
Reconfigurable
multifunction display ......... 8
Refuelling capacity ............. 125
Refuelling
– capacities table ............... 258
Refuelling the car ........ 124-125
Replacing fuses ................... 204
Rev counter .......................... 6
Reverse lights...................... 200
Rim Protector ..................... 254
Rims
– Rim Protector ................. 254
Roof lights
– front roof light ................. 65
– glove compartment
light ................................. 68
– luggage compartment
roof light.......................... 68
– rear roof light .................. 67
Roof rack/ski rack................ 92
Safety................................. 130– carrying children safely .. 138
– "Isofix" child seat
(fitting) .......................... 143
– seat belts ........................ 130
Saving fuel.......................... 15
Scheduled Servicing Plan .... 218
Seat belts
– load limiters ................... 135
– maintenance ................... 138
– pretensioners .................. 135
– SBR system .................... 132
– using the seat belts ......... 130
Seats .................................... 32
– Adjusting the seats ........... 32
Servicing and care .............. 217
309
GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
– heavy-duty use of the
car.................................. 223
– periodic checks ............... 223
– scheduled servicing......... 217
– scheduled servicing
plan................................ 218
Setup for "Isofix" child
seat ................................... 143
Setup menu .......................... 11
Side airbags (side bag -
window bag) ..................... 149
Side air diffusers .................. 39
Side bag) ............................ 1499
