light Lexus CT200h 2011 Owner's Manual (in English)

481
4-3. Do-it-yourself maintenance
4
Maintenance and care
CT200h_EE (OM76041E)
Hood
Release the lock from the inside of the vehicle to open the hood.
Pull the hood release lever.
The hood will pop up
slightly.
Pull up the auxiliary catch
lever and lift the hood.
Hold the hood open by
inserting the supporting rod
into the slot.
STEP1
STEP2
STEP3

500
4-3. Do-it-yourself maintenance
CT200h_EE (OM76041E)
CAUTION
Chemicals in the 12-volt battery
The 12-volt battery contains poisonous and corrosive sulfuric acid and may
produce hydrogen gas which is flammable and explosive. To reduce the risk
of death or serious injury, take the following precautions while working on
or near the 12-volt battery:
Do not cause sparks by touching the 12-volt battery terminals with tools.
Do not smoke or light a match near the 12-volt battery.
Avoid contact with eyes, skin and clothes.
Never inhale or swallow electrolyte.
Wear protective safety glasses when working near the 12-volt battery.
Keep children away from the 12-volt battery.
Where to safely charge the 12-volt battery
Always charge the 12-volt battery in an open area. Do not charge the 12-volt
battery in a garage or closed room where there is insufficient ventilation.
How to recharge the 12-volt battery
Only perform a slow charge
*. The 12-volt battery may explode if charged at
a quicker rate.
*: 4.2 A or less on vehicles with a navigation system or alarm
3.5 A or less on vehicles without a navigation system and alarm

524
4-3. Do-it-yourself maintenance
CT200h_EE (OM76041E)
Fuse layout and amperage ratings
Engine compartment
FuseAmpereCircuit
1DC/DC125 AInverter and converter
2HTR50 AAir conditioning system
3RDI30 AElectric cooling fans
4CDS30 AElectric cooling fans
5RAD NO.115 AAudio system, navigation system
6S-HORN10 ANavigation system
7ENG W/P30 ACooling system
8ABS MAIN
NO.27.5 AElectronically controlled brake
system
9H-LP CLN30 AHeadlight cleaner
10P CON MTR30 AP position control system

525
4-3. Do-it-yourself maintenance
4
Maintenance and care
CT200h_EE (OM76041E)
11AMP NO.230 AAudio system
12ETCS10 A
Multiport fuel injection system/
sequential multiport fuel injection
system
13IGCT30 APCU, IGCT NO.2, IGCT NO.3
14DC/DC-S5 AInverter and converter
15P CON MAIN7.5 AP position control system, P posi-
tion switch
16AM27.5 APower management system
17ECU-B27.5 ASmart entry & start system
18MAYDAY10 ANo circuit
19ECU-B310 AAir conditioning system
20TURN & HAZ10 ATurn signal lights, emergency
flashers
21AMP NO.130 AAudio system
22ABS MAIN
NO.120 AElectronically controlled brake
system
23P/I 240 A
P position control system, horn,
headlights (low beam), back-up
light
24ABS MTR 130 AElectronically controlled brake
system
25ABS MTR 230 AElectronically controlled brake
system
26H-LP HI MAIN20 AH-LP RH HI, H-LP LH HI
FuseAmpereCircuit

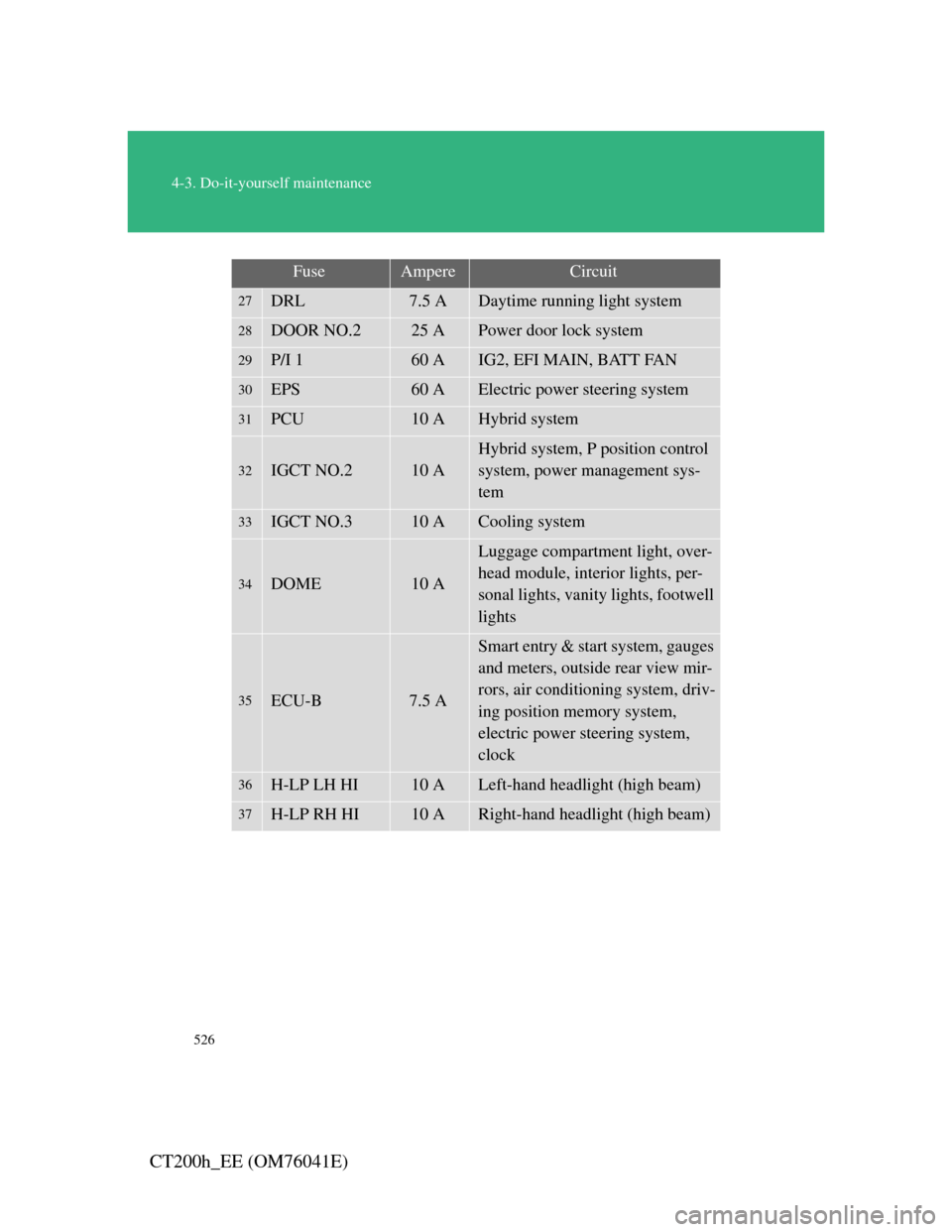

526
4-3. Do-it-yourself maintenance
CT200h_EE (OM76041E)
27DRL7.5 ADaytime running light system
28DOOR NO.225 APower door lock system
29P/I 160 AIG2, EFI MAIN, BATT FAN
30EPS60 AElectric power steering system
31PCU10 AHybrid system
32IGCT NO.210 A
Hybrid system, P position control
system, power management sys-
tem
33IGCT NO.310 ACooling system
34DOME10 A
Luggage compartment light, over-
head module, interior lights, per-
sonal lights, vanity lights, footwell
lights
35ECU-B7.5 A
Smart entry & start system, gauges
and meters, outside rear view mir-
rors, air conditioning system, driv-
ing position memory system,
electric power steering system,
clock
36H-LP LH HI10 ALeft-hand headlight (high beam)
37H-LP RH HI10 ARight-hand headlight (high beam)
FuseAmpereCircuit

528
4-3. Do-it-yourself maintenance
CT200h_EE (OM76041E)Left side instrument panel
FuseAmpereCircuit
1TA I L10 A
Rear fog light, manual headlight
leveling dial, headlights (high
beam), stop/tail lights, license
plate lights, front position lights

529
4-3. Do-it-yourself maintenance
4
Maintenance and care
CT200h_EE (OM76041E)
2PANEL10 A
Audio system, Lexus parking
assist-sensor switch, windshield
wiper de-icer switch, navigation
system, fuel filler door opener,
glove box light, headlight cleaner
switch, emergency flasher switch,
manual headlight leveling dial, air
conditioning system, outside rear
view mirrors, driving mode select
switches, P position switch, instru-
ment panel light control dial, shift
position indicators, seat heater
switches, heated steering wheel
switch, pre-crash braking off
switch
3IGN10 A
Electronically controlled brake
system, smart entry & start system,
multiport fuel injection system/
sequential multiport fuel injection
system, stop/tail lights, SRS air-
bags
4MET7.5 AGauges and meters
FuseAmpereCircuit

530
4-3. Do-it-yourself maintenance
CT200h_EE (OM76041E)
5WIP30 AWindshield wipers
6RR WIP20 ARear window wiper and washer
7WASHER15 AWindshield washer
8A/C10 AAir conditioning system
9GAUGE10 A
Windshield wiper de-icer switch,
automatic headlight leveling sys-
tem
10ECU-IG NO.210 A
Windshield wipers, Lexus parking
assist monitor, Lexus parking
assist-sensor, electronically con-
trolled brake system, navigation
system, electric power steering
system, turn signal lights, emer-
gency flashers, yaw rate and G
sensor, headlight cleaner, outside
rear view mirrors, driving mode
select switches, overhead module,
pre-crash seat belts, seat heater
switches, heated steering wheel
switch, dynamic radar cruise con-
trol
11ECU-IG NO.110 ANo circuit
12S/ROOF30 AMoon roof
FuseAmpereCircuit

531
4-3. Do-it-yourself maintenance
4
Maintenance and care
CT200h_EE (OM76041E)
13DOOR RL25 APower windows
14DOOR RR25 APower windows
15D FR DOOR25 APower windows, outside rear view
mirrors
16P FR DOOR25 APower windows, outside rear view
mirrors
17STOP10 A
Emergency brake signal, stop/tail
lights, electronically controlled
brake system, pre-crash safety sys-
tem
18RR FOG7.5 ARear fog light, stop/tail lights
19FUEL OPEN7.5 AFuel filler door opener
20OBD7.5 AOn-board diagnosis system
21PWR SEAT30 APower seat
22FR FOG15 AFront fog lights
23DBL LOCK25 ADouble locking system
24PSB30 APre-crash seat belts
25STRG HTR10 AHeated steering wheel
26DOOR NO.125 APower door lock system
27SEAT HTR FL10 ASeat heaters
28SEAT HTR FR10 ASeat heaters
FuseAmpereCircuit

532
4-3. Do-it-yourself maintenance
CT200h_EE (OM76041E)
29RAD NO.27.5 A
Audio system, Lexus parking
assist monitor, navigation system,
overhead module
30PWR OUTLET15 APower outlet
31ECU-ACC10 AAir conditioning system, outside
rear view mirror switches
32PWR OUTLET215 ANo circuit
After a fuse is replaced
If the lights do not turn on even after the fuse has been replaced, a bulb
may need replacement. (P. 534)
If the replaced fuse blows again, have the vehicle inspected by any
authorized Lexus dealer or repairer, or another duly qualified and
equipped professional.
If there is an overload in a circuit
The fuses are designed to blow, protecting the wiring harness from damage.
When replacing light bulbs
Lexus recommends that you use genuine Lexus products designed for this
vehicle. Because certain bulbs are connected to circuits designed to prevent
overload, non-genuine parts or parts not designed for this vehicle may be
unusable.
