Press the unlock button to
unlock all the doors.
The doors cannot be unlocked
for 3 seconds after the doors are
locked.
Press the lock button to lock all
the doors.

62
1-3. Opening, closing and locking the doors
CT200h_EE (OM76041E)
Antenna location and effective range

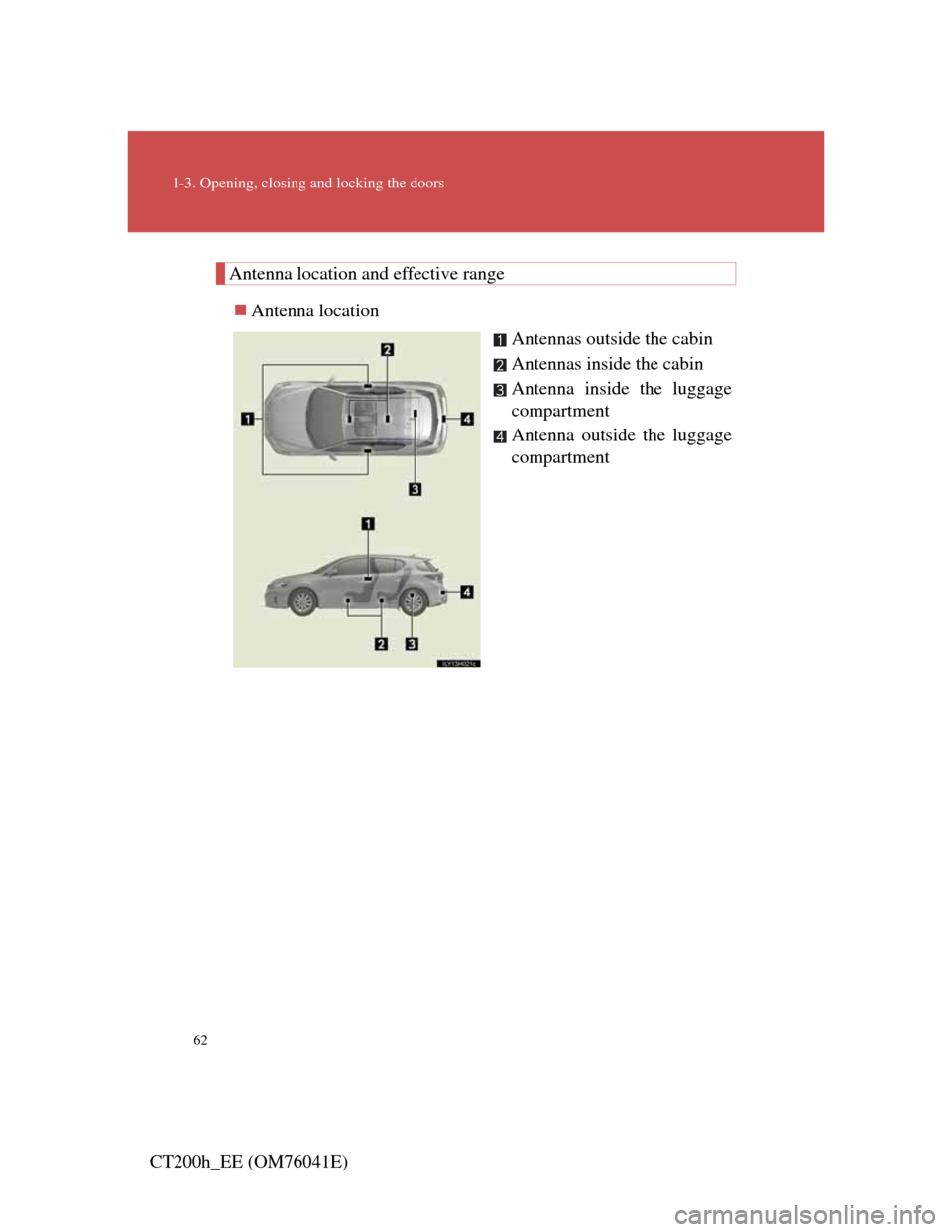

Antenna location
Antennas outside the cabin
Antennas inside the cabin
Antenna inside the luggage
compartment
Antenna outside the luggage
compartment

63
1-3. Opening, closing and locking the doors
1
Before driving
CT200h_EE (OM76041E)Effective range (areas within which the electronic key is
detected)
When locking or unlock-
ing the doors
The system can be operated
when the electronic key is
within about 0.7 m (2.3 ft.)
of either of the outside
front and back door han-
dles. (Only the doors
detecting the key can be
operated.)
When starting the hybrid
system or changing
“POWER” switch modes
The system can be operated
when the electronic key is
inside the vehicle.
Operation signals
The emergency flashers flash to indicate that the doors have been locked/
unlocked. (Locked: Once; Unlocked: Twice)
When the door cannot be locked by the lock sensor on the upper part of the
door handle
If the door will not lock even when the
topside sensor area is touched, try touch-
ing both the topside and underside sensor
areas at the same time.

64
1-3. Opening, closing and locking the doors
CT200h_EE (OM76041E)
Alarms and warning messages
A combination of exterior and interior alarms as well as warning messages
shown on the multi-information display is used to prevent theft of the vehi-
cle and accidents resulting from erroneous operation. Take appropriate mea-
sures in response to any warning message on the multi-information display.
(P. 565)
The following table describes circumstances and correction procedures
when only alarms are sounded.
Security feature
P. 8 1
Battery-saving function
The battery-saving function will be activated in order to prevent the elec-
tronic key battery and the 12-volt battery from being discharged while the
vehicle is not in operation for a long time.
In the following situations, the smart entry & start system may take some
time to unlock the doors.
• The electronic key has been left in an area of approximately 2 m (6 ft.)
of the outside of the vehicle for 10 minutes or longer.
• The smart entry & start system has not been used for 5 days or longer.
AlarmSituationCorrection procedure
Exterior alarm
sounds once for
10 secondsAn attempt was made to
lock the vehicle while a
door was open.Close all of the doors
and lock the doors
again.
Interior alarm
pings repeatedly
The “POWER” switch was
turned to ACCESSORY
mode while the driver’s
door was open (The
driver’s door was opened
when the “POWER”
switch was in ACCES-
SORY d )
Turn the “POWER”
switch off and close
the driver’s door.

65
1-3. Opening, closing and locking the doors
1
Before driving
CT200h_EE (OM76041E)
If the smart entry & start system has not been used for 14 days or longer,
the doors cannot be unlocked at any doors except the driver’s door. In
this case, take hold of the driver’s door handle, or use the wireless
remote control or the mechanical key, to unlock the doors.
Conditions affecting operation
P. 8 2
Note for the entry function
Even when the electronic key is within the effective range (detection
areas), the system may not operate properly in the following cases:
• The electronic key is too close to the window or outside door handle,
near the ground, or in a high place when the doors are locked or
unlocked.
• The electronic key is on the instrument panel, luggage room, floor, or
in the door pockets or glove box when the hybrid system is started or
“POWER” switch modes are changed.
Do not leave the electronic key on top of the instrument panel or near the
door pockets when exiting the vehicle. Depending on the radio wave
reception conditions, it may be detected by the antenna outside the cabin
and the door will become lockable from the outside, possibly trapping
the electronic key inside the vehicle.
As long as the electronic key is within the effective range, the doors may
be locked or unlocked by anyone.
Even if the electronic key is not inside the vehicle, it may be possible to
start the hybrid system if the electronic key is near the window.
The doors may unlock if a large amount of water splashes on the door
handle, such as in the rain or in a car wash when the electronic key is
within the effective range. (The door will automatically be locked after
approximately 30 seconds if the doors are not opened and closed.)
If the wireless remote control is used to lock the doors when the elec-
tronic key is near the vehicle, there is a possibility that the door may not
be unlocked by the entry function. (Use the wireless remote control to
unlock the doors.)

66
1-3. Opening, closing and locking the doors
CT200h_EE (OM76041E)
Note for locking the doors
Touching the door lock sensor while wearing gloves may delay or pre-
vent lock operation. Remove the gloves and touch the lock sensor again.
If the door handle becomes wet while the electronic key is within the
effective range, the door may lock and unlock repeatedly. Place the key
in a position 2 m (6 ft.) or more separate from the vehicle while the vehi-
cle is being washed. (Take care to ensure that the key is not stolen.)
If the electronic key is inside the vehicle and a door handle becomes wet
during a car wash, a message may be shown on the multi-information
display and a buzzer will sound outside the vehicle. To turn off the
alarm, lock all the doors.
The lock sensor may not work properly if it comes into contact with ice,
snow, mud, etc. Clean the lock sensor and attempt to operate it again, or
use the lock sensor on the lower part of the door handle.
Fingernails may scrape against the door during operation of the door
handle. Be careful not to injure fingernails or damage the surface of the
door.

67
1-3. Opening, closing and locking the doors
1
Before driving
CT200h_EE (OM76041E)
Note for the unlocking function
A sudden approach to the effective range or door handle may prevent the
doors from being unlocked. In this case, return the door handle to the
original position and check that the doors unlock before pulling the door
handle again.
Gripping the door handle when wearing a glove may not unlock the
door. Remove the gloves and touch the sensor on the back of the handle
again.
If the door handle becomes wet while the electronic key is within the
effective range, the door may lock and unlock repeatedly. Place the key
in a position 2 m (6 ft.) or more separate from the vehicle while the vehi-
cle is being washed. (Take care to ensure that the key is not stolen.)
If there is another electronic key in the detection area, it may take
slightly longer to unlock the doors after the door handle is gripped.
Fingernails may scrape against the door during operation of the door
handle. Be careful not to injure fingernails or damage the surface of the
door.
When the vehicle is not driven for extended periods
To prevent theft of the vehicle, do not leave the electronic key within 2 m
(6 ft.) of the vehicle.
The smart entry & start system can be deactivated in advance. (P. 655)
Alarm
Using the smart entry & start system to lock the doors will set the alarm sys-
tem. (P. 138)
To operate the system properly
Make sure to carry the electronic key when operating the system. Do not get
the electronic key too close to the vehicle when operating the system from
the outside of the vehicle.
Depending on the position and holding condition of the electronic key, the
key may not be detected correctly and the system may not operate properly.
(The alarm may go off accidentally, or the door lock prevention may not
operate.)

68
1-3. Opening, closing and locking the doors
CT200h_EE (OM76041E)
If the smart entry & start system does not operate properly
Locking and unlocking the doors: Use the mechanical key. (P. 617)
Starting the hybrid system: P. 6 1 8
Electronic key battery depletion
P. 8 3
When the electronic key battery is fully depleted
P. 5 1 5
Customization
Settings (e.g. smart entry & start system) can be changed.
(Customizable features P. 655)

69
1-3. Opening, closing and locking the doors
1
Before driving
CT200h_EE (OM76041E)
Certification for the smart entry & start system

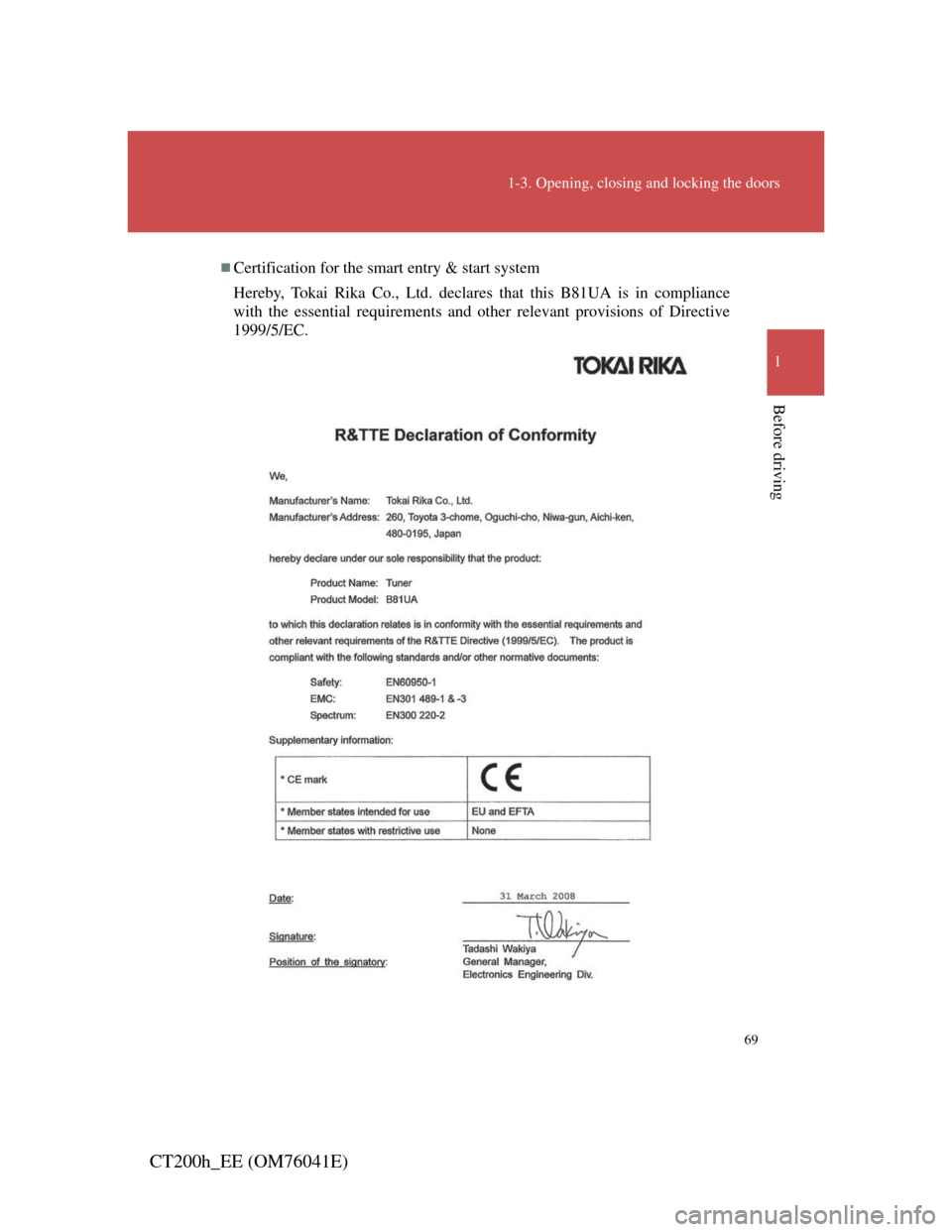

Hereby, Tokai Rika Co., Ltd. declares that this B81UA is in compliance
with the essential requirements and other relevant provisions of Directive
1999/5/EC.

70
1-3. Opening, closing and locking the doors
CT200h_EE (OM76041E)

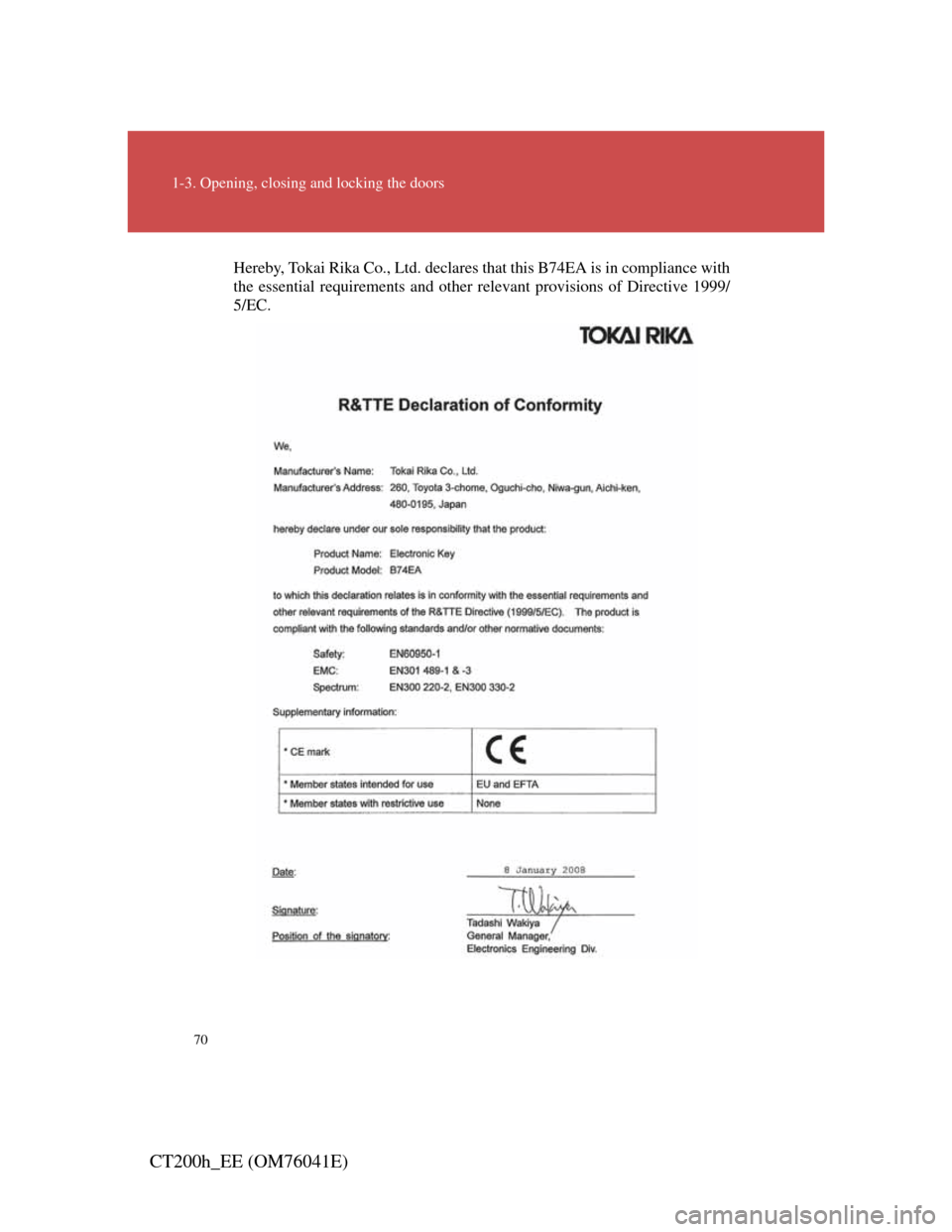

Hereby, Tokai Rika Co., Ltd. declares that this B74EA is in compliance with
the essential requirements and other relevant provisions of Directive 1999/
5/EC.
