40
1-1. Hybrid system
CT200h_EE (OM76041E)
Hybrid battery air vent
There is an air intake vent on
the side of the rear right seat-
back for the purpose of cooling
the hybrid battery (traction bat-
tery). If the vent become
blocked, the hybrid battery may
overheat, leading to a reduction
in hybrid battery output.
Emergency shut off system
When a certain level of impact is detected by the impact sensor, the
emergency shut off system blocks off the high voltage current and
stops the fuel pump to minimize the risk of electrocution and fuel
leakage. If the emergency shut off system activates, your vehicle
will not restart. To restart the hybrid system, contact any autho-
rized Lexus dealer or repairer, or another duly qualified and
equipped professional.
527
4-3. Do-it-yourself maintenance
4
Maintenance and care
CT200h_EE (OM76041E)

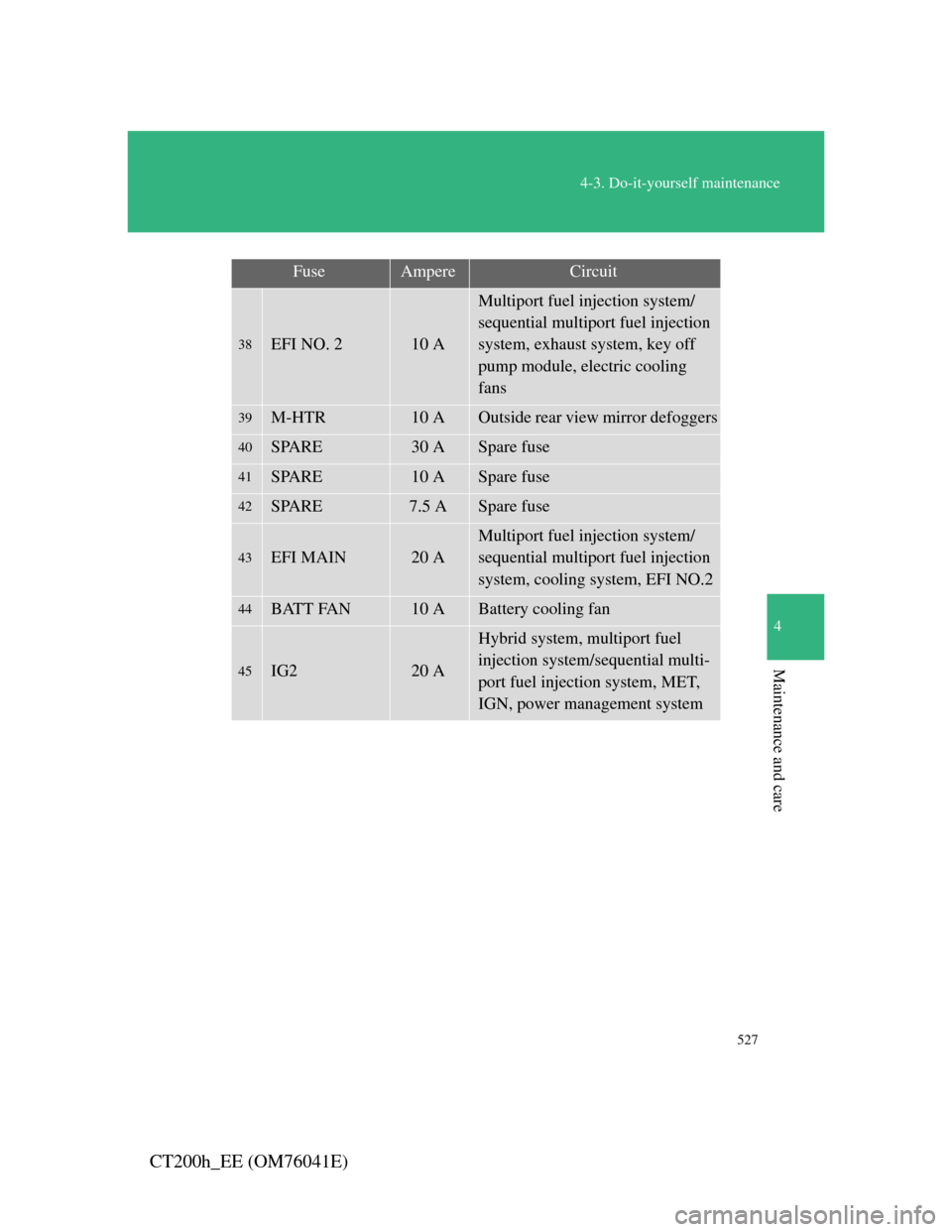

38EFI NO. 210 A
Multiport fuel injection system/
sequential multiport fuel injection
system, exhaust system, key off
pump module, electric cooling
fans
39M-HTR10 AOutside rear view mirror defoggers
40SPARE30 ASpare fuse
41SPARE10 ASpare fuse
42SPARE7.5 ASpare fuse
43EFI MAIN20 A
Multiport fuel injection system/
sequential multiport fuel injection
system, cooling system, EFI NO.2
44BATT FAN10 ABattery cooling fan
45IG220 A
Hybrid system, multiport fuel
injection system/sequential multi-
port fuel injection system, MET,
IGN, power management system
FuseAmpereCircuit
653
6-1. Specifications
6
Vehicle specifica-
CT200h_EE (OM76041E)
Fuel information
Fuel tank opening for unleaded gasoline
To help prevent incorrect fueling, your Lexus has a fuel tank opening that
only accommodates the special nozzle on unleaded fuel pumps.
If your engine knocks
Consult your any authorized any authorized Lexus dealer or repairer, or
another duly qualified and equipped professional.
You may occasionally notice light knocking for a short time while
accelerating or driving uphill. This is normal and there is no need for
concern.
EU area:
Your vehicle must use only unleaded gasoline conforming to Euro-
pean standard EN228.
For optimum engine performance, select unleaded gasoline with a
Research Octane Number of 95 or higher.
Except EU area:
Your vehicle must use only unleaded gasoline.
For optimum engine performance, select unleaded gasoline with a
Research Octane Number of 95 or higher.
