489
4-3. Do-it-yourself maintenance
4
Maintenance and care
CT200h_OM_OM76067E_(EE)
ItemsParts and tools
Engine oil level (P. 498)
• “Toyota Genuine Motor Oil” or
equivalent
• Rag or paper towel
• Funnel (used only for adding
engine oil)
Fuses (P. 532)• Fuse with same amperage rating
as original
Light bulbs (P. 546)
• Bulb with same number and
wattage rating as original
• Phillips-head screwdriver
• Flathead screwdriver
•Wrench
Radiator and condenser (P. 5 0 6)
Tire inflation pressure (P. 519)• Tire pressure gauge
• Compressed air source
Washer fluid (P. 507)
• Water or washer fluid contain-
ing antifreeze (for winter use)
• Funnel (used only for adding
water or washer fluid)

490
4-3. Do-it-yourself maintenance
CT200h_OM_OM76067E_(EE)
CAUTION
The engine compartment contains many mechanisms and fluids that may
move suddenly, become hot, or become electrically energized. To avoid death
or serious injury, observe the following precautions.
When working on the engine compartment
Make sure that the indicator on the “POWER” switch and the “READY”
indicator are both off.
Keep hands, clothing and tools away from the moving fan and engine
drive belt.
Be careful not to touch the engine, power control unit, radiator, exhaust
manifold, etc. right after driving as they may be hot. Oil and other fluids
may also be hot.
Do not leave anything that may burn easily, such as paper and rags, in the
engine compartment.
Do not smoke, cause sparks or expose an open flame to fuel. Fuel fumes
are flammable.
Take care because brake fluid can harm your hands or eyes and damage
painted surfaces. If fluid gets on your hands or in your eyes, flush the
affected area with clean water immediately.
If you still experience discomfort, consult a doctor.
When working near the electric cooling fans or radiator grille
Be sure the “POWER” switch is off.
With the “POWER” switch in ON mode, the electric cooling fans may auto-
matically start to run if the air conditioning is on and/or the coolant tempera-
ture is high. (P. 506)
Safety glasses
Wear safety glasses to prevent flying or falling material, fluid spray, etc.
from getting in your eyes.

491
4-3. Do-it-yourself maintenance
4
Maintenance and care
CT200h_OM_OM76067E_(EE)
NOTICE
If you remove the air cleaner filter
Driving with the air cleaner filter removed may cause excessive engine wear
due to dirt in the air.
If the fluid level is low or high
It is normal for the brake fluid level to go down slightly as the brake pads
wear or when the fluid level in the accumulator is high.
If the reservoir needs frequent refilling, it may indicate a serious problem.

492
4-3. Do-it-yourself maintenance
CT200h_OM_OM76067E_(EE)
Hood
Release the lock from the inside of the vehicle to open the hood.
Pull the hood release lever.
The hood will pop up
slightly.
Pull up the auxiliary catch
lever and lift the hood.
Hold the hood open by
inserting the supporting rod
into the slot.
STEP1
STEP2
STEP3

493
4-3. Do-it-yourself maintenance
4
Maintenance and care
CT200h_OM_OM76067E_(EE)
CAUTION
Pre-driving check
Check that the hood is fully closed and locked.
If the hood is not locked properly, it may open while the vehicle is in motion
and cause an accident, which may result in death or serious injury.
After installing the support rod into the slot
Make sure the rod supports the hood securely from falling down on to your
head or body.
NOTICE
When closing the hood
Be sure to return the support rod to its clip before closing the hood. Closing
the hood without returning the support rod properly could cause the hood to
bend.

494
4-3. Do-it-yourself maintenance
CT200h_OM_OM76067E_(EE)

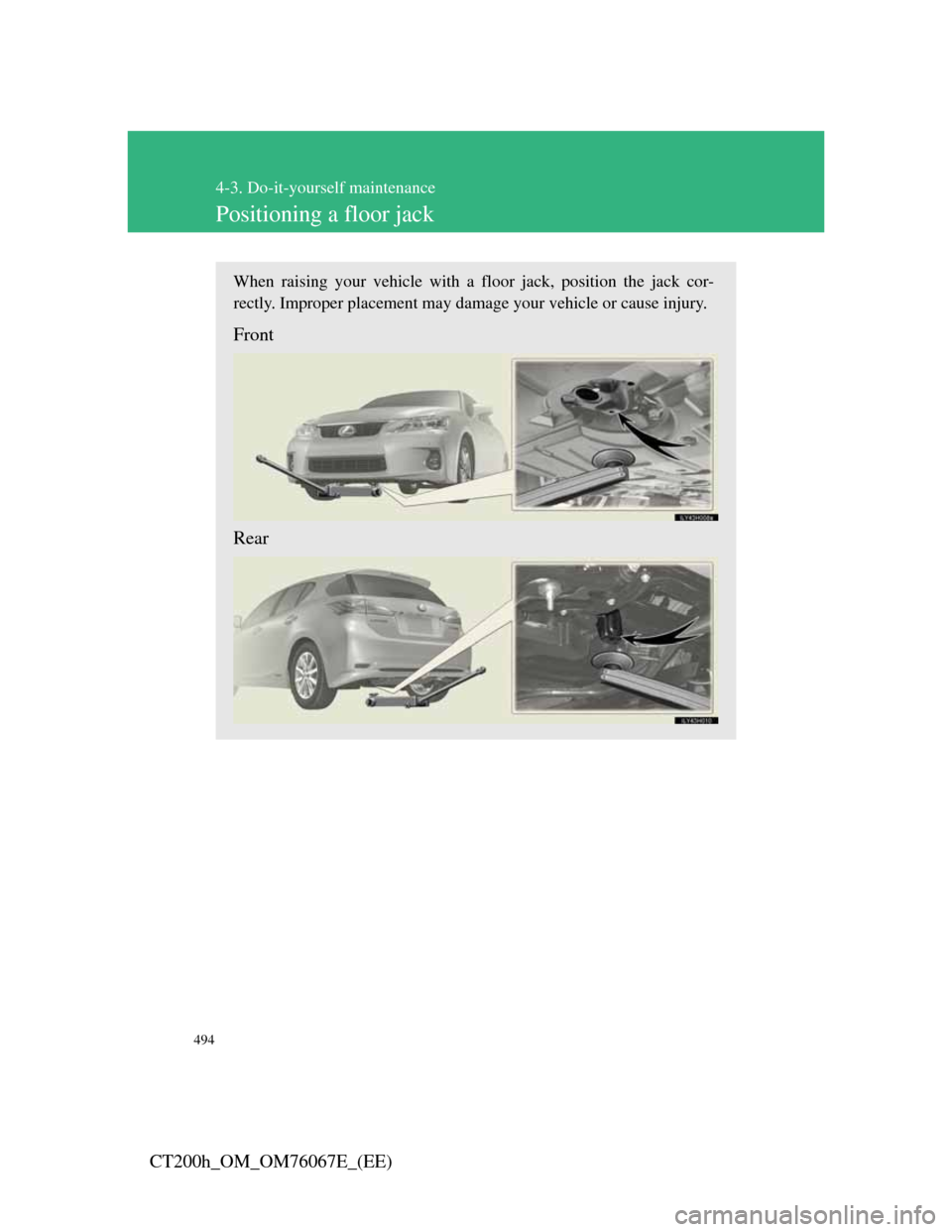

Positioning a floor jack
When raising your vehicle with a floor jack, position the jack cor-
rectly. Improper placement may damage your vehicle or cause injury.
Front
Rear

495
4-3. Do-it-yourself maintenance
4
Maintenance and care
CT200h_OM_OM76067E_(EE)
CAUTION
When raising your vehicle
Make sure to observe the following precautions to reduce the possibility of
death or serious injury:
When using a floor jack, follow the instructions of the manual provided
with the jack.
Do not use the jack that was supplied with your vehicle.
Do not put any part of your body underneath the vehicle when it is sup-
ported only by the floor jack.
Always use floor jack and/or automotive jack stands on a solid, flat, level
surface.
Do not start the hybrid system while the vehicle is supported by the floor
jack.
Stop the vehicle on level, firm ground, firmly set the parking brake and
shift the shift position to P.
Make sure to set the floor jack properly at the jack point.
Raising the vehicle with an improperly positioned floor jack will damage
the vehicle and may cause the vehicle to fall off the floor jack.
Do not raise the vehicle while someone is in the vehicle.
When raising the vehicle, do not place any object on top of or underneath
the floor jack.
Lift up the vehicle using a floor jack
such as the one shown in the illustra-
tion.

496
4-3. Do-it-yourself maintenance
CT200h_OM_OM76067E_(EE)
Engine compartment
12-volt battery
P. 5 0 8
Engine coolant reservoir
(P. 503)
Engine oil level dipstick
(P. 498)
Engine oil filler cap (P.
498)
Power control unit coolantFuse box (P. 532)
Radiator (P. 506)
Condenser (P. 506)
Electric cooling fans
Washer fluid tank (P.
507)

497
4-3. Do-it-yourself maintenance
4
Maintenance and care
CT200h_OM_OM76067E_(EE)
Engine compartment cover
Removing the engine compartment cover
Installing the clips
Push up center portion
Insert
Press
NOTICE
After installing an engine compartment cover
Make sure that the cover is securely installed in its original position.

498
4-3. Do-it-yourself maintenance
CT200h_OM_OM76067E_(EE)
Engine oil
With the engine at operating temperature and turned off, check the
oil level on the dipstick.
Checking the engine oil
Park the vehicle on level ground. After warming up the
engine and turning off the hybrid system, wait more than 5
minutes for the oil to drain back into the bottom of the
engine.
Holding a rag under the end,
pull the dipstick out.
Wipe the dipstick clean.
Flat dipstick: Reinsert the dipstick fully.
Non-flat dipstick: Reinsert the
dipstick fully with its protrud-
ing areas ( in the illustration)
pointing towards engine.
Holding a rag under the end, pull the dipstick out and check
the oil level.
STEP1
STEP2
STEP3
STEP4
STEP5
