4-3. Do-it-yourself maintenance
4
Maintenance and care

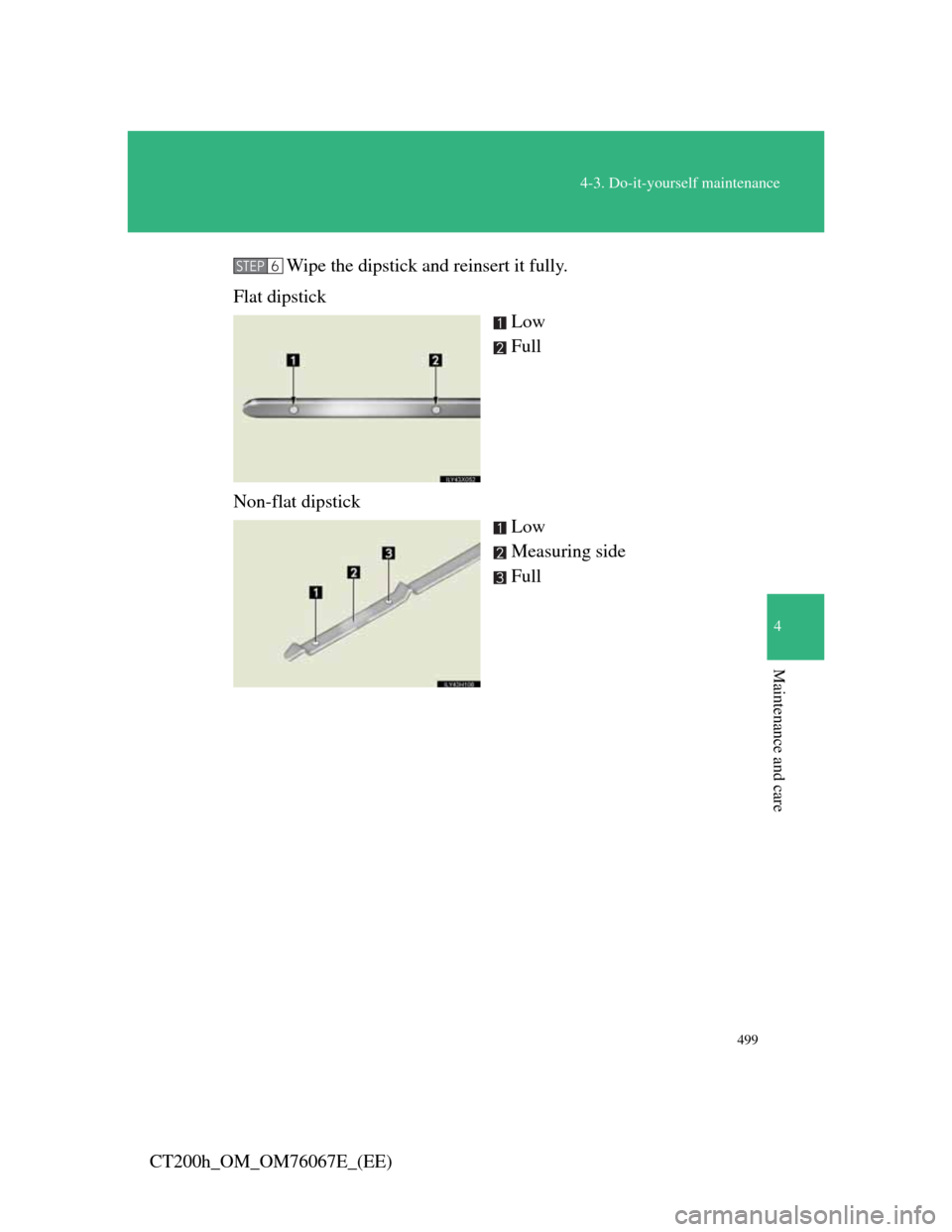

CT200h_OM_OM76067E_(EE)Wipe the dipstick and reinsert it fully.
Flat dipstick
Low
Full
Non-flat dipstick
Low
Measuring side
Full
STEP6

500
4-3. Do-it-yourself maintenance
CT200h_OM_OM76067E_(EE)Adding engine oil
If the oil level is below or near
the low level mark, add engine
oil of the same type as that
already in the engine.
Make sure to check the oil type and prepare the items needed
before adding oil.
Remove the oil filler cap by turning it counterclockwise.
Add engine oil slowly, checking the dipstick.
Install the oil filler cap by turning it clockwise.
Engine oil selectionP. 6 5 5
Oil quantity
(Low  Full)1.5 L (1.6 qt., 1.3 lmp. qt.)
ItemsClean funnel
STEP1
STEP2
STEP3

501
4-3. Do-it-yourself maintenance
4
Maintenance and care
CT200h_OM_OM76067E_(EE)
Engine oil consumption
The amount of engine oil consumed depends on the oil viscosity, the
quality of the oil and the way the vehicle is driven.
More oil is consumed under driving conditions such as high speeds and
frequent acceleration and deceleration.
A new engine consumes more oil.
When judging the amount of oil consumption, keep in mind that the oil
may have become diluted, making it difficult to judge the true level
accurately.
Oil consumption: Max. 1.0 L/1000 km (1.1 qt./600 miles, 0.9 lmp.qt./
600 miles)
If your vehicle consumes more than 1.0 L (1.1 qt., 0.9 lmp.qt.) every
1000 km (600 miles), contact any authorized Lexus dealer or repairer, or
another duly qualified and equipped professional.
CAUTION
Used engine oil
Used engine oil contains potentially harmful contaminants which may
cause skin disorders such as inflammation and skin cancer, so care should
be taken to avoid prolonged and repeated contact. To remove used engine
oil from your skin, wash thoroughly with soap and water.
Dispose of used oil and filters only in a safe and acceptable manner. Do
not dispose of used oil and filters in household trash, in sewers or onto the
ground. Call any authorized Lexus dealer or repairer, or another duly
qualified and equipped professional, service station or auto parts store for
information concerning recycling or disposal.
Do not leave used engine oil within the reach of children.

502
4-3. Do-it-yourself maintenance
CT200h_OM_OM76067E_(EE)
NOTICE
To prevent serious engine damage
Check the oil level on a regular basis.
When replacing the engine oil
Be careful not to spill engine oil on the vehicle components.
Avoid overfilling, or the engine could be damaged.
Check the oil level on the dipstick every time you refill the vehicle.
Be sure the engine oil filler cap is properly tightened.

503
4-3. Do-it-yourself maintenance
4
Maintenance and care
CT200h_OM_OM76067E_(EE)
Coolant
The coolant level is satisfactory if it is between the “FULL” and
“LOW” lines on the reservoir when the hybrid system is cold.
Engine coolant reservoir
Reservoir cap
“FULL” line
“LOW” line
If the level is on or below the
“LOW” line, add coolant up to
the “FULL” line. (P. 657)
Power control unit coolant reservoir
Reservoir cap
“FULL” line
“LOW” line
If the level is on or below the
“LOW” line, add coolant up to
the “FULL” line. (P. 657)

504
4-3. Do-it-yourself maintenance
CT200h_OM_OM76067E_(EE)
Coolant selection
Only use “Toyota Super Long Life Coolant” or a similar high quality eth-
ylene glycol based non-silicate, non-amine, non-nitrite, and non-borate
coolant with long-life hybrid organic acid technology.
“Toyota Super Long Life Coolant” is a mixture of 50% coolant and 50%
deionized water. (Minimum temperature: -35C [-31F])
For more details about coolant, contact any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional.
If the coolant level drops within a short time of replenishing
Visually check the radiator, hoses, engine/power control unit coolant reser-
voir caps, drain cock and water pump.
If you cannot find a leak, have any authorized Lexus dealer or repairer, or
another duly qualified and equipped professional test the cap and check for
leaks in the cooling system.
CAUTION
When the hybrid system is hot
Do not remove the engine/power control unit coolant reservoir caps.
The cooling system may be under pressure and may spray hot coolant if the
cap is removed, causing serious injuries, such as burns.

505
4-3. Do-it-yourself maintenance
4
Maintenance and care
CT200h_OM_OM76067E_(EE)
NOTICE
When adding coolant
Coolant is neither plain water nor straight antifreeze. The correct mixture of
water and antifreeze must be used to provide proper lubrication, corrosion
protection and cooling. Be sure to read the antifreeze or coolant label.
If you spill coolant
Be sure to wash it off with water to prevent it from damaging parts or paint.

506
4-3. Do-it-yourself maintenance
CT200h_OM_OM76067E_(EE)
Radiator and condenser
Check the radiator and condenser and clear away any foreign
objects.
If either of the above parts is extremely dirty or you are not sure of
their condition, have your vehicle inspected by any authorized
Lexus dealer or repairer, or another duly qualified and equipped
professional.
CAUTION
When the hybrid system is hot
Do not touch the radiator or condenser as they may be hot and cause serious
injuries, such as burns.
When the electric cooling fans are operating
Do not touch the engine compartment.
The electric cooling fans may keep rotating for about 3 minutes even after
the “POWER” switch is off.
With the “POWER” switch in ON mode, the electric cooling fans may auto-
matically start to run if the air conditioning is on and/or the coolant tempera-
ture is high. Be sure the “POWER” switch is off when working near the
electric cooling fans or radiator grille.

507
4-3. Do-it-yourself maintenance
4
Maintenance and care
CT200h_OM_OM76067E_(EE)
Washer fluid
If any washer does not work or
the warning message appears
on the multi-information dis-
play, the washer tank may be
empty. Add washer fluid.
CAUTION
When adding washer fluid
Do not add washer fluid when the hybrid system is hot or operating as
washer fluid contains alcohol and may catch fire if spilled on the engine etc.
NOTICE
Do not use any fluid other than washer fluid
Do not use soapy water or engine antifreeze instead of washer fluid.
Doing so may cause streaking on the vehicle’s painted surfaces.
Diluting washer fluid
Dilute washer fluid with water as necessary.
Refer to the freezing temperatures listed on the label of the washer fluid bot-
tle.

508
4-3. Do-it-yourself maintenance
CT200h_OM_OM76067E_(EE)
12-volt battery
Location
The 12-volt battery is located
in the right-hand side of lug-
gage compartment.
Removing the 12-volt battery cover
Open the center and right side auxiliary boxes. (P. 470)
Remove the center auxiliary box. (P. 600)
Remove the right side auxil-
iary box.
Remove the 12-volt battery
maintenance cover.
STEP1
STEP2
STEP3
STEP4
