Before recharging
When recharging, the 12-volt battery produces hydrogen gas which is flam-
mable and explosive. Therefore, observe the following precautions before
recharging:
If recharging with the 12-volt battery installed on the vehicle, be sure to
disconnect the ground cable.
Make sure the power switch on the charger is off when connecting and
disconnecting the charger cables to the 12-volt battery.
After recharging/reconnecting the 12-volt battery
Unlocking the doors using the smart entry & start system may not be
possible immediately after reconnecting the 12-volt battery. If this hap-
pens, use the wireless remote control or the mechanical key to lock/
unlock the doors.
Start the hybrid system with the “POWER” switch in ACCESSORY
mode. The hybrid system may not start with the “POWER” switch
turned OFF. However, the hybrid system will operate normally from the
second attempt.
The “POWER” switch mode is recorded by the vehicle. If the battery is
reconnected, the vehicle will return the “POWER” switch mode to the
status it was in before the battery was disconnected. Make sure to turn
off the power before disconnect the battery. Take extra care when con-
necting the battery if the “POWER” switch mode prior to discharge is
unknown.
Restart the hybrid system, depress the brake pedal, and confirm that it is
possible to shift into each shift position.
If the system will not start even after multiple attempts at all methods above,
contact any authorized Lexus dealer or repairer, or another duly qualified
and equipped professional.
Page 514 of 710
512
4-3. Do-it-yourself maintenance
CT200h_OM_OM76067E_(EE)
CAUTION
Chemicals in the 12-volt battery
The 12-volt battery contains poisonous and corrosive sulfuric acid and may
produce hydrogen gas which is flammable and explosive. To reduce the risk
of death or serious injury, take the following precautions while working on
or near the 12-volt battery:
Do not cause sparks by touching the 12-volt battery terminals with tools.
Do not smoke or light a match near the 12-volt battery.
Avoid contact with eyes, skin and clothes.
Never inhale or swallow electrolyte.
Wear protective safety glasses when working near the 12-volt battery.
Keep children away from the 12-volt battery.
Where to safely charge the 12-volt battery
Always charge the 12-volt battery in an open area. Do not charge the 12-volt
battery in a garage or closed room where there is insufficient ventilation.
How to recharge the 12-volt battery
Only perform a slow charge
*. The 12-volt battery may explode if charged at
a quicker rate.
*: 4.2 A or less on vehicles with a navigation system or alarm
3.5 A or less on vehicles without a navigation system and alarm
Page 515 of 710
513
4-3. Do-it-yourself maintenance
4
Maintenance and care
CT200h_OM_OM76067E_(EE)
CAUTION
Emergency measures regarding electrolyte
If electrolyte gets in your eyes
Flush your eyes with clean water for at least 15 minutes and get immedi-
ate medical attention. If possible, continue to apply water with a sponge or
cloth while traveling to the nearest medical facility.
If electrolyte gets on your skin
Wash the affected area thoroughly. If you feel pain or burning, get medical
attention immediately.
If electrolyte gets on your clothes
It can soak through clothing on to your skin. Immediately take off the
clothing and follow the procedure above if necessary.
If you accidentally swallow electrolyte
Drink a large quantity of water or milk. Get emergency medical attention
immediately.
When replacing the 12-volt battery
Use a 12-volt battery designed for this vehicle. Failure to do so may cause
gas (hydrogen) to enter the passenger compartment, causing a fire or explo-
sion.
For replacement of the 12-volt battery, contact any authorized Lexus dealer
or repairer, or another duly qualified and equipped professional.
Page 516 of 710
514
4-3. Do-it-yourself maintenance
CT200h_OM_OM76067E_(EE)
CAUTION
When disconnecting the 12-volt battery
NOTICE
When recharging the 12-volt battery
Never recharge the 12-volt battery while the hybrid system is operating.
Also, be sure all accessories are turned off.
Do not disconnect the negative (-) termi-
nal on the body side as shown. The dis-
connected negative (-) terminal may
touch the positive (+) terminal, which
may cause a short and result in death or
serious injury.
Page 529 of 710
527
4-3. Do-it-yourself maintenance
4
Maintenance and care
CT200h_OM_OM76067E_(EE)
Electronic key battery
Replace the battery with a new one if it is depleted.
You will need the following items:
Flathead screwdriver
Small Phillips-head screwdriver
Lithium battery CR1632
Replacing the battery
Type A
Take out the mechanical key.
Remove the cover.
STEP1
STEP2
Page 530 of 710
528
4-3. Do-it-yourself maintenance
CT200h_OM_OM76067E_(EE)

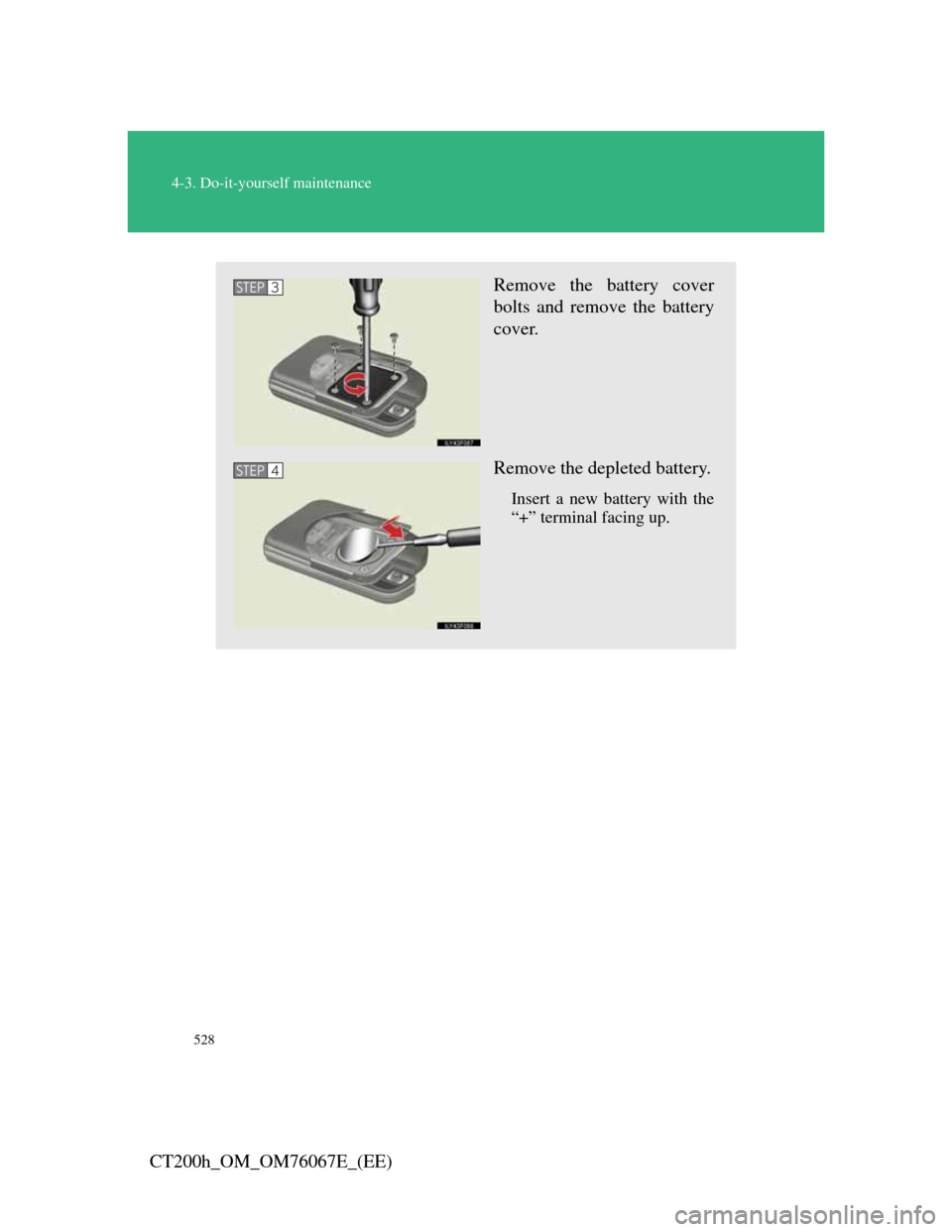

Remove the battery cover
bolts and remove the battery
cover.
Remove the depleted battery.
Insert a new battery with the
“+” terminal facing up.
STEP3
STEP4
Page 531 of 710
529
4-3. Do-it-yourself maintenance
4
Maintenance and care
CT200h_OM_OM76067E_(EE)
Type B
Take out the mechanical key.
Remove the cover.
To prevent damage to the
key, cover the tip of the
screwdriver with a rag.
Remove the depleted battery.
Insert a new battery with the
“+” terminal facing up.
STEP1
STEP2
STEP3
Page 532 of 710
530
4-3. Do-it-yourself maintenance
CT200h_OM_OM76067E_(EE)
Use a CR1632 lithium battery
Batteries can be purchased at any authorized Lexus dealer or repairer, or
another duly qualified and equipped professional, local electrical appli-
ance shops or camera stores.
Replace only with the same or equivalent type recommended by the
manufacturer.
Dispose of used batteries according to local laws.
When the card key battery needs to be replaced (if equipped)
The battery for the card key is available only at Lexus dealer. Your Lexus
dealer can replace the battery for you.
If the electronic key battery is depleted
The following symptoms may occur:
The smart entry & start system, push-button start system and wireless
remote control will not function properly.
The operational range will be reduced.
Page 533 of 710
531
4-3. Do-it-yourself maintenance
4
Maintenance and care
CT200h_OM_OM76067E_(EE)
CAUTION
Removed battery and other parts
These parts are small and if swallowed by a child, they can cause choking.
Keep away from children. Failure to do so could result in death or serious
injury.
Certification for the smart entry & start system and push-button start system
RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCOR-
RECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE
INSTRUCTIONS.
NOTICE
For normal operation after replacing the battery
Observe the following precautions to prevent accidents:
Always work with dry hands.
Moisture may cause the battery to rust.
Do not touch or move any other component inside the remote control.
Do not bend either of the battery terminals.
Page 541 of 710
539
4-3. Do-it-yourself maintenance
4
Maintenance and care
CT200h_OM_OM76067E_(EE)
38EFI NO. 210 A
Multiport fuel injection system/
sequential multiport fuel injection
system, exhaust system, key off
pump module, electric cooling
fans
39M-HTR10 AOutside rear view mirror defoggers
40SPARE30 ASpare fuse
41SPARE10 ASpare fuse
42SPARE7.5 ASpare fuse
43EFI MAIN20 A
Multiport fuel injection system/
sequential multiport fuel injection
system, cooling system, EFI NO.2
44BATT FAN10 ABattery cooling fan
45IG220 A
Hybrid system, multiport fuel
injection system/sequential multi-
port fuel injection system, MET,
IGN, power management system
