5-2. Steps to take in an emergency
CT200h_OM_OM76067E_(EE)
*1:Open door warning buzzer:
P. 582
*2:Driver’s and front passenger’s seat belt buzzer:
The driver’s and front passenger’s seat belt buzzer sounds to alert the
driver and front passenger that his or her seat belt is not fastened. The
buzzer sounds for 30 seconds after the vehicle reaches a speed of 20 km/
h (12 mph). Then, if the seat belt is still unfastened, the buzzer will
sound in a different tone for 90 more seconds.
Front passenger detection sensor, seat belt reminder and warning buzzer
If luggage is placed on the front passenger seat, the front passenger
detection sensor may cause the warning light to flash and the warning
buzzer to sound even if a passenger is not sitting in the seat.
If a cushion is placed on the seat, the sensor may not detect a passenger,
and the warning light may not operate properly.
Electric power steering system warning light (warning buzzer)
When the 12-volt battery charge becomes insufficient of the voltage tempo-
rarily drops, the electric power steering system warning light may come on
and the warning buzzer may sound.

5
577
5-2. Steps to take in an emergency
When trouble arises
CT200h_OM_OM76067E_(EE)
If the malfunction indicator lamp comes on while driving
The malfunction indicator lamp will come on if the fuel tank becomes com-
pletely empty. If the fuel tank is empty, refuel the vehicle immediately. The
malfunction indicator lamp will go off after several trips.
If the malfunction indicator lamp does not go off, contact any authorized
Lexus dealer or repairer, or another duly qualified and equipped profes-
sional as soon as possible.
Customization that can be configured at any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional
The vehicle speed linked seat belt reminder buzzer can be disabled.
(Customizable features P. 667)
However, Lexus recommends that the seat belt reminder buzzer be opera-
tional to alert the driver and front passenger when seat belts are not fastened.
CAUTION
If both the ABS and the brake system warning lights remain on
Stop your vehicle in a safe place immediately and contact any authorized
Lexus dealer or repairer, or another duly qualified and equipped profes-
sional. The vehicle will become extremely unstable during braking, and the
ABS system may fail, which could cause an accident resulting in death or
serious injury.
When the electric power steering system warning light comes on
The steering wheel may become extremely heavy.
If the steering wheel becomes heavier than usual when operating, hold
firmly and operate using more force than usual.

5
625
5-2. Steps to take in an emergency
When trouble arises
CT200h_OM_OM76067E_(EE)
CAUTION
When fixing the flat tire
Stop your vehicle in a safe and flat area.
Connect the valve and hose securely with the tire installed on the vehicle.
If the hose is not properly connected to the valve, air leakage may occur or
sealant may be sprayed out.
If the hose comes off the valve while inflating the tire, there is a risk that
the hose will move abruptly due to air pressure.
After inflation of the tire has completed, the sealant may splatter when the
hose is disconnected or some air is let out of the tire.
Keep back from the tire while it is being repaired, as there is a chance of it
bursting while the repair operation is being performed. If you notice any
cracks or deformation of the tire, turn off the compressor switch and stop
the repair operation immediately.
The kit may overheat if operated for a long period of time. Do not operate
the compressor continuously for more than 10 minutes.
Parts of the kit become hot during operation. Be careful handling the kit
during and after operation.
Do not attach the vehicle speed warning sticker to an area other than the
one indicated. If the sticker is attached to an area where an SRS airbag is
located, such as the pad of the steering wheel, it may prevent the SRS air
bag from operating properly.
Driving to spread the liquid sealant evenly
Drive the vehicle carefully at a low speed. Be especially careful when
turning and cornering.
If the vehicle does not drive straight or you feel a pull through the steering
wheel, stop the vehicle and check the following:
• Tire condition. The tire may have separated from the wheel.
• Tire inflation pressure. If tire inflation pressure is 130 kPa (1.3 kgf/
cm
2 or bar, 19 psi) or below, this may indicate severe tire damage.

5
647
5-2. Steps to take in an emergency
When trouble arises
CT200h_OM_OM76067E_(EE)
CAUTION
If the hybrid system has to be turned off while driving
Power assist for the brakes and steering wheel will be lost, making the brake
pedal harder to depress and the steering wheel heavier to turn. Decelerate as
much as possible before turning off the hybrid system.

660
6-1. Specifications
CT200h_OM_OM76067E_(EE)

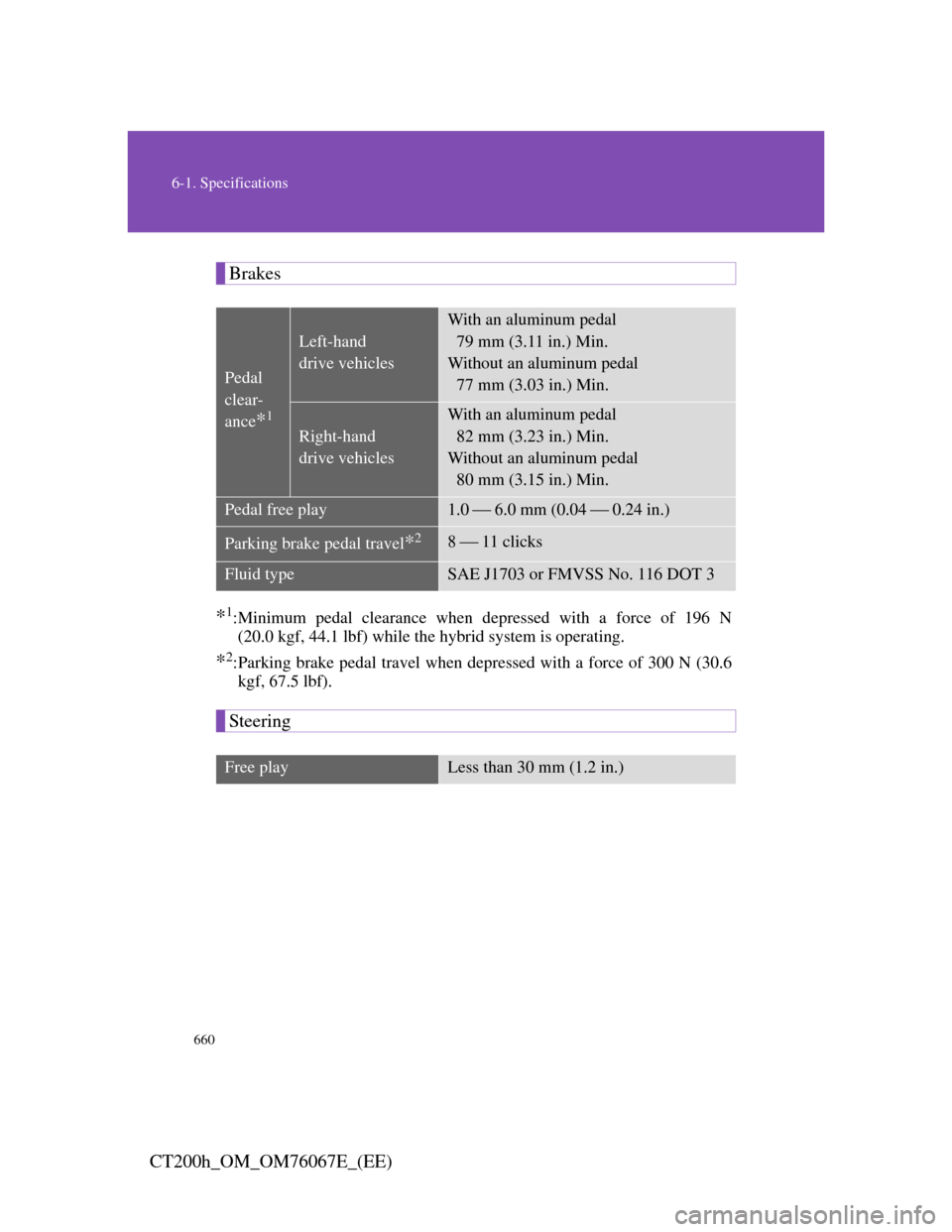

Brakes
*1:Minimum pedal clearance when depressed with a force of 196 N
(20.0 kgf, 44.1 lbf) while the hybrid system is operating.
*2:Parking brake pedal travel when depressed with a force of 300 N (30.6
kgf, 67.5 lbf).
Steering
Pedal
clear-
ance
*1
Left-hand
drive vehicles
With an aluminum pedal
79 mm (3.11 in.) Min.
Without an aluminum pedal
77 mm (3.03 in.) Min.
Right-hand
drive vehicles
With an aluminum pedal
82 mm (3.23 in.) Min.
Without an aluminum pedal
80 mm (3.15 in.) Min.
Pedal free play1.0  6.0 mm (0.04  0.24 in.)
Parking brake pedal travel*28 11 clicks
Fluid typeSAE J1703 or FMVSS No. 116 DOT 3
Free playLess than 30 mm (1.2 in.)

663
6-1. Specifications
6
Vehicle specifica-
CT200h_OM_OM76067E_(EE)
NOTICE
ECO pressure
For optimizing fuel economy, ECO tire pressure is recommended. Tire pres-
sure affects traveling comfort, road noise and steering characteristics.

690
CT200h_OM_OM76067E_(EE)
Abbreviation list
Abbreviation/Acronym list
ABBREVIA-
TIONSMEANING
A/CAir Conditioning
ABSAnti-lock Brake System
ASLAutomatic Sound Levelizer
CRSChild Restraint System
DABDigital Audio Broadcast
DISPDisplay
ECOEconomy/Ecology
ECUElectronic Control Unit
EFIElectronic Fuel Injection
ELREmergency Locking Retractor
EONEnhanced Other Network
EPSElectric Power Steering
EVElectric Vehicle
LEDLight Emitting Diode
OBDOn Board Diagnostics
PCSPre-Crash Safety system
PWRPower
RDSRadio Data System
SRSSupplemental Restraint System

692
CT200h_OM_OM76067E_(EE)
