Does your vehicle need repairs?
Be on the alert for changes in performance and sounds, and visual tip-offs
that indicate service is needed. Some important clues are:
Engine missing, stumbling or pinging
Appreciable loss of power
Strange engine noises
A fluid leak under the vehicle (However, water dripping from the air
conditioning system after use is normal.)
Change in exhaust sound (This may indicate a dangerous carbon monox-
ide leak. Drive with the windows open and have the exhaust system
checked immediately.)
Flat-looking tires, excessive tire squeal when cornering, uneven tire
wear
Vehicle pulls to one side when driven straight on a level road
Strange noises related to suspension movement
Loss of brake effectiveness, spongy feeling brake pedal, pedal almost
touches the floor, vehicle pulls to one side when braking
Engine coolant temperature continually higher than normal
If you notice any of these clues, take your vehicle to any authorized Lexus
dealer or repairer, or another duly qualified and equipped professional as
soon as possible. Your vehicle may need adjustment or repair.
CAUTION
If your vehicle is not properly maintained
Improper maintenance could result in serious damage to the vehicle and
possible serious injury or death.
Handling of the 12-volt battery
12-volt battery posts, terminals and related accessories contain lead and lead
compounds which are known to cause brain damage. Wash your hands after
handling. (P. 508)

488
CT200h_OM_OM76067E_(EE)
4-3. Do-it-yourself maintenance
Do-it-yourself service precautions
If you perform maintenance by yourself, be sure to follow the correct
procedure as given in these sections.
ItemsParts and tools
12-volt battery condition (P.
508)• Grease
• Conventional wrench
(for terminal clamp bolts)
Engine/power control unit cool-
ant level (P. 503)
• “Toyota Super Long Life Cool-
ant” or a similar high quality
ethylene glycol-based non-sili-
cate, non-amine, non-nitrite and
non-borate coolant with long-
life hybrid organic acid technol-
ogy
“Toyota Super Long Life Cool-
ant” is pre-mixed with 50%
coolant and 50% deionized
water.
Fl(dlfddi

508
4-3. Do-it-yourself maintenance
CT200h_OM_OM76067E_(EE)

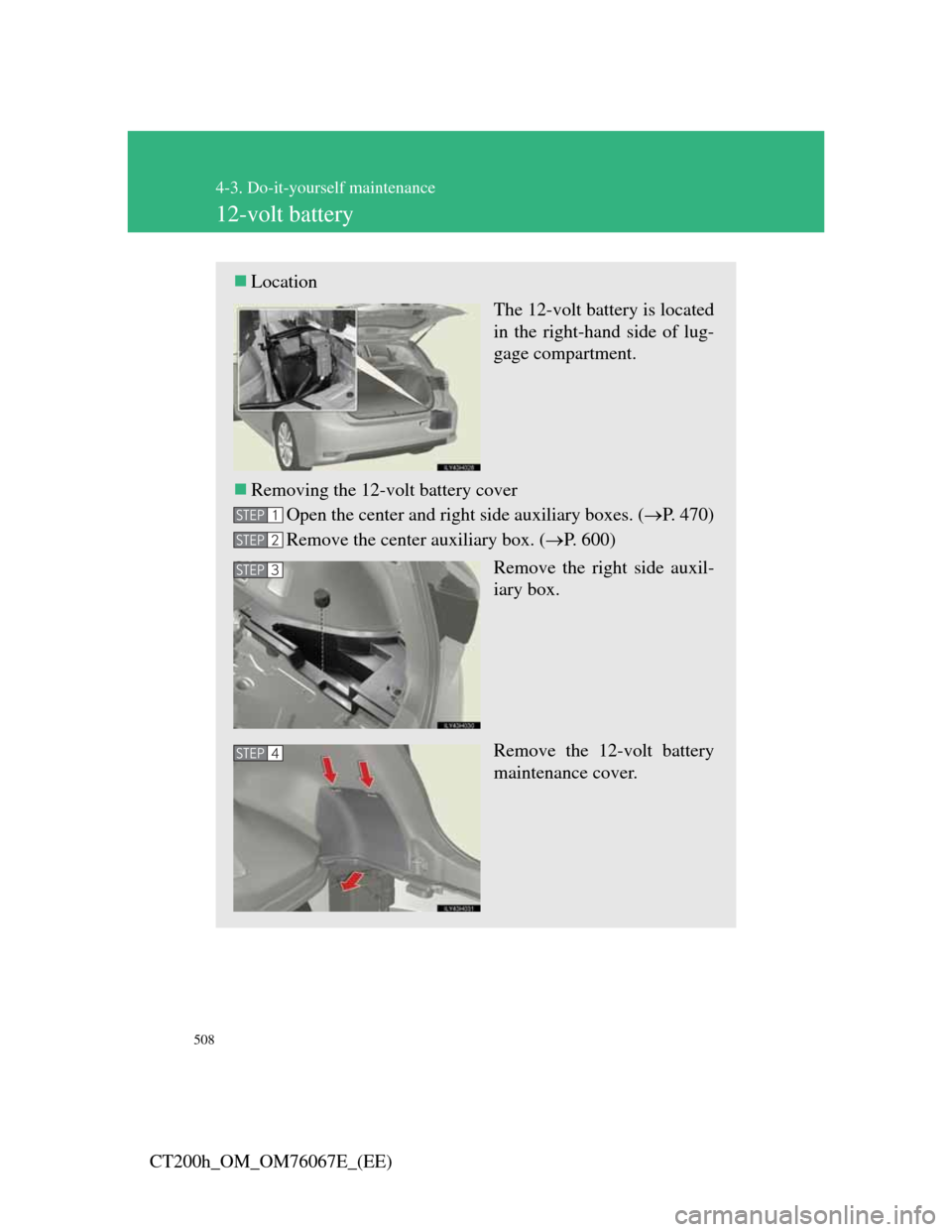

12-volt battery
Location
The 12-volt battery is located
in the right-hand side of lug-
gage compartment.
Removing the 12-volt battery cover
Open the center and right side auxiliary boxes. (P. 470)
Remove the center auxiliary box. (P. 600)
Remove the right side auxil-
iary box.
Remove the 12-volt battery
maintenance cover.
STEP1
STEP2
STEP3
STEP4

5
627
5-2. Steps to take in an emergency
When trouble arises
CT200h_OM_OM76067E_(EE)
If the hybrid system will not start
Reasons for the hybrid system not starting vary depending on the situ-
ation. Check the following and perform the appropriate procedure:
The hybrid system will not start even though the correct start-
ing procedure is being followed. (P. 198)
One of the following may be the cause of the problem:
The electronic key may not be functioning properly.
* (P.
630)
There may not be sufficient fuel in the vehicle’s tank.
Refuel the vehicle.
There may be a malfunction in the immobilizer system.
*
(P. 135)
There may be a malfunction in the P position control sys-
tem.
* (P. 202, 580)
*: It may not be possible to shift the shift position other than P.
The interior lights and headlights are dim, or the horn does not
sound or sounds at a low volume.
One of the following may be the cause of the problem:
The 12-volt battery may be discharged. (P. 508)
The 12-volt battery terminal connections may be loose or

628
5-2. Steps to take in an emergency
CT200h_OM_OM76067E_(EE)
Emergency start function
When the hybrid system does not start, the following steps can be
used as an interim measure to start the hybrid system if the
“POWER” switch is functioning normally:
Set the parking brake.
Turn the “POWER” switch to ACCESSORY mode.
Press and hold the “POWER” switch for about 15 seconds
while depressing the brake pedal firmly.
Even if the hybrid system can be started using the above steps, the
system may be malfunctioning. Have the vehicle inspected by any
authorized Lexus dealer or repairer, or another duly qualified and
equipped professional.
The interior lights and headlights do not turn on, or the horn
does not sound.
One of the following may be the cause of the problem:
One or both of the 12-volt battery terminals may be discon-
nected.
The 12-volt battery may be discharged. (P. 508)
Contact any authorized Lexus dealer or repairer, or another duly
qualified and equipped professional if the problem cannot be
repaired, or if repair procedures are unknown.
STEP1
STEP2
STEP3

693
Alphabetical index
