Lexus CT200h 2015 Navigation Manual (in English)

160
CT200h_Navi_OM76146U_(U)14.06.17 09:48
6. TIPS FOR THE NAVIGATION SYSTEM
1. GPS (GLOBAL POSITIONING SYSTEM)
The Global Positioning System (GPS) de-
veloped and operated by the U.S. Depart-
ment of Defense provides an accurate
current position, normally using 4 or more
satellites, and in some case 3 satellites. The
GPS system has a certain level of inaccura-
cy. While the navigation system compen-
sates for this most of the time, occasional
positioning errors of up to 300 ft. (100 m)
can and should be expected. Generally, po-
sition errors will be corrected within a few
seconds.When the vehicle is receiving signals from
satellites, the “GPS” mark appears at the
top left of the screen.
The GPS signal may be physically obstruct-
ed, leading to inaccurate vehicle position on
the map screen. Tunnels, tall buildings,
trucks, or even the placement of objects on
the instrument panel may obstruct the GPS
signals.
The GPS satellites may not send signals due
to repairs or improvements being made to
them.
Even when the navigation system is receiv-
ing clear GPS signals, the vehicle position
may not be shown accurately or inappropri-
ate route guidance may occur in some cas-
es.
LIMITATIONS OF THE
NAVIGATION SYSTEM
This navigation system calculates the
current position using satellite signals,
various vehicle signals, map data, etc.
However, an accurate position may not
be shown depending on satellite condi-
tions, road configuration, vehicle condi-
tion or other circumstances.
NOTICE
●The installation of window tinting may
obstruct the GPS signals. Most window
tinting contains some metallic content
that will interfere with GPS signal recep-
tion of the antenna in the instrument
panel. We advise against the use of win-
dow tinting on vehicles equipped with
navigation systems.

161
6. TIPS FOR THE NAVIGATION SYSTEM
3
NAVIGATION SYSTEM
CT200h_Navi_OM76146U_(U)14.06.17 09:48
zAccurate current position may not be
shown in the following cases:
• When driving on a small angled Y-shaped
road.
• When driving on a winding road.
• When driving on a slippery road such as in sand, gravel, snow, etc.
• When driving on a long straight road.
• When freeway and surface streets run in parallel.
• After moving by ferry or vehicle carrier.
• When a long route is searched during high speed driving.
• When driving without setting the current position calibration correctly.
• After repeating a change of direction by going forward and backward, or turning
on a turntable in a parking lot.
• When leaving a covered parking lot or parking garage.
• When a roof carrier is installed.
• When driving with tire chains installed.
• When the tires are worn.
• After replacing a tire or tires.
• When using tires that are smaller or larger than the factory specifications.
• When the tire pressure in any of the 4 tires is not correct. z
Inappropriate route guidance may occur in
the following cases:
• When turning at an intersection off the
designated route guidance.
• If you set more than 1 destination but skip any of them, auto reroute will display a
route returning to the destination on the
previous route.
• When turning at an intersection for which there is no route guidance.
• When passing through an intersection for which there is no route guidance.
• During auto reroute, the route guidance may not be available for the next turn to
the right or left.
• During high speed driving, it may take a long time for auto reroute to operate. In
auto reroute, a detour route may be
shown.
• After auto reroute, the route may not be changed.
• If an unnecessary U-turn is shown or announced.
• If a location has multiple names and the system announces 1 or more of them.
• When a route cannot be searched.
• If the route to your destination includes gravel, unpaved roads or alleys, the route
guidance may not be shown.
• Your destination point might be shown on the opposite side of the street.
• When a portion of the route has regula- tions prohibiting the entry of the vehicle
that vary by time, season or other reasons.
• The road and map data stored in the navi- gation system may not be complete or
may not be the latest version.
z If the vehicle cannot receive GPS signals,
the current position can be adjusted
manually. For information on setting the
current position calibration: →P.1 5 5
zAfter replacing a tire: →P.1 5 6

162
6. TIPS FOR THE NAVIGATION SYSTEM
CT200h_Navi_OM76146U_(U)14.06.17 09:48

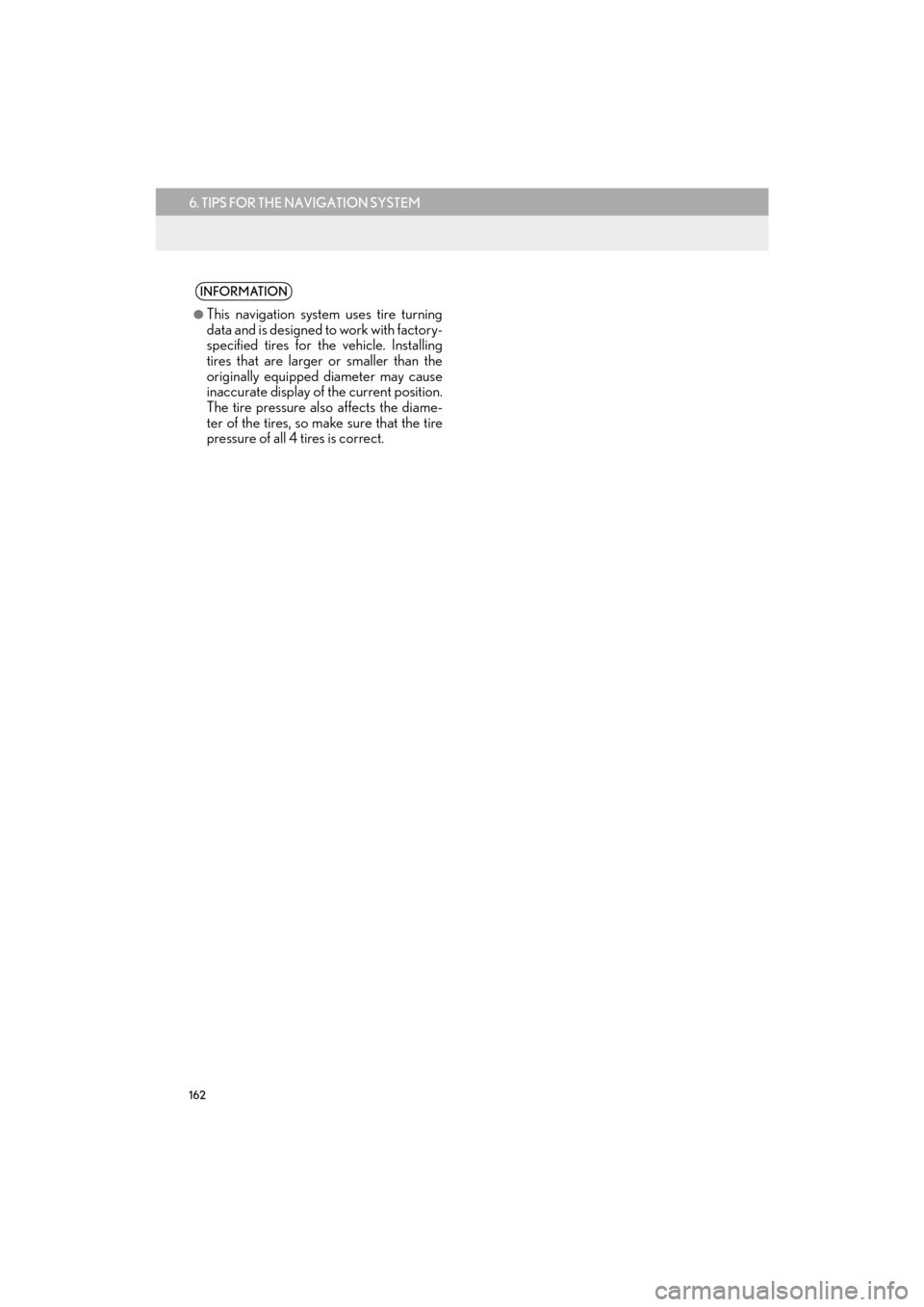

INFORMATION
●
This navigation system uses tire turning
data and is designed to work with factory-
specified tires for the vehicle. Installing
tires that are larger or smaller than the
originally equipped diameter may cause
inaccurate display of the current position.
The tire pressure also affects the diame-
ter of the tires, so make sure that the tire
pressure of all 4 tires is correct.

163
6. TIPS FOR THE NAVIGATION SYSTEM
CT200h_Navi_OM76146U_(U)14.06.17 09:48
3
NAVIGATION SYSTEM
2. MAP DATABASE VERSION AND COVERED AREA
1Press the “MENU” button on the
Remote Touch.
2Select “Nav”.
3Select “Options” .
4Select “Map Data” .
5Check that the map data screen is dis-
played.
MAP INFORMATION
Coverage areas and legal information
can be displayed and map data can be
updated.
No.Function
Map version
Select to update map.
Select to display map coverage ar-
eas.
Select to display legal information.
INFORMATION
●
Map data updates are available for a fee.
Contact your Lexus dealer for further
information.

164
6. TIPS FOR THE NAVIGATION SYSTEM
CT200h_Navi_OM76146U_(U)14.06.17 09:48
ABOUT THE MAP DATA
Map data for the navigation system is
contained in a SD card that is inserted in
the SD card slot located at the bottom of
the audio control panel.
Do not eject the SD card, as doing so
may deactivate the navigation system.
NOTICE
●Do not edit or delete the map data on the
SD card, as doing so may deactivate the
navigation system.
INFORMATION
●microSDHC Logo is a trademark of
SD-3C, LLC.

165
6. TIPS FOR THE NAVIGATION SYSTEM
3
NAVIGATION SYSTEM
CT200h_Navi_OM76146U_(U)14.06.17 09:48

166
CT200h_Navi_OM76146U_(U)14.06.17 09:44
1. QUICK REFERENCE ............................. 168
2. SOME BASICS .......................................... 170
TURNING THE SYSTEM ON AND OFF ... 170
SELECTING AN AUDIO SOURCE ............... 171
DISC SLOT ................................................................. 172
USB/AUX PORT ..................................................... 173
SOUND SETTINGS ............................................... 174
AUDIO SCREEN ADJUSTMENT .................. 176
VOICE COMMAND SYSTEM........................ 178
1. AM/FM RADIO ........................................ 179
OVERVIEW ................................................................ 179
PRESETTING A STATION ................................. 183
SELECTING A STATION FROM THE LIST ................................................................... 183
CACHING A RADIO PROGRAM ............... 185
RADIO BROADCAST DATA SYSTEM ...... 186
TRAFFIC ANNOUNCEMENT (FM RADIO) .......................................................... 188
USING HD Radio™ TECHNOLOGY......... 188
AVAILABLE HD Radio™ TECHNOLOGY.................................................. 189
TROUBLESHOOTING GUIDE ....................... 191
2. XM Satellite Radio .................................... 192
OVERVIEW ................................................................ 192
HOW TO SUBSCRIBE TO AN XM Satellite Radio.......................................................... 195
DISPLAYING THE RADIO ID .......................... 197
PRESETTING A CHANNEL.............................. 197
SELECTING A CHANNEL FROM THE LIST ................................................................... 198
IF THE SATELLITE RADIO TUNER MALFUNCTIONS .............................................. 199
3. INTERNET RADIO................................. 200
LISTENING TO INTERNET RADIO ............ 200
1BASIC OPERATION2RADIO OPERATION

4
167
1
2
3
4
5
6
7
8
9
CT200h_Navi_OM76146U_(U)14.06.17 09:44
1. CD .................................................................. 201
OVERVIEW................................................................ 201
PLAYING AN AUDIO CD .............................. 205
PLAYING AN MP3/WMA/AAC DISC ... 206
2. DVD.............................................................. 207
OVERVIEW............................................................... 207
DVD OPTIONS .......................................................... 211
3. USB MEMORY......................................... 214
OVERVIEW................................................................ 214
USB AUDIO ............................................................... 218
4. iPod ................................................................ 219
OVERVIEW................................................................ 219
iPod AUDIO .............................................................. 224
iPod VIDEO ............................................................... 225
5. Bluetooth® AUDIO ................................ 226
OVERVIEW............................................................... 226
CONNECTING A Bluetooth® DEVICE ... 230
LISTENING TO Bluetooth® AUDIO ........... 230
6. AUX ............................................................. 232
OVERVIEW............................................................... 232
7. VTR ............................................................... 235
OVERVIEW.............................................................. 235
VTR OPTIONS......................................................... 237
1. STEERING SWITCHES ........................ 238
1. AUDIO SETTINGS ................................. 240
AUDIO SETTINGS SCREEN ............................ 241
1. OPERATING INFORMATION......... 249
RADIO......................................................................... 249
DVD PLAYER AND DISC .................................. 251
iPod................................................................................ 256
FILE INFORMATION ........................................... 257
TERMS ......................................................................... 259
ERROR MESSAGES.............................................. 261
3MEDIA OPERATION4AUDIO/VISUAL REMOTE
CONTROLS
5SETUP
6TIPS FOR OPERATING THE
AUDIO/VISUAL SYSTEM
AUDIO/VISUAL SYSTEM

168
CT200h_Navi_OM76146U_(U)14.06.17 09:48
1. BASIC OPERATION
1. QUICK REFERENCE
■CONTROL SCREEN
Operations such as selecting a preset station and adjusting the sound balance are car-
ried out on the screen.
X
Using the instrument panel
Press the “RADIO” or “MEDIA” button to display the audio/visual screen.
XUsing the Remote Touch
Press the “MENU” button on the Remote Touch, then select “Radio” or “Media” to
display the audio/visual screen.

169
1. BASIC OPERATION
4
AUDIO/VISUAL SYSTEM
CT200h_Navi_OM76146U_(U)14.06.17 09:48
■CONTROL PANEL
FunctionPage
Using the radio179
Playing an audio CD or MP3/WMA/AAC disc201
Playing a DVD207
Playing a USB memory214
Playing an iPod®219
Playing a Bluetooth® device226
Using the AUX port232
Playing the VTR235
Using the steering wheel audio switches238
Audio system settings240
INFORMATION
●
The display and button positions will diffe r depending on the type of the system.
