CT200h_Navi_OM76146U_(U)14.06.04 18:41
1. INITIAL SCREEN ....................................... 34
2. HOW TO USE THE Remote Touch...... 36
3. HOME SCREEN OPERATION ........... 38
4. ENTERING LETTERS AND NUMBERS/LIST SCREEN
OPERATION............................................ 40
ENTERING LETTERS AND NUMBERS ....... 40
LIST SCREEN................................................................ 41
5. SCREEN ADJUSTMENT ........................ 44 1. REGISTERING/CONNECTING
Bluetooth
® DEVICE ............................... 46
REGISTERING A Bluetooth® PHONE
FOR THE FIRST TIME .......................................... 46
REGISTERING A Bluetooth
® AUDIO
PLAYER FOR THE FIRST TIME ..................... 48
PROFILES ..................................................................... 50
CERTIFICATION ...................................................... 52
2. SETTING Bluetooth® DETAILS ............ 54
“Bluetooth* Setup” SCREEN ............................... 55
REGISTERING A Bluetooth® DEVICE ......... 56
DELETING A Bluetooth® DEVICE................... 57
CONNECTING A Bluetooth® DEVICE ...... 58
EDITING THE Bluetooth® DEVICE
INFORMATION .................................................... 60
“System Settings” SCREEN ................................... 62
1. GENERAL SETTINGS.............................. 64
GENERAL SETTINGS SCREEN ...................... 65
2. VOICE SETTINGS ..................................... 72
VOICE SETTINGS SCREEN ............................... 73
3. VEHICLE SETTINGS ................................ 74
MAINTENANCE ....................................................... 75
1BASIC INFORMATION BEFORE
OPERATION2Bluetooth® SETTINGS
3OTHER SETTINGS
BASIC FUNCTION
*: Bluetooth is a registered trademark of Bluetooth SIG, Inc.

48
2. Bluetooth® SETTINGS
CT200h_Navi_OM76146U_(U)14.06.17 09:48
8Select “OK” when the connection sta-
tus changes from “Connecting...” to
“Connected”.
z If an error message is displayed, follow the
guidance on the screen to try again.
REGISTERING A Bluetooth®
AUDIO PLAYER FOR THE
FIRST TIME
To use the Bluetooth® Audio, it is nec-
essary to register an audio player with
the system.
Once the player has been registered, it
is possible to use the Bluetooth
® Audio.
This operation cannot be performed
while driving.
For details about registering a
Bluetooth
® device: →P.56

49
2. Bluetooth® SETTINGS
2
BASIC FUNCTION
CT200h_Navi_OM76146U_(U)14.06.17 09:48
1Turn the Bluetooth® connection setting
of your audio player on.
z This function is not available when the
Bluetooth® connection setting of your
audio player is set to off.
2Press the “MENU” button on the
Remote Touch.
3Select “Radio” or “Media” .
4Select “Source” .
5Select “Bluetooth*” .
6Select “Connect” .
7Select “Yes” to register a audio player.
8Follow the steps in “REGISTERING A
Bluetooth
® PHONE FOR THE FIRST
TIME” from “STEP 5”. ( →P.46)
*: Bluetooth is a registered trademark of Bluetooth SIG, Inc.

50
2. Bluetooth® SETTINGS
CT200h_Navi_OM76146U_(U)14.06.17 09:48
PROFILES
This system supports the following services.
Bluetooth®
DeviceSpec.FunctionRequire- mentsRecom-
mendations
Bluetooth®
Phone/
Bluetooth®
Audio
PlayerBluetooth® Specification
Registering a
Bluetooth®
deviceVe r. 2 . 0Ve r. 3 . 0 +EDR
Bluetooth®
DeviceProfileFunctionRequire- mentsRecom-
mendations
Bluetooth®
Phone
HFP (Hands-Free Profile)Hands-free
systemVe r. 1 . 0Ve r. 1 . 6
OPP (Object Push Profile)Transferring the
contactsVe r. 1 .1Ve r. 1 . 2
PBAP (Phone Book Access
Profile)Ve r. 1 . 0Ve r. 1 .1
MAP (Message Access Profile)Bluetooth®
phone messageVe r. 1 . 0
SPP (Serial Port Profile)“LEXUS App
Suite” functionVe r. 1 .1
Bluetooth®
Audio
Player
A2DP (Advanced Audio Distri-
bution Profile)
Bluetooth®
audio systemVe r. 1 . 0Ve r. 1 . 2
AVRCP (Audio/Video Remote
Control Profile)Ve r. 1 . 0Ve r. 1 . 4

56
2. Bluetooth® SETTINGS
CT200h_Navi_OM76146U_(U)14.06.17 09:48
1Display the “Bluetooth* Setup” screen.
(→ P.54)
2Select “A d d ”.
X When another Bluetooth
® device is con-
nected
z To disconnect the Bluetooth® device,
select “Yes”.
XWhen 5 Bluetooth® devices have al-
ready been registered
z A registered device needs to be replaced.
Select “Yes”, and select the device to be
replaced.
*: Bluetooth is a registered trademark of
Bluetooth SIG, Inc.
3When this screen is displayed, search
for the device name displayed on this
screen on the screen of your
Bluetooth
® device.
z For details about operating the Bluetooth®
device, see the manual that comes with it.
z To cancel the registration, select “Cancel”.
4Register the Bluetooth® device using
your Bluetooth
® device.
z A PIN-code is not required for SSP
(Secure Simple Pairing) compatible
Bluetooth
® devices. Depending on the
type of Bluetooth® device being con-
nected, a message confirming registration
may be displayed on the Bluetooth
®
device’s screen. Respond and operate the
Bluetooth® device according to the confir-
mation message.
REGISTERING A Bluetooth®
DEVICE
Up to 5 Bluetooth® devices can be reg-
istered.
Bluetooth
® compatible phones (HFP)
and audio players (AVP) can be regis-
tered simultaneously.
This operation cannot be performed
while driving.

58
2. Bluetooth® SETTINGS
CT200h_Navi_OM76146U_(U)14.06.17 09:48
1Display the “Bluetooth* Setup” screen.
(→ P.54)
2Select the device to be connected.
zSupported profile icons will be displayed.
: Phone
: Audio player
: Phone/“LEXUS App Suite” service
zThe profile icon for a currently connected
device will be displayed in color.
z Selecting a profile icon which is not cur-
rently connected will switch the connection
to the function.
*: Bluetooth is a registered trademark of
Bluetooth SIG, Inc.
3Select the desired connection.
X When another Bluetooth
® device is con-
nected
z To disconnect the Bluetooth® device,
select “Yes”.
4Check that a confirmation screen is dis-
played when the connection is com-
plete.
zIf an error message is displayed, follow the
guidance on the screen to try again.
CONNECTING A Bluetooth®
DEVICE
Up to 5 Bluetooth® devices (Phones
(HFP) and audio players (AVP)) can be
registered.
If more than 1 Bluetooth
® device has
been registered, select which device to
connect to.
z If the desired Bluetooth® device is not on
the list, select “A d d ” to register the
device. ( →P. 5 6 )
INFORMATION
●It may take time if the device connection
is carried out during Bluetooth® audio
playback.
● Depending on the type of Bluetooth
®
device being connected, it may be neces-
sary to perform additional steps on the
device.

60
2. Bluetooth® SETTINGS
CT200h_Navi_OM76146U_(U)14.06.17 09:48
1Display the “Bluetooth* Setup” screen.
(→ P.54)
2Select the desired device to be edited.
3Select “Device Info” .
*: Bluetooth is a registered trademark of Bluetooth SIG, Inc.
4Confirm and change the Bluetooth®
device information.EDITING THE Bluetooth®
DEVICE INFORMATION
The Bluetooth® device’s information
can be displayed on the screen. The dis-
played information can be edited.
No.Information
The name of the Bluetooth® device.
Can be changed to a desired name.
( → P.61)
Select to set the Bluetooth® audio
player connection method. ( →P.61)
Device address is unique to the de-
vice and cannot be changed.
Phone number of the Bluetooth®
phone.
Compatibility profile of the
Bluetooth® device.
Select to reset all setup items.

61
2. Bluetooth® SETTINGS
2
BASIC FUNCTION
CT200h_Navi_OM76146U_(U)14.06.17 09:48
1Select “Device Name” .
2Enter the name and select “OK”.
1Select “Connect Audio Player from” .
2Select the desired connection method.
“Vehicle” : Select to connect the audio sys-
tem to the audio player.
“Device” : Select to connect the audio play-
er to the audio system.
z Depending on the audio player, the
“Vehicle” or “Device” connection method
may be best. As such, refer to the manual
that comes with the audio player.
z To reset the connection method, select
“Default” .
INFORMATION
●If 2 Bluetooth® devices have been regis-
tered with the same device name, the
devices can be distinguished referring to
the device’s address.
● Depending on the type of phone, some
information may not be displayed.
CHANGING A DEVICE NAME
INFORMATION
●
Even if the device name is changed, the
name registered in your Bluetooth®
device does not change.
SETTING AUDIO PLAYER
CONNECTION METHOD

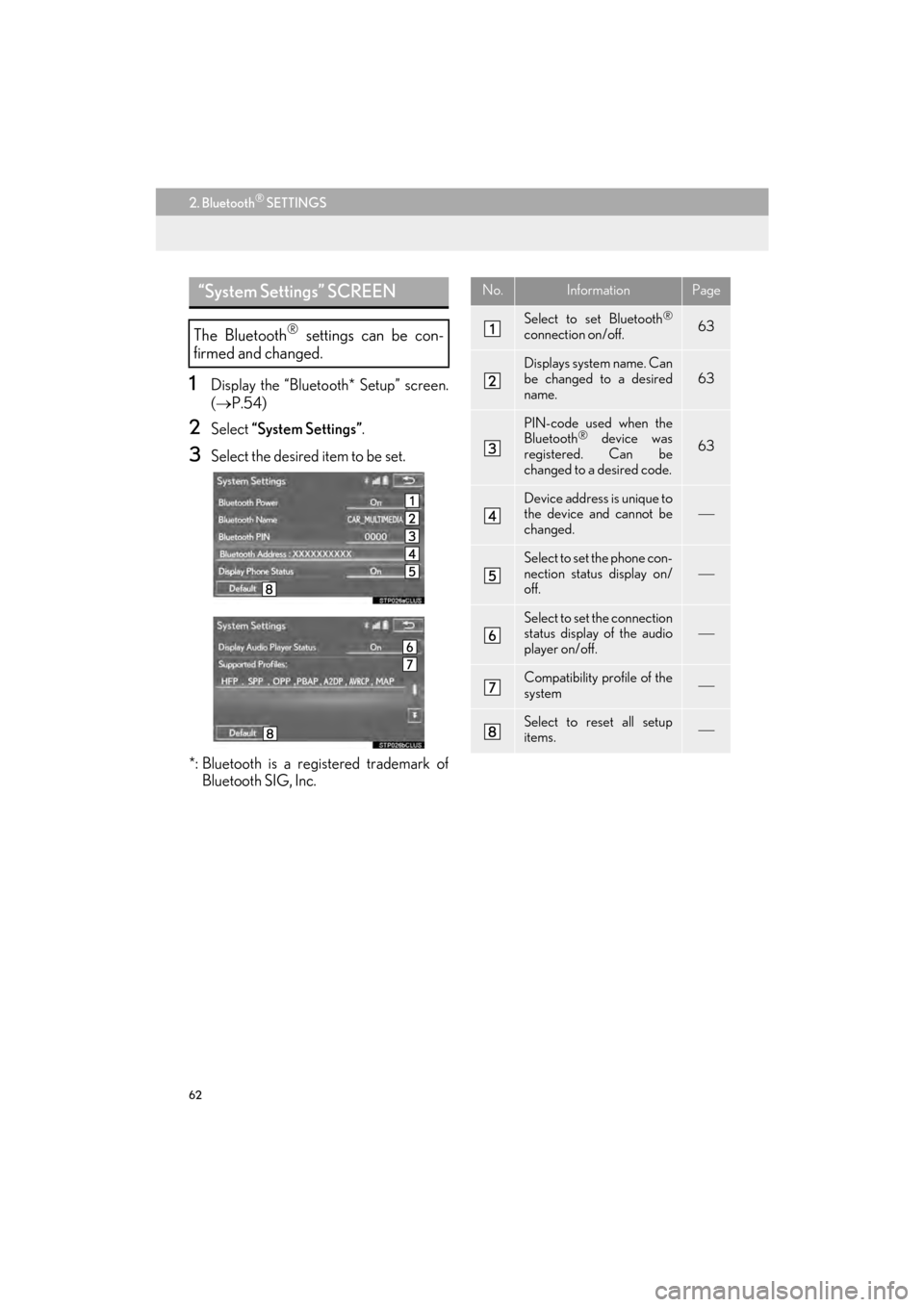

62
2. Bluetooth® SETTINGS
CT200h_Navi_OM76146U_(U)14.06.17 09:48
1Display the “Bluetooth* Setup” screen.
(→ P.54)
2Select “System Settings” .
3Select the desired item to be set.
*: Bluetooth is a registered trademark of Bluetooth SIG, Inc.
“System Settings” SCREEN
The Bluetooth® settings can be con-
firmed and changed.
No.InformationPage
Select to set Bluetooth®
connection on/off.63
Displays system name. Can
be changed to a desired
name.63
PIN-code used when the
Bluetooth® device was
registered. Can be
changed to a desired code.63
Device address is unique to
the device and cannot be
changed.
Select to set the phone con-
nection status display on/
off.
Select to set the connection
status display of the audio
player on/off.
Compatibility profile of the
system
Select to reset all setup
items.

4
167
1
2
3
4
5
6
7
8
9
CT200h_Navi_OM76146U_(U)14.06.17 09:44
1. CD .................................................................. 201
OVERVIEW................................................................ 201
PLAYING AN AUDIO CD .............................. 205
PLAYING AN MP3/WMA/AAC DISC ... 206
2. DVD.............................................................. 207
OVERVIEW............................................................... 207
DVD OPTIONS .......................................................... 211
3. USB MEMORY......................................... 214
OVERVIEW................................................................ 214
USB AUDIO ............................................................... 218
4. iPod ................................................................ 219
OVERVIEW................................................................ 219
iPod AUDIO .............................................................. 224
iPod VIDEO ............................................................... 225
5. Bluetooth® AUDIO ................................ 226
OVERVIEW............................................................... 226
CONNECTING A Bluetooth® DEVICE ... 230
LISTENING TO Bluetooth® AUDIO ........... 230
6. AUX ............................................................. 232
OVERVIEW............................................................... 232
7. VTR ............................................................... 235
OVERVIEW.............................................................. 235
VTR OPTIONS......................................................... 237
1. STEERING SWITCHES ........................ 238
1. AUDIO SETTINGS ................................. 240
AUDIO SETTINGS SCREEN ............................ 241
1. OPERATING INFORMATION......... 249
RADIO......................................................................... 249
DVD PLAYER AND DISC .................................. 251
iPod................................................................................ 256
FILE INFORMATION ........................................... 257
TERMS ......................................................................... 259
ERROR MESSAGES.............................................. 261
3MEDIA OPERATION4AUDIO/VISUAL REMOTE
CONTROLS
5SETUP
6TIPS FOR OPERATING THE
AUDIO/VISUAL SYSTEM
AUDIO/VISUAL SYSTEM
