washer fluid Lexus CT200h 2015 (in English) User Guide

CT200h_OM_OM76174U_(U)
5117-3. Do-it-yourself maintenance
7
Maintenance and care
Set the connector.
After installing the connector, shake
the bulb base gently to check that it is
not loose, turn the headlight high
beams on once and visually confirm
that no light is leaking through the
mounting.
For the right side only: Reinstall the washer fluid filler opening.
■Headlight high beams (LED headlights)Turn the cover counterclockwise
and remove it.
Turn the bulb base counterclock-
wise.
Unplug the connector while pull-
ing the lock release.
5
6
1
2
3

CT200h_OM_OM76174U_(U)

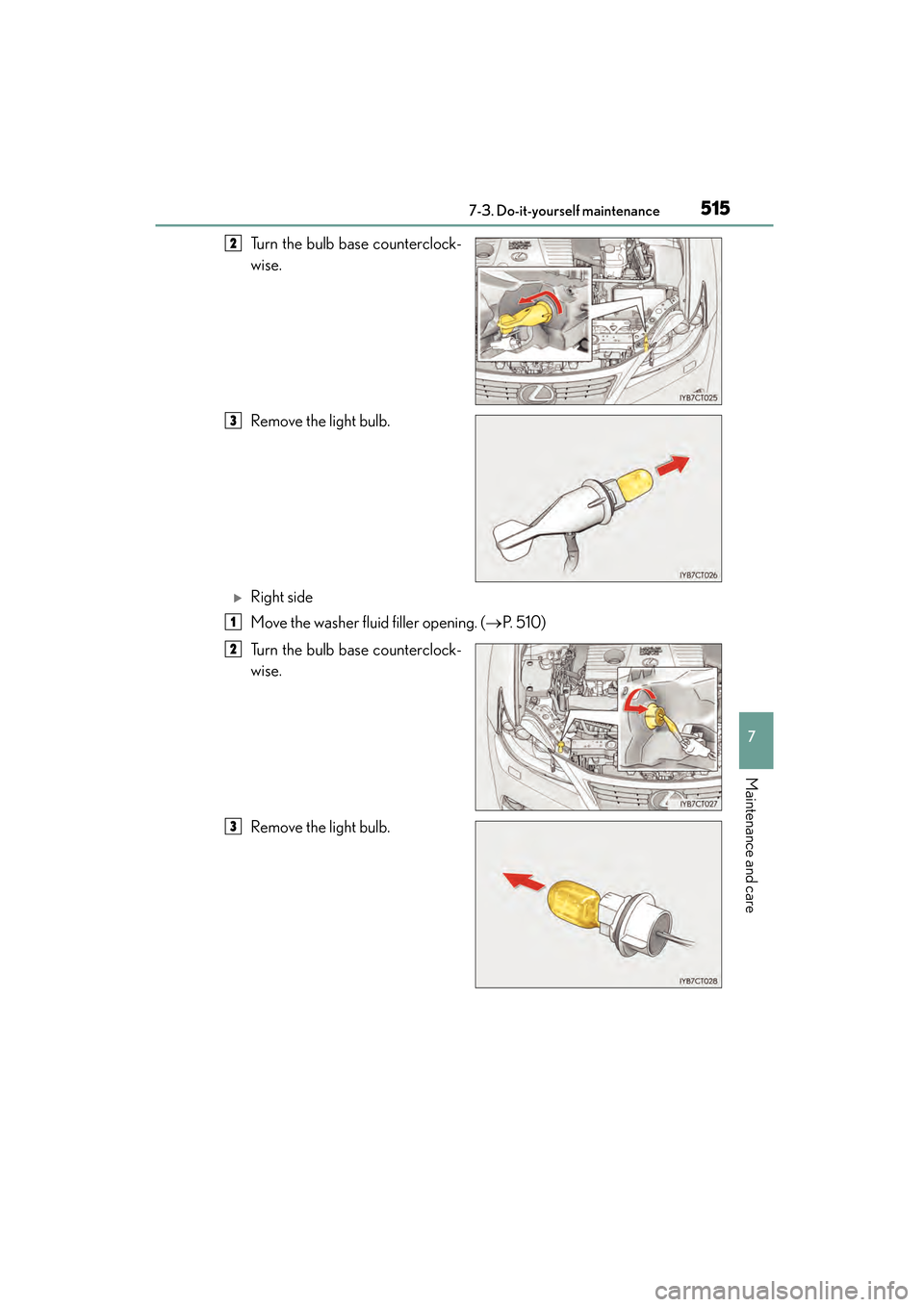

5157-3. Do-it-yourself maintenance
7
Maintenance and care
Turn the bulb base counterclock-
wise.
Remove the light bulb.
XRight side
Move the washer fluid filler opening. (→P. 5 1 0 )
Turn the bulb base counterclock-
wise.
Remove the light bulb.
2
3
1
2
3

5408-2. Steps to take in an emergency
CT200h_OM_OM76174U_(U)
(If equipped)
Indicates a malfunction in:
• The cruise control system; or
• The dynamic radar cruise control systemPress the “ON-OFF” button once to deactivate the
system, and then press the button again to reactivate
the system.
A buzzer also sounds.
→ Have the vehicle inspected by your Lexus dealer.
(If equipped)
Indicates a malfunction in the pre-collision system
A buzzer also sounds.
→ Have the vehicle inspected by your Lexus dealer.
(If equipped)
Indicates that the moon roof is not fully closed (with the
power switch off, and the driver’s door open) A buzzer also sounds.
→ Close the moon roof.
Indicates that the hybrid system has overheated
This message may be displayed when driving under
severe operating conditions. (For example, when driv-
ing up a long steep hill.)
A buzzer also sounds.
→ Stop and check. ( →P. 5 6 5 )
(If equipped)
Indicates a malfunction in the LED headlight system
A buzzer also sounds.
→ Have the vehicle inspected by your Lexus dealer.
Indicates that the washer fluid level is low
→Add washer fluid.
Wa r n i n g m e s s a g eDetails/Actions
(Flashes)
(Flashes)
(Flashes)

621Alphabetical index
CT200h_OM_OM76174U_(U)
If you have a flat tire ..........................547
If you lose your keys ................102, 104
If you think something is wrong ...................................................526
If your vehicle becomes stuck ..................................................... 569
If your vehicle has to be stopped in an
emergency.......................................... 521
If your vehicle needs to be
towed.................................................... 522
If your vehicle overheats ............... 565
Energy monitor ..........................................91
Engine Accessory mode................................. 157
Compartment ...................................... 476
Engine switch ........................................ 156
Hood ........................................................ 473
How to start the hybrid system ................................................... 156
Identification number .......................573
If your vehicle has to be stopped in an emergency ........... 521
Ignition switch
(power switch).................................. 156
Overheating ........................................ 565
Power switch......................................... 156 Engine compartment cover.............. 477
Engine coolant
Capacity ................................................. 575
Checking .............................................. 480
Preparing and checking before winter .................................... 245
Engine oil Capacity ................................................. 574
Checking ................................................477
Oil pressure warning light ............ 527
Engine oil maintenance data ............466
Engine switch........................................... 156 Auto power off function .................. 158
Changing the power switch modes .................................................... 157
If your vehicle has to be stopped
in an emergency............................... 521
Starting the hybrid system...............156
EPS (Electronic Power Steering) Function .................................................. 232
Warning light .......................................528
EV indicator ...............................................66
EV drive mode ........................................160
Event data recorder (EDR)................... 12
First-aid kit storage belt......................432
Flat tire .......................................................547
Floor mats................................................... 28
Fluid
Brake........................................................ 577
Transmission ........................................ 576
Washer ...................................................483
Fog lights
Replacing light bulbs .............. 512, 517
Switch ........................................................ 172
Wattage ................................................. 579
F

630Alphabetical index
CT200h_OM_OM76174U_(U)
TransmissionHybrid transmission........................... 162
P position switch.................................. 163
Selecting a driving mode .................231
Trip meters ................................................. 85
Turn signal lights Replacing light bulbs...................................514, 514, 516, 517
Turn signal lever ...................................167
Wattage ..................................................579
USB memory...............................278, 356
USB port .......................................255, 326
Vanity lights Vanity lights .......................................... 437
Wattage ..................................................579
Vanity mirrors ........................................ 437 Vanity lights .......................................... 437
Vehicle data recordings .......................... 11
Vehicle identification number......... 572
Vehicle Stability Control (VSC) .... 232
Voice command system ....................400
VSC (Vehicle Stability Control) .... 232 Warning buzzers
Approach warning .............................193
Intuitive parking assist...................... 202
Open door ...........................................528
Seat belt reminder............................. 529
Warning lights ABS ..........................................................528
Automatic headlight leveling system .................................................. 528
Brake system ....................................... 527
Charging system ............................... 527
Electric power steering ..................528
High coolant temperature ............528
Low engine oil pressure ................ 527
Low fuel level ....................................... 529
Malfunction indicator lamp........... 527
Master warning light ........................ 529
Open door ...........................................528
“PCS” .......................................................528
Seat belt reminder light .................. 529
Slip indicator ........................................528
SRS............................................................528
Tire pressure ........................................ 529
Warning messages.............................. 534
Washer Checking ............................................... 483
Low washer fluid warning message..............................................540
Preparing and checking
before winter .................................... 245
Switch ........................................................ 174
