CT200h_OM_OM76174U_(U)7-3. Do-it-yourself maintenance
Air conditioning filter
Tu r n t h e p o w e r s w i t c h o f f .
Open the glove box. Lift and remove
the partition.
Remove the glove box cover.
Remove the filter cover.
The air conditioning filter must be changed regularly to maintain air condi-
tioning efficiency.
Removal method
1
2
3
4

CT200h_OM_OM76174U_(U)
5017-3. Do-it-yourself maintenance
7
Maintenance and care

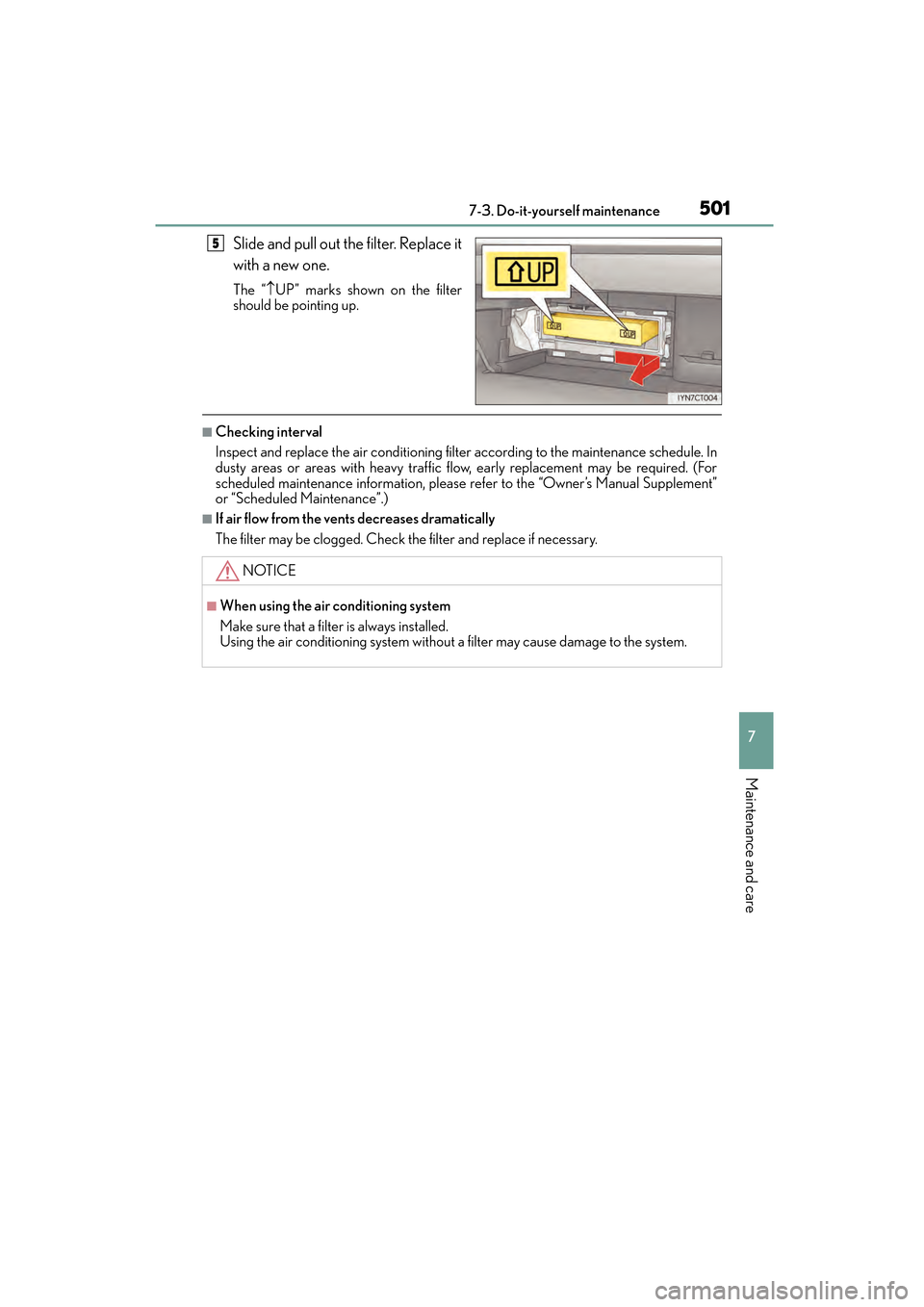

Slide and pull out the filter. Replace it
with a new one.
The “↑UP” marks shown on the filter
should be pointing up.
■Checking interval
Inspect and replace the air conditioning filter according to the maintenance schedule. In
dusty areas or areas with heavy traffic flow, early replacement may be required. (For
scheduled maintenance information, please refer to the “Owner’s Manual Supplement”
or “Scheduled Maintenance”.)
■If air flow from the vents decreases dramatically
The filter may be clogged. Check the filter and replace if necessary.
5
NOTICE
■When using the air conditioning system
Make sure that a filter is always installed.
Using the air conditioning system without a filter may cause damage to the system.

502
CT200h_OM_OM76174U_(U)7-3. Do-it-yourself maintenance
Electronic key battery
●Flathead screwdriver
●Lithium battery CR1632
Take out the mechanical key.
Remove the cover.
To prevent damage to the key, cover the
tip of the screwdriver with a rag.
Remove the depleted battery.
Insert a new battery with the “+” termi-
nal facing up.
Replace the battery with a new one if it is depleted.
You will need th
e following items:
Replacing the battery
1
2
3

CT200h_OM_OM76174U_(U)
5037-3. Do-it-yourself maintenance
7
Maintenance and care
■Use a CR1632 lithium battery
●Batteries can be purchased at your Lexus dealer, local electrical appliance shops or
camera stores.
●Replace only with the same or equivalent type recommended by the manufacturer.
●Dispose of used batteries according to the local laws.
■When the card key battery needs to be replaced (if equipped)
The battery for the card key is available only at Lexus dealers. Your Lexus dealer can
replace the battery for you.
■If the electronic key battery is depleted
The following symptoms may occur:
●The smart access system with push-button start and wireless remote control will not
function properly.
●The operational range will be reduced.
WA R N I N G
■Removed battery and other parts
These parts are small and if swallowed by a child, they can cause choking. Keep away
from children. Failure to do so could result in death or serious injury.
NOTICE
■For normal operation after replacing the battery
Observe the following precautions to prevent accidents:
●Always work with dry hands.
Moisture may cause the battery to rust.
●Do not touch or move any other component inside the remote control.
●Do not bend either of the battery terminals.

504
CT200h_OM_OM76174U_(U)7-3. Do-it-yourself maintenance
Checking and replacing fuses
Tu r n t h e p o w e r s w i t c h o f f .
Open the fuse box cover.
XEngine compartment
Push the tab in and lift the lid off.
XLeft side instrument panel
Remove the lid.
If any of the electrical components do not operate, a fuse may have blown. If
this happens, check and replace the fuses as necessary.
1
2

CT200h_OM_OM76174U_(U)
5057-3. Do-it-yourself maintenance
7
Maintenance and care
Remove the fuse.
Only type A fuse can be removed
using the pullout tool.
Check if the fuse is blown.Normal fuse
Blown fuse
Replace the blown fuse with a new fuse of an appropriate amperage rating. The
amperage rating can be found on the fuse box lid.
3
4
1
2
XTy p e AXTy p e B
XTy p e CXTy p e D

506
CT200h_OM_OM76174U_(U)7-3. Do-it-yourself maintenance
■After a fuse is replaced
●If the lights do not turn on even after the fuse has been replaced, a bulb may need
replacement. (
→P. 5 0 7 )
●If the replaced fuse blows again, have the vehicle inspected by your Lexus dealer.
■If there is an overload in a circuit
The fuses are designed to blow, protec ting the wiring harness from damage.
■When replacing light bulbs
Lexus recommends that you use genuine Lexus products designed for this vehicle.
Because certain bulbs are connected to circuits designed to prevent overload, nongenu-
ine parts or parts not designed for this vehicle may be unusable.
WA R N I N G
■To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failure to do so may cause damage to the vehicle, and possibly a fire or injury.
●Never use a fuse of a higher amperage rating than that indicated, or use any other
object in place of a fuse.
●Always use a genuine Lexus fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
●Do not modify the fuses or fuse boxes.
■Fuse box near the power control unit
Never check or replace the fuses as there are high voltage parts and wiring near the
fuse box.
Doing so may cause electric shock, resulting in death or serious injury.
NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired by your Lexus dealer as
soon as possible.

507
CT200h_OM_OM76174U_(U)7-3. Do-it-yourself maintenance
7
Maintenance and care
Light bulbs
Check the wattage of the light bulb to be replaced. (
→P. 5 7 9 )
→ P. 4 7 7
■Front
XVehicles with halogen headlights
You may replace the following bulbs by yourself. The difficulty level of replace-
ment varies depending on the bulb. If necessary bulb replacement seems diffi-
cult to perform, contact your Lexus dealer.
For more information about replacing other light bulbs, contact your Lexus
dealer.
Preparing for light bulb replacement
Removing the engine compartment cover
Bulb locations
Front turn signal light
Halogen fog light (if equipped) Headlight low beam
Headlight high beam1
2
3
4

508
CT200h_OM_OM76174U_(U)7-3. Do-it-yourself maintenance

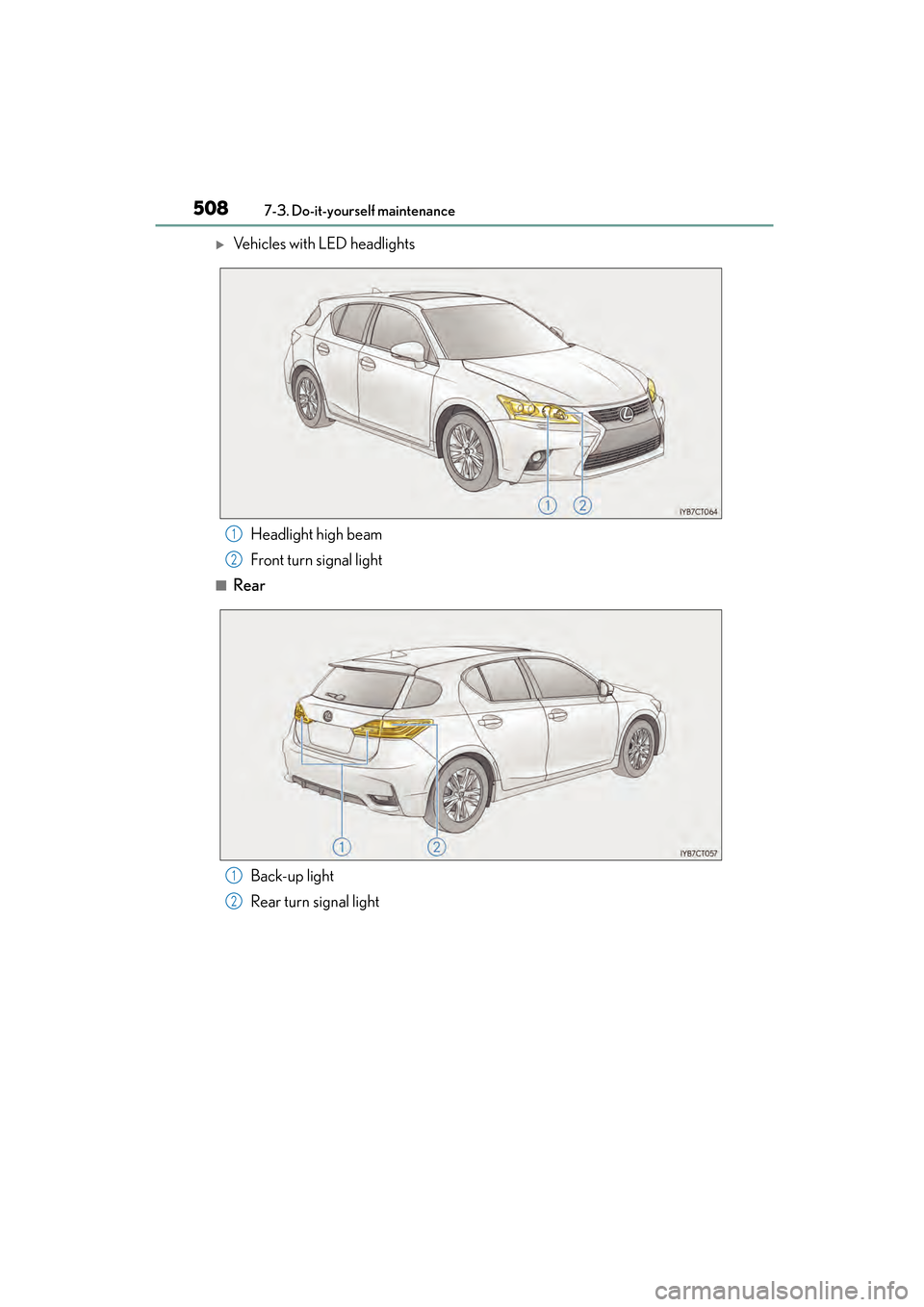

XVehicles with LED headlights
Headlight high beam
Front turn signal light
■RearBack-up light
Rear turn signal light
1
2
1
2

CT200h_OM_OM76174U_(U)
5097-3. Do-it-yourself maintenance
7
Maintenance and care
■Headlight low beams (halogen headlights)Unplug the connector while
pressing the lock release.
Turn the bulb base counterclock-
wise.
Set the new light bulb.
Align the 3 tabs on the light bulb with
the mounting, and insert. Turn it
clockwise to set.
Set the connector.
After installing the connector, shake
the bulb base gently to check that it is
not loose, turn the headlight low
beams on once and visually confirm
that no light is leaking through the
mounting.
Replacing light bulbs
1
2
3
4
