rear view mirror Lexus CT200h 2015 Owner's Manual (in English)

3
1
9 8
7
6 4 3
2
CT200h_OM_OM76174U_(U)
10
5
3-4. Adjusting the steering wheel and mirrors
Steering wheel ..............................129
Inside rear view mirror................ 131
Outside rear view mirrors....... 134
3-5. Opening, closing the windows and moon roof
Power windows.............................136
Moon roof .......................................139
4-1. Before driving Driving the vehicle ......................144
Cargo and luggage.................... 150
Vehicle load limits ........................153
Trailer towing .................................154
Dinghy towing ...............................155
4-2. Driving procedures Power (ignition) switch ..............156
EV drive mode ............................. 160
Hybrid transmission.................... 162
Turn signal lever ............................ 167
Parking brake ............................... 168 4-3. Operating the lights
and wipers
Headlight switch ..........................169
Fog light switch ............................. 172
Windshield wipers and washer ............................................174
Rear window wiper and washer .......................................... 180
Headlight cleaner switch..........182
4-4. Refueling Opening the fuel tank cap ...... 183
4-5. Using the driving support systems
Cruise control .............................. 186
Dynamic radar cruise control .......................................... 189
Intuitive parking assist ................199
Rear view monitor system ...... 206
Lexus parking assist monitor..........................................216
Driving mode select switch .............................................231
Driving assist systems .............. 232
Hill-start assist control ............. 236
PCS (Pre-Collision System) ....................................... 238
4-6. Driving tips Hybrid vehicle driving tips ................................................. 243
Winter driving tips ......................245
4Driving

16Pictorial index
CT200h_OM_OM76174U_(U)
Pictorial index
■Exterior
The shape of the headlights may differ depending on the grade, etc. ( →P. 5 0 7 )
Side doors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 105
Locking/unlocking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 105
Opening/closing the door glasses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 136
Locking/unlocking by using the mechanical key. . . . . . . . . . . . . . . . . . . . . . . . .P. 559
Warning lights/warning messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 528, 535
Back door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 110
Opening from outside . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 111
Warning lights/warning messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 528, 535
Outside rear view mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 134
Adjusting the mirror angle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 134
Folding the mirrors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 1 3 4
Driving position memory
* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 123
Defogging the mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 412, 418
1
2
3

20Pictorial index
CT200h_OM_OM76174U_(U)
■Switches
Outside rear view mirror switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 134
Instrument panel light control dial . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 85
Intuitive parking assist switch
* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 199
Heated steering wheel switch
* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 423
Windshield wiper de-icer switch
*. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 419
Headlight cleaner switch
* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 182
1
2
3
4
5
6

25Pictorial index
CT200h_OM_OM76174U_(U)
Inside rear view mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 131
Sun visors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 437
Vanity mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 437
Interior lights
*2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 425
Personal lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 425
Moon roof switches
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 139
“SOS” button
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 453
Garage door opener switches
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 441
*1: If equipped
*2: The illustration shows the front, but they are also equipped in the rear.
1
2
3
4
5
6
7

301-1. For safe use
CT200h_OM_OM76174U_(U)
For safety drive
Adjust the angle of the seatback so
that you are sitting straight up and so
that you do not have to lean forward
to steer. (→P. 1 1 9 )
Adjust the seat so that you can
depress the pedals fully and so that
your arms bend slightly at the elbow
when gripping the steering wheel.
( → P. 1 1 9 )
Lock the head restraint in place with th e center of the head restraint closest to
the top of your ears. ( →P. 1 2 6 )
Wear the seat belt correctly. ( →P. 3 2 )
Make sure that all occupants are wearing their seat belts before driving the vehi-
cle. ( →P. 3 2 )
Use a child restraint system appropriate for the child until the child becomes
large enough to properly wear the vehicle’s seat belt. ( →P. 5 2 )
Make sure that you can see backward clearly by adjusting the inside and outside
rear view mirrors properly. ( →P. 131, 134)
For safe driving, adjust the seat and mi rror to an appropriate position before
driving.
Correct driving posture
1
2
Correct use of the seat belts
Adjusting the mirrors
3
4

99
CT200h_OM_OM76174U_(U)
3
Operation of
each component
3-1. Key information
Keys .................................................. 100
3-2. Opening, closing and locking the doors
Side doors ...................................... 105
Back door.........................................110
Smart access system with push-button start........................ 114
3-3. Adjusting the seats Front seats........................................ 119
Rear seats......................................... 121
Driving position memory ......... 123
Head restraints .............................126
3-4. Adjusting the steering wheel and mirrors
Steering wheel ..............................129
Inside rear view mirror................ 131
Outside rear view mirrors ....... 134
3-5. Opening, closing the windows and moon roof
Power windows ............................ 136
Moon roof ...................................... 139

123
CT200h_OM_OM76174U_(U)3-3. Adjusting the seats
3
Operation of each component

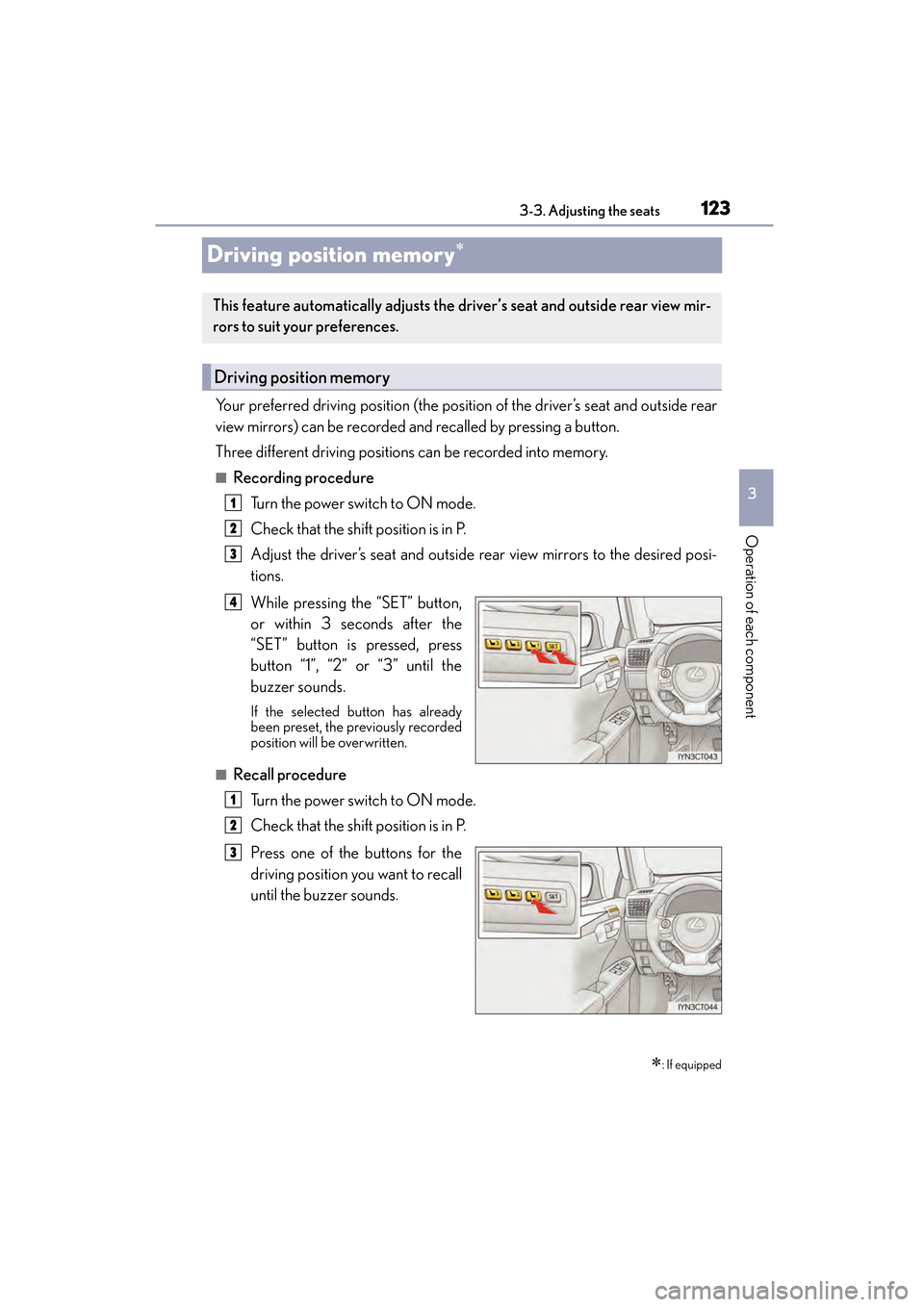

Driving position memory∗
Your preferred driving position (the position of the driver’s seat and outside rear
view mirrors) can be recorded and recalled by pressing a button.
Three different driving positions can be recorded into memory.
■Recording procedure
Turn the power switch to ON mode.
Check that the shift position is in P.
Adjust the driver’s seat and outside rear view mirrors to the desired posi-
tions.
While pressing the “SET” button,
or within 3 seconds after the
“SET” button is pressed, press
button “1”, “2” or “3” until the
buzzer sounds.
If the selected button has already
been preset, the previously recorded
position will be overwritten.
■Recall procedure
Turn the power switch to ON mode.
Check that the shift position is in P.
Press one of the buttons for the
driving position you want to recall
until the buzzer sounds.
∗: If equipped
This feature automatically adjusts the driver’s seat and outside rear view mir-
rors to suit your preferences.
Driving position memory
1
2
3
4
1
2
3

CT200h_OM_OM76174U_(U)
1253-3. Adjusting the seats
3
Operation of each component
■Recall procedure
Carry the electronic key that has been registered to the driving position, and
then unlock and open the driver’s door using the smart access system with
push-button start or wireless remote control.
The driving position will move to the recorded position.
If the driving position is in a position that has already been recorded, the seat and out-
side rear view mirrors will not move.
■Cancelation procedure
Carry only the key you want to cancel and then close the driver’s door.
If 2 or more keys are in the vehicle, the driving position cannot be canceled
properly.
Turn the power switch to ON mode.
While pressing the “SET” button, press and hold the door lock switch
(either lock or unlock) until the buzzer sounds twice.
If the button could not be canceled, the buzzer sounds continuously for approxi-
mately 3 seconds.
■Recalling the driving position using the memory recall function
●Different driving positions can be registered for each electronic key. Therefore, the
driving position that is recalled may be di fferent depending on the key being carried.
●If a door other than the driver’s door is unlocked with the smart access system with
push-button start, the driving position cannot be recalled. In this case, press the driving
position button which has been set.
WA R N I N G
■Seat adjustment caution
Take care during seat adjustment so that the seat does not strike the rear passenger or
squeeze your body against the steering wheel.
1
2

1313-4. Adjusting the steering wheel and mirrors
3
Operation of each component
CT200h_OM_OM76174U_(U)

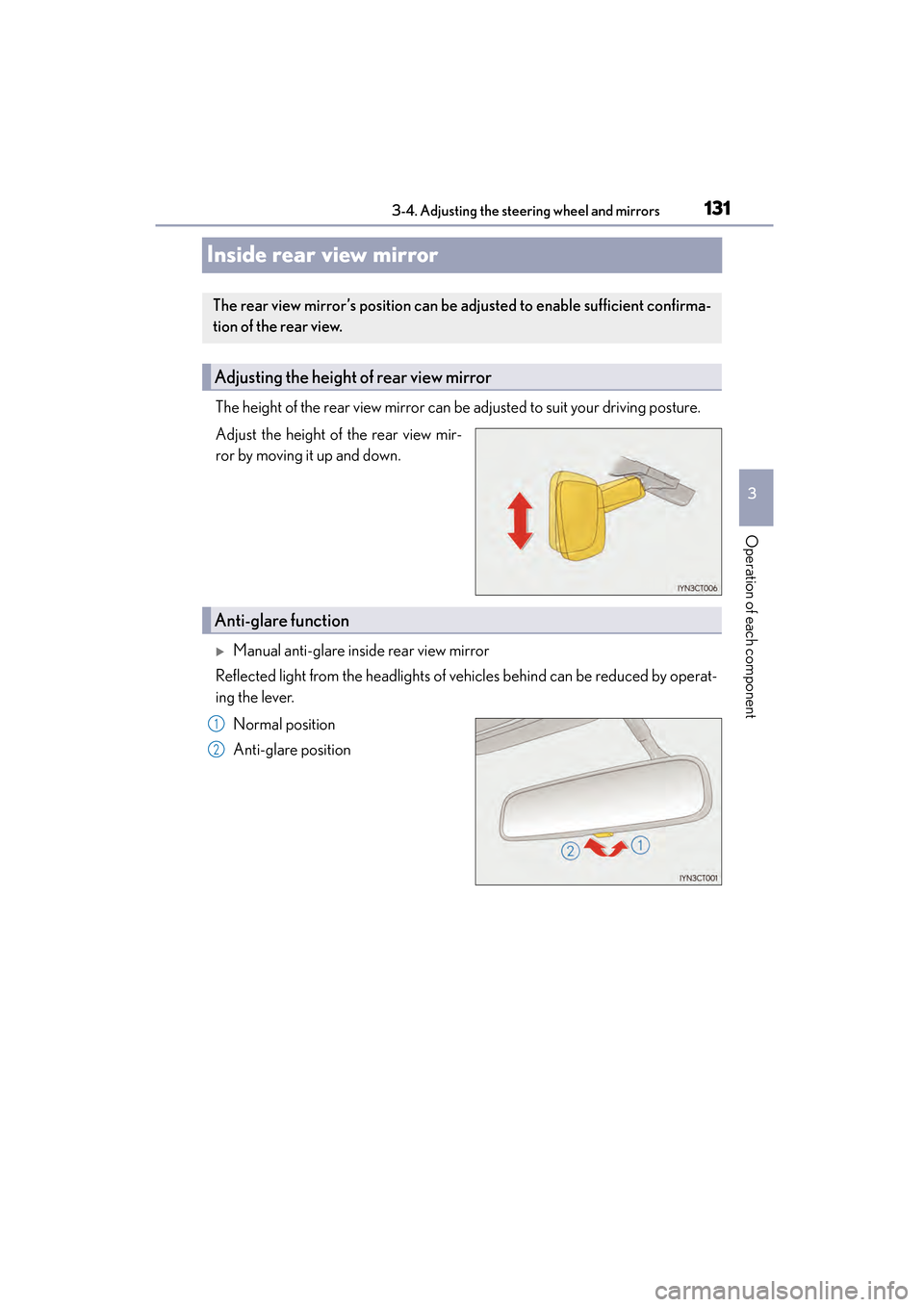

Inside rear view mirror
The height of the rear view mirror can be adjusted to suit your driving posture.
Adjust the height of the rear view mir-
ror by moving it up and down.
XManual anti-glare inside rear view mirror
Reflected light from the headlights of vehicles behind can be reduced by operat-
ing the lever.
Normal position
Anti-glare position
The rear view mirror’s position can be adjusted to enable sufficient confirma-
tion of the rear view.
Adjusting the height of rear view mirror
Anti-glare function
1
2

1323-4. Adjusting the steering wheel and mirrors
CT200h_OM_OM76174U_(U)
XAuto anti-glare inside rear view mirror (type A)
Responding to the level of brightness of the headlights of vehicles behind, the
reflected light is automatically reduced.
Changing automatic anti-glare func-
tion mode
On/off
When the automatic anti-glare function
is in ON mode, the indicator illuminates.
The function will set to ON mode each
time the power switch is turned to ON
mode.
Pressing the button turns the function to
OFF mode. (The indicator also turns
off.)
XAuto anti-glare inside rear view mirror (type B)
Responding to the level of brightness of the headlights of vehicles behind, the
reflected light is automatically reduced.
Changing automatic anti-glare func-
tion mode
On/off
When the automatic anti-glare function
is in ON mode, the indicator illuminates.
The function will set to ON mode each
time the power switch is turned to ON
mode.
Pressing the button turns the function to
OFF mode. (The indicator also turns
off.)
Indicator
Indicator
