Lexus CT200h 2016 Owner's Manual (in English)

571
CT200h_OM_OM76197U_(U)
9Vehicle specifications
9-1. SpecificationsMaintenance data (fuel, oil level, etc.)................... 572
Fuel information......................... 580
Tire information ...........................582
9-2. Customization Customizable features ............. 591
9-3. Initialization Items to initialize ......................... 599

572
CT200h_OM_OM76197U_(U)9-1. Specifications
Maintenance data (fuel, oil level, etc.)
*: Unladen vehicle
■Vehicle identification number
The vehicle identification number (VIN) is
the legal identifier for your vehicle.
This is the primary identification number fo r your Lexus. It is used in register-
ing the ownership of your vehicle.
This number is stamped on the top
left of the instrument panel.
This number is also on the Certifica-
tion label.
Dimensions and weight
Overall length171.3 in. (4350 mm)
Overall width69.5 in. (1765 mm)
Overall height*57.3 in. (1455 mm)
Wheelbase102.4 in. (2600 mm)
Tr e a dFront60.0 in. (1525 mm)
Rear59.8 in. (1520 mm)
Vehicle capacity weight
(Occupants + luggage)825 lb. (370 kg)
Vehicle identification

CT200h_OM_OM76197U_(U)
5739-1. Specifications
9
Vehicle specifications
This number is also stamped under
the right-hand front seat.
■Engine number
The engine number is stamped on
the engine block as shown.
Engine
Model1.8 L 4-cylinder (2ZR-FXE)
Ty p e4-cylinder in line, 4-cycle, gasoline
Bore and stroke3.17  3.48 in. (80.5  88.3 mm)
Displacement109.7 cu.in. (1798 cm3)
Valve clearance (engine cold)Automatic adjustment
Fuel
Fuel typeUnleaded gasoline only
Octane Rating87 (Research Octane Number 91) or higher
Fuel tank capacity (Reference)11.9 gal. (45 L, 9.9 Imp.gal.)
Electric motor (traction motor)
Ty p ePermanent magnet motor
Maximum output60 kW
Maximum torque153 ft•lbf (207 N•m, 21.1 kgf•m)

574
CT200h_OM_OM76197U_(U)9-1. Specifications
*: The engine oil capacity is a reference quantity to be used when changing the engine
oil. Warm up the engine and turn off the hybrid system, wait more than 5 minutes, and
check the oil level on the dipstick.
■Engine oil selection
“Toyota Genuine Motor Oil” is used in your Lexus vehicle. Use Lexus
approved “Toyota Genuine Motor Oil” or equivalent to satisfy the following
grade and viscosity.
Oil grade: ILSAC GF-5 multigrade engine oil
Recommended viscosity: SAE 0W-20
SAE 0W-20 is the best choice for
good fuel economy and good start-
ing in cold weather.
If SAE 0W-20 is not available, SAE
5W-20 oil may be used. However, it
must be replaced with SAE 0W-20
at the next oil change.
Hybrid battery (traction battery)
Ty p eNickel-Metal hydride battery
Vo l t a g e7. 2 V/m o d u l e
Capacity6.5 Ah (3HR)
Quantity28 modules
Overall voltage201.6 V
Lubrication system
Oil capacity
(Drain and refill — reference
*)
With filter
Without filter4.4 qt. (4.2 L, 3.7 Imp.qt.)
4.1 qt. (3.9 L, 3.4 Imp.qt.)
Outside temperature

CT200h_OM_OM76197U_(U)
5759-1. Specifications
9
Vehicle specifications
Oil viscosity (0W-20 is explained here as an example):• The 0W in 0W-20 indicates the characteristic of the oil which allows cold startability. Oils with a lower value before the W allow for easier starting of
the engine in cold weather.
• The 20 in 0W-20 indicates the viscos ity characteristic of the oil when the
oil is at high temperature. An oil with a higher viscosity (one with a higher
value) may be better suited if the vehicle is operated at high speeds, or
under extreme load conditions.
How to read oil container label:
The International Lubricant Specifi-
cation Advisory Committee
(ILSAC) Certification Mark is added
to some oil containers to help you
select the oil you should use.
Cooling system
Capacity
Gasoline
engine
Without exhaust heat recirculator system
6.9 qt. (6.5 L, 5.7 Imp.qt.)
With an exhaust heat recirculator system
7.3 qt. (6.9 L, 6.1 Imp.qt.)
Po w e r
control unit2.2 qt. (2.1 L, 1.8 Imp.qt.)
Coolant type
Use either of the following: • “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based
non-silicate, non-amine, non-nitrite, and non-
borate coolant with long-life hybrid organic
acid technology
Do not use plain water alone.

576
CT200h_OM_OM76197U_(U)9-1. Specifications
*: The fluid capacity is the quantity of reference.
If replacement is necessary, contact your Lexus dealer.
Ignition system (spark plug)
MakeDENSO SC20HR11, SC16HR11
Gap0.043 in. (1.1 mm)
NOTICE
■Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.
Electrical system
12-volt battery
Open voltage at 68F (20 C):12.0 V or higher
If the voltage is lower than the standard value,
charge the battery.
(Voltage is checked 20 minutes after the hybrid
system and all lights are turned off.)
Charging rates4.2 A max.
Hybrid transmission
Fluid capacity*3.6 qt. (3.4 L, 3.0 Imp.qt.)
Fluid typeTo y o t a G e n u i n e AT F W S
NOTICE
■Hybrid transmission fluid type
Using transmission fluid other than “Toyota Genuine ATF WS” may cause deterioration
in shift quality, locking up of your transm ission accompanied by vibration, and ulti-
mately damage the transmission of your vehicle.

CT200h_OM_OM76197U_(U)
5779-1. Specifications
9
Vehicle specifications

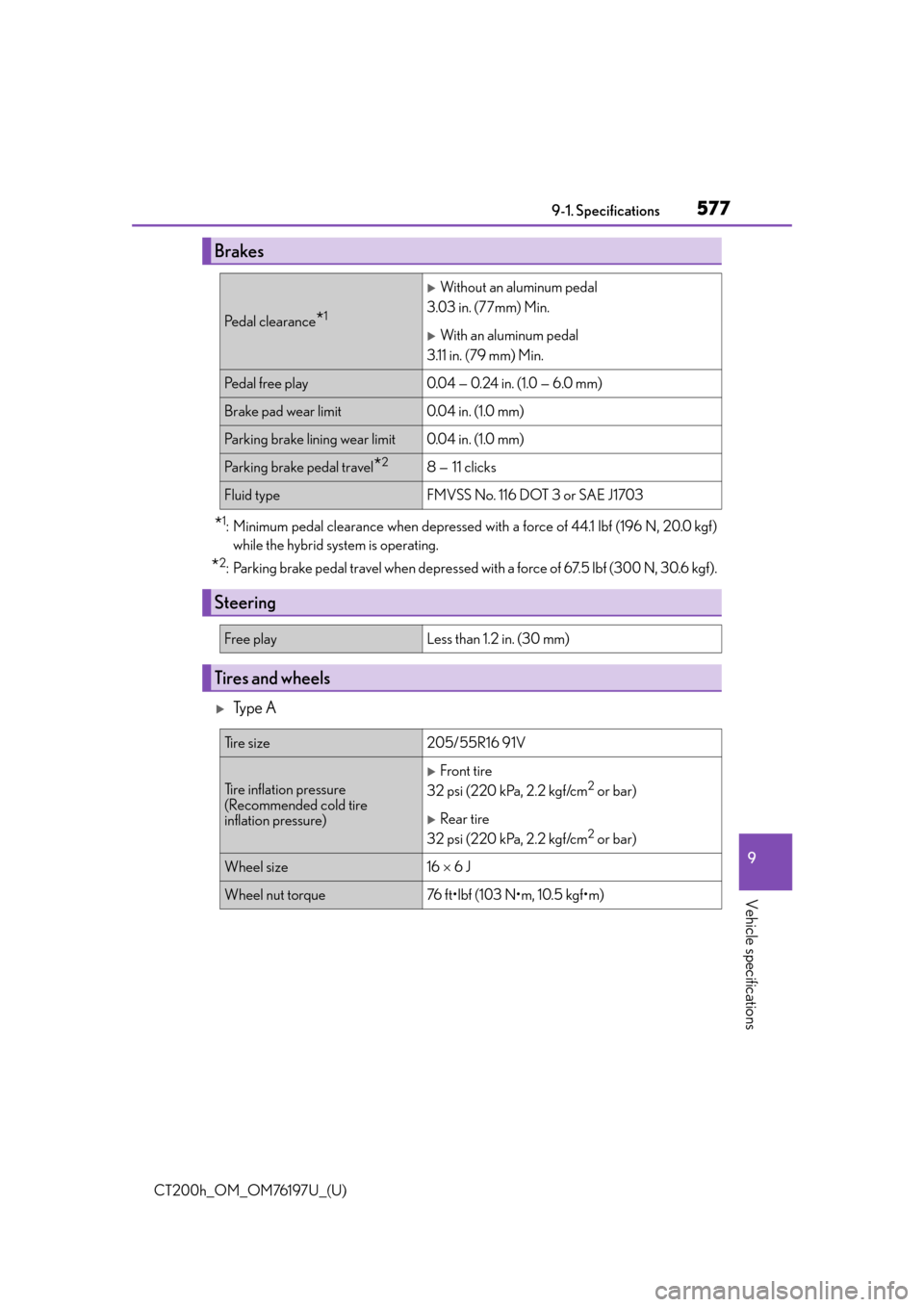

*1: Minimum pedal clearance when depressed with a force of 44.1 lbf (196 N, 20.0 kgf)while the hybrid system is operating.
*2: Parking brake pedal travel when depressed with a force of 67.5 lbf (300 N, 30.6 kgf).
Ty p e A
Brakes
Pe d a l c l e a r a n c e*1
Without an aluminum pedal
3.03 in. (77mm) Min.
With an aluminum pedal
3.11 in. (79 mm) Min.
Pedal free play0.04 — 0.24 in. (1.0 — 6.0 mm)
Brake pad wear limit0.04 in. (1.0 mm)
Parking brake lining wear limit0.04 in. (1.0 mm)
Parking brake pedal travel*28 — 11 clicks
Fluid typeFMVSS No. 116 DOT 3 or SAE J1703
Steering
Free playLess than 1.2 in. (30 mm)
Tires and wheels
Ti r e s i z e205/55R16 91V
Tire inflation pressure
(Recommended cold tire
inflation pressure)
Front tire
32 psi (220 kPa, 2.2 kgf/cm2 or bar)
Rear tire
32 psi (220 kPa, 2.2 kgf/cm2 or bar)
Wheel size16  6 J
Wheel nut torque76 ft•lbf (103 N•m, 10.5 kgf•m)

578
CT200h_OM_OM76197U_(U)9-1. Specifications
Ty p e B
Ty p e C
Compact spare tire
Ti r e s i z eP205/55R16 89H
Tire inflation pressure
(Recommended cold tire
inflation pressure)
Front tire
32 psi (220 kPa, 2.2 kgf/cm2 or bar)
Rear tire
32 psi (220 kPa, 2.2 kgf/cm2 or bar)
Wheel size16  6 J
Wheel nut torque76 ft•lbf (103 N•m, 10.5 kgf•m)
Ti r e s i z eP215/45R17 87V
Tire inflation pressure
(Recommended cold tire
inflation pressure)
Front tire
33 psi (230 kPa, 2.3 kgf/cm2 or bar)
Rear tire
32 psi (220 kPa, 2.2 kgf/cm2 or bar)
Wheel size17  7 J
Wheel nut torque76 f t•lbf (103 N•m, 10.5 kgf•m)
Ti r e s i z eT125/70D17 98M
Spare tire inflation pressure
(Recommended cold tire
inflation pressure)
60 psi (420 kPa, 4.2 kgf/cm2 or bar)
Wheel size17  4 T
Wheel nut torque76 f t•lbf (103 N•m, 10.5 kgf•m)

CT200h_OM_OM76197U_(U)
5799-1. Specifications
9
Vehicle specifications
Light bulbs
Light bulbsBulb No.WTy p e
Exterior
HeadlightsLow beam (halogen bulbs)
*High beam
5565A B
Fog lights (halogen bulbs)*19C
Front turn signal lights7444NA28 /8D
Rear turn signal lightsWY21W21D
Back-up lightsW16W16E
Outer foot lightsW5W5E
Interior
Personal/interior lights5E
Rear interior lights8F
Vanity lights8E
Luggage compartment light5E
A: H11 halogen bulbs
B: H9 halogen bulbs
C: H16 halogen bulbs D: Wedge base bulbs (amber) E: Wedge base bulbs (clear)
F: Double end bulbs
*: If equipped

580
CT200h_OM_OM76197U_(U)9-1. Specifications
Fuel information
■Gasoline quality
In very few cases, driveability problems may be caused by
the brand of gasoline you are
using. If driveability problems persist, try changing the brand of gasoline. If this does not
correct the problem, consult your Lexus dealer.
■If your engine knocks
●Consult your Lexus dealer.
●You may occasionally notice light knocking fo r a short time while accelerating or driv-
ing uphill. This is normal and there is no need for concern.
■Gasoline quality standards
●Automotive manufacturers in the U.S.A., Eu rope and Japan have developed a specifi-
cation for fuel quality called the World-Wi de Fuel Charter (WWFC), which is expected
to be applied worldwide.
●The WWFC consists of four cat egories that are based on required emission levels. In
the U.S., category 4 has been adopted.
●The WWFC improves air quality by lowering emissions in vehicle fleets, and improves
customer satisfaction through better performance.
■Recommendation of the use of gasoli ne containing detergent additives
●Lexus recommends the use of gasoline that contains detergent additives to avoid the
build-up of engine deposits.
●All gasoline sold in the U.S.A. contains minimum detergent additives to clean and/or
keep clean intake systems, per EPA’s lowest additives concentration program.
●Lexus strongly recommends the use of Top Ti er Detergent Gasoline. For more informa-
tion on Top Tier Detergent Gasoline and a list of marketers, please go to the official
website www.toptiergas.com.
■Recommendation of the use of low emissions gasoline
Gasolines containing oxygenates such as et hers and ethanol, as well as reformulated
gasolines, are available in some cities. These fuels are typically acceptable for use, pro-
viding they meet other fuel requirements.
Lexus recommends these fuels, since the fo rmulations allow for reduced vehicle emis-
sions.
You must only use unleaded gasoline in your vehicle.
Select octane rating 87 (Research Octane Number 91) or higher. Use of
unleaded gasoline with an octane rating lower than 87 may result in engine
knocking. Persistent knocking can lead to engine damage.
At minimum, the gasoline you use should meet the specifications of ASTM
D4814 in the U.S.A..
