Lexus ES300 1992 Chassis

CHASSIS
183 High tire pressure produces a harsh ride, handling problems,
excessive wear at the center of the tire tread, and a greater
possibility of tire damage from road hazards.
The following instructions for checking tire pressure should be
observed:
The pressure should be checked only when the tires are
cold. If your vehicle has been parked for at least 3 hours and
has not been driven for more than 1.5 km or 1 mile since, you
will get an accurate cold tire pressure reading.
Always use a tire pressure gauge. The appearance of the
tire can be misleading. Besides, tire pressures that are even
just a few pounds off can degrade handling and ride.
Do not bleed or reduce tire pressure after driving. It is
normal for the tire pressure to be higher after driving.
Never exceed the vehicle capacity weight. The
passenger and luggage weight should be located so that the
vehicle is balanced.
Be sure to reinstall the tire valve caps. Without the valve
caps, dirt or moisture could get into the valve core and
cause air leakage. If the caps have been lost, have new
ones put on as soon as possible.
ROTATING TIRES
To equalize the wear of your tires, rotate the tires every
12000 km (7500 miles).

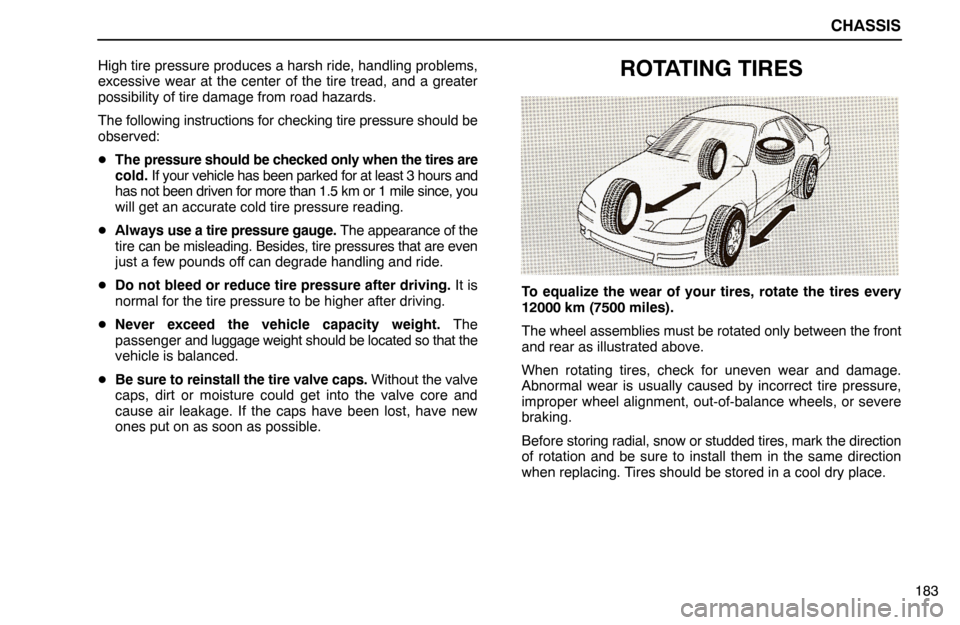

The wheel assemblies must be rotated only between the front
and rear as illustrated above.
When rotating tires, check for uneven wear and damage.
Abnormal wear is usually caused by incorrect tire pressure,
improper wheel alignment, out-of-balance wheels, or severe
braking.
Before storing radial, snow or studded tires, mark the direction
of rotation and be sure to install them in the same direction
when replacing. Tires should be stored in a cool dry place.

CHASSIS
184
CHECKING AND REPLACING TIRES
When to replace your tires

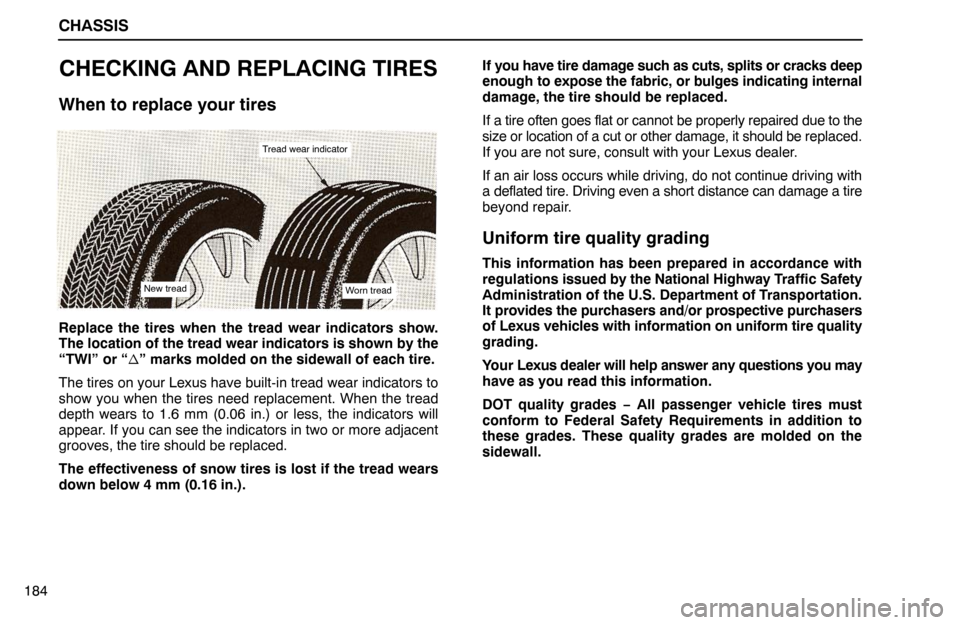

Tread wear indicator
Worn treadNew tread
Replace the tires when the tread wear indicators show.
The location of the tread wear indicators is shown by the
“TWI” or “
” marks molded on the sidewall of each tire.
The tires on your Lexus have built-in tread wear indicators to
show you when the tires need replacement. When the tread
depth wears to 1.6 mm (0.06 in.) or less, the indicators will
appear. If you can see the indicators in two or more adjacent
grooves, the tire should be replaced.
The effectiveness of snow tires is lost if the tread wears
down below 4 mm (0.16 in.).If you have tire damage such as cuts, splits or cracks deep
enough to expose the fabric, or bulges indicating internal
damage, the tire should be replaced.
If a tire often goes flat or cannot be properly repaired due to the
size or location of a cut or other damage, it should be replaced.
If you are not sure, consult with your Lexus dealer.
If an air loss occurs while driving, do not continue driving with
a deflated tire. Driving even a short distance can damage a tire
beyond repair.
Uniform tire quality grading
This information has been prepared in accordance with
regulations issued by the National Highway Traffic Safety
Administration of the U.S. Department of Transportation.
It provides the purchasers and/or prospective purchasers
of Lexus vehicles with information on uniform tire quality
grading.
Your Lexus dealer will help answer any questions you may
have as you read this information.
DOT quality grades − All passenger vehicle tires must
conform to Federal Safety Requirements in addition to
these grades. These quality grades are molded on the
sidewall.

CHASSIS
185 Treadwear − The treadwear grade is a comparative rating
based on the wear rate of the tire when tested under controlled
conditions on a specified government test course. For
example, a tire graded 150 would wear one and a half (1-1/2)
times as well on the government course as a tire graded 100.
The relative performance of tires depends upon the actual
conditions of their use, however, and may depart significantly
from the norm due to variations in driving habits, service
practices and differences in road characteristics and climate.
Traction A, B, C − The traction grades, from highest to lowest,
are A, B and C, and they represent the tire’s ability to stop on
wet pavement as measured under controlled conditions on
specified government test surfaces of asphalt and concrete. A
tire marked C may have poor traction performance.
Warning: The traction grade assigned to this tire is based on
braking (straight ahead) traction tests and does not include
cornering (turning) traction.Temperature A, B, C − The temperature grades are A (the
highest), B, and C, representing the tire’s resistance to the
generation of heat and its ability to dissipate heat when tested
under controlled conditions on a specified indoor laboratory
test wheel. Sustained high temperature can cause the material
of the tire to degenerate and reduce tire life, and excessive
temperature can lead to sudden tire failure. The grade C
corresponds to a level of performance which all passenger car
tires must meet under the Federal Motor Vehicle Safety
Standard No. 109. Grades B and A represent higher levels of
performance on the laboratory test wheel than the minimum
required by law.
Warning: The temperature grade of this tire is established for
a tire that is properly inflated and not overloaded. Excessive
speed, underinflation, or excessive loading, either separately
or in combination, can cause heat buildup and possible tire
failure.
Tire selection
When replacing a tire, use only the same size and
construction as originally installed and with the same or
greater load capacity.
Using any other size or type of tire may seriously affect
handling, ride, speedometer/odometer calibration, ground
clearance, and clearance between the body and tires or snow
chains.
Do not mix radial, belted, or conventional tires on your
vehicle.

CHASSIS
186It can cause dangerous handling characteristics, resulting in
loss of control. If you need to change from conventional tires
to radial tires or vice versa, replace them as a set.
INSTALLING SNOW TIRES AND
CHAINS
When to use snow tires or chains
Snow tires or chains are recommended when driving on
snow or ice.
On wet or dry roads, conventional or radial tires provide better
traction than snow or studded tires.
Snow tire selection
If you need snow tires, select the same size, construction
and load capacity as the original tires on your Lexus.
Do not use tires other than stated above. Since your vehicle
has radial tires as original equipment, make sure your snow
tires also have radial construction. Do not install studded tires
without first checking local regulations for possible restrictions.
Snow tire installation
Snow tires should be installed on all wheels.
Installing snow tires on the front wheels only can lead to an
excessive difference in road grip capability between the front
and rear tires, which could cause loss of vehicle control.CAUTION:
Snow tires should be inflated to 40 kPa (0.4 kg/cm
2, 6
psi) above the normal cold tire recommendations, but
never above the maximum cold tire pressure shown on
the tire sidewall.
Never drive over 120 km/h (75 mph) with any type of
snow tires.
Tire chain selection
Regulations regarding the use of tire chains vary
according to region and type of road. Always check the
local regulations before installing chains.
Use SAE Class “S” type radial tire chains, with the exception
of radial cable chains or V-bar type chains.
Chain installation
When installing chains on your tires, carefully follow the
instructions of the chain manufacturer.
Install the chains on the front tires as tightly as possible. Do not
use tire chains on the rear tires. Retighten chains after driving
0.5 − 1.0 km (1/4 − 1/2 mile).
CAUTION:
Do not exceed 50 km/h (30 mph) or the chain
manufacturer’s recommended speed limit, whichever
is lower.
Drive carefully avoiding bumps, holes, and sharp turns,
which may cause the vehicle to bounce.
Avoid sharp turns or locked-wheel braking, as use of
chains may adversely affect vehicle handling.

CHASSIS
187
REPLACING WHEELS
When to replace your wheels
If you have wheel damage such as bends, cracks or heavy
corrosion, the wheel should be replaced.
If you fail to replace damaged wheels, a tire may slip off a wheel
or they may cause loss of handling control.
Replacement with used wheels is not recommended as they
may have been subjected to rough treatment or high mileage
and could fail without warning. Also, bent wheels which have
been straightened may have hidden structural damage and
therefore should not be used. Never use an inner tube in a
leaking wheel which is designed for a tubeless tire.
Wheel selection
When replacing wheels, care should be taken to ensure
that they are equivalent to those removed in load capacity,
diameter, rim width, and offset.
Correct replacement wheels are available at your Lexus
dealer.
A wheel of a different size or type may adversely affect
handling, wheel and bearing life, brake cooling,
speedometer/odometer calibration, stopping ability, headlight
aim, bumper height, vehicle ground clearance, and lire or snow
chain clearance to the body and chassis.
ALUMINUM WHEEL PRECAUTIONS
After driving your vehicle the first 1600 km (1000 miles),
check that the wheel nuts are tight.
If you have rotated, repaired, or changed your tires, check
that the wheel nuts are still tight after driving 1600 km (1000
miles).
When using tire chains, be careful not to damage the
aluminum wheels.
Use only the Lexus wheel nuts and wrench designed for
your aluminum wheels.
When balancing your wheels, use only Lexus balance
weights or equivalent and a plastic or rubber hammer.
As with any wheel, periodically check your aluminum
wheels for damage. If damaged, replace immediately.
